Uponor T-54 Installation Manual

-4 5 14 23 32 37.9
-20 -15 -10 -5 0 3
Table 3: Outdoor and Slab Sensor Resistance value Table
Note: This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to radio
or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
Uponor, Inc. Uponor Ltd.
5925 148th Street West 2000 Argentia Rd., Plaza 1, Ste. 200
Apple Valley, MN 55124 USA Mississauga, ON L5N 1W1 CANADA
Tel: (800) 321-4739 Tel: (888) 994-7726
Fax: (952) 891-2008 Fax: (800) 638-9517
Web: www.uponor-usa.com Web: www.uponor.ca
41 50 59 68 77 86 F°
5 10 15 20 25 30 C°
• Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2)
this device must accept any interference, including
interference that may cause undesired operation of
the device.
For additional information about Climate Co ˘ ntrol™
Zoning not pertaining specifically to the T-54
Thermostat, refer to the Climate Co ˘ ntrol Zoning
System Installation Guide.
Climate Co ˘ntrol Zoning T-54 Installation Guide
™
This quick-start guide provides instructions for

Step 2: Battery Installation

installing T-54 Thermostats (A3600054) for use Open the back of the T-54, insert the batteries and
with the Uponor Climate Co ˘ ntrol™ Zoning System. attach the appropriate sensor (if used).
Please refer to the Climate Co ˘ ntrol Zoning System
Installation Guide (which comes with the base unit for
A3601000 and A3601012) for other information not
pertaining specifically to the T-54 Thermostat.
Note: The T-54 Thermostat Installation Guide is only
available in the Zoning System base unit packaging.
The following accessories are available for use with
the T-54 Thermostat:
• A3600010 Slab Sensor, 10K
• A3600254 Outdoor Sensor, 10K
• A3600154 Mounting Kit
Important: Do not use other 10K sensors with
the T-54 Thermostat, as other types of sensors will
provide inaccurate temperature information.

Step 1: Package Contents

Step 3: Set the Dip Switches

Refer to the Dip Switch Chart on the next page to
properly set the dip switches for the external sensor.
To activate the feature, move the dip switch to the
ON position.
Confirm the contents of the
package, which include:

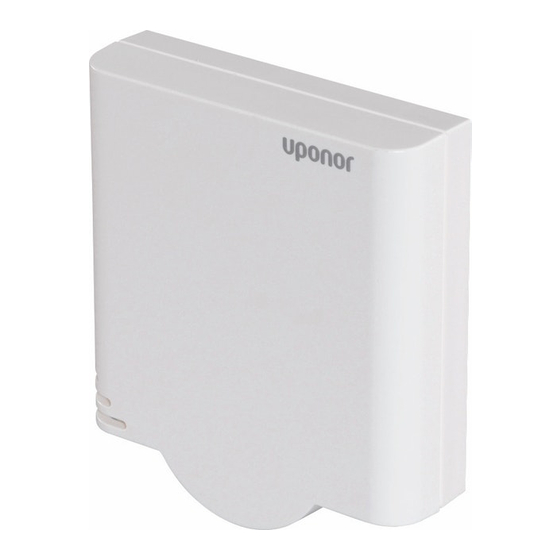

• T-54 Thermostat
• Two AAA batteries
• Hardware pack, anchors
and label
Note: If any contents are
missing, contact your Uponor representative for
assistance.
RADIANT HeATING SySTeMS
C L I M AT E C O ˘ N T R O L ™
Z O N I N G S Y S T E M
T- 5 4 T h E R M O S TAT
INSTALLATION GUIDE
