Each of the fields display specific
icons to show the modes and
functions of the thermostat. Refer
to Figure 2-4 and Table 2-5 for
detailed information about each icon.
No.
Name
1 Air Circulation Icon
2 Relative Humidity Icon
3 Forced-air Heating Icon
4 Forced-air Cooling Icon
5 Ventilation Icon
6 Fan Icon
7 Fan Speed Indication Icon
8 Ventilation Mode/
Outdoor Temperature Icon
9 Vacation Schedule Icon
10 Character Display
11 Unit Icons
12 Slab Icon
13 Radiant Heating Icon
14 Supplemental Heat Icon
15 Cooling Mode Icon
16 Heating Mode Icon
17 Master Thermostat Icon
18 Schedule Enabled Icon
6

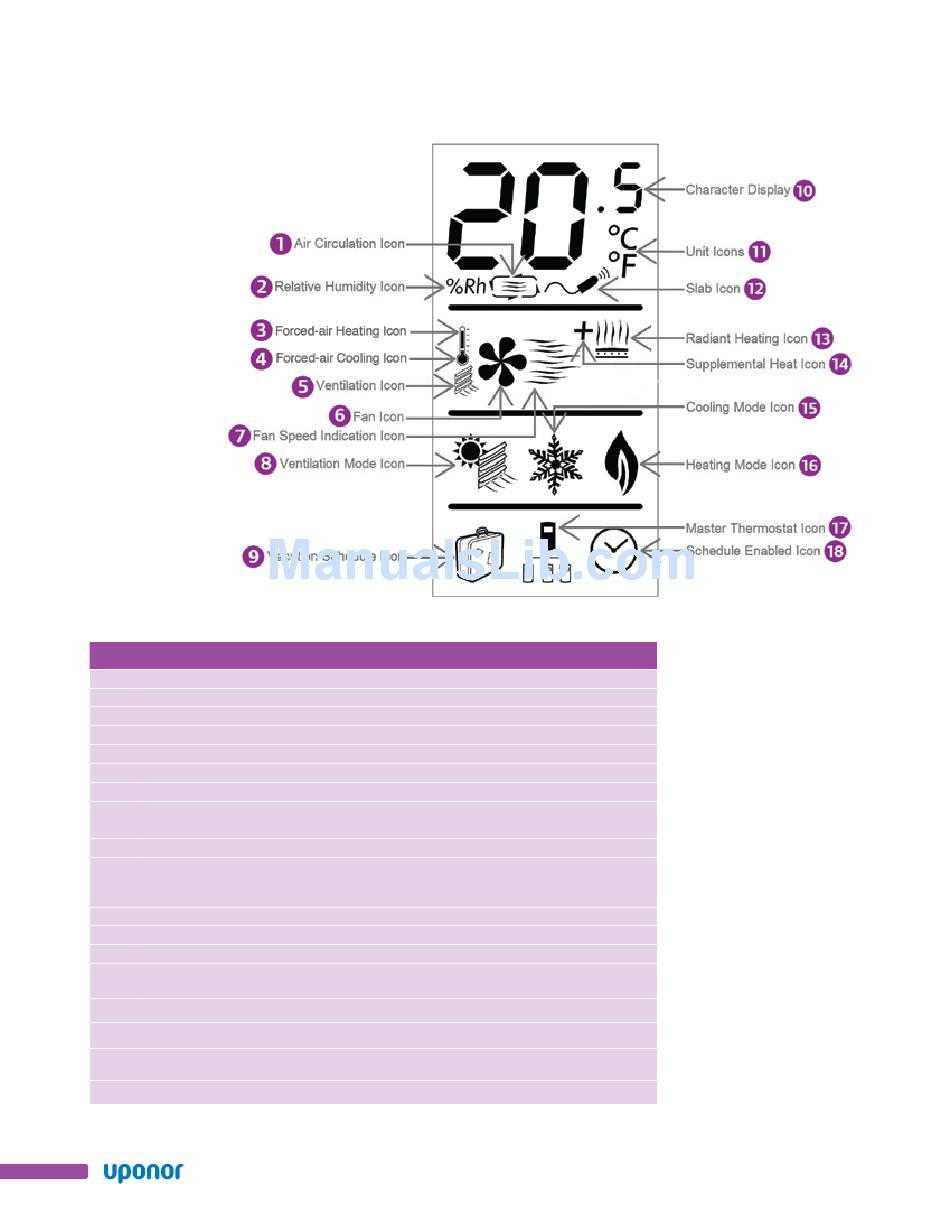

Figure 2-4: Thermostat Display
Description
Indicates a stale air call
Indicates a humidity call
Indicates the furnace is delivering air heat
Indicates the air conditioner is delivering air cooling
Indicates the ventilation system is running
Indicates the fan is running
Indicates fan speed(if multiple speed is available)
Indicates the ventilation mode is turned on (when available);
also appears when the outdoor temperature is viewed
Indicates that the vacation schedule is enabled
Displays numeric settings
Note: When temperatures are displayed in °F, only full
degree increments are available.
Displays the current units (°C or °F)
Indicates when the slab settings are viewed or modified
Indicates the radiant heating system is running
Indicates when supplemental heating is running
(e.g., baseboard heating)
Indicates the system is in cooling mode
Indicates the system is in heating mode
Indicates that the thermostat is designated as an air zone's
master thermostat
Indicates that a schedule is enabled
Table 2-1:
Thermostat Display
Icon Descriptions
Note: All of the above icons may
not always be viewable or
displayed, depending on
how the Climate Co ˘ ntrol
Network-system is set up.
