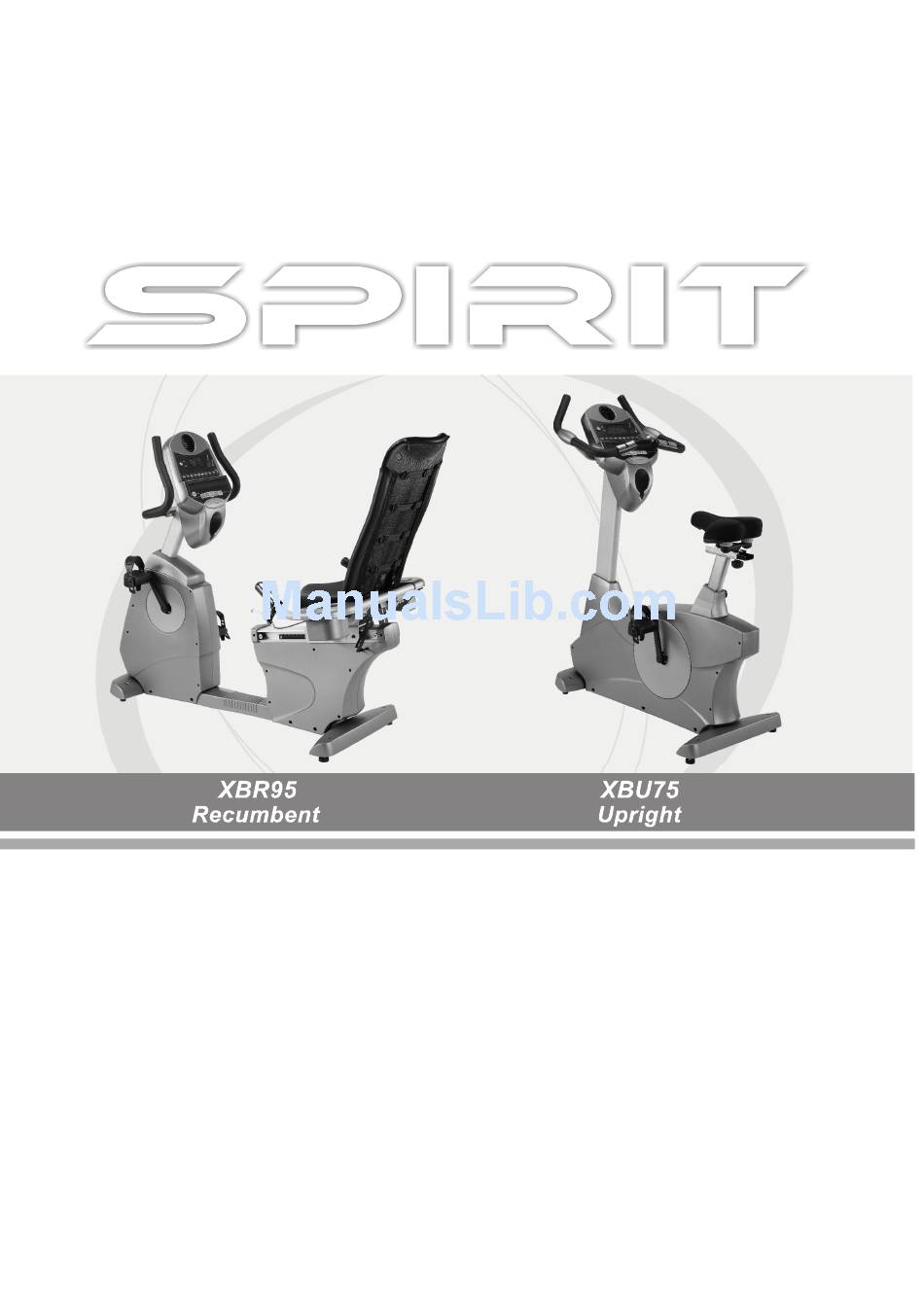

- Page 1 SPT0011 – XBR95 SPT0010 – XBU75 Z100 / Z300 Z500 Z700 OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW BIKE!
-
Page 2: Table Of Contents
Table of Contents Important Safety Instructions………………………………………………………………… Important Electrical Information……………………………………………………………… Important Operation Instructions…………………………………………………………….. XBR95 Assembly Instructions………………………………………………………………. XBU75 Assembly Instructions………………………………………………………………. Features……………………………………………………………………………………….. Operation of Your New Bike…………………………………………………………….…… Maintenance…………………………………………………………………………………… Explode Drawing and Parts list……………………………………………………………… Manufacturer’s Limited Warranty…………………………………………………………….. 40 XBR95 & XBU75... -
Page 3: Step
CONGRATULATIONS ON YOUR NEW BIKE AND WELCOME TO THE SPIRIT FAMILY! Thank you for your purchase of this quality elliptical trainer. Your new elliptical was manufactured by one of the leading fitness manufacturers in the world and is backed by one of the most comprehensive warranties available. -
Page 4: Important Safety Instructions
Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable ■ bike for use on your . Quality athletic shoes are recommended to avoid leg fatigue. SAVE THESE INSTRUCTIONS - THINK SAFETY! XBR95 & XBU75... -
Page 5: Important Electrical Information
Do not use excessive pressure on console control keys. They are precision set to properly ● function with little finger pressure. Pushing harder is not going to make the unit go faster or slower. If you feel the buttons are not functioning properly with normal pressure, contact your Spirit dealer. XBR95 & XBU75... -
Page 6: Xbr95 Assembly Instructions
Assembly Pack Check List (XBR95) Step 1 #89. 3/8" x 7T #84.3/8" x 25 x 2T Nylon Nut (2pcs) Flat Washer (4pcs) #65.3/8" x 2-1/4" Hex Head Bolt (4pcs) #67. 3/8" x 4" Hex Head Bolt (2pcs) Step 2 #82. 5/16" x 1.5T #99. - Page 7 Flat Washer (4pcs) Step 4 #105. Ø4 x 16m/m #76. 5/16" x 18 x 1.5T Flat Washer (1 pc) Sheet Metal Screw (4pcs) #91. 5/16" x 6T #70. 5/16" x 1-1/4" Nylon Nut (1pc) Hex Head Bolt (1pc) XBR95 & XBU75...
- Page 8 Tools #114. Phillips Head Screw Driver (1 pc) #115. M5 Allen Wrench (1pc) #112. 12/14m/m Wrench (1 pc) #113. 13/15m/m Wrench (1 pc) #130. 13/14m/m Wrench (1 pc) XBR95 & XBU75...
- Page 9 Assembly Instructions (XBR95) UNPACKING THE UNIT ■ ■ ■ ■ 1. Cut the straps then lift the carton off the bottom tray. 2. Carefully remove all parts from carton and inspect for any damage or missing parts. If damaged parts are found, or parts are missing, contact your dealer immediately.
- Page 10 Wrench (112). 6. Install the Upper Computer Cable (44) and Switch Cable (148) into the connector in the back of the Console (19). Install the console onto the mounting plate with the four M5x12mm Phillips Head Screws (99) XBR95 & XBU75...
- Page 11 The odd plug and socket is for the switches in the handlebars. 4. Install the Front Stabilizer Cover (32) and the Rear Stabilizer Cover (37) on the Main Frame with the four M5x12mm Phillips Head Screws (99). XBR95 & XBU75...
- Page 12 Console (19). Install the console onto the mounting plate with the four M5x12mm Phillips Head Screws (99) by using the Phillips Head Screw Driver (114). 6. Put on the Beverage Holders (R38&L39) onto left of the Handle Bar Seat (6) with the four 4x16 m/m Sheet Metal Screw (105). XBR95 & XBU75...
-
Page 13: Xbu75 Assembly Instructions
Flat Washer (6pcs) Step 3 #51. 5/16" x 5/8" #72. 5/16" x 18 x 1.5T #103. 5/16" x 1.5T Hex Head Bolt (2pcs) Flat Washer (2pcs) Split Washer (2pcs) Step 4 #58. M5 x 12m/m Phillips Head Screw (8pcs) XBR95 & XBU75... - Page 14 Tools #93. Phillips Head Screw Driver (1 pc) #100. 12/14m/m Wrench (1 pc) #92. 13/15m/m Wrench (1 pc) XBR95 & XBU75...
- Page 15 STEP 1: REAR STABILIZER ASSEMBLY 1. Install the Rear Stabilizer (5) onto the Main Frame (1) with the four 3/8" x 2-1/4" Hex Head Bolts (50) and four 3/8" Flat Washers (71) by using the 12/14mm Wrench (100). XBR95 & XBU75...
- Page 16 2. Install the Console Mast (2) onto the Main Frame (1) with the seven 5/16" x 5/8" Hex Head bolts (51), six 5/16" Flat Washers (72) on the side screws and 1pc of 5/16" Curved Washer (99) on the front screw by using the 12/14mm Wrench (100). XBR95 & XBU75...
- Page 17 1. Install the Handle Bar (3) onto the Front Console Mast (2) with the two 5/16" x 5/8" Hex Head bolts (51), two 5/16" Flat Washers (72) and two 8m/m Split Washers (103) by using the 12/14mm Wrench (100). XBR95 & XBU75...
- Page 18 Install the nut plate (8) into the seat slide behind the seat post. Install the flat washer (71) onto the for/aft adjustment knob (86) and screw into the nut plate from underneath the seat tube track. Install the seat (19) onto the seat post by using the 12/14mm Wrench (100). XBR95 & XBU75...
-
Page 19: Features
Q factor. Spirit has designed our pedal system so the Q factor is the smallest in the industry, but we did not stop there. We have also custom designed and tooled a new pedal that provides a two degree inward tilt to compensate for the Q factor not being perfect. -
Page 20: Operation Of Your New Bike
Operation of Your Stationary Bike XBR95 & XBU75 Console ■ Power on The X Series Bikes have a built-in generator for power and does not need to be plugged into an AC outlet. To power up the Elliptical simply start to pedal, the console will turn on automatically. If the console does not light when you pedal, check that the power switch is set to 0 (Generator). -
Page 21: Console Operation
NOTE: You must enter your age for the Bar Graph to be accurate. Refer to Heart Rate section for details about these features and how they can help you work out more efficiently. XBR95 & XBU75... - Page 22 This is because every person is different and burns calories at a different rate. Some good news is that you will continue to burn calories at an accelerated rate for an hour after you have finished exercising! XBR95 & XBU75...
-
Page 23: Preset Programs
User key and following the instructions in the message window. Preset Programs The bike has five different programs that have been designed for a variety of workout goals. These XBR95 & XBU75... -
Page 24: The Programs
Enter button and follow the directions in the message window. 1. Press the Fat Burn key then press the Enter key. 2. The message window will ask you to enter your Age. You may enter your Age, using the Up and XBR95 & XBU75... - Page 25 Auto-Pilot mode. See Heart Rate section for details of this feature). 9. When the program ends you may press Start to begin the same program again or Stop to exit the program or you can save the program you just completed as a custom user program by XBR95 & XBU75...
- Page 26 9. When the program ends you may press Start to begin the same program again or Stop to exit the program or you can save the program you just completed as a custom user program by pressing a User key and following the instructions in the message window. XBR95 & XBU75...
- Page 27 When you have finished entering the name press the Stop key to save the name and continue to the next step. 3. The message window will ask you to enter your Age. You may enter your Age, using the Up and XBR95 & XBU75...
- Page 28 Display key, switch between the profile display and a quarter mile track by pressing the Display key adjacent to the matrix, use the heart rate monitoring features and can switch to heart rate Auto-Pilot mode. See Heart Rate section for details of this feature). XBR95 & XBU75...
- Page 29 With all Spirit Heart Rate Control bike machines you may use the heart rate monitor feature without using the Heart Rate Control program. This function can be used during manual mode or during any of the nine different programs.
-
Page 30: Rate Of Perceived Exertion
RPE will support this. If you are feeling tired and sluggish, it is because your body needs a break. In this condition, your pace will feel harder. Again, this will show up in your RPE and you will train at the proper level for that day. XBR95 & XBU75... - Page 31 (6) The antenna that picks up your heart rate is very sensitive. If there is an outside noise source, turning the whole machine 90 degrees may de-tune the interference. (7) If you continue to experience problems contact your dealer. XBR95 & XBU75...
- Page 32 Auto-pilot button. For instance: If you are in the Manual mode and your heart rate is at 150 beats per minute, pressing the Auto-pilot button will switch the console to heart rate control and keep your heart rate at 150 beats per minute automatically. XBR95 & XBU75...
-
Page 33: Maintenance
Beep (Turn on or off the beep when a key is pressed) vi. D/A test (tests the brake resistance) vii. Exit d. Security (Allows you to lock the keypad so no unauthorized use is allowed) e. Factory settings (Access only allowed by manufacturing) XBR95 & XBU75... -
Page 34: Explode Drawing And Parts List
SPT0011 –XBR95 Explode Drawing XBR95 & XBU75... - Page 35 SPT0011 –XBR95 Parts List DESCRIPTION O'TY Main Frame Console Mast Mast Handle bar Assembly Seat Carriage Seat Back Frame Seat Handle Bar Rear Stabilizer Crank Axle Seat Wheel Adjustment Plate (L) Seat Wheel Adjustment Plate (R) Idler Wheel Plate Seat Stop Axle...
- Page 36 5/16" × 6T_Nyloc Nut M6 × 38m/m_Socket Head Cap Bolt 5/16" × 3/4"_Hex Head Bolt M5 × 12m/m_Flat Head Socket Screw Ø3.5 × 16m/m_Tapping Screw Ø3 × 20m/m_Tapping Screw M6 × 15m/m_Phillips Head Screw M5 × 12m/m_Phillips Head Screw XBR95 & XBU75...
- Page 37 Velcro Tape Ø2.3 × 6m/m_Sheet Metal Screw 5/16" × 16 × 1.5T_Flat Washer M6 × 10L_Flat Phillips Head Screw Ø7 × Ø15 × 1.5T_Flat Washer Sleeve M6 × 19L_Nut M6 × 10L_Button Head Socket Bolt PU Wheel XBR95 & XBU75...
- Page 38 SPT0010 –XBU75 Explode Drawing XBR95 & XBU75...
- Page 39 Pedal (L) Pedal (R) Transportation Wheel Ø4.5 × Ø25 × 15T_Rubber Foot Pad Ø25.4 × 2.0T_Button Head Plug 3/8" × 2-1/4"_Hex Head Bolt 5/16" × 5/8"_Hex Head Bolt 5 × 19m/m_Tapping Screw 5/16" × 1-3/4"_Button Head Socket Bolt XBR95 & XBU75...
- Page 40 5/16" × 16 × 1T_Flat Washer 5/16" × 1.5T_Split Washer Handle Bar Cover Locking Knob Center spatial wrap Handgrip End Cap Handpulse Adjustment Thin Film Label 700m/m_Resistance Connecting Cable DOWN_ Handgrip Resistance Label UP_ Handgrip Resistance Label Slide Spacer XBR95 & XBU75...
-
Page 41: Manufacturer's Limited Warranty
WARRANTY, SAFETY AND ASSEMBLY INFORMATION SPT0011 – XBR95 SPT0010 – XBU75 IMPORTANT Please read and retain this manual as it will assist with identification for parts and service. ------------------------------------------------------------------------------------------------------------ BOYLES FITNESS warrants their exercise bikes to be free from defects in material and workmanship under normal use and service conditions. -
Page 42: Warranty Information
XBR95 / XBU75 Bike are warranted to be free from defects in material and workmanship under normal use and service conditions for a period of 6 months from the date of purchase of this article. - Page 43 SERVICE CENTRE Contact details and hours of operation. Phone 07 3272 7010 9:00am – 4:00pm Monday to Friday (excluding Public Holidays) This product is warranted by Boyles Fitness Equipment Pty Ltd 130 Carrolls Road, Menangle NSW 2568 XBR95 & XBU75...
