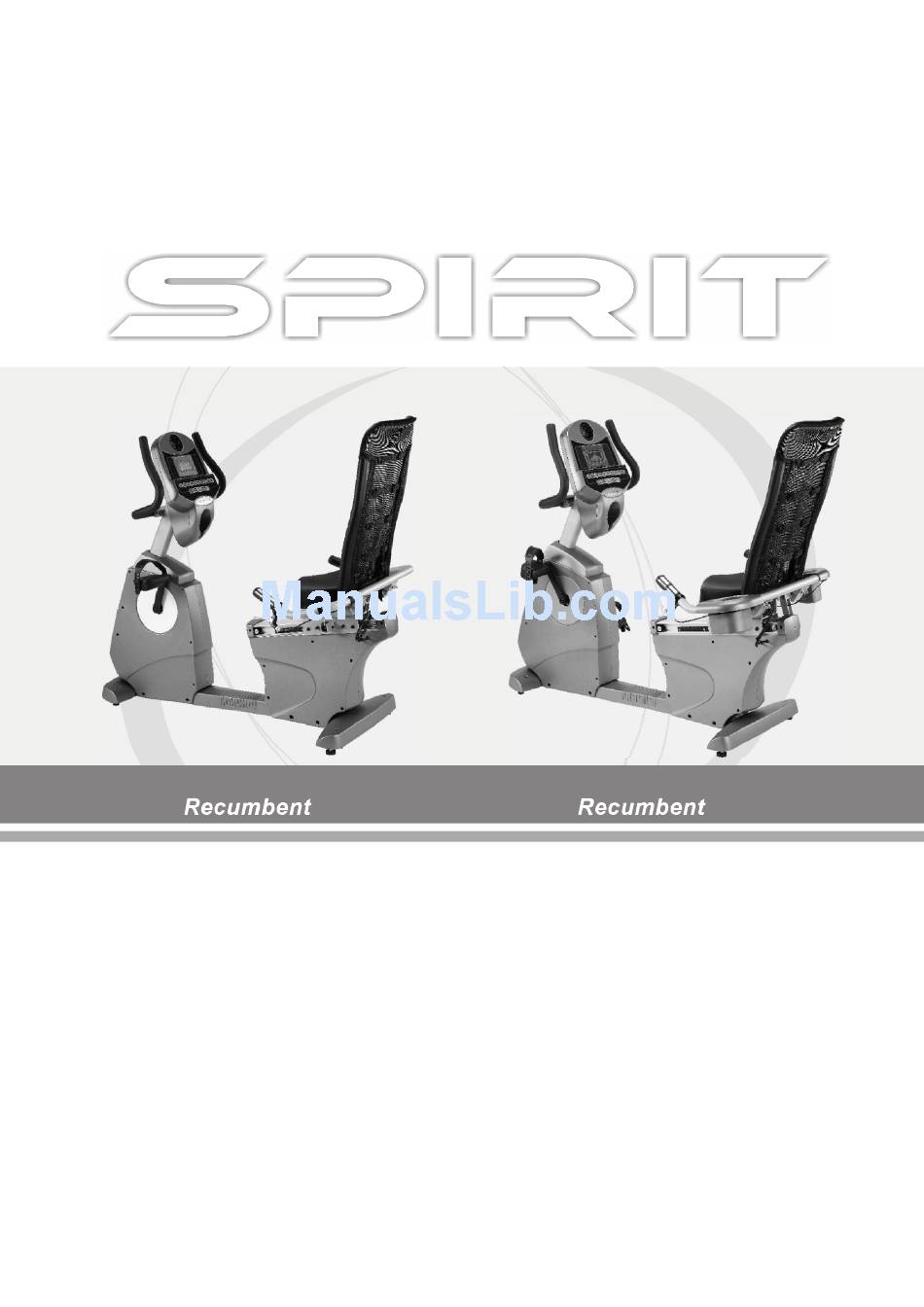

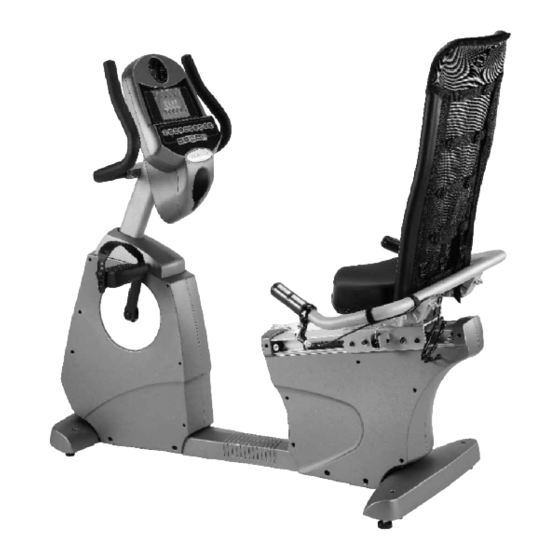

  • Page 1 Z100 / Z300 Z500 Z700 XBR25 XBR55 OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW BIKE!

  • Page 2: Table Of Contents

    Table of Contents Product Registration Important Safety Instructions Important Electrical Information Important Operation Instructions Assembly Instructions Features .. 19 Operation of Your New Bike Maintenance Manufacturer s Limited Warranty ..33 XBR25 / XBR55...

  • Page 3: Product Registration

    Through your dealer, Spirit will do all we can to make your ownership experience as pleasant as possible for many years to come. The local dealership where you purchased this bike is your administrator for all Spirit warranty and service needs.

  • Page 4: Important Safety Instructions

    Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable bike for use on your . Quality athletic shoes are recommended to avoid leg fatigue. SAVE THESE INSTRUCTIONS - THINK SAFETY! XBR25 / XBR55...

  • Page 5: Important Electrical Information

    Do not use excessive pressure on console control keys. They are precision set to properly function with little finger pressure. Pushing harder is not going to make the unit go faster or slower. If you feel the buttons are not functioning properly with normal pressure, contact your Spirit dealer. XBR25 / XBR55...
  • Page 6 Assembly Pack Check List (XBR25) Step 1 #77.3/8" x 19 x 1.5T #84.3/8" x 25 x 1.5T Flat Washer (4pcs) Flat Washer (4pcs) #89. 3/8" x 7T #65.3/8 x 2-1/4 Nylon Nut (4pcs) Hex Head Bolt (4pcs) #67. 3/8 x 4 Hex Head Bolt (2pcs) #142.
  • Page 7 Phillips Head Screw (4pcs) # 71. 3/8 x 1-3/4 #77.3/8" x 19 x 1.5T Hex Head Bolt (4pcs) Flat Washer (4pcs) Step 4 #99. M5 x 12m/m #105. 4 x 16m/m Phillips Head Screw (8pcs) Self Tapping Screw (2pcs) XBR25 / XBR55...
  • Page 8 Tools #114. Phillips Screw Driver (1pc) #115. L Allen Wrench (1pc) #112. 12/14m/m Wrench (1pc) #132. 14/15m/m Wrench (1pc) XBR25 / XBR55...

  • Page 9: Assembly Instructions

    Assembly Instructions (XBR25) UNPACKING THE UNIT 1. Cut the straps then lift the carton off the bottom tray. 2. Carefully remove all parts from carton and inspect for any damage or missing parts. If damaged parts are found, or parts are missing, contact your dealer immediately.
  • Page 10 5. Install the Handlebar (3) onto the Console Mast (2) with the two 5/16 x 15mm Hex Head Bolts (68), two 5/16 x 19 Flat Washers (76) and two 8m/m Split Washers (82) by using the 12/14mm Wrench (112). XBR25 / XBR55...
  • Page 11 (71), four 3/8 x 19 Flat Washers (77), and four 3/8 x 7T Nylon Nuts (89) by using the 12/14mm Wrench (112) and 14/15mm Wrench (132). 3. Then plug the two Hand pulse Cables (27-3)(27-4) into the sockets located on the left side rear cover (26), just under the seat. XBR25 / XBR55...
  • Page 12 5. Install the Front Stabilizer Cover (32) and the Rear Stabilizer Cover (37) on the Main Frame with the four M5x12mm Phillips Head Screws (99). 6. Install the Beverage Holders (R38 & L39) onto the Seat Handle Bar (6) with the four 4x16 m/m Self Tapping Screws (105). XBR25 / XBR55...
  • Page 13 #83. 5/16" x 20 x 1.5T #76. 5/16" x 19 x 1.5T #82. 8 x 1.5T Curved Washer (2pcs) Flat Washer (6pcs) Split Washer (2pcs) #99. M5 x 12m/m #68. 5/16 x 15m/m Phillips Head Screw (4pcs) Hex Head Bolt (8pcs) XBR25 / XBR55...
  • Page 14 Flat Washer (4pcs) Step 4 #76. 5/16" x 19 x 1.5T #91. 5/16" x 6T Flat Washer (1pc) Nylon Nut (1pc) #105. 4 x 16m/m # 70. 5/16 x 1-3/4 Self Tapping Screw (4pcs) Hex Head Bolt (1pc) XBR25 / XBR55...
  • Page 15 Tools #114. Phillips Screw Driver (1pc) #115. L Allen Wrench (1pc) #112. 12/14m/m Wrench (1pc) #113. 13/15m/m Wrench (1pc) #130. 13/14m/m Wrench (1pc) XBR25 / XBR55...
  • Page 16 3/8 Flat Washers (84) using the 12/14mm Wrench (112). 2. Install Seat Back Frame (5) onto the Seat Carriage (4) with the two 3/8 x 4 Hex Head bolts (67) and two 3/8 Nylon nuts (89) by using the 12/14mm Wrench (112). XBR25 / XBR55...
  • Page 17 6. Install the Upper Computer Cable (44), Hand pulse Wire Harness (133) and Switch Cable (148) into the connector in the back of the Console (19). Install the console onto the mounting plate with the four M5x12mm Phillips Head Screws (99). XBR25 / XBR55...
  • Page 18 The odd plug and socket is for the switches in the handlebars. 4. Install the Front Stabilizer Cover (32) and the Rear Stabilizer Cover (37) on the Main Frame with the four M5x12mm Phillips Head Screws (99). XBR25 / XBR55...
  • Page 19 Console (19). Install the console onto the mounting plate with the four M5x12mm Phillips Head Screws (99) by using the Phillips Head Screw Driver (114). 6. Put on the Beverage Holders (R38&L39) onto left of the Handle Bar Seat (6) with the four 4x16 m/m Self Tapping Screws (105). XBR25 / XBR55...

  • Page 20: Features

    Q factor. Spirit has designed our pedal system so the Q factor is the smallest in the industry, but we did not stop there. We have also custom designed and tooled a new pedal that provides a two degree inward tilt to compensate for the Q factor not being perfect.

  • Page 21: Operation Of Your New Bike

    The odometer will remain displayed for only a few seconds then the console will go to the start up display. The dot matrix display will be scrolling through the different profiles, showing the programs, and the message window will be scrolling the start up message. You may now begin to use the console. XBR25 / XBR55...

  • Page 22: Console Operation

    The program keys also act as a Number Key Pad when you are in the data-setting mode. Under each program key is a number. If you are setting new data, such as Age, weight etc., you can use these keys to enter the numbers quickly. XBR25 / XBR55...
  • Page 23 To start the Manual program follow the instructions below or just press the Manual button then the Enter button and follow the directions in the message window. 1. Press the Manual key then press the Enter key. XBR25 / XBR55...

  • Page 24: Preset Programs

    Data you can press the Stop key to go back one level, or screen. 7. If you want to increase or decrease the workload at any time during the program press the Up XBR25 / XBR55...

  • Page 25: Fat Burn

    To start the Cardio program follow the instructions below or just press the Cardio button then the Enter button and follow the directions in the message window. 1. Press the Cardio key then press the Enter key. XBR25 / XBR55...
  • Page 26 9. When the program ends you may press Start to begin the same program again or Stop to exit the program or you can save the program you just completed as a custom user program by pressing a User key and following the instructions in the message window. XBR25 / XBR55...
  • Page 27 3. The message window will ask you to enter your Age. You may enter your Age, using the Up and Down keys or the numeric key pad, then press the Enter key to accept the new number XBR25 / XBR55...
  • Page 28 10. During the User 1 or User 2 program you will be able to scroll through the data in the message window by pressing the Enter key. XBR25 / XBR55...

  • Page 29: Heart Rate Programs

    Consult your physician before participating in any exercise program. With all Spirit Heart Rate Control bike machines you may use the heart rate monitor feature without using the Heart Rate Control program. This function can be used during manual mode or during any of the nine different programs.

  • Page 30: Rate Of Perceived Exertion

    In this condition, your pace will feel harder. Again, this will show up in your RPE and you will train at the proper level for that day. XBR25 / XBR55...
  • Page 31 Normally the transmitter will be oriented so the Spirit logo is right side up. (6) The antenna that picks up your heart rate is very sensitive. If there is an outside noise source, turning the whole machine 90 degrees may de-tune the interference.
  • Page 32 9. When the program ends you may press Start to begin the same program again or Stop to exit the program or you can save the program you just completed as a custom user program by pressing a User key and following the instructions in the message window. XBR25 / XBR55...

  • Page 33: Maintenance

    Beep (Turn on or off the beep when a key is pressed) vi. D/A test (tests the brake resistance) vii. Exit d. Security (Allows you to lock the keypad so no unauthorized use is allowed) e. Factory settings (Access only allowed by manufacturing) XBR25 / XBR55...

  • Page 34: Manufacturer S Limited Warranty

    BIKE WARRANTY Spirit Manufacturing Inc. warrants all its bike parts, for a period of time listed below from the date of retail sale, as determined by sale receipt, or in the absence of a sales receipt eighteen (18) months from the original factory shipping date, whichever comes first. Spirit s responsibilities include providing new or remanufactured parts, at Spirit s option, and technical support to our independent dealers and servicing organizations.
