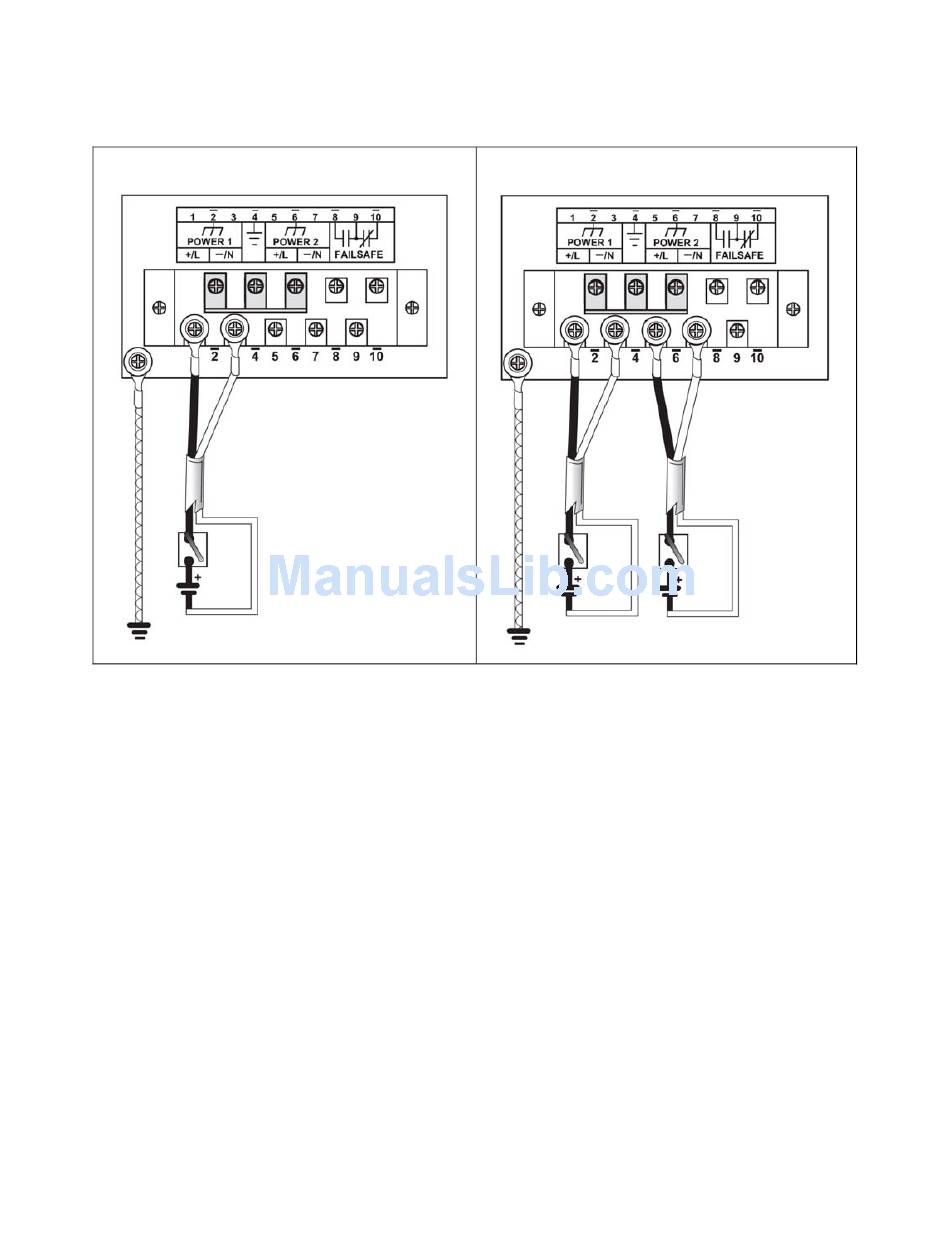

4.2.2 DC Power Supply Wiring Examples

NOTES:

1. 88-300VDC rated equipment: A 300VDC appropriately rated circuit breaker must be

installed within 3m of unit.

2. A circuit breaker is not required for 12, 24 or 48 VDC rated power supplies.

3. For dual DC power supplies, Separate circuit breakers must be installed and

separately identified.

4. Equipment must be installed according to the applicable country wiring codes.

Rev105
