  • Page 5: Product Overview

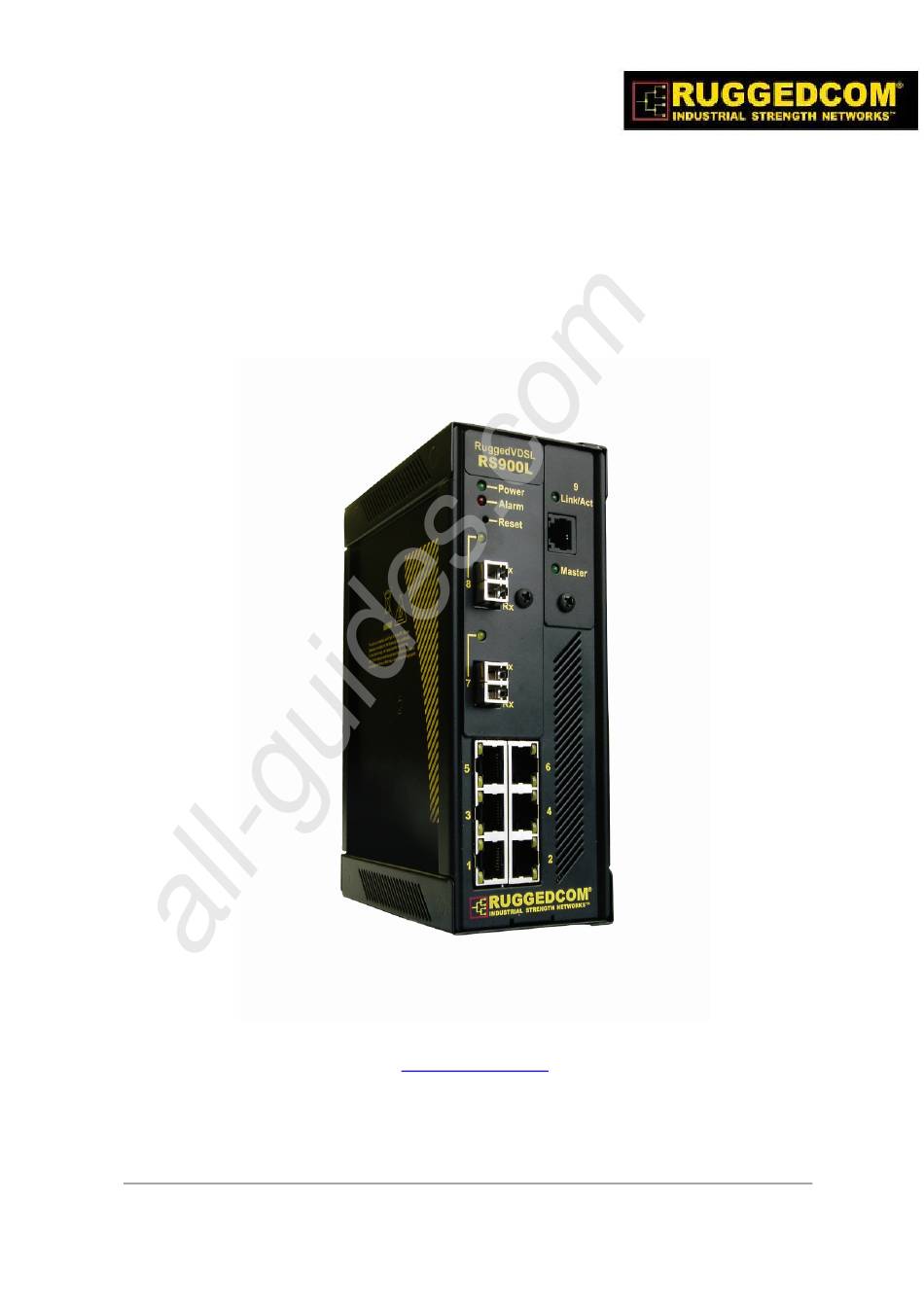

    1 Product Overview 1.1 Functional Overview The RuggedSwitch RS900L is an 8 port industrially hardened, fully managed Ethernet switch supporting Ethernet over VDSL allowing up to 2.5 km LAN segments over telephone grade cable at up to 35 Mbps. The RS900L has one EoVDSL port plus two optional fiber optic ports allowing a cascaded Ethernet network to span hundreds of kilometers over any combination of telephone and fiber optic cable.
  • Page 6: Front Panel Description

    Failsafe Relay Power Port Figure 1 - Front Panel Description Status LED Colour Activity Comments Power LED Green Solid Power On Alarm LED Solid Alarm condition exists Table 1 - Status LEDs © 2007 RuggedCom Inc. All rights reserved Rev101...
  • Page 7: Bottom Panel Description

    All manuals and user guides at all-guides.com 1.4 Bottom Panel Description Console Port Chassis Ground Power Port Failsafe Relay Optional Din-Rail Mounting Bracket Figure 2 - Bottom Panel Description © 2007 RuggedCom Inc. All rights reserved Rev101...
  • Page 8: Installation

    2.1 Din Rail Mounting An optional DIN rail-mounting bracket is available for the unit. The figure below details mounting instructions for the standard 1” DIN Rail. Figure 3 - DIN Rail Mounting © 2007 RuggedCom Inc. All rights reserved Rev101...
  • Page 9: Power Supply Wiring And Grounding

    2. All line-to-ground transient energy is shunted to the Surge Ground terminal. In cases where users require the inputs to be isolated from ground, remove the ground braid between Surge and Chassis Ground. Note that all line-to-ground transient protection circuitry will be disabled. © 2007 RuggedCom Inc. All rights reserved Rev101...
  • Page 10: Figure 5 - Dc Power Supply Wiring And Grounding Diagram

    2. All line-to-ground transient energy is shunted to the Surge Ground terminal. In cases where users require the inputs to be isolated from ground, remove the ground braid between Surge and Chassis Ground. Note that all line-to-ground transient protection circuitry will be disabled. © 2007 RuggedCom Inc. All rights reserved Rev101...
  • Page 11: Figure 6 - Failsafe Output Relay

    The contacts are energized upon power up of the unit and remain energized until an alarm condition or power loss occurs. The behavior of the failsafe relay is configurable via the RuggedSwitch Operating System. Consult the RuggedSwitch Users Guide for details. Figure 6 - Failsafe Output Relay © 2007 RuggedCom Inc. All rights reserved Rev101...
  • Page 12: Figure 7 - Dielectric Strength Testing

    This is required in order to prevent the surge suppression circuitry, which is connected to surge ground, from being activated. Figure 7 - Dielectric Strength Testing © 2007 RuggedCom Inc. All rights reserved Rev101...
  • Page 13: Rs232 Console Port Wiring

    No Connection Table 2 - RS232 Female DCE pin-out NOTE: This port is not intended to be a permanent connection and the cable shall be less than 2m (6.5 ft) in length. © 2007 RuggedCom Inc. All rights reserved Rev101...
  • Page 14: Ethernet Ports

    Table 3 - RJ11 port pin-out Status LED Colour Activity Comments Master Mode Mode Green Slave Mode Solid Link Established Link / Act Green Blinking Tx Activity Table 4 - RJ11 port LED description © 2007 RuggedCom Inc. All rights reserved Rev101...
  • Page 15: Table 5 - Typical Performance On 24 Awg Pic Twisted-Pair

    [km] [feet] [Mbps] [Seconds] 1600 35.00 2000 30.00 2300 25.00 3000 20.00 3300 15.00 4300 10.00 5600 5.00 6600 2.50 8200 1.00 Table 5 - Typical Performance on 24 AWG PIC twisted-pair © 2007 RuggedCom Inc. All rights reserved Rev101...
  • Page 16 1. This port is designed to be used on private communications lines and is not to be connected to the Public Switched Telephone Network (PSTN). 2. To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord. © 2007 RuggedCom Inc. All rights reserved Rev101...
  • Page 17: Rj45 Ethernet Ports

    Table 6 - RJ45 port pin-out Status LED Colour Activity Comments 10 Mbps Speed LED Yellow 100 Mbps Solid Link Established Link LED Yellow Blinking Tx/Rx Activity Table 7 - RJ45 port LED description © 2007 RuggedCom Inc. All rights reserved Rev101...
  • Page 18 All manuals and user guides at all-guides.com NOTE: RuggedCom does not recommend the use of copper cabling of any length for critical real- time substation automation applications. However, transient suppression circuitry is present on all copper ports to protect against damage from electrical transients and to ensure IEC 61850-3 and IEEE 1613 Class 1 conformance.
  • Page 19: Fiber Optic Ethernet Ports

    Figure 11 - 100FX MTRJ connector Figure 12 - 100FX ST connector Figure 13 - 100FX SC connector Figure 14 - 100FX LC connector © 2007 RuggedCom Inc. All rights reserved Rev101...
  • Page 20: Technical Specifications

    4.3 Failsafe Relay Specifications Load Circuit SELV TNV-2 MAX operating Voltage 30VDC 30 VAC 80VDC MAX operating Current 0.5A 0.3A Isolation (between coil and contacts) 1800 V Table 10 - Failsafe Relay Specifications © 2007 RuggedCom Inc. All rights reserved Rev101...
  • Page 21: Rj11 Ethernet Over Vdsl Port Specifications

    Table 11 – RJ1 Ethernet over VDSL Port Specifications 4.5 RJ45 Ethernet Port Specifications Data Port Media Distance Connector Type 10/100 Mbps CAT-5 UTP or STP 100m RJ45 Table 12 – RJ45 Ethernet Port Specifications © 2007 RuggedCom Inc. All rights reserved Rev101...
  • Page 22: Fiber Optic Ethernet Port Specifications

    Maximum segment length is dependent on factors such as fiber quality, and number of patches and splices. Please consult RuggedCom sales associates when determining maximum segment distances. To convert from average to peak add 3 dBm. To convert from peak to average, subtract 3 dBm.
  • Page 23: Mechanical Specifications

    16.8 x 11.7 x 6.6 cm / 6.6 x 4.6 x 2.6 inches Weight 1.2 kg / 2.7 lbs Enclosure 20 AWG Galvanized Steel Table 15 - Mechanical Specifications Figure 15 - Mechanical Specifications © 2007 RuggedCom Inc. All rights reserved Rev101...
  • Page 24: Type Tests

    D.C. Power ports 2kV AC A.C. Power ports 2kV AC Signal ports 5kV (Fail-Safe Relay output) IEC 60255-5 H.V. Impulse D.C. Power ports A.C. Power ports Table 16 - IEC 61850-3 Type Tests © 2007 RuggedCom Inc. All rights reserved Rev101...
  • Page 25: Ieee 1613 Type Tests

    95% (non-condensing), 55°C, 6 cycles Cyclic) IEC 60255-21-1 Vibration Tests Fc 2g @ (10-150) Hz Class 2 IEC 60255-21-2 Shock Tests Ea 30g @ 11 ms Class 2 Table 18 - Environmental Type Tests © 2007 RuggedCom Inc. All rights reserved Rev101...
  • Page 26: Warranty

    All manuals and user guides at all-guides.com 6 Warranty RuggedCom warrants this product for a period of five (5) years from date of purchase. For warranty details, visit http://www.ruggedcom.com or contact your customer service representative. Should this product require warranty or service contact the factory at: RuggedCom Inc.
