SECTION 6—OPERATING INSTRUCTIONS
10. After assembly, ensure that oxygen is flowing through the
cannula.

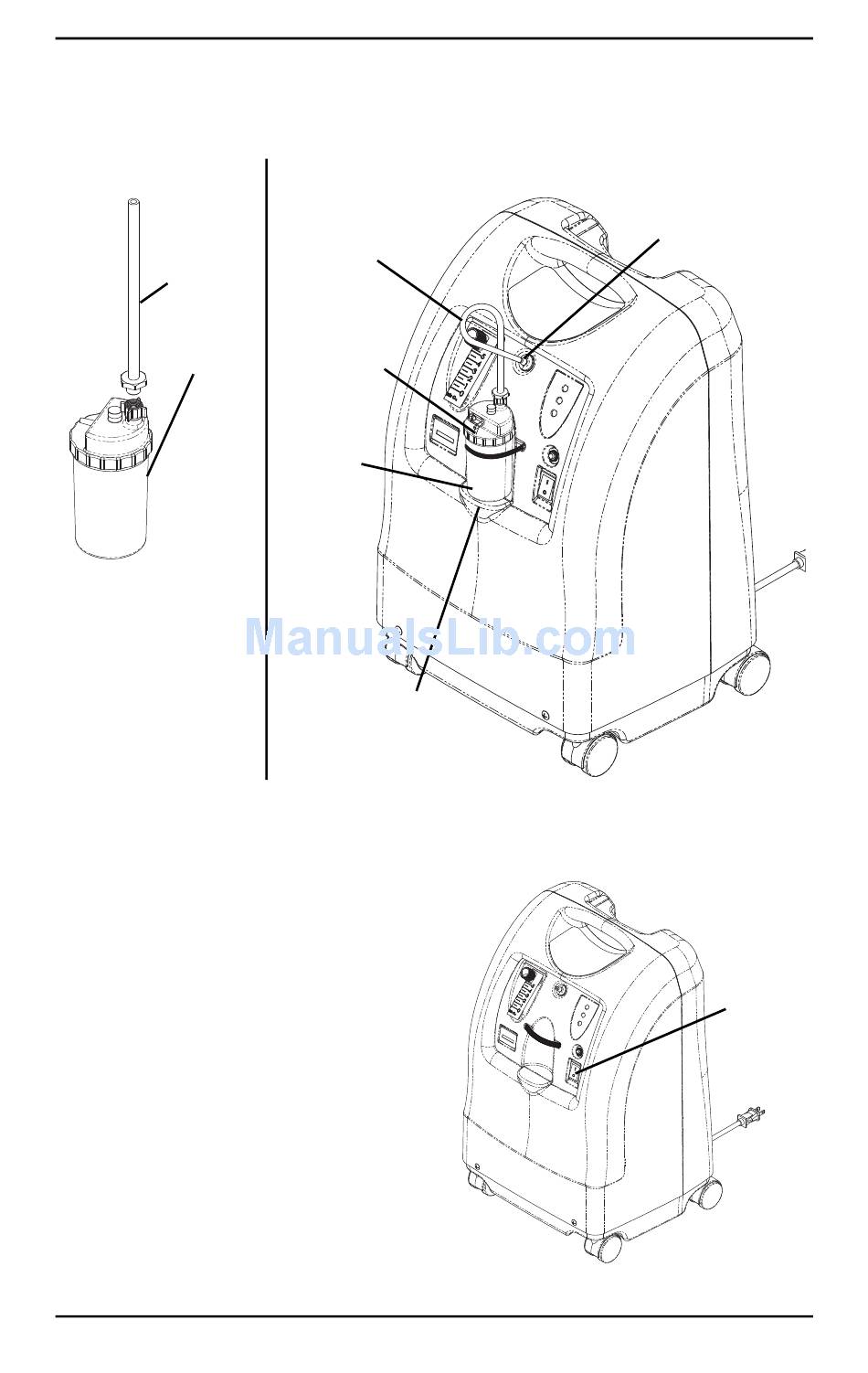

DETAIL "A"
Humidifier
Bottle
Adapter
Humidifier
Bottle
FIGURE 6.3

Power Switch

NOTE: F or t his p rocedure, r efer t o
FIGURE 6.4.
1. Press power switch to On
position. All the panel
lights and the audible
alarm will come on for
one second, indicating
that the unit is
functioning properly.
Perfecto ™Series
2
DETAIL "B"
Oxygen
Tubing
Humidifier
Bottle
Outlet
Humidifier
Bottle
Humidifier
Compartment
Humidifier Compartment
20
FIGURE 6.4 Power Switch
Oxygen
Outlet
Connector
On/Off
(I/O)
Power
Switch
Part No 1160877
