7. Attach the cannula/patient supply tubing to the
humidifier bottle outlet.
8. After assembly, ensure that oxygen is flowing through the
cannula.
Oxygen
Tubing
Humidifier Outlet

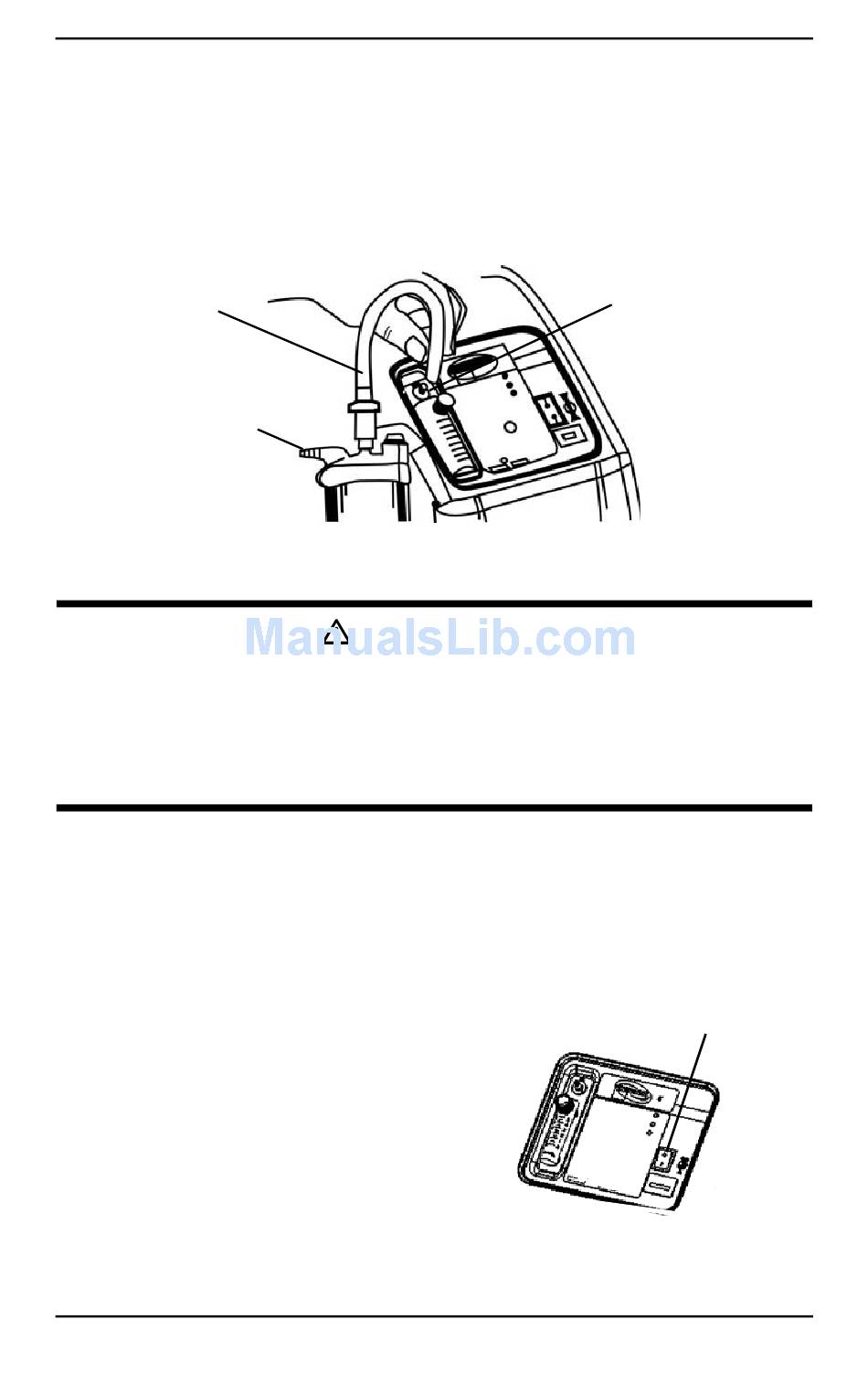

FIGURE 5.4
For optimum performance, Invacare recommends that
each concentrator be on and running for a minimum of 30
minutes at a time. Shorter periods of operation may
reduce maximum product life.

Power Switch

NOTE: For this procedure, refer to FIGURE 5.5.
1. Press power switch to on
position. All the panel
lights and the audible
alarm will come on for
one second, indicating
that the unit is
functioning properly.
After one second, only
the GREEN system
ok/power light will stay
on.
Part No 1118353
SECTION 5—OPERATING INSTRUCTIONS
Attaching the Oxygen Tubing
WARNING
25
Oxygen Outlet
FIGURE 5.5 Power Switch
Connector
On/Off (I/O)
Power Switch
Platinum Series
™
