SECTION 6—OPERATING INSTRUCTIONS
OXYGEN PURITY
Auto Shut Down
RED
Use Backup
Call Supplier
Below
Normal
YELLOW
O
Normal
GREEN
2

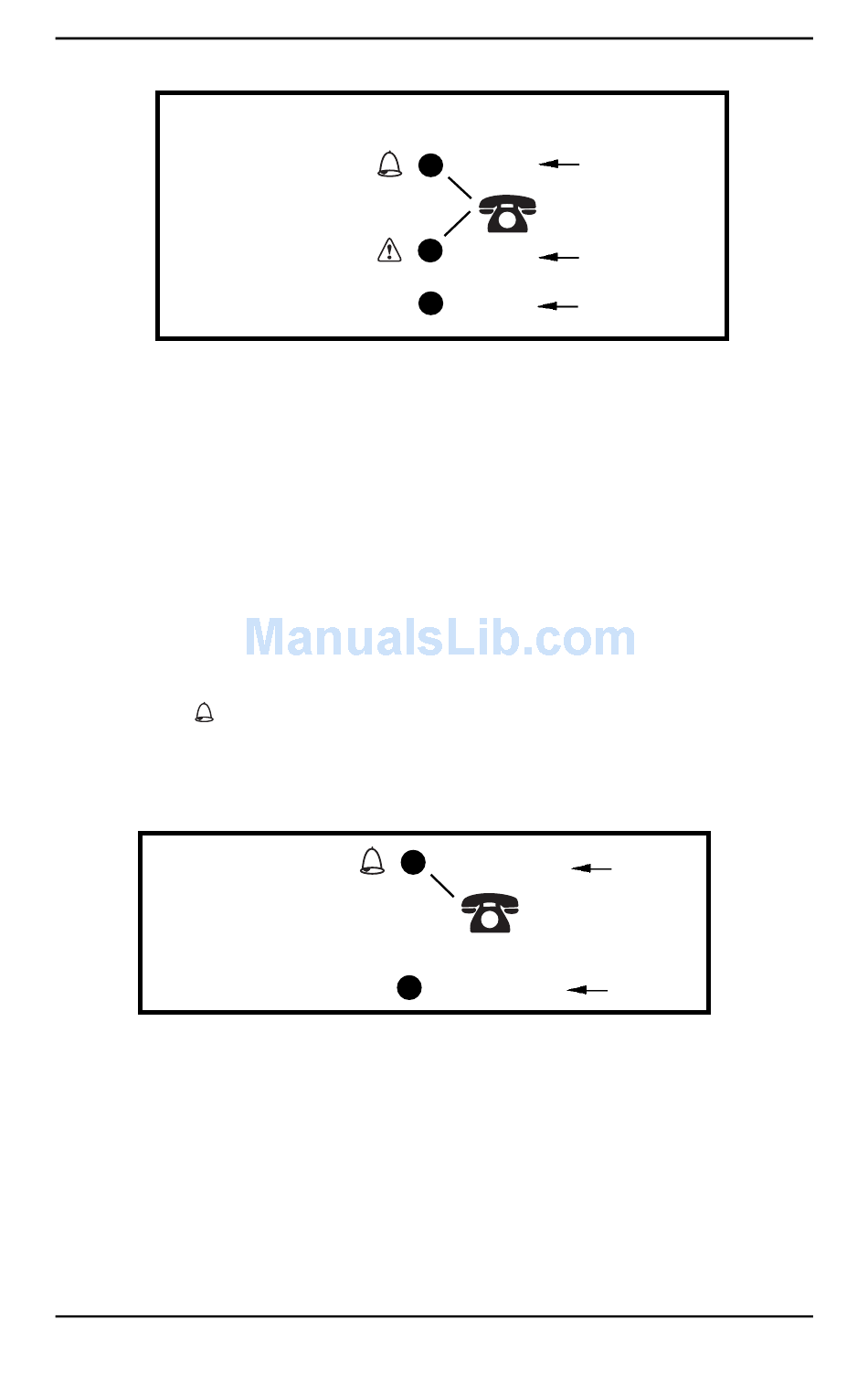

FIGURE 6.6 Explanation of Oxygen Purity Indicator Lights -
Model IRC5PO2AW & IRC5PO2VAW
Explanation of Indicator Lights - Model
IRC5PAW
NOTE: For this procedure, refer to FIGURE 6.7.
IRC5PAW Model Indicator Light Explanation
RED light ( ) ‐ Total Unit Shut‐Down. Immediately switch to
a back‐up oxygen supply and call supplier.
GREEN light (I/O) ‐ On/Off. System okay.
Auto Shut Down
RED
Use Backup
Call Supplier
I/O
Normal
GREEN
FIGURE 6.7

Explanation of Indicator Lights - Model IRC5PAW

Elapsed Time Meter (Hour Meter)

The hour meter displays the cumulative number of hours the
unit has operated.
Part No 1160877 23 Perfecto ™Series
