8. VOLUME ADJUSTMENT FOR THE MEDIA

CONNECTOR
The Media Connector can be used as the primary volume control for the audio
sources you've connected.
1. Connect the audio source(s) to the
Media Connector using the 3.5mm
cables provided
2. Set the audio source volume
to provide sound through the
TOPCAT
3. Use the Media Connector Volume
control to increase or decrease the
sound level.
NORMALIZING AUDIO SOURCE VOLUME CONTROLS
Use the Media Connector as the master audio volume control for the classroom.
When two or more audio sources are connected, you will need to normalize
volume settings by setting all connected audio sources to the same sound level
while leaving the Media Connector volume control set to its center setting. The
Media Connector module is an audio mixer using a master volume control to
adjust the volume of all audio sources at once. Use the following procedure to
set audio source volumes:
1. Connect the multimedia audio
sources to the Media Connector
using the 3.5mm cables provided.
2. Set the master volume control on
the Media Connector to its center
position.
3. Turn on an audio source that does
not have an accessible audio level
control. (DVD, VCR player)
4. Adjust the Media Connector
master volume control so the
audio level playing through the
speaker is appropriate for the
classroom.
18

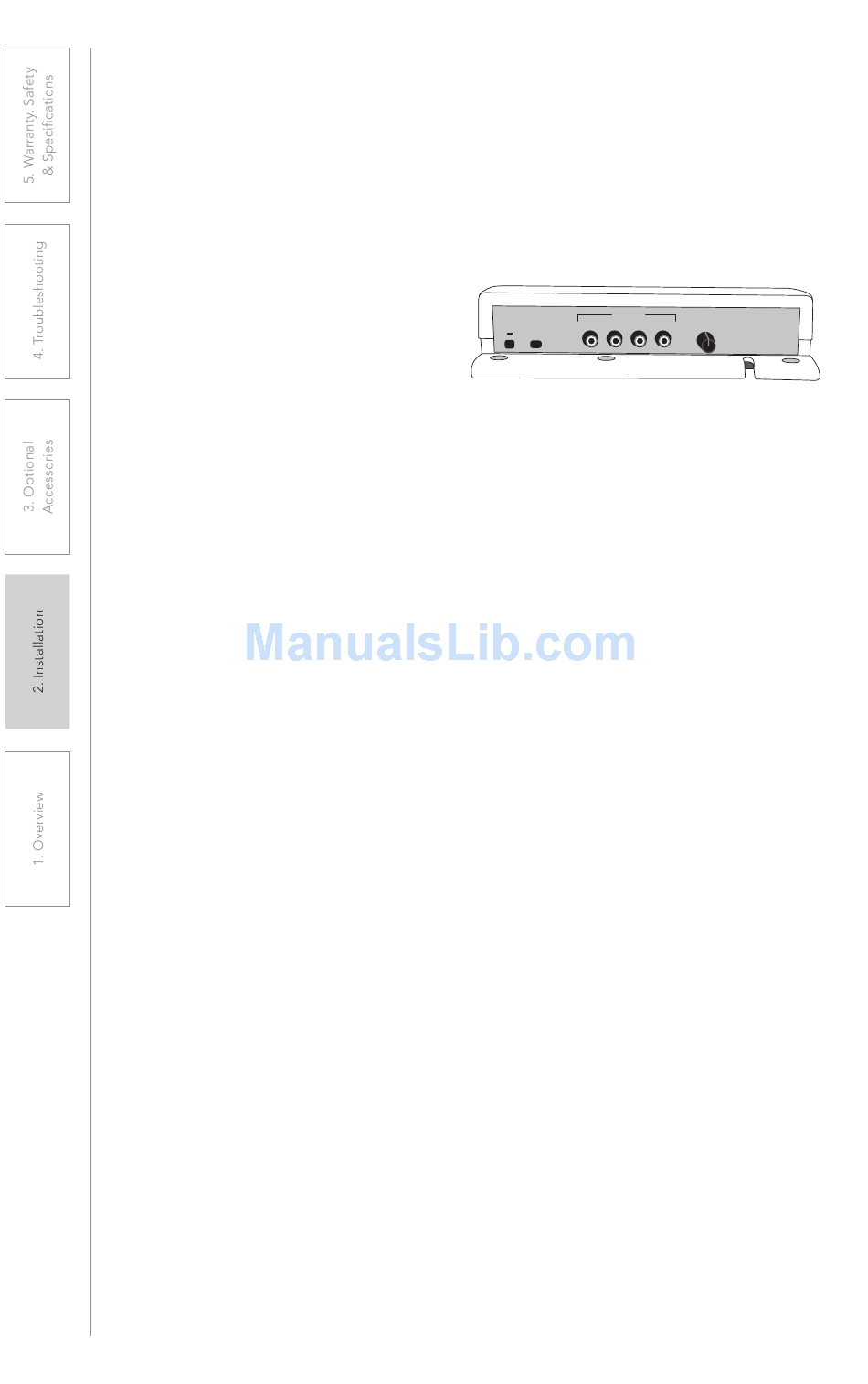

Audio Input
AUDIO AUDIO AUDIO AUDIO
1 2 3 4
5V 1.0A USB
POWER
5. Turn off the first audio source.
6. Turn on the second audio source.
Use its volume control to balance
the audio output to the same
audio level played through the
speaker as the first source.
7. Repeat steps 5 and 6 for the
remaining audio sources.
8. Now, the Media Connector's
master volume can be used to
increase or decrease the volume
level for all audio sources as
desired.
AUDIO
VOLUME
