Summary of Contents for LightSpeed Technologies Delta X12

  • Page 2: Table Of Contents

    Warranty Information/Equipment Log ... 31 User Notes ... 32 LightSPEED is a trademark of LightSPEED Technologies, Inc. Other names and brands may be claimed as the property of others. Copyright © 2005 LightSPEED Technologies, Inc., LightSPEED All rights reserved. Printed in USA.

  • Page 3: System Overview

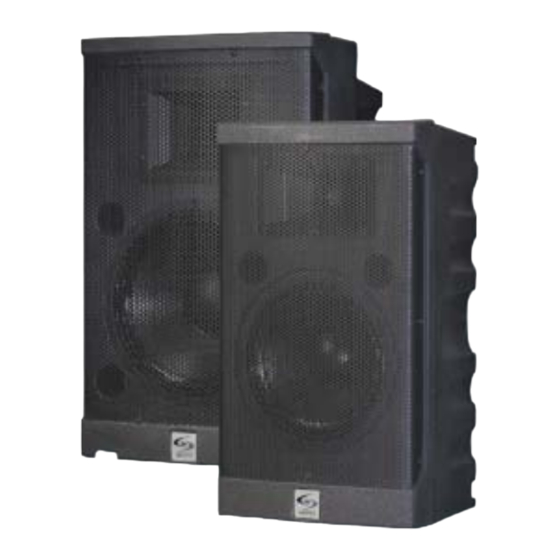

    The DELTA X10 and X12 Wireless Sound Systems are powerful, rugged, and durable amplification systems designed for medium to large-sized groups both indoors and out. The systems contain inputs for up to two UHF wireless microphone receivers, optional integrated CD Player, two inputs for wired microphones, and an input for a line level audio source coming from a DVD player, TV/VCR, Computer, etc.

  • Page 4: System Controls And Functions

    MIC 1 LOW CUT/MIC 2 LOW CUT: : : : : These controls allow users to cut out the low frequency sound of the wired micro MIC 1 LOW CUT/MIC 2 LOW CUT phones, making the speech more intelligible. LightSPEED Technologies • Wireless Sound Solutions • Toll Free: 1-800-840-3662 WIRELESS MIC 1 LightSPEED...

  • Page 5: Active Link

    ACTIVE LINK: ACTIVE LINK: This balanced ¼” phone connector provides an audio link to another Delta X10 or Delta X12 system. When connected properly, the sound from both Delta X systems is ‘shared’ between them. Using ACTIVE LINK, you can double the available inputs and sound level.

  • Page 6: Wireless Receivers

    7. 7. 7. 7. 7. Squelch Adjustment: Squelch Adjustment: Squelch Adjustment: Adjusts the squelch level for elimination of RF interference. Squelch Adjustment: Squelch Adjustment: LightSPEED Technologies • Wireless Sound Solutions • Toll Free: 1-800-840-3662 Delta X10 Wireless Sound System WIRELESS MIC 1...

  • Page 7: Wireless Transmitter - Handheld Microphone

    Batter Batter Batter y Compartment: Bottom section of microphone barrel unscrews to reveal battery compartment. y Compartment: y Compartment: y Compartment: LightSPEED Technologies • Wireless Sound Solutions • Toll Free: 1-800-840-3662 LOCK LOCK DOWN End View of Microphone Battery Compartment...

  • Page 8: Wireless Transmitter - Belt-Pack

    Door Latch: A door latch button is located on each side. Press both to open the battery compartment door. Door Latch: Batter Batter y Compartment y Compartment 12. Batter Battery Compartment Batter y Compartment y Compartment LightSPEED Technologies • Wireless Sound Solutions • Toll Free: 1-800-840-3662 Red LED Mute Switch Jack Gain Battery Adjust Charge Jack Belt...

  • Page 9: Cd Player

    10. SCAN/SEARCH Buttons: SCAN/SEARCH Buttons: SCAN/SEARCH Buttons: Similar to fast forward and rewind. Moves quickly forward or backward through the disc while playing ‘snippets’ to allow searching. LightSPEED Technologies • Wireless Sound Solutions • Toll Free: 1-800-840-3662 REPEAT EJECT diSC...

  • Page 10: System Power

    LightSPEED Technologies • Wireless Sound Solutions • Toll Free: 1-800-840-3662 BATTERY LOW CUT...

  • Page 11: Speaker Stand(Tripod)

    Lift the Delta X system above the top of the center post. Align the mounting hole with the center post of the tripod and carefully lower the Delta X system onto it. LightSPEED Technologies • Wireless Sound Solutions • Toll Free: 1-800-840-3662 Speaker Stand(tripod) Locking...

  • Page 12: Speaker/System Placement

    The Delta X system(s) should be placed in a location that is slightly in front of the area in which microphones will be used, typically at the front edge of a stage. (SEE ILLUSTRATIONS) LightSPEED Technologies • Wireless Sound Solutions • Toll Free: 1-800-840-3662 Speaker/System Placement Typical stage placement for ONE Delta X system.

  • Page 13: Operating Instructions

    2. LIMIT cause damage to the speaker system. The level of the signals coming from the inputs (microphones, CD player, LINE IN) is ‘watched’ by the limiter circuit. The limiter instantly reduces the signal to a safe level if it becomes too large. When the limiter light is on, the power amplifier has reached maximum power.

  • Page 14: Wireless Microphones

    Low Battery Indicator: y Indicator: y Indicator: This LED will light to indicate the batteries in the corresponding transmitter are low and need to be replaced or recharged. LightSPEED Technologies • Wireless Sound Solutions • Toll Free: 1-800-840-3662 Delta X10 LightSPEED Wireless...

  • Page 15: Wired Microphones

    (‘squealing’ or ‘howling’). It is best to stand behind or off to the side of the unit when setting volume level. Detailed information about setting up wireless receivers and transmitters is provided later in this manual. LightSPEED Technologies • Wireless Sound Solutions • Toll Free: 1-800-840-3662 Delta X10...

  • Page 16: Cd Player

    Controls: The LOW and HIGH tone controls can be used to cut or boost the lows and highs in the audio coming from the CD player and the LINE IN jacks. These controls do not affect the audio coming from the microphone inputs. LightSPEED Technologies • Wireless Sound Solutions • Toll Free: 1-800-840-3662 Delta X10...

  • Page 17: Active Link

    CONNECTING TO ANOTHER DEL Using ACTIVE LINK, you can double the available inputs and double the sound level by connecting two Delta X10 or Delta X12 units together. When connected properly, the sound from both Delta X systems is ‘shared’ between them.

  • Page 18: External Speakers

    CONNECTING EXTERNAL SPEAKERS CONNECTING EXTERNAL SPEAKERS The Delta X10 and Delta X12 systems have two internal power amplifiers to drive loudspeakers. One amplifier normally drives the internal speaker and the other amplifier is dedicated for external passive speaker(s). 1. EXTERNAL SPEAKER A SWITCHED: When you connect an external speaker to this amplifier, the internal speaker will be bypassed and only the external speaker will have sound.

  • Page 19: Connecting External Audio Sources

    MASTER VOLUME: The RCA jacks provide a line-level output signal that does not change volume regardless of the MASTER VOLUME: setting on the MASTER VOLUME control. LightSPEED Technologies • Wireless Sound Solutions • Toll Free: 1-800-840-3662 Line/CD Level Line IN...

  • Page 20: Wireless Receivers

    “SCAN” button on the WIRELESS MIC 2 receiver. After the WIRELESS MIC 2 receiver selects a clear channel, set the WIRELESS MIC 2 transmitter (handheld or belt-pack) to the selected channel. LightSPEED Technologies • Wireless Sound Solutions • Toll Free: 1-800-840-3662 Frequency Group...

  • Page 21: Manual Channel Selection

    Install the new module by aligning it with the guide rails and sliding all the way in to engage the connector at the rear of the module. Replace the two screws. LightSPEED Technologies • Wireless Sound Solutions • Toll Free: 1-800-840-3662 Operating Instructions Wireless Receiver(s)

  • Page 22: Lock Function

    •Rotate the black (or colored) disc back around to reveal the buttons on the bottom of the microphone. •Press the “LOCK” button again to unlock. The lock icon will disappear. LightSPEED Technologies • Wireless Sound Solutions • Toll Free: 1-800-840-3662 ransmitter...
  • Page 23 • Use the “UP” and “DOWN” arrows to make a selection. • Press and hold the “SET” button again until the blinking cursor disappears. LightSPEED Technologies • Wireless Sound Solutions • Toll Free: 1-800-840-3662 WARNING: Do not use NiCad batteries! They will not charge properly and may cause damage to the transmitter.
  • Page 24 •When the batteries are fully charged, the light on the charger will turn green. A full charge can take up to 8 hours. LightSPEED Technologies • Wireless Sound Solutions • Toll Free: 1-800-840-3662 that were installed in your handheld microphone. End Cap...

  • Page 25: Wireless Transmitter - Belt-Pack

    Frequency in MHz: ransmission Frequency in MHz: ransmission Frequency in MHz: selected channel. CH: 001 720.250M LightSPEED Technologies • Wireless Sound Solutions • Toll Free: 1-800-840-3662 ransmitter ransmitter ransmitter ransmitter Setup Screens selectable with the UP and DOWN Arrow Buttons...
  • Page 26 •If you are using a high impedence source, such as a guitar, it will be necessary to adjust the GT dial. Using a high impedance source requires a special cable. Contact LightSPEED Technologies for more information. 3. 3. 3. 3. 3. Batter...

  • Page 27: Connecting The Microphone

    Simply connect the microphone cord directly into the jack on top of the transmitter and place the headset around the back of the head. For optimal sound, position the microphone just LightSPEED Technologies • Wireless Sound Solutions • Toll Free: 1-800-840-3662 •Switch the transmitter power off.

  • Page 28: Cd-Player

    PLAY symbol appears on the display. 00:06 10 11 12 14 15 LightSPEED Technologies • Wireless Sound Solutions • Toll Free: 1-800-840-3662 REPEAT EJECT diSC To stop playback, press the PLAY/PAUSE button once again or press the STOP button. When paused, the PAUSE symbol appears on the display.
  • Page 29 PROGRAM P :01 LightSPEED Technologies • Wireless Sound Solutions • Toll Free: 1-800-840-3662 To save the selection, press the PROG button again. The track number will appear in the grid. Select another track for sequence number 02 and press the PROG button again.

  • Page 30: Trouble Shooting Guide

    5. Batteries are very weak. Just before the batteries are about to die, the overall performance of the system can degrade dramatically. Make sure to check the battery status of both the transmitter and DELTA X system. LightSPEED Technologies • Wireless Sound Solutions • Toll Free: 1-800-840-3662 , Line In, Wired Microphones, Wireless Microphones):...

  • Page 31: Specifications

    HM Weight w/o Batteries ... 4.2 oz / 120g Note: Specifications are subject to change without notice. LightSPEED Technologies • Wireless Sound Solutions • Toll Free: 1-800-840-3662 DELTA X10 Each Mic-input, Independent Bass and ... Each Mic-input, Independent Bass and Treble Control for Music Sources ...

  • Page 32: Channel/Frequency Assignments

    CA-AL50 CA-AL100 CA-ALGL BA-LA12-5 BA-LA12-7 Contact your LightSPEED representative for details, pricing and availability. LightSPEED Technologies • Wireless Sound Solutions • Toll Free: 1-800-840-3662 Channel/Frequency Assignments Wireless Channel Assignments LightSPEED Channel E ... 620.000 – 644.750 H ... 645.000 – 669.750 L ...

  • Page 33: Purchase Information

    The LightSPEED Technologies Delta X10 and Delta X12 are warranted to be free from defects in materials and workmanship for the period of SIX (6) YEARS from the date of original purchase, subject to the following conditions: The product must have been purchased from LightSPEED, an authorized LightSPEED Technologies Dealer, or LightSPEED representative.

  • Page 34: User Notes

    User Notes LightSPEED Technologies • Wireless Sound Solutions • Toll Free: 1-800-840-3662...
