LightSpeed Technologies Redcat Access User Manual

Classroom audio system
Hide thumbs Also See for Redcat Access:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Quick Manual

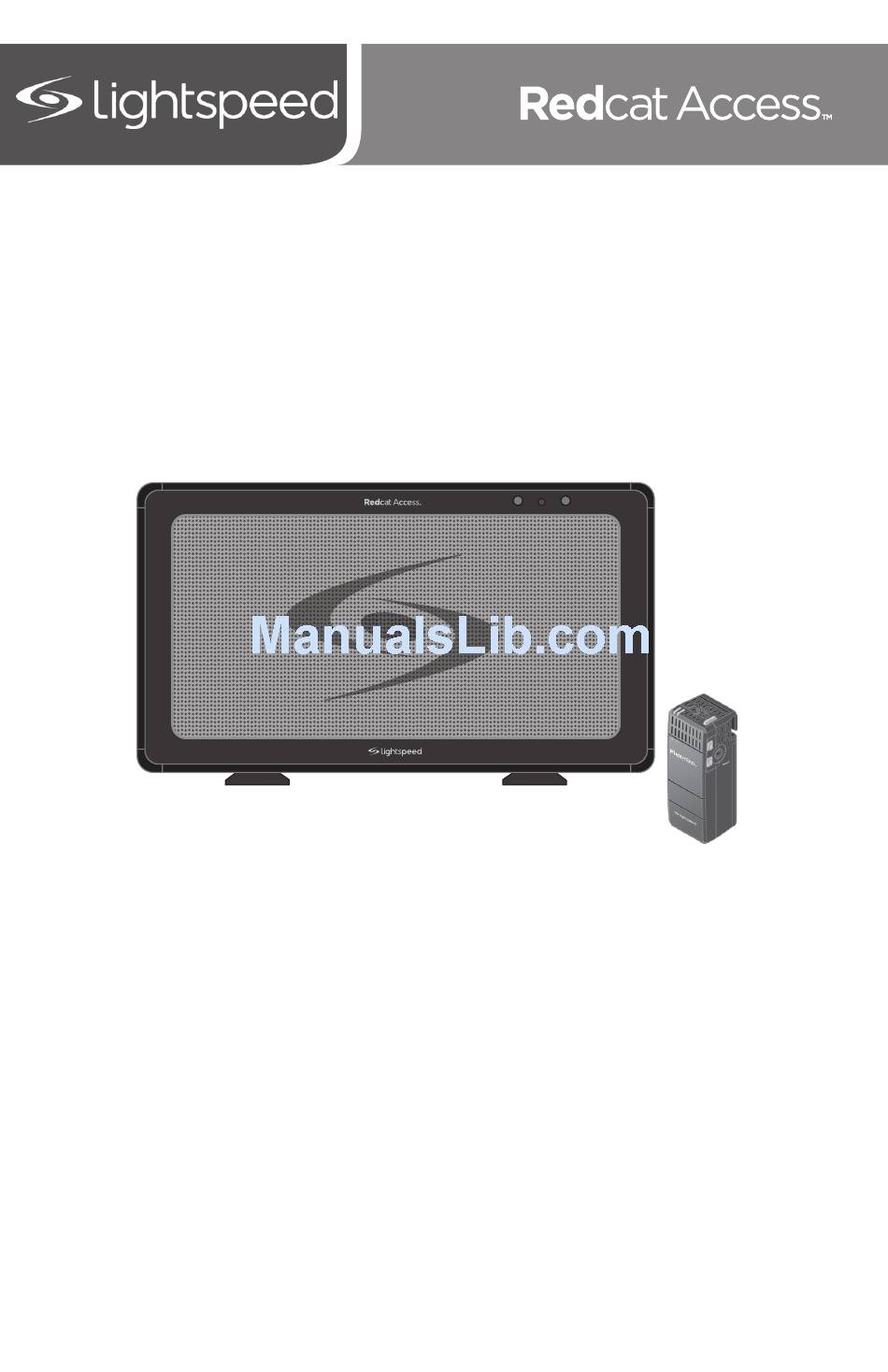

Classroom Audio System
1
POWER
2
U s e r M a n u a l

Advertisement

Table of Contents
loading

Related Manuals for LightSpeed Technologies Redcat Access

Summary of Contents for LightSpeed Technologies Redcat Access

  • Page 1 Classroom Audio System POWER U s e r M a n u a l...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SECTION 1: Important Safety Instructions Overview System Components and Unpacking Optional Components Front Panel Indicators Top Panel Controls and Connections Side Panel Controls and Connections Rear Panel Features Flexmike Controls and Connections SECTION 2: Step 1. Determine Set-up Location Set-up &...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read these instructions. 13. Unplug this apparatus during lightning storms or when unused Keep these instructions. for long periods of time. Heed all warnings. 14. Refer all servicing to qualified Follow all instructions. service personnel. Servicing is required when the apparatus Do not use the apparatus near has been damaged in any way,...

  • Page 5: Overview

    SECTION 1: OVERVIEW SYSTEM COMPONENTS AND UNPACKING The standard configuration of the Redcat Access will contain: POWER Redcat Access Receiver/ Amplifier and Power Supply Flexmike Classroom Microphone Wall Charger & Charging Cable PLEASE NOTE: The Redcat Access, Microphone(s), and Media Connector are registered together at the factory and are labeled as such with ID numbers.
  • Page 6 Standard Accessories Redcat Access all-in-one system 16V-2.0-NA 16V/2.0A power supply for Redcat Access, U.S. and Canada 16V-2.0-_ 16V/2.0A power supply for Redcat Access, specify country Flexmike classroom microphone with battery pack andlanyard NH2.4V AA NiMH rechargeable battery pack for Flexmike,...

  • Page 7: Front Panel Indicators

    FRONT PANEL INDICATORS POWER ON INDICATOR: The power light will glow blue when power is applied. MIC 1 & MIC 2: Mic link and registration indicators a. Flashing amber indicates registration is in process. b. Solid green indicates a link has been established. POWER TOP PANEL CONTROLS 1.

  • Page 8: Side Panel Controls And Connections

    Controls the volume level of the audio output. This button is POWER BUTTON: used to turn the Redcat Access on or off. The front panel blue light will glow when power is on. Plug the power DC INPUT JACK: supply (16V/2.0A) into this jack.

  • Page 9: Flexmike Controls And Connections

    When in operation, turns red to indicate low battery. MICROPHONE VOLUME UP/DOWN AUDIO INPUT: connect audio source to send to Redcat Access LANYARD INTERFACE: insert the lanyard into this hook to wear the Flexmike. BATTERY DOOR: remove the battery door to replace the rechargeable battery pack 10.

  • Page 10: Section 2

    SECTION 2: SET-UP & USE 1. DETERMINE SET-UP LOCATION The Redcat Access is shipped with feet to stand on a cabinet or tabletop. Alternatively, the feet can be used as wall mount brackets. Advantages of either include: Tabletop (recommended): Wall-mount: •...

  • Page 11: B. To Set-Up Mounted On A Wall

    6-8 feet off next to the teacher. Avoid placing the the ground. Redcat Access on any wall close to where the teacher usually stands to Next, find a location as far away as instruct the class. Having the teacher’s...
  • Page 12 3. Drill pilot holes 4. Insert anchors 5. Remove feet from Redcat Access and place over anchors 6. Insert and secure screws through the Redcat Access feet into the anchors 7. If using optional security bracket, mount on wall using the provided screws and anchors 8.

  • Page 13: Connecting The Power Supply

    DC INPUT 16V/2.0A 2. Insert the DC connector into the “DC INPUT” connector on the Redcat Access and plug the other end to an electrical outlet. 3. The Redcat Access automatically powers on and the blue power LED on the front panel will light.

  • Page 14: Audio Integration

    3. AUDIO INTEGRATION The next step in setting up your Redcat Access system is to connect it to the other elements of your audio system. Audio systems have varying elements – you may have a computer, television, DVD/VCR player, a visual projection system or other devices.
  • Page 15 4. CHARGING THE FLEXMIKE Before use, the Flexmike should be charged. It will take 8-9 hours for the Flexmike to obtain a full charge. A fully charged Flexmike will last for up to 8 hours of use. If microphones are used daily, they should be charged each night –...
  • Page 16 Flexmike is set at the factory to the mid point. 3. While speaking in a normal voice, fine-tune the microphone volume on top of the Redcat Access up or down. Proper volume level should be as follows: • Your voice should be clearly heard by another person on the other side of the room.
  • Page 17 DEVICE (ALD) 1. Turn the ALD (Assistive Listening of the Redcat Access. Device) volume control on 4. With the Redcat Access and ALD the Redcat Access side panel turned on, speak into the Flexmike counterclockwise all way the down. and slowly adjust the ALD volume 2.
  • Page 18 7. USING FLEXMIKE AS WIRELESS AUDIO LINK The Flexmike includes a 3.5mm audio input jack to connect to an audio source like a laptop or MP3 player. The Flexmike will transmit the audio signal to be played through the system. If your system includes two Flexmikes, you can use one mic for instruction and the second mic to transmit audio through the system.

  • Page 19: Daily Operation

    The Flexmike will stay powered on during charging, but will automatically be muted. • It is not necessary to turn off Redcat Access. If you do want to power it down, press the power button on side of Redcat Access. If Redcat Access is powered...

  • Page 20: Optional Accessories

    SECTION 3: OPTIONAL ACCESSORIES SHAREMIKE CONTROLS AND CONNECTIONS 1. POWER BUTTON 2. MIC 1 or MIC 2 STATUS: lighted to indicate microphone is registered • Blue: solid = normal operation; Blue: flashing = linking in process • Red: solid = muted; Red: flashing = low battery 3.

  • Page 21: Charging

    PLEASE NOTE: The Redcat Access and Microphone(s) are registered together at the factory. If you have purchased a Sharemike with your Redcat Access, keep all components together as a system. Moving them from one...

  • Page 22: Initial Set-Up

    SHAREMIKE: INITIAL SET-UP 1. Ensure the Redcat Access is on. The blue light on the front of the RCA will glow. 2. Turn on the Sharemike by sliding the pressing the power switch. 3. Grip the barrel in the center section.

  • Page 23: Media Connector: Controls And Connections

    MEDIA CONNECTOR CONTROLS AND CONNECTIONS MICROPHONE AUDIO IN AUDIO OUT LINK POWER 1. POWER LIGHT: This light will turn blue when power is on. 2. POWER BUTTON: System power is turned on or off with this pushbutton. 3. MICROPHONE VOLUME CONTROL: Controls the volume level of the microphones.
  • Page 24 MEDIA CONNECTOR CONTROLS AND CONNECTIONS CONT’D USB power adaptor and charging cable 1. TONE CONTROL: Adjusts the a link is established. This is only audio tone, adding more bass used when adding or replacing a or treble for a more rich or crisp Midea Connector.

  • Page 25: Using The Media Connector

    USING THE MEDIA CONNECTOR The Media Connector can be used as the primary volume control for the audio sources you’ve connected. 1. Plug the micro USB end of the power cable into the USB port on the back of the Media Connector. Plug the other end of the cable into the USB power adaptor.

  • Page 26: Audio Integration With Media Connector

    AUDIO INTEGRATION WITH MEDIA CONNECTOR The Media Connector is designed to integrate multiple audio sources quickly and easily. Redcat Access POWER Teacher’s Flexmike TONE AUDIO OUT AUDIO IN USB POWER REGISTER TREBLE BASS 5V/1.5A...

  • Page 27: Maintenance & Troubleshooting

    SECTION 4: MAINTENANCE & TROUBLESHOOTING BATTERY REPLACEMENT Replacement of battery pack in Flexmike. (Part # NH2.4V) Slide the battery door open. Carefully pull the battery pack away from the Flexmike and disconnect the cable. Connect the cable of the new battery pack as shown and insert the battery pack into the compartment.
  • Page 28 BATTERY REPLACEMENT, CONT’D Replacement of battery pack in Sharemike. (Part # NH2APK) Slide the battery door open. Carefully remove the battery pack from the Sharemike. Insert the new battery pack into the compartment. Ensure proper polarity is observed. Slide the cover back on and snap into place.
  • Page 29 The green light will turn on when a full charge • Confirm the microphone is linked is reached. to the Redcat Access. The mic 1 status light will be green on the PROBLEM: Microphone does not Redcat Access indicating the indicate a “Ready”...
  • Page 30 TIPS TO OBTAIN OPTIMUM AUDIO PERFORMANCE • Speak in a natural voice. A normal conversational speech level will provide an adequate signal. It is not necessary to increase the intensity of your voice—the audio system provides adequate amplification (approximately 5 – 10 dB) above ambient room noises.

  • Page 31: Section 5

    Repair by other than Lightspeed or its authorized service agencies will void this warranty. Information on authorized service agencies is available from Lightspeed Technologies, Inc. Our Service Department (800.732.8999, 5 a.m. – 5 p.m., PST) will handle all your repair/replacement needs.

  • Page 32: Safety Warnings And Certifications

    European Union Directives: 2004/108/EC Electromagnetic Compatibility (EMC) and 2006/95/EC Low Voltage Directive (LVD). Lightspeed Technologies launched a formal product recycle program in Europe that complies with the European Union Directive 2002/96/EC on Waste Electrical and Electronic Equipment (“WEEE Directive”).
  • Page 33 Européenne suivantes : 2004/108/EC Electromagnetic Compatibility (EMC) and 2006/95/EC Low Voltage Directive (LVD). Lightspeed Technologies a lancé un programme de recyclage de produits en Europe conformément à la directive de l’Union Européenne 2002/96/CE relative aux déchets d’équipements électriques et électroniques (directive «...
  • Page 34 FCC Notice to user This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 35 NOTICE FOR USB NOTE: Lightspeed is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 36 In case of alteration of the system, not agreed upon by us, this declaration will lose its validity. Products: Redcat Access, Flexmike, Flexcat Pod, Flexcat Charging Station, Flexcat Hand Remote Control Model Numbers: LSRCA 1881, LSFM 1881, FCP 1881, FCCS, FCHRC...

  • Page 37: System Specifications

    SYSTEM SPECIFICATIONS REDCAT ACCESS SPEAKER Power output: Acoustic frequency response: 120 Hz - 13 kHz DC power Input: 16V / 2.0A Total harmonic distortion <1% @ 10W Wireless communication: Access Technology (1.9 GHz + RF4CE) Tone control: 1 bass/treble control Audio input: 3.5mm stereo w/ volume control...
  • Page 38 Audio Link indicator: 1 LED on front panel Registration indicator 1 LED on back panel Device Registration: Push button for Redcat Access Dimensions (W x H x D): 7.6” x 5” x 1.13” (193.04 x 127 x 28.7mm) Weight: 9.6 oz. (272.16g)
  • Page 40 L IG HTSP EE D T EC H N OL OG I ES 11 509 S W HERM AN R O A D / TU AL AT IN , O R 9 7 062 T OLL F REE : 8 00. 7 3 2 . 8 9 9 9 / PH ON E : 5 0 3 .6 8 4 .5 5 38 / FAX : 503.6 84.3 197 LI GHTSP EED - TEK.
