Owner's Manual
EMPIRE
EMPIRE
Comfort Systems

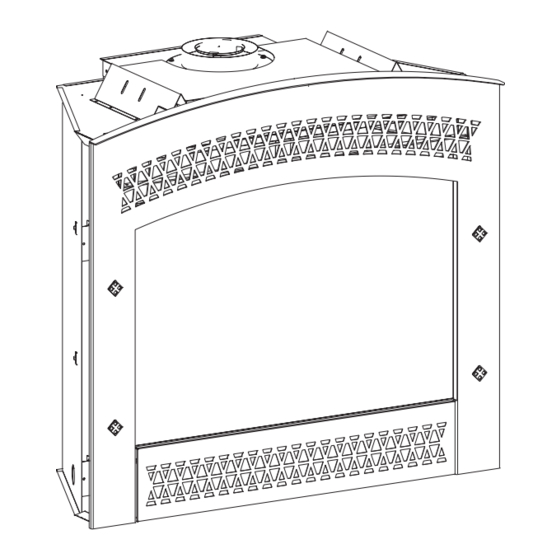

Direct Vent Zero Clearance Gas
Fireplace Heater
WARNING
WARNING: If the information in these instructions
are not followed exactly, a fire or explosion may
result causing property damage, personal injury
or loss of life.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use
any phone in your building.
•
Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
•
If you cannot reach your gas supplier, call the
fire department.
— Installation and service must be performed by a
qualified installer, service agency or the gas sup-
plier.
INSTALLATION INSTRUCTIONS
GAS-FIRED
HOT GLASS
WILL
CAUSE BURNS.
DO NOT TOUCH
GLASS
UNTIL COOLED.
NEVER
ALLOW CHILDREN
TO TOUCH GLASS.
AND
OWNER'S MANUAL
GAS FIREpLACE HEATER
MILLIvOLT STANDING pILOT
Installer:
Consumer: Retain this manual for future reference.
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA only)
or mobile home, where not prohibited by state or local
codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a certified
kit is used.
WARNING: If not installed, operated and maintained
in accordance with the manufacturer's instructions,
this product could expose you to substances in fuel
or from fuel combustion which can cause death or
serious illness.
DIRECT vENT
MODEL SERIES
Dvp36Dp31(N,p)-2
DIRECT IGNITION
Dvp36Dp51N-1
INTERMITTENT pILOT
Dvp36Dp71(N,p)-2
REMOTE RF MODELS
Dvp36Dp91(N,p)-2
UL FILE NO. MH30033
Leave this manual with the appliance.
