Model 36
DVP36CPWH
Liner Side - Left
Liner Side - Right
#10 x 1/2 Screw
Liner Top Assembly
41657-0-0220
DVCT(36,40) LINER KIT
INSTALLATION INSTRUCTIONS
CERAMIC FIBER LINERS
LEAVE INSTRUCTIONS WITH THE HOMEOWNER.
Description
Liner Rear
Floor
Liner Bracket
TOOLS NEEDED: Phillips Screwdriver
INSTALL FLOOR LINERS
1.
Remove barrier screen
and glass door. See the
owner's manual for
instructions.
NOTICE: Video of liner installation available on our website at:
www.empirecomfort.com.
Empire Comfort Systems Inc. • Belleville, IL
Model 40
DVP40CPWH
CARTON CONTENTS
2.

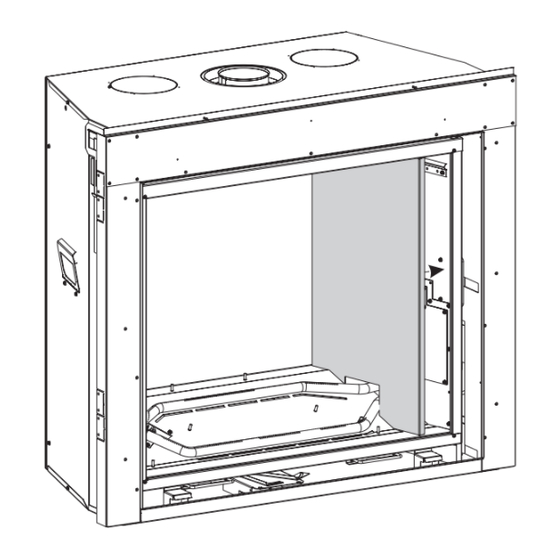

Place LINER as shown.
See Figure 1.
Figure 1
Description
Liner, Whitewash Herringbone Brick
Ceramic Fiber Liners
1
1
1
1
1
3
1
QR Code
Page 1
