36064-3-0120
DVCt(36,40) LINER KIt
INStALLAtIoN INStRUCtIoNS
CERAMIC FIBER LINERS
Model 36
Model 40
DVP36CPTB-1
DVP40PTB-1
DVP36CPTS-1
DVP40PTS-1
LEAVE INStRUCtIoNS WItH tHE HoMEoWNER.
CARtoN CoNtENtS
Description
LINER REAR
LINER SIDE - LEFT
LINER SIDE - RIGHT
LEFT FLOOR
RIGHT FLOOR
LINER BRACKET
#10 x 1/2 Screw
LINER TOP ASSEMBLY
tools Needed: Phillips screw driver
Installation of Floors
1.
Remove barrier screen and glass door.
(See the owner's manual for instructions)
2.

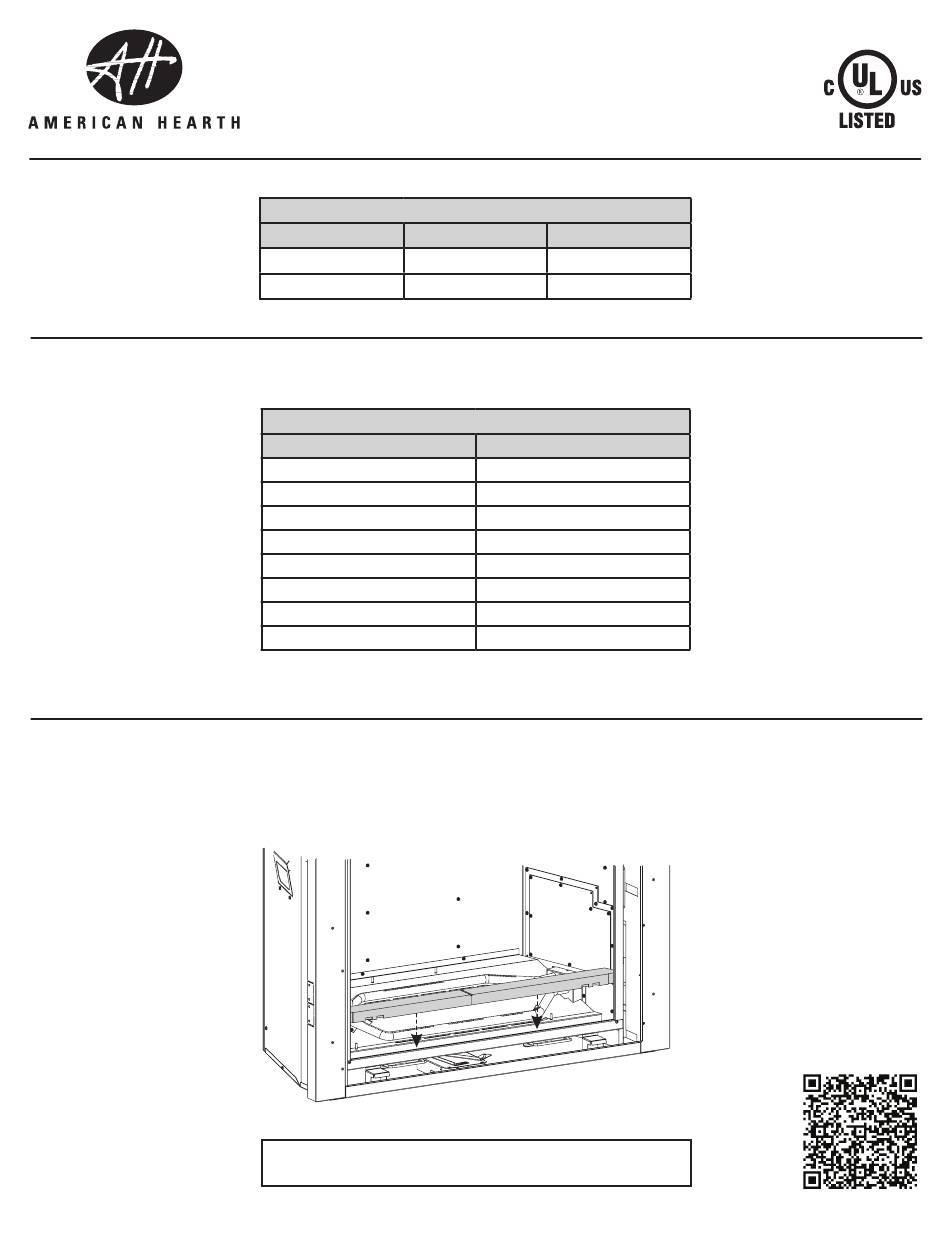

Place the RIGHT and LEFT FLOOR as
(Shown In Figure 1).
Left and Right Floor
NOTICE: Video of liner installation available on our website at:
www.empirecomfort.com.
Empire Comfort Systems Inc. • Belleville, IL
Description
Rustic Brick
Traditional Stone
Ceramic Fiber Liners
1
1
1
1
1
1
3
1
Figure 1
GAS-FIRED
QR Code
Page 1
Advertisement
Related Manuals for Empire Comfort Systems American Hearth DVCT 36 Series
Summary of Contents for Empire Comfort Systems American Hearth DVCT 36 Series
- Page 1 Place the RIGHT and LEFT FLOOR as (Shown In Figure 1). QR Code Figure 1 Left and Right Floor NOTICE: Video of liner installation available on our website at: www.empirecomfort.com. 36064-3-0120 Empire Comfort Systems Inc. • Belleville, IL Page 1...
- Page 2 Figure 2 2. Place LINER SIDE- RIGHT against right firebox wall and LINER REAR and push back to hold into place. Repeat for LINER SIDE - LEFT. (See Figure 3) Figure 4 Figure 3 Page 2 Empire Comfort Systems Inc. • Belleville, IL 36064-3-0120...
- Page 3 LINER SIDE - RIGHT 36256 36245 LINER REAR 36255 34798 LINER FLOOR - LEFT 36254 34774 LINER FLOOR - RIGHT 34767 34767 LINER BRACKET R2737 R2737 HEX HEAD #10x1/2 SCREW NOT SHOWN 36064-3-0120 Empire Comfort Systems Inc. • Belleville, IL Page 3...
- Page 4 Empire Comfort Systems Inc. Belleville, IL If you have a general question about our products, please e-mail us at info@empirecomfort.com. If you have a service or repair question, please contact your dealer. www.empirecomfort.com Page 4 36064-3-0120...
