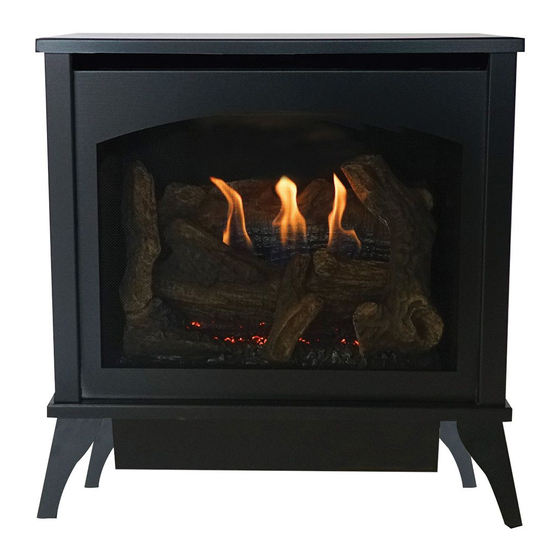

Direct-vent fireplace stove

Advertisement

Quick Links

INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
WARNING
FIRE OR EXPLOSION HAZARD
If the information in this manual is not
followed exactly, a fire or explosion may
result causing property damage, personal
injury or loss of life.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch;
do not use any phone in your building.
Leave the building immediately.
Immediately call your gas supplier
from a neighbor's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas
supplier, call the fire department.
— Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
INSTALLATION INSTRUCTIONS
AND OWNER'S MANUAL
DIRECT - VENT
FIREPLACE STOVE MODELS:
DVP(20,30)MS(30,70)(N,P)-1
WARNING
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Refer to this manual. For
assistance or additional information consult a
qualified installer, service agency, or the gas
supplier.
This appliance may be installed in an aftermarket
permanently located, manufactured home (USA only)
or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
certified kit is used.
GAS-FIRED
MH30033
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVP20MS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Empire Comfort Systems DVP20MS

  • Page 1 INSTALLATION INSTRUCTIONS AND OWNER’S MANUAL DIRECT - VENT INSTALLER: FIREPLACE STOVE MODELS: Leave this manual with the appliance. CONSUMER: DVP(20,30)MS(30,70)(N,P)-1 Retain this manual for future reference. GAS-FIRED WARNING FIRE OR EXPLOSION HAZARD If the information in this manual is not followed exactly, a fire or explosion may MH30033 result causing property damage, personal...
  • Page 2: Table Of Contents

    DVP30MS Parts List ............................52-53 DVP30MS Parts View ..............................54 CIB3-1 Optional Blower Installation Instructions - DVP30MS ................55-57 CIB4-1 Optional Blower Installation Instructions - DVP20MS ................58-60 Master Parts Distributor List.............................61 How To Order Repair Parts ............................61 Quick Reference Guide............................62-63 Appliance Service History ..........................
  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION Before enclosing the vent pipe assembly, operate the appliance to ensure it is venting properly. DO NOT OPERATE THIS APPLIANCE WITHOUT GLASS FRONT PANEL INSTALLED WARNING 6. “Clothing or other flammable material should not be 1. “Due to high temperatures, the appliance should be placed on or near the appliance.”...
  • Page 4: Safety Information For Users Of Propane Gas

    SAFETY INFORMATION FOR USERS OF PROPANE GAS SOME POINTS TO REMEMBER Propane is a flammable gas which can cause fires and explosions. In its natural state, propane is odorless and • Learn to recognize the odor of Propane Gas. Your lo- colorless.
  • Page 5: Requirements For Massachusetts

    REQUIREMENTS FOR MASSACHUSETTS For all side wall horizontally vented gas fueled equipment installed SIGNAGE. A metal or plastic identification plate shall be per- in every dwelling, building or structure used in whole or in part for manently mounted to the exterior of the building at a minimum residential purposes, including those owned or operated by the height of eight feet above grade directly in line with the exhaust Commonwealth and where the side wall exhaust vent termination...
  • Page 6: Introduction

    • Modification of the stove or direct vent system. (a) the installation or replacement of gas piping or (b) the connection, • Installation other than as instructed by Empire Comfort Systems, Inc. installation, repair or servicing of equipment, who is experienced in •...
  • Page 7: Specifications

    DVKVP Vertical Termination Kit - includes SD46DVA48B (2 ea), SD46DVADC, SD46DVAF6, SD46DVAFS, SD46DVASC, SD46DVAHC NOTE: On horizontal applications, snorkel kits may be used. DVP20MS(LP,NAT) and DVP30MSNAT: SD-46DVASNK14 (14-inch pipe snorkel) DVP30MSLP: SD-46DVASNK36 (36-inch pipe snorkel) ACCESSORIES Millivolt Wall Thermostat - Reed Switch...
  • Page 8: Gas Supply

    GAS SUPPLY Consult the current National Fuel Gas Code, ANSI Z223.1 CAN/ Installing A New Main Gas Shut-Off Valve CGA-B149 (.1 or .2) installation code. Each appliance should have its own manual gas shut-off valve. A manual main gas shut-off valve should be located in the vicinity RECOMMENDED GAS PIPE DIAMETER of the unit.
  • Page 9: Clearances

    CLEARANCES In selecting a location for installation, it is necessary to provide ad- 4" (102mm) HEATER CORNERS TO SIDEWALL 4” (102mm) HEATER CORNERS TO SIDE WALL 4” (102mm) HEATER CORNERS TO SIDE WALL equate accessibility clearances for servicing and proper operation. 10”...
  • Page 10 CLEARANCES (CONT'D) Special Vent Systems NOTE: American Metal®, Selkirk Direct-Temp®, MetalFab The following vent systems are acceptable for use with the SureSeal®, BDM Manufacturing, and ICC Inc. Excel CAN NOT DVP(20,30)MS stoves: be used in side wall horizontal vent installations in the Common- •...
  • Page 11: Venting Stove

    A Co-Axial to Co-Linear appliance connector is approved for maximum 18". installation in vertical venting applications. One can be purchased through Empire Comfort Systems or Simpson Dealer (part number • DVP20CCLP - can be terminated horizontally with kit DVK45LP 46DVA-GCL).
  • Page 12 Straight out Venting Requirements: back with Horizontal • Minimum vertical rise from appliance outlet before any elbows = venting and 12 inches (305mm) for DVP20MS(LP,NAT) and DVP30MSNAT termination. and 24 inches (610 mm) for DVP30MSLP. May require DVK45LP additional •...
  • Page 13 1 2 3 4 5 6 7 8 9 10 11 12 13 14 1 2 3 4 5 6 7 8 9 10 11 12 13 14 VENTING MUST VENTING MUST TERMINATE IN TERMINATE IN THIS AREA THIS AREA 28” 24” Figure 9a - DVP20MS Figure 9b - DVP30MS 42603-4-0421 Page 13...
  • Page 14: Termination Clearances

    TERMINATION CLEARANCES Termination clearance for buildings with combustible and noncombustible exteriors. INSIDE CORNER OUTSIDE CORNER RECESSED LOCATION “A” = COMBUSTIBLE 9” (229mm) = NONCOMBUSTIBLE 2” (51mm) BALCONY BALCONY WITH PERPENDICULAR SIDE WALL WITH NO SIDE WALL “C” = CLEARANCE FROM CORNER IN RECESSED LOCATION COMBUSTIBLE 9”...
  • Page 15: Vent Clearances

    Clearances are to heat resistant material (i.e. wood, metal). This the following shall be indicated: does not include vinyl. Empire Comfort Systems Inc. will not be held Clearance in accordance with local installation codes and the requirements of the responsible for heat damage caused from terminating under vinyl gas supplier.
  • Page 16: Vent System Identification

    VENT SYSTEM IDENTIFICATION Installing Vent Components Begin the vent system installation by installing the first Simpson Duravent component on the top of the appliance with a 45° elbow and rotate the vent elbow to the desired position then add horizontal and vertical pipe lengths and then a horizontal or vertical termination kit.
  • Page 17: Framing And Finishing

    FRAMING AND FINISHING Installing Support Brackets OUTSIDE THIMBLE ASSEMBLY A horizontal pipe support MUST BE used for each 3 feet of horizontal run. The pipe supports should be placed around 6-5/8 inch diameter pipe and nailed in place to framing members. There MUST BE a 2 inch clearance to combustibles above 6-5/8 inch diameter pipe and elbows and 1 inch clearance on both sides and bottom of 6-5/8 inch to combustibles on all horizontal pipe sections and elbows.
  • Page 18: Horizontal Termination

    FRAMING AND FINISHING (CONT'D) Figure 17 Figure 18 HORIZONTAL TERMINATION Attach and secure the termination to the last section of horizontal venting by sliding cap over the last section of horizontal venting to ensure proper location. NOTE: Termination cap should pass through the wall firestop from the exterior of the building.
  • Page 19: Vertical Termination

    VERTICAL TERMINATION Vertical Terminations Note that for steep roof pitches, the vent height must be increased. Locate and mark the center point of the venting pipe. Using a nail In high wind conditions, nearby trees, adjoining roof lines, steep on the underside of the roof and drive this nail through this center pitched roofs, and other similar factors can result in poor draft, or point.
  • Page 20 VERTICAL TERMINATION (CONT'D) NOTE: When installing this vent system in a chase, it is always good A horizontal pipe support MUST BE used for each 3 feet of horizontal building practice to insulate the chase as you would the outside walls run.
  • Page 21: Dvp20Ms Log Identification

    DVP20MS LOG IDENTIFICATION Part Number Front View Top View Description Log A 29790 Log B 29792 Log C 29791 Log D 29793 42603-4-0421 Page 21...
  • Page 22: Dvp20Ms Log Placement

    LEFT FRONT LOG (DVP30 LOGS) Figure 24 REAR LOG LEFT EMBER RIGHT FRONT LOG BRANCH MATERIAL FRONT LOG PLACEMENT Figure 25 - Log Placement - Top View (DVP20MS Shown) Figure 26 - Log Placement - Front View (DVP20MS Shown) Page 22 42603-4-0421...
  • Page 23 DVP20MS LOG PLACEMENT 1. Place Log A onto the pins on the Log Support Shelf as shown below. TOP VIEW FRONT VIEW 42603-4-0421 Page 23...
  • Page 24 DVP20MS LOG PLACEMENT 2. Place Log B onto the two right pins on the burner as shown below. TOP VIEW FRONT VIEW Page 24 42603-4-0421...
  • Page 25 DVP20MS LOG PLACEMENT 3. Place Log C onto the two left pins on the burner as shown below. TOP VIEW FRONT VIEW 42603-4-0421 Page 25...
  • Page 26 DVP20MS LOG PLACEMENT 4. Place Log D on the pin on Log A with the "fork" resting on Logs B and C as shown below. TOP VIEW FRONT VIEW Page 26 42603-4-0421...
  • Page 27 DVP20MS LOG PLACEMENT 5. Assembly is completed. TOP VIEW FRONT VIEW 42603-4-0421 Page 27...
  • Page 28: Dcp30Ms Log Identification

    DVP30MS LOG IDENTIFICATION Part Number Front View Top View Description Log A 29795 Log B 29797 Log C 29796 Log D 29798 Page 28 42603-4-0421...
  • Page 29: Dvp30Ms Log Placement

    DVP30MS LOG PLACEMENT 1. Place Log A onto the pins on the Log Support Shelf as shown below. TOP VIEW FRONT VIEW 42603-4-0421 Page 29...
  • Page 30 DVP30MS LOG PLACEMENT 2. Place Log B onto the two right pins on the burner. TOP VIEW FRONT VIEW Page 30 42603-4-0421...
  • Page 31 DVP30MS LOG PLACEMENT 3. Place Log C onto the two left pins on the burner. TOP VIEW FRONT VIEW 42603-4-0421 Page 31...
  • Page 32 DVP30MS LOG PLACEMENT Place Log D on the pins on Logs A and C. *Place ember material on front burner ports as shown in Figure 25. TOP VIEW FRONT VIEW Page 32 42603-4-0421...
  • Page 33 DVP30MS LOG PLACEMENT Assembly is completed. TOP VIEW FRONT VIEW 42603-4-0421 Page 33...
  • Page 34: Operating Instructions

    OPERATING INSTRUCTIONS 750 Millivolt System The OWNER should carefully read and follow these operating The standing pilot (750 millivolt system) is a continuous burning instructions at all times. Lower the door assembly to view the gas pilot. The pilot remains ON even when the main burner is OFF. controls for the stove.
  • Page 35: Main Burner Flame Characteristics

    MAIN BURNER FLAME CHARACTERISTICS Figure 29 shows a correct main burner flame pattern. Figure 30 Cleaning the Log Set and Firebox shows an incorrect main burner flame pattern. Refer to the maintenance section on pages 46 - 47 for removal If main burner flame pattern is incorrect, as shown in Figure 30: of the outer casing assembly to gain access to the glass door •...
  • Page 36: Wiring

    WIRING DVP(20,30)MS ON/OFF/REMOTE Switch 1. Connect one wire from the 750 millivolt wall thermostat and one DVP(20,30)MS is equipped with an ON/OFF/REMOTE switch which wire from appropriate accessory to the GREEN, stripped and is located on the wire channel located on the top, left side of the bare wire from the ON/OFF/REMOTE wire harness.
  • Page 37: Millivolt Lighting Instructions

    MILLIVOLT LIGHTING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING WARNING If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance has a pilot which must be lighted by hand. •...
  • Page 38: Millivolt Wiring

    MILLIVOLT WIRING Optional Wall Switch For Standing Pilot Ignition Wiring Position the wall switch in the desired position on a wall. Run a Appliance Requirements maximum of 25 feet (7.8m) or less length of 18 A.W.G. minimum WARNING wire and connect it to the stove valve pigtails. Do not connect 110-120 vac to the gas control valve or the WARNING appliance will malfunction and the valve will be destroyed.
  • Page 39: Millivolt Troubleshooting

    MILLIVOLT TROUBLESHOOTING With proper installation and maintenance, your new Direct Vent Stove should provide years of trouble-free service. If you do ex- perience a problem, refer to the Trouble Shooting Guide below. This guide will assist a qualified service person in the diagnosis of problems and the corrective action to be taken.
  • Page 40: Ip Operating Instructions

    IP OPERATING INSTRUCTIONS Attention: For shipping purposes, the Electronic Control Follow the SAFETY and LIGHTING INSTRUCTIONS for In- Module and Receiver Plate assembly is loosely packaged termittent Pilot controls found in this manual, and on labels near the left side of the appliance. It is necessary that the found in the control compartment located in the lower cavity receiver plate assembly be secured to the left front flange of of the appliance.
  • Page 41: Ip Electronic System Wiring Diagram

    IP ELECTRONIC SYSTEM WIRING DIAGRAM If any of the original wire as supplied with this unit must be replaced, it must be replaced with equivalent gauge and temperature rated wire. This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured (mobile) home where not prohibited by local codes.
  • Page 42: Intermittent Pilot Lighting Instructions

    INTERMITTENT PILOT LIGHTING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING WARNING If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. This appliance has a pilot which can be lighted with the manual C.
  • Page 43: Intermittent Control System Troubleshooting

    INTERMITTENT CONTROL SYSTEM TROUBLESHOOTING Brief Description of the Components The gas valve is fitted with a manual HI/LO knob to allow for manual modulation of the gas outlet pressure to the appliance burner. The controls are designed to be used with either Propane or Natural Gas and can be converted by use of an OEM supplied conversion kit.
  • Page 44 INTERMITTENT CONTROL SYSTEM TROUBLESHOOTING If the DFC giving signal lock out: Verify the electrical connections’ integrity and The board should be unlocked to make sure they are in accordance with the relevant reinitiate a pilot flame ignition (for Is the DFC board in system wiring diagram.
  • Page 45 INTERMITTENT CONTROL SYSTEM TROUBLESHOOTING Replace DFC board. Main burner lights when the pilot only Replace the gas valve. should light. Verify the pilot flame fully engulfs the tip of the sense electrode. If not replace the pilot assembly. Replace the pilot assembly. Carefully clean the electrical connections of the sense cable, and the DFC board sense cable connection.
  • Page 46: Maintenance

    Pull outer casing forward about 1" as shown in Figure 34. General Glass Information Lift outer casing up and forward to remove. Only glass approved for use in Empire Comfort Systems Inc. Lower valve cover on firebox. fireplaces may be used for replacement. The glass replacement Release two door latches at bottom of firebox.
  • Page 47 MAINTENANCE (CONT'D) Figure 35 Figure 36 42603-4-0421 Page 47...
  • Page 48: Maintenance And Service

    MAINTENANCE AND SERVICE Although the frequency of servicing and maintenance will depend FOR THE INSTALLER on use and the type of installation, you should have a qualified Maintenance Precautions service technician perform an appliance checkup at the beginning Installation and repair should be done by a qualified service of each heating season.
  • Page 49: Dvp20Ms Parts List

    DVP20MS(30,70) PARTS LIST PART NUMBER INDEX DESCRIPTION DVP20MS30 DVP20MS30 DVP20MS70 DVP20MS70 PROPANE NATURAL PROPANE NATURAL R9672 R9672 R9672 R9672 INLET VENT COLLAR M178 M178 M178 M178 INLET COLLAR GASKET 30602 30602 30602 30602 AIR DROP ASSEMBLY M163 M163 M163 M163...
  • Page 50 DVP20MS(30,70) PARTS LIST (CONT'D) PART NUMBER INDEX DESCRIPTION DVP20MS30 DVP20MS30 DVP20MS70 DVP20MS70 PROPANE NATURAL PROPANE NATURAL — — 30930 30930 IP CONTROL BRACKET — — R11123 R11123 WIRE HARNESS (INCLUDES PILOT SWITCH) — — R11127 R11127 CONTROL BOARD — —...
  • Page 51: Dvp20Ms Parts View

    DVP20MS(30,70) PARTS VIEW PLEASE NOTE: When ordering parts, it is very important that part number and description of part coincide. 11 11 IP ONLY IP ONLY DVP20 DVP20 IP ONLY IP ONLY DVP30 DVP30 USE ONLY MANUFACTURER'S REPLACEMENT PARTS. USE OF ANY OTHER PARTS COULD CAUSE INJURY OR DEATH.
  • Page 52: Dvp30Ms Parts List

    DVP30MS(30,70) PARTS LIST PART NUMBER INDEX DESCRIPTION DVP30MS30 DVP30MS30 DVP30MS70 DVP30MS70 PROPANE NATURAL PROPANE NATURAL R7566 R7566 R7566 R7566 INLET VENT COLLAR M178 M178 M178 M178 INLET COLLAR GASKET 30892 30892 30892 30892 AIR DROP ASSEMBLY M163 M163 M163 M163 FLUE OUTLET GASKET 30392 30392...
  • Page 53 DVP30MS(30,70) PARTS LIST (CONT'D) PART NUMBER INDEX DESCRIPTION DVP30MS30 DVP30MS30 DVP30MS70 DVP30MS70 PROPANE NATURAL PROPANE NATURAL — — 30930 30930 IP CONTROL BRACKET — — R11123 R11123 WIRE HARNESS (INCLUDES PILOT SWITCH) — — R11127 R11127 CONTROL BOARD — — R11122 R11122 BATTERY HOLDER, AA WITH SNAP-ON...
  • Page 54: Dvp30Ms Parts View

    DVP30MS(30,70) PARTS VIEW PLEASE NOTE: When ordering parts, it is very important that part number and description of part coincide. 11 11 IP ONLY IP ONLY DVP20 DVP20 IP ONLY IP ONLY DVP30 DVP30 USE ONLY MANUFACTURER'S REPLACEMENT PARTS. USE OF ANY OTHER PARTS COULD CAUSE INJURY OR DEATH. Page 54 42603-4-0421...
  • Page 55: Cib3-1 Optional Blower Installation Instructions - Dvp30Ms

    CIB3-1 OPTIONAL BLOWER INSTALLATION INSTRUCTIONS - DVP30MS Installing Optional CIB3 Blower CAUTION Loosen, but do not remove, four hex-head screws located on the exterior, bottom of the appliance. Sharp edges, use protective gloves when installing. Position the blower assembly at the rear of the appliance. Carton Contents: The blower assembly has four keyholes for attachment to the •...
  • Page 56 CIB3-1 OPTIONAL BLOWER INSTALLATION INSTRUCTIONS - DVP30MS Fan Control Wiring The fan control is a non-adjustable automatic type The fan control The appliance, when installed, must be electrically grounded in will require between 5 and 10 minutes of main burner operation accordance with local codes or, in the absence of local codes, with before the fan control "closes"...
  • Page 57 CIB3-1 OPTIONAL BLOWER INSTALLATION INSTRUCTIONS - DVP30MS PARTS LIST Index Number Part Number Description R1454 Brass Bushing R1499 Rubber Grommet 31739 Blower Housing R1410 Strain Relief Bushing R12447 Blower Assembly 24225 Blower Cover R6159 Cord Set R10363 Wire Harness R2503 Fan Control 24222 Fan Control Bracket...
  • Page 58: Cib4-1 Optional Blower Installation Instructions - Dvp20Ms

    CIB4-1 OPTIONAL BLOWER INSTALLATION INSTRUCTIONS - DVP20MS Fan Control CAUTION The fan control is a non-adjustable automatic type The fan control will require between 5 and 10 minutes of main burner operation Sharp edges, use protective gloves when installing. before the fan control "closes" and activates the blower. The blower...
  • Page 59 CIB4-1 OPTIONAL BLOWER INSTALLATION INSTRUCTIONS - DVP20MS Wiring CAUTION The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with Label all wires prior to disconnection when servicing controls. the National Electrical Code, ANSI/NFPA 70 or Canadian Electrical Wiring errors can cause improper and dangerous operation.
  • Page 60 CIB4-1 OPTIONAL BLOWER INSTALLATION INSTRUCTIONS - DVP20MS PARTS LIST Index Number Part Number Description R1454 Brass Bushing (4 Required) R1499 Rubber Grommet (4 Required) CI002 Blower Housing R1517 Tinnerman Clip (4 Required) R2804A Blower Assembly CI003 Blower Housing Cover R2099...
  • Page 61: Master Parts Distributor List

    This list changes from time to time. For the current list, please click on the Master Parts button at www.empirecomfort.com. Please note: Master Parts Distributors are independent businesses that stock the most commonly ordered Original Equip- ment repair parts for Heaters, Grills, and Fireplaces manufactured by Empire Comfort Systems Inc. Dey Distributing F.
  • Page 62: Quick Reference Guide

    Empire Comfort Systems Web Site: www.empirecomfort.com Belleville, Illinois The Empire Stoves Models: DVP20MS(30,70)(B,F,M)(N,P)-1 DVP30MS(30,70)(B,F,M,S,W)(N,P)-1 GAS-FIRED MODEL DVP20MS DVP30MS Gas Type Natural Gas Propane Gas Natural Gas Propane Gas Input BTU/HR (KW/H) Max 19,500 26,500 26,500 Input BTU/HR (KW/H) Min 13,500...
  • Page 63 Empire Comfort Systems Web Site: Belleville, Illinois www.empirecomfort.com The Empire Steel Stoves GAS-FIRED Models: DVP20MS(30,70)(B,F,M)(N,P)-1 DVP30MS(30,70)(B,F,M,S,W)(N,P)-1 CLEARANCES In selecting a location for installation, it is necessary to provide adequate accessibility clearances for servicing and proper operation. Locating and Venting the Direct Vent Stove...
  • Page 64: Appliance Service History

    APPLIANCE SERVICE HISTORY Date Dealer Name Service Technician Name Service Performed/Notes Page 64 42603-4-0421...
  • Page 65 APPLIANCE SERVICE HISTORY Date Dealer Name Service Technician Name Service Performed/Notes 42603-4-0421 Page 65...
  • Page 66 APPLIANCE SERVICE HISTORY Date Dealer Name Service Technician Name Service Performed/Notes Page 66 42603-4-0421...
  • Page 67: Warranty

    WARRANTY Empire Comfort Systems Inc. warranties this hearth product to be free from defects at the time of purchase and for the periods specified below. This warranty applies to the original purchaser only and is not transferable. All warranty repairs must be accomplished by a qualified gas appliance technician.
  • Page 68 Empire Comfort Systems Inc. Belleville, IL If you have a general question about our products, please e-mail us at info@empirecomfort.com. If you have a service or repair question, please contact your dealer. www.empirecomfort.com Page 68 42603-4-0421...
