StarTech.com VGA2VID2 Quick Start Manual

VGA to S-Video and Composite Video Converter

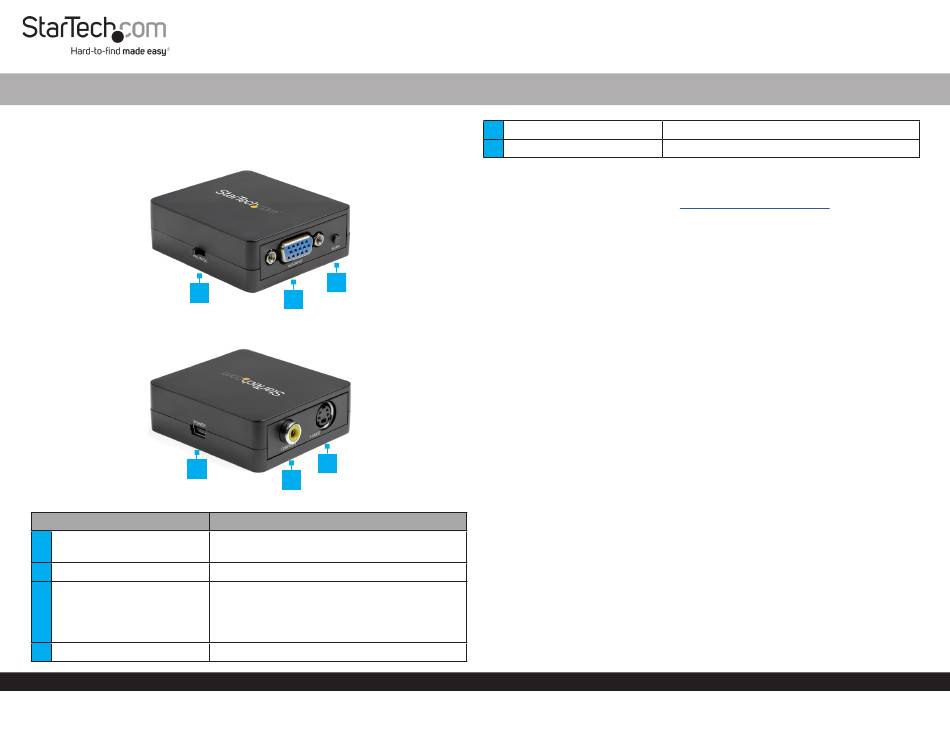

Product Diagram (VGA2VID2)
Front and Side Profile
1
Rear and Side Profile
4
Component
1
PAL/NTSC Switch
2
VGA Input Port
3
Scan Button
4
Power Port
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
3
2
6
5
Function
• Select the Display Device video output
standard
• Connect a VGA Video Source Device
• Fix underscan (video does not fill the Display)
and overscan (video is cut off around the
edges of the Display)
• 7 Image adjustments available
• Connect a USB Power Source
5
Composite Video Output Port
6 S-Video Output Port
Requirements
For the latest requirements, please visit www.startech.com/VGA2VID2.
• VGA Video Source Device x 1
• VGA Cable x 1
• Composite Video or S-Video Display Device x 1
• Composite Video or S-Video Cable x 1
• USB Power Source x 1
Installation and Operation
1. Ensure all of the Devices are powered off.
2. Toggle the PAL/NTSC Switch to match your Display Device video output standard.
Note: NTSC is the standard in North America and some parts of South America.
3. Connect a Composite Video Cable to the Composite Video Output Port and to
the Composite Video Display Device.
Or
Connect an S-Video Cable to the S-Video Output Port and to the S-Video Display
Device.
4. Connect a VGA Cable to the VGA Input Port on the Video Converter and to the
VGA Video Source Device.
5. Connect the USB-A to USB Mini Cable to an available USB Power Source and to
the Power Port.
6. Power on the Source and Display Devices.
7. If the video on the Display is too large or too small: press the Scan Button until the
desired aspect ratio is met and the video fills the Display.
Quick-Start Guide
• Connect a Composite Video Display Device
• Connect an S-Video Display Device
Manual Revision: October 29, 2019 9:46 AM
