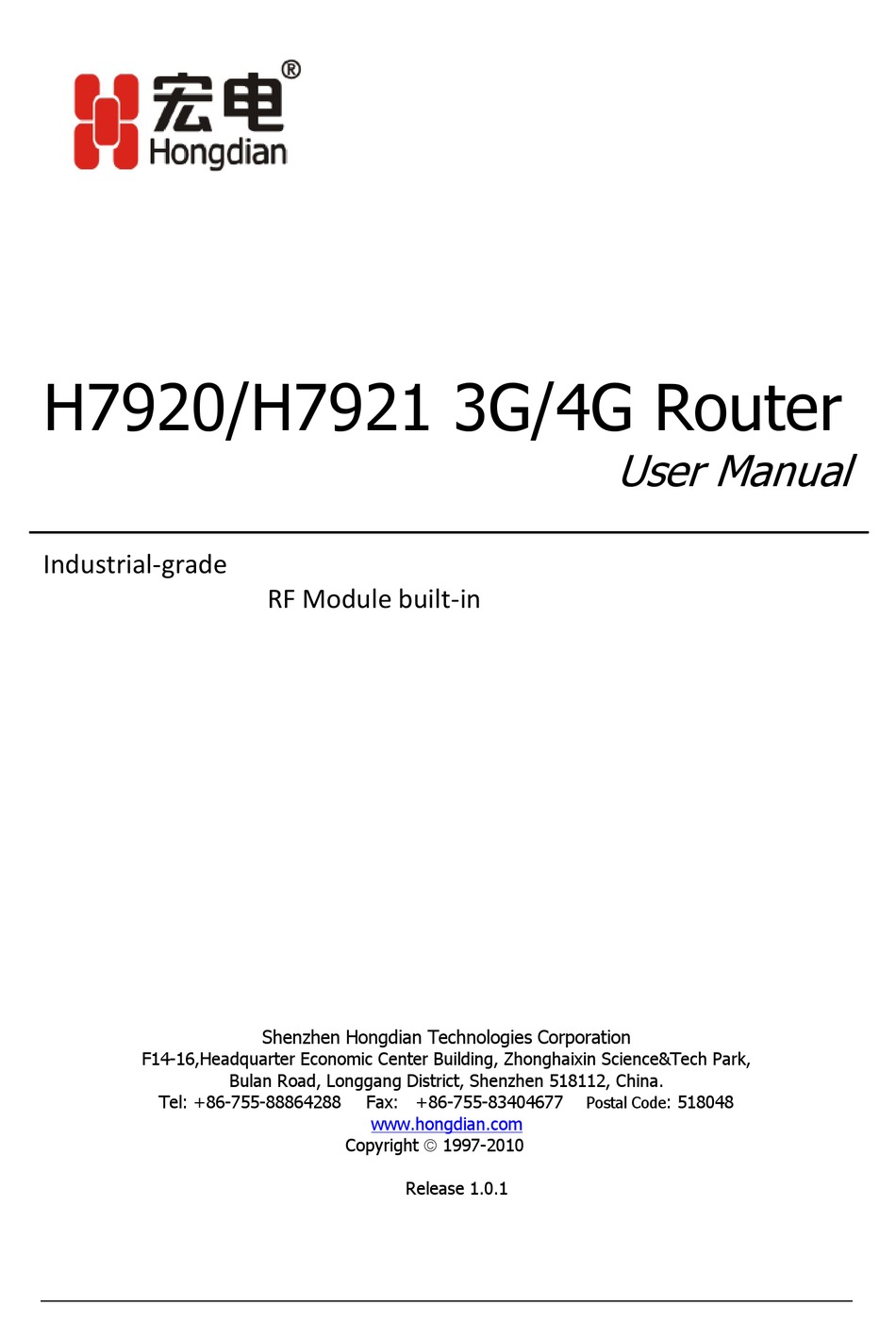

H7920/H7921 3G/4G Router

User Manual

Industrial-grade
RF Module built-in
Shenzhen Hongdian Technologies Corporation
F14-16,Headquarter Economic Center Building, Zhonghaixin Science&Tech Park,
Bulan Road, Longgang District, Shenzhen 518112, China.
Tel: +86-755-88864288
Fax: +86-755-83404677
: 518048
Postal Code
www.hongdian.com
Copyright  1997-2010
Release 1.0.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H7920 and is the answer not in the manual?

Questions and answers

Related Manuals for Shenzhen Hongdian Technologies H7920

Summary of Contents for Shenzhen Hongdian Technologies H7920

  • Page 1: User Manual

    H7920/H7921 3G/4G Router User Manual Industrial-grade RF Module built-in Shenzhen Hongdian Technologies Corporation F14-16,Headquarter Economic Center Building, Zhonghaixin Science&Tech Park, Bulan Road, Longgang District, Shenzhen 518112, China. Tel: +86-755-88864288 Fax: +86-755-83404677 : 518048 Postal Code www.hongdian.com Copyright  1997-2010 Release 1.0.1...
  • Page 2 Hongdian Technologies Corporation. Trademark , Hongdian, GPRS DTU, MDTU, Hongdian Technologies, Shenzhen Hongdian and Galaxy are the trademarks and logos of Shenzhen Hongdian Technologies Corporation. Other trademarks and logos mentioned in this manual belong to other organizations related. Shenzhen Hongdian Technologies Corporation does not own the rights...

  • Page 3: Table Of Contents

    H7921-RHZ-i 3G Router User Manual CONTENTS CHAPTER 1 ABOUT THIS MANUAL ................4 Purpose ..................... 4 Applicable scope ..................4 Version information ................. 4 Convention ....................5 Technical support ..................5 Acronym and term ................... 6 CHAPTER 2 Product Introduction ............... 9 2.1 Galaxy 3G overview ..................

  • Page 4: Chapter 1 About This Manual

    This user manual is applicable to those who have certain knowledge and skills on the computer communication network, electronic technology, and network ® device management and other relevant personnel that need to use Hongdian H7921-RHZ-i Router. Applicable product version: H7921-RHZ-i V1.0 version 1.3 Version information...

  • Page 5: Convention

    Chapter 2 H7921-RHZ-i GPRS/CDMA Router series products ® H7000 Appears in the process after Means Hongdian Wireless Chapter 2 DDN Communication System series products Means tips or experiences Appears in the installation and that can save time in the testing process in this user manual...

  • Page 6: Acronym And Term

    H7921-RHZ-i 3G Router User Manual  E-mail service: Technical support: support@hongdian.com Service service@hongdian.com  Website and BBS service: Website: www.hongdian.com BBS: http://www.mdtu.com/forum/default.asp 1.6 Acronym and term In this user manual, the following acronyms and terms are used: Access Point Name...
  • Page 7 H7921-RHZ-i 3G Router User Manual ETSI European Telecommunications Standards Institute GGSN Gateway GPRS Support Node GMSC Gateway MSC GPRS General Packet Radio Service Global System for Mobile Communications GPRS Support Node GPRS Tunneling Protocol GTP-id GTP Identity Home Location Register HSCSD High Speed Circuit Switch Data IGMP...
  • Page 8 H7921-RHZ-i 3G Router User Manual Packet Control Function Packet Data Protocol Packet Data Network PDSN Packet Data Service Node PLMN Public Land Mobile Network Point of Sales PTM-G Point-to-Multipoint Group Call PTM-M Point-to-Multipoint Multicast Quality of Service Routing Area RADIUS Remote Authentication Dial In User Service Routing Information Protocol Register Service Center...

  • Page 9: Chapter 2 Product Introduction

    H7921-RHZ-i 3G Router User Manual CHAPTER 2 Product Introduction 2.1 Galaxy 3G overview Combining with the third generation of mobile communication technology and WLAN technology, Galaxy 3G mobile network data communication terminal product is designed as a high-tech 3G product upon the needs of users. It can provide data communication service for these users at any time and in any place.
  • Page 10 H7921-RHZ-i 3G Router User Manual SYSTEM： It lights when router works normally. Back panel interface Galaxy H7921-RHZ-i 3G Router’s all interfaces are designed on the back panel as shown below: POWER RESET ANT Fig. 2.1.1-2: Back Panel The interfaces on the back panel are described as below: ANT：Antenna (SMA negative terminal) interface, which is able to match with standard short antenna, vehicular antenna or directional antenna;...

  • Page 11: Other Accessories

    H7921-RHZ-i 3G Router User Manual 2.1.2 Other Accessories For safe transportation purpose, Galaxy H7921-RHZ-i 3G Router should be packaged properly. Pease keep the packaging materials well after the package is opened for future use in case of re-transportation. Standard fittings Galaxy H7921-RHZ-i 3G device 1 (packaged upon the order conditions) ...

  • Page 12: Function And Features

    H7921-RHZ-i 3G Router User Manual 2.1.3.2 Wiring RJ-45 - Ethernet interface Standard 10/100BaseT Ethernet switch port, self-adaptive DC - power supply interface, Galaxy H7921-RHZ-i 3G router’s power supply is generally +12VDC ANT - antenna interface The standard 5OΩ/SMA RF connector (female) is applied. In the environment of some industrial applications, the lightning protection measures should be taken.

  • Page 13: Software Function

    H7921-RHZ-i 3G Router User Manual 2.2.2 Software function Supporting HSUPA/HSDPA/EDGE/GPRS or EVDO/CDMA 1x  Built-in DHCP Service  Supporting DMZ host computer  Supporting DDNS  Supporting static routing list  Supporting IP address and port filtration  Supporting monitor mobile network traffic quality. ...
  • Page 14 H7921-RHZ-i 3G Router User Manual Diagram chematic diagram for video application 2.3-1: S  Application Mode Two: Application in SoHo There is one built-in 10M/100M self-adapting fast Ethernet port within H7921-RHZ-i 3G Router, which greatly facilitates SoHo user getting access to the internet.

  • Page 15: Chapter 3 Router Configuration

    H7921-RHZ-i 3G Router User Manual  Application Mode Three: Application in banking business H7921-RHZ-i 3G Router is able to be connected to the target machine and other network devices at the same time. Take ATM network in the banking business for example. ATM machine needs to be connected to the host computer of bank, and at the same time, it is also connected to the video camera, and thereby monitoring the conditions around ATM machine.

  • Page 16: Connection Method

    H7921-RHZ-i 3G Router User Manual Computer with Ethernet card and TCP/IP protocol  IE6.0 or higher Support 1024x768 resolution display 3.2.2 Connection method For your convenient use, we recommend you plug your SIM/UIM card into H7921-RHZ-i’s card slot before your configuration. Then power on H7921-RHZ-i and begin your configuration.
  • Page 17 H7921-RHZ-i 3G Router User Manual 3.2.2.2 LAN connection method When it is required to connect Galaxy H7921-RHZ-i 3G Router to local network through HUB or switch, connect the hub or switch out-link port with any one of its switch ports as shown in the figure below.

  • Page 18: Network Configuration

    H7921-RHZ-i 3G Router User Manual Self-adapting (Version 2.0 or above) standard 10/100BaseT Ethernet switching interface ANT – antenna interface  The standard 5OΩ/SMA radio-frequency connector (negative terminal) is adopted for use. In addition, the lightning-proof measures need to be adopted for some operating conditions, so you may place a lightning protection device between the connector and the antenna.
  • Page 19 H7921-RHZ-i 3G Router User Manual Enter (double click or right click) the “Local Area Connection”“Property (R)” and enter the interface shown in the figure below: Fig. 3.2.3-2: Computer Local Connection Configuration Select the “Internet Protocol (TCP/IP)”, click the “Properties”, and enter the interface as below:...
  • Page 20 H7921-RHZ-i 3G Router User Manual Fig. 3.2.3-3: TCP/IP Properties Configuration Method 1: general configuration This method will temporarily interrupts the communication between the computer under configuration and LAN, and the specific parameter configuration is shown as below: IP address: 192.168.8.* (*indicates any integral between 2 to 254) Subnet mask: 255.255.255.0 Default gateway: 192.168.8.1 Remember:...
  • Page 21 H7921-RHZ-i 3G Router User Manual If you don’t want to interrupt local PC LAN communication and configure Galaxy H7921-RHZ-i 3G Router when the former network configuration exists, it is required add route (IP). The configuration operation is shown as below: Click the “Advanced (V)…”button in Fig.

  • Page 22: System Login

    H7921-RHZ-i 3G Router User Manual After the configuration is completed, click the “Add”. By now the computer has a route to Galaxy H7921-RHZ-i. Note: As shown in Fig. 3.2-3, “Default gateway” depends on whether the configuration computer connects with Internet through original local network configuration. Internet is accessed through original local network, the default gateway setting does not need to be modified;...

  • Page 23: Web-Based Configuration

    H7921-RHZ-i 3G Router User Manual Fig. 3.2.4-1: Web Login And then you can enter user login identity authentication interface as shown below: Fig. 3.2.4-2: User Login Verification User should use default user name and password when log in for the first time: User name: admin ...
  • Page 24 H7921-RHZ-i 3G Router User Manual Drawing 3.3.1-1: System Configuration Window You can select the function and display the configuration window for the function after clicking on the related option on the top left corner of configuration window. Please see the following drawing: Menu Descriptions Drawing 3.3.1-2: Main Option Bar The options on the main option bar are as follows:...

  • Page 25: Internet

    H7921-RHZ-i 3G Router User Manual 3.3.2 Internet When you click the “Internet” tab, the following sub-tabs appear on the page:  Mobile Network(Embedded Modem)  Internet Connection Type Fig. 3.3.2: Internet Configuration Tab 3.3.2.1 Mobile Network configuration In the “Internet” main tab, click the “Mobile Network (Embedded Modem)” sub-tab to set the modem parameters and go to the following configuration interface: Fig.
  • Page 26 H7921-RHZ-i 3G Router User Manual 【Module Modem Initial Script】: Set the initial script of Module Modem dial-up. Select the “Customize”, and enter the initial script of Module Modem dial-up in the input box. Normally you may select”Default”. 【Advanced setting】: Configure advanced parameter by dialing protocol. Note: “Embedded Modem”...
  • Page 27 H7921-RHZ-i 3G Router User Manual Fig. 3.3.2.1-2: PPP Advanced Settings 【The Net Type of Module】DEFAULT means router will obey default option to choose network; AUTO means router will choose available network automatically; Other options mean router will use certain network only. Considering the difference of mobile network authorization, the Point to Point Protocol connection should be compatible with different network.

  • Page 28: Local Network

    H7921-RHZ-i 3G Router User Manual 【LCP Echo Interval】: Set LCP’s maximum interval time, in second. 【LCP Echo Failure】: Set LCP’s maximum request times. 【MTU】: Set the number of bytes of the maximum transfer unit. 【MRU】: Set the number of bytes of the maximum receive unit. 【local IP】: Set the local IP address.

  • Page 29: Lan Configuration

    H7921-RHZ-i 3G Router User Manual  DHCP Server  Static DHCP Fig. 3.3.3: Local Network Configuration Interface 3.3.3.1 LAN configuration In the “Local Network” main tab, click the “LAN” sub-tab to set the LAN port and enter the following configuration interface: Fig.
  • Page 30 H7921-RHZ-i 3G Router User Manual Fig. 3.3.3.2: DHCP Configuration Interface The configuration parameters include: 【DHCP Server】: Set whether enable the DHCP server function: Enable/Disable. 【IP Address Range】: Set the range of the DHCP dynamic address pool. 【DHCP Reservation】: Set the IP address assigned to the client manually. Click the “IP-MAC Mapping”...

  • Page 31: Applications

    H7921-RHZ-i 3G Router User Manual The configuration parameters include: 【Add】: Map the DHCP client’s MAC address with IP. 【Del】: Delete or release the mapping of MAC and IP. 【Refresh】: Refresh the information on the page. If you want to perform IP-MAC mapping, click the “Add” button to go to the following configuration interface: Fig.
  • Page 32 H7921-RHZ-i 3G Router User Manual Fig. 3.3.4.1: DDNS Configuration Interface DDNS configuration parameters include: 【DDNS Server】: Set whether enable DDNS service function: Enable/Disable. 【Service Provider】: Select the DDNS service provider that router currently supports. Domestic DDNS service provider: 88IP (www.88ip.net), 3322 (www.3322.org); oversea DDNS service provider: DNSEXIT (www.dnsexit.com), ZONEEDIT (www.zoneedti.com), CHANGEIP (www.changeip.com), Dyndns (members.dyndns.org);...
  • Page 33 H7921-RHZ-i 3G Router User Manual Fig. 3.3.4.2-1: Time Operation Interface The configuration parameters include: 【Add】: Add the Timing Operation operated at certain time. 【Refresh】: Refresh the information on the page. 【Edit】: Edit selected Timing Operation. 【Del】: Delete Timing Operation. If you want to add the Timing Operation, click the “Add” button to go to the following configuration interface: Fig.
  • Page 34 H7921-RHZ-i 3G Router User Manual 【Set Time】: We have five types of time: minute, hour, day, month and week. All you need processing the time is to fill each type with valid value. When setting, for each type of time, you need to split the different value with ",", and you can use "xx-xx" to represent a period of time.
  • Page 35 H7921-RHZ-i 3G Router User Manual Fig. 3.3.4.4: Interface ICMP Check parameters include: Trigger On-line Data 【ICMP Check Service】: Set whether enable the ICMP Check Service. 【ICMP Check Address】: Set the address used to send ICMP pack to. 【ICMP Max Send Times】: Set how many times ICMP pack will be send. 【Interval】: Set the interval of ICMP packs.
  • Page 36 H7921-RHZ-i 3G Router User Manual Fig. 3.3.4.5: Interface parameters include: 【DTU Service】: Set whether enable the DTU Service. 【Work Mode】 : Work as a Server or a Client. Client will register to server automatically. 【Transmit Protocol:】: Select the protocol used to transmit. 【Port】: Set the receive port if work mode is server.
  • Page 37 H7921-RHZ-i 3G Router User Manual 【Data Center Configure】: If work mode is client, then set parameters of data center here. 【Heartbeat Settings】: Enable Heartbeat will make the router send certain data every certain interval, this function is used to keep the link active, also avoid fake link or offline.
  • Page 38 H7921-RHZ-i 3G Router User Manual Fig. 3.3.5-1: Security Setting Interface The configuration parameters include: 【Firewall Service】: Set whether enable firewall function: Enable/Disable. 【Default Action】: Set the default action of the firewall: “Accept” means the router accepts other packets by default; “Drop” means the router drops other packets by default.
  • Page 39 H7921-RHZ-i 3G Router User Manual You can choose filter type here: IP filter rules or MAC filter rules. Select the “IP Filter” to go to the following configuration interface: Fig. 3.3.5-3: Firewall Setting Interface The configuration parameters include: 【ID】: Set the identification of the firewall rule, generally using a name with meanings. 【Protocol】: Select the protocol of the firewall rule.

  • Page 40: Vpn (Only H7921-Rhz-I Series Have This Option)

    H7921-RHZ-i 3G Router User Manual Fig. 3.3.5-4: Firewall Setting Interface 【MAC Address】: Set the MAC address. 【Action】: Select the actions to this rule of the firewall: Accept, Drop, Reject. 【Status】: Set whether enable this filter rule: Enable/Disable. 3.3.6 VPN (Only H7921-RHZ-i series have this option) If you click the VPN tab, the following sub-tabs appear on the page: ...
  • Page 41 H7921-RHZ-i 3G Router User Manual Fig. 3.3.6.1-2: L2TP Setting Interface L2TP configuration parameters include: 【Name】: Set a name for this L2TP connect. 【Status】: Set whether enable this L2TP: Enable/Disable. 【Server IP or Domain】: Input Server IP or Domain of the VPN service provider. 【User Name】: Set the user name provided by the VPN SP.
  • Page 42 H7921-RHZ-i 3G Router User Manual 【View】: View the status of PPTP, including Received Packets (TX), Received Errors Packets, Received Drops Packets, Received Bytes (RX), Send Packets (STX), Send Errors Packets, Send Drops Packet, and Send Bytes (SRX). 【VPN Route Type】: Link to the sub-page: Internet Connection Type. Click the “Add”...

  • Page 43: Gre Configuration

    H7921-RHZ-i 3G Router User Manual 3.3.6.3 GRE configuration Fig. 3.3.6.3-1: GRE Setting Interface 【Edit】: Edit the PPTP setting. 【Del】: Delete the PPTP setting. 【View】: View the status of PPTP, including Received Packets (TX), Received Errors Packets, Received Drops Packets, Received Bytes (RX), Send Packets (STX), Send Errors Packets, Send Drops Packet, and Send Bytes (SRX).

  • Page 44: Ipsec Configuration

    H7921-RHZ-i 3G Router User Manual 3.3.6.4 IPsec configuration Fig. 3.3.6.4-1: IPsec Setting Interface 【Edit】: Edit the PPTP setting. 【Del】: Delete the PPTP setting. 【View】: View the status of PPTP, including Received Packets (TX), Received Errors Packets, Received Drops Packets, Received Bytes (RX), Send Packets (STX), Send Errors Packets, Send Drops Packet, and Send Bytes (SRX).

  • Page 45: Forward

    H7921-RHZ-i 3G Router User Manual circumstance to constitution Interface, Local Subnet, Peer Subnet, the Encrypt Type, Authorization, the related parameter of Password etc., be you usage static state ip address, Local ID and Peer ID don't fill. 3.3.7 Forward When you click the “Forward” tab, the following sub-tabs appear on the page: ...
  • Page 46 H7921-RHZ-i 3G Router User Manual Click the “Add” to go to the following configuration interface: Fig. 3.3.7.1-2: NAT&DMZ Setting Interface 【Select】: Select which data forward rule to be added. Route mode setting Select the “Route Mode” option to go to the following configuration interface: Fig.
  • Page 47 H7921-RHZ-i 3G Router User Manual Fig. 3.3.7.1-4: DMZ Setting Interface DMZ configuration parameters include: 【Outside Interface】 the interface on which the DMZ function acts. : Set 【Inside Address】 IP address of the host assigned by DMZ record. : Set the NAT setting To configure the NAT function, you need to go to the following configuration interface: Fig.

  • Page 48: Static Route Configuration

    H7921-RHZ-i 3G Router User Manual 3.3.7.2 Static route configuration In the “Forward” main tab, click the “Static Route” sub-tab to set the static route parameters and go to the following configuration interface: Fig. 3.3.7.2-1: Static Route Configuration Interface The configuration parameters include: 【View Route Table】: View the current system’s route table.
  • Page 49 H7921-RHZ-i 3G Router User Manual 【Gateway】 : Configure the next IP address of this static route, namely the port address of the neighboring router. 【Interface】: Specify the interface on which the static route acts. 3.3.7.3 RIP configuration (Optional) In the “Forward” main tab, click the “RIP” sub-tab to set the dynamic route parameters: RIP, and go to the following configuration interface: Fig.

  • Page 50: System Tools

    H7921-RHZ-i 3G Router User Manual Fig. 3.3.7.4: OSPF Configuration Interface You may add a network or neighbor by click “Add” icon. 3.3.8 System tools When you click the “System Tools” tab, the following sub-tabs appear on the page: Local Log ...
  • Page 51 H7921-RHZ-i 3G Router User Manual Fig. 3.3.8.1: Log View Interface Log view settings include: 【System Log】: Set the type of log to be displayed. After selecting the log type, you can make the following operations: 【Show】: Display log in the Log Table. 【Clear】: Clear the log in the Log Table.

  • Page 52: System Clock

    H7921-RHZ-i 3G Router User Manual Fig. 3.3.8.2: System Log Management Interface The system log configuration parameters include: 【Local Log Status】: Set whether enable local log function: Enable/Disable. 【Remote Log Status】: Set whether enable remote log function: Enable/Disable. After this function is enabled, the router will send the log information to the configured remote PC.
  • Page 53 H7921-RHZ-i 3G Router User Manual 3.3.8.4 Account setting The router provides the user with the power to modify the password, In the “System Tools” main tab, click the “Account” sub-tab to set the account management function and go to the following configuration interface: Fig.

  • Page 54: Firmware Upgrade

    H7921-RHZ-i 3G Router User Manual 【Backup All】: Set the backup all operation. 【Backup】: Select parameter items to backup from the “Please choose the item to backup” drop-down list, and select the storage path to back up the configured parameters information. 【Cancel】: Cancel the operation in the selection box.

  • Page 55: Status Display

    H7921-RHZ-i 3G Router User Manual Note: In the upgrade process, don’t cut off the power supply or disconnect the communication connection between PC and router! After the upgrade succeeds, reboot IE browser and router! 3.3.8.7 System reboot In the “System Tools” main tab, click the “System Reboot” sub-tab to use the system reboot function and go to the following interface: Fig.
  • Page 56 H7921-RHZ-i 3G Router User Manual 【Route Table】: Display the route table information. 【DHCP Client】: Display the DHCP Client information.

  • Page 57: Chapter 4 Frequently Asked Questions (Faq)

    H7921-RHZ-i 3G Router User Manual Chapter 4 Frequently Asked Questions (FAQ) 4.1 Fault analysis Fault 1: All indicators are off. Check whether the cables are connected correctly. Meanwhile, check whether the power supply complies with the requirements. Galaxy H7921-RHZ-i 3G Router’s label indicates the detailed requirements regarding the power supply voltage.
  • Page 58 H7921-RHZ-i 3G Router User Manual C:\>ipconfig Windows IP Configuration Ethernet adapter local connection: Connection-specific DNS Suffix..: IP Address ....: 192.168.8.48 Subnet Mask .

  • Page 59: Appendix: Software Upgrade Description

    H7921-RHZ-i 3G Router User Manual Appendix: Software Upgrade Description Upgrade tool description and operating instructions Galaxy H7921-RHZ-i 3G Router is designed with the platform technology, whose software can be upgraded with the development of the communication and network technology. WEB upgrade: Galaxy H7921-RHZ-i 3G Router supports the function of upgrading the firmware directly by importing the upgrade file via the WEB configuration interface.
