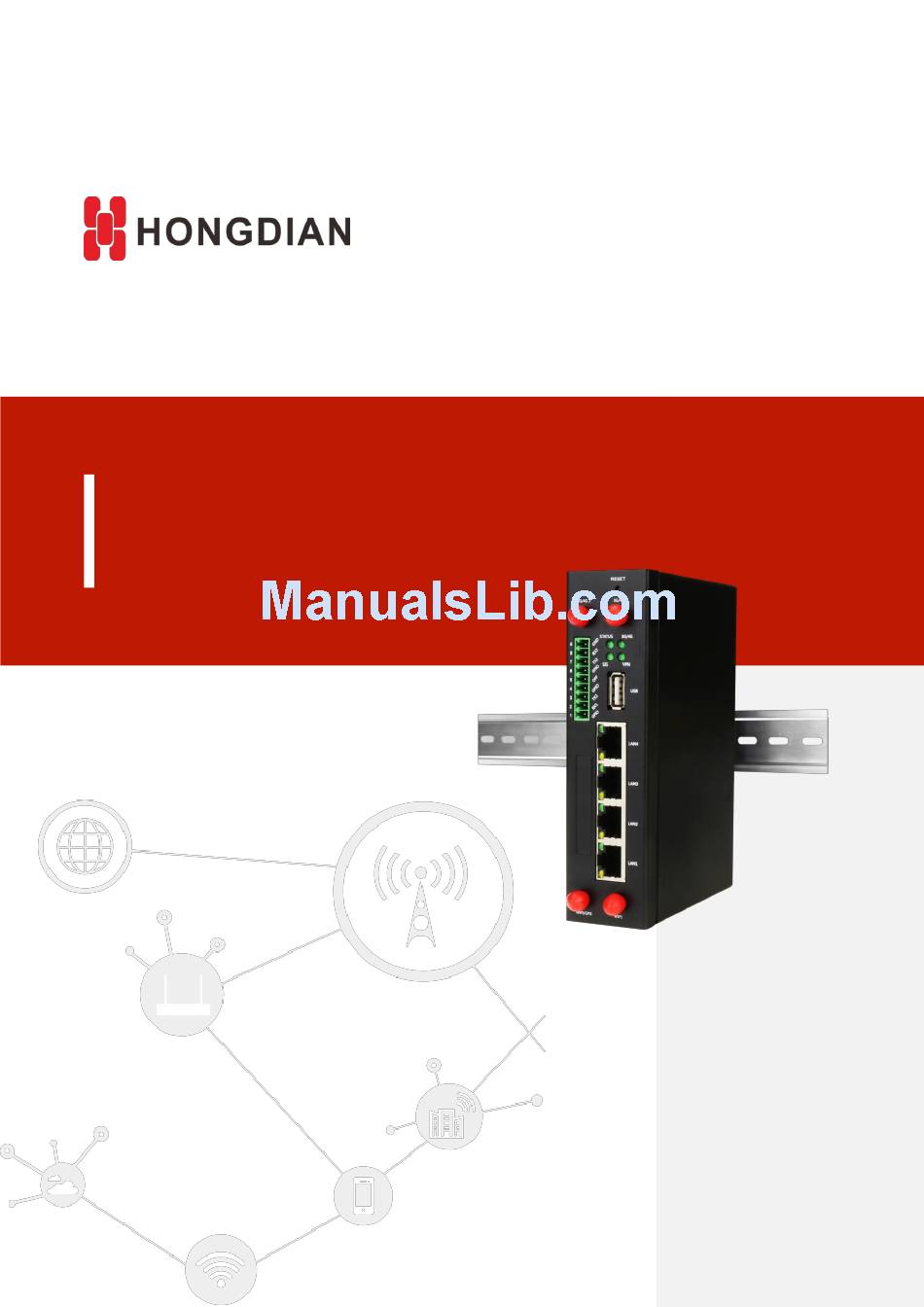

  • Page 1 User Manual H7960 3G/4G Router...
  • Page 2 H7960 3G/4G Router User Manual Shenzhen Hongdian Technologies Corporation provides customers with a full range of technical supports, and the users can contact headquarter of Hongdian directly. Shenzhen Hongdian Technologies Corporation F14-16,Headquarter Economic Center, Zhonghaixin Science&Tech Park, Bulan Road, Address...

  • Page 3: Foreword

    H7960 3G/4G Router User Manual Foreword Overview H7960 3G/4G Router is a data communication terminal on mobile communication network which independently researched and developed by Hongdian Corporation. The product is based on 3G/4G wireless communication technology. It uses high performance 32-bit embedded operating system and has a full industrial design.

  • Page 4: Modifying Records

    H7960 3G/4G Router User Manual Modifying Records Modifying records accumulate the introduction of every document update. The document of the newest version includes all updating contents of previous document versions. Document Time of Modifying Introduction Version Modifying V1.0 2017-04-25 The manual was firstly released aiming at the release of H7960 Router.

  • Page 5: Table Of Contents

    H7960 3G/4G Router User Manual Contents Foreword ............................iii Overview ....................................iii Product Version ..................................iii Readers ..................................... iii Modifying Records .................................. iv Contents ............................v 1 Product Introduction........................1 1.1 Summary ..................................... 1 1.2 Functions and Features ..............................2 1.3 Function comparison table ..............................
  • Page 6 H7960 3G/4G Router User Manual 4.3 Application program configuration ..........................42 4.3.1 ICMP check ................................42 4.3.2 DDNS configuration ..............................45 4.3.3 DTU configuration (Optional)..........................47 4.3.4 DTU configuration (Optional)..........................50 4.3.5 SNMP configuration..............................54 4.3.6 M2M configuration...............................55 4.3.7 Timing configuration ............................57 4.3.8 Wake up configuration............................59 4.3.9 GPS configuration (Optional) ..........................62...
  • Page 7 H7960 3G/4G Router User Manual 5 Typical application ........................119 5.1 Summary ..................................119 5.2 ICMP detection function application .........................119 5.3 DTU func tion applications............................121 5.4 Parameter select................................124 5.5 VPN....................................127 5.6 Timing Task ..................................130 6 FAQ ............................132 6.1 Hardware Failure ................................132 6.1.1 All LED dark ................................132...

  • Page 8: Product Introduction

    Hongdian. The M2M platform is able to realize the statistics of 3G/4G wireless network information and status in the place where H7960 3G/4G Router is used as well as the remote upgrade and configuration management for H7960 3G/4G Router.

  • Page 9: Functions And Features

    Figure 1-1 Schematic Diagram of Application for Financial Industry Logistics cabinet industry application H7960 3G/4G Router supports the transmission on-board videos. In a parking lot, high-definition video can be transmitted to nearby WLAN hot spots via WLAN, then transmitted to Internet via WLAN hot spots. When an automobile is running, relevant data can be transmitted to a video server via 3G/4G network communication.
  • Page 10 Supports local and remote system running log functions to realize the monitoring of equipment operation in real time  Supports system upgrade and maintenance via USB interfaces  The H7960 router is compared with other model routers of Hongdian as shown in table 1-1. Hongdian Corporation...

  • Page 11: Function Comparison Table

    H792x 3G/4G Router User Manual 1.3 Function comparison table The H7960 router is compared with other model routers of Hongdian as shown in the table below. Table 1-1 Function comparison Function H8922S V12 H8922 V30 H8951 V30 H7920 V30 H7960 V11...
  • Page 12 H792x 3G/4G Router User Manual CISPR 22,CLASS B CISPR 22,CLASS B Hongdian Corporation...

  • Page 13: Product Structure

    2.1 Hardware Structure 2.1.1 Equipment appearance and dimension External view The actual appearance of Hongdian H7960 3G/4G Router is as shown in Figure 2-1. Figure 2-1 Appearance Diagram of H7960 3G/4G Router Dimension The technical specifications of the product is show as the table below...
  • Page 14 (OH: 2.8~3.3V, OL: 0~0.4V); OFF for high off The overall structure and dimension of H7960 3G/4G Router are as shown in Figure 2-2 In the following diagrams, the dimensions of corresponding objects are expressed in millimeter, and it will not be mentioned hereinafter.

  • Page 15: Accessories And Model Specifications

    H792x 3G/4G Router User Manual Figure 2-2 Dimension Diagram for H7960 3G/4G Rou 2.1.2 Accessories and model specifications Accessories specification H7960 3G/4G Router includes the accessories shown in Table 2-2. Table 2-2 List of H7960 3G/4G Router Parts Part name Quantity...

  • Page 16: Terminal Panel Indicator Status

    See the technical specifications of each model product. 2.2 Terminal panel indicator status The H7960 router panel has 4 LED lamps, indicating the operating status and network status. The status instructions for the indicator light are shown in table 2-3.
  • Page 17 H792x 3G/4G Router User Manual Indicator Name State Description On: VPN connection is established Slow Blink: VPN is not enabled, or VPN connection is failed. Hongdian Corporation...

  • Page 18: Router Installation

    3.2 Installation and Wiring 3.2.1 Installation of SIM card H7960 3G/4G Router supports dual SIM card. In normal installation and usage, it is necessary to install a SIM card for two SIM slots respectively. The following content is the illustration of how to install a SIM card in the left-side SIM slot for the front panel.

  • Page 19: Ethernet Cable Connection

    Single equipment direct connection Use Ethernet cable with RJ-45 type connector to directly connect any of four exchange interfaces of H7960 3G/4G Router with the relevant computer as shown in the figure below. Figure 3-3 Single Equipment Direct Connection...

  • Page 20: Serial Port Line Connection

    3.2.3 Serial port line connection When H7960 3G/4G Router and a computer are in a joint test, a serial port extension cord shall be prepared; one end of the cord is connected to the serial port of the computer and the other end is connected to the serial port of the router.
  • Page 21 Step 2 Inspect whether the SIM card is correctly and properly installed and confirm whether the SIM card is valid. Step 3 Provide power supply for H7960 3G/4G Router. The following content is about the router dialing of the left-side SIM card, and it is the same for the right-side SIM card.

  • Page 22: Preparation Before Configuration

     Already power on H7960 3G/4G router  Ethernet cable connect to H7960 3G/4G router You could specify a static IP or DHCP get IP for your computer. Static IP Step 1 Click “start > control panel”, find “Network Connections” icon and double click it to enter, select “Local Area Connection”...
  • Page 23 H792x 3G/4G Router User Manual Figure 3-6 Ethernet Status Step 3 Click “Properties” in the above figure to open the dialog, and select “TCP/IP4”. Hongdian Corporation...
  • Page 24 H792x 3G/4G Router User Manual Figure 3-7 Ethernet Properties Step 4 Double click “TCP/IPv4”in the above figure to enter the local IP (IPv4) configuration page You can directly change the local IP 192.168.8.* in the “General” panel, as the figure below, such as changing to “192.168.8.113”, which makes the PC in the same IP segment with the router, and it can access the router which IP is 192.168.8.1 in default.
  • Page 25 H792x 3G/4G Router User Manual Figure 3-8 Internet protocol(TCP/IPv4) For advanced settings, you can add more IP in the “Advanced TCP/IP Settings” panel by clicking “Advanced” icon in above figure, such as add two IP with “192.168.8.113” and “192.168.1.113”, so that the PC can belong to the two segments. Hongdian Corporation...
  • Page 26 IP addresses to terminals (or PC and etc.) in accordance with predetermined parameters. H7960 3G/4G Router defaul t enabled DHCP server. If it has been disabled, auto obtaining IP via DHCP cannot be used. Please follow the ”Step1~4” of above section “Static IP”, to enter the local IP (IPv4) configuration page, select “Obtain an IP address automatically”...
  • Page 27 Internet through original local network configuration. If Internet is accessed through original local network, the default gateway setting does not need to be modified; if H7960 3G/4G Router is used, you need to modify the default gateway and configure it as H7960 3G/4G Router’s default LAN IP address 192.168.8.1.
  • Page 28 Default Gateway ..: 192.168.8.1 Step 2 Connectivity check After the configuration is completed, you can check the connectivity between it and Galaxy H7960 3G/4G router by ping command. Key-in ping command in system command line: Figure 3-11 Connectivity check By now, it means that the configuration computer has been connected to the router.

  • Page 29: Router Configuration

    Router Configuration 4.1 Summary H7960 router can be configured in WEB mode, which is simple, intuitive and so on. After the local connection configuration of the PC completed and the PC is connected to the router, you can start Internet browser (such as Internet Explorer) to log on to the router for configuration operations.
  • Page 30 H792x 3G/4G Router User Manual LAN setting used to manage local area network PC which connects to H7960, make them could visit internet and the network segment connectivity normal. Step 1 Login H7960 WEB GUI. Step 2 Single click “Network > LAN”.
  • Page 31 H792x 3G/4G Router User Manual ---END Modem H7960 3G/4G Router core function, connect Internet by cellular modem, H7960 3G/4G Router support single modem single SIM, single modem dual SIM, those two working type provide internet connection to customers. Usually 3G network bandwidth is 1～5Mbps, 3.5G up to 20Mbps and LTE up to 100Mbps.
  • Page 32 H792x 3G/4G Router User Manual Figure 4-4 Modem page Input suitable parameter. Table 4-2 “Modem” Parameter instruction Parameter Details Operation Auto-dialup current modem, if all Enable   Auto-dialup modem auto-dialup disabled, router Disable  will not auto-dialup If your router has dual cellular ...
  • Page 33 H792x 3G/4G Router User Manual Parameter Details Operation Network type force to 2.5G or  Network type Dropdown List 3G/4G WCDMA:  auto  wcdma  edge EVDO: auto  evdo  cdma  For the LTE or HSPA+ module, its network type is not mandatory: selecting “3G”...
  • Page 34 H792x 3G/4G Router User Manual Parameter Details Operation Disable  Address/Control Whether compress IP address  Negotiation Compression  Disable Protocol Field Whether compress Whether  Negotiation Compression compress IP address Disable  VJ TCP/IP Header Whether allow TCP/IP to Negotiation ...
  • Page 35 H792x 3G/4G Router User Manual Figure 4-5 Single module single SIM Figure 4-6 Single module dual SIM Hongdian Corporation...
  • Page 36 H792x 3G/4G Router User Manual Figure 4-7 Advanced setting Single click “save” icon to finish. Grey i con means enabled. ---END Hongdian Corporation...
  • Page 37 H7960 3G/4G Router provides WLAN AP, Station Client, Repeater three functions, through AP function, H7960 3G/4G Router can provide wireless LAN hotspots; through Station client function, it allows H7960 3G/4G Router access to other AP devices, such H7960 3G/4G Router downlink machine can access the Internet via the AP connection; Repeater functionality can be other AP WLAN signal amplification device, to achieve WLAN signal repeater, so the clients far away from the AP WLAN can access the AP.
  • Page 38 H792x 3G/4G Router User Manual Figure 4-9 Station mode configure interface Figure 4-10 Repeater mode configure interface Hongdian Corporation...
  • Page 39 H792x 3G/4G Router User Manual Figure 4-11 Station/Repeater scan signal interface Step 3 “WLAN” configure parameter instruction, parameter instruction as Table 5 -4. Table 4-3 WLAN parameter instruction Parameter Details Operation WLAN Enable or disable WLAN Dropdown List Status feature Enable ...
  • Page 40 H792x 3G/4G Router User Manual Parameter Details Operation interference, the default channel is 6, when the same channel interference occur, it can automatically jump out interfere to work with the smaller channel Bandwidth Bandwidth configure when Dropdown List WLAN work at 802.11n ...
  • Page 41 WLAN connection When the working mode select s ta tion or repea ter, H7960 Router will automa ti cally ma tch according to the selected AP and the corresponding encryption algorithm (to keep consistent with AP encryption); sha red key upda te interval is requi red to fill in the connectio ns of AP key and interval .
  • Page 42 H792x 3G/4G Router User Manual Figure 4-12 parameter select Step 2 Add, modify, del, enable and disable the parameter select rule.  Figure 4-13 add rule Table 4-4 Parameter instruction Parameter Details Operation  Enable Status For enabled rule: Only one rule is ...

  • Page 43: Connection Type

    But Link backup function may conflict with parameter select function, if you set both, final running result may not as you presume. ---END Connection type Step 1 Login H7960 WEB GUI. Step 2 Single click “Network > Connection type”. Hongdian Corporation...

  • Page 44: Link Backup

    H792x 3G/4G Router User Manual Figure 4-14 Connection type window Table 4-5 Connection type Parameter instruction Parameter Details Operation Work Gateway: IP data transfer with MASQ Dropdown List mode Router: all IP data just transfer, no  gateway MASQ route ...
  • Page 45 H792x 3G/4G Router User Manual There are hot backup and cold backup, hot backup means the backup link will always connected, so switch time is less, but cost extra flow fee. Please note, when using this feature need to other operation: 1) The default route in Forward>>Route need to be delete.
  • Page 46 Step 2 Single click “save” icon. ---END DHCP Service DHCP(Dynamic Host Configuration Protocol) is a LAN network protocol, enable the DHCP function, a function automatically can obtain the dynamic IP. Step 1 Login H7960 WEB GUI. Hongdian Corporation...
  • Page 47 H792x 3G/4G Router User Manual Step 2 Single click “Network > DHCP Server”. Figure 4-16 DHCP Step 3 Configure DHCP parameter. Step 4 DHCP parameter instructions are as Table 5 -8. Table 4-7 DHCP Parameter Parameter Details Operation Enable  DHCP Enable or Disable DHCP feature Disable...
  • Page 48 H792x 3G/4G Router User Manual Parameter Details Operation machine can automatically obtain the Start IP When IP pool select custom Manual input configuration, configure the DHCP Format：A.B.C.D/Mask pool start IP address Example：192.168.8.2 End IP When IP pool select custom Manual input configuration, configure the DHCP Format：A.B.C.D/Mask pool end IP address...

  • Page 49: Application Program Configuration

    There is fake link (can get IP after dialing, but cannot link to destination address). Usually LCP is used to avoid this. Besides LCP, H7960 3G/4G router can use another more reliable checking way ICMP which check the link by PING. When abnormal link is checked, the preset action will be executed to recover the link and systems quickly.
  • Page 50 H792x 3G/4G Router User Manual Figure 4-18 ICMP adding page Configure the ICMP check parameter. Table 4-8 ICMP check rules Parameter instruction Parameter Details Operation ICMP check To enable or disable ICMP check Button service rules, multiple rules can be used Enable ...
  • Page 51 H792x 3G/4G Router User Manual Parameter Details Operation recognize ICMP check fails Value area ：1～65535 Retry Check time interval and max check times/normal failure times when link is OK, if Unit: second/time interval check failure times reaches the max times, then “timeout action ” will be executed, e.g.

  • Page 52: Ddns Configuration

    H792x 3G/4G Router User Manual ---END 4.3.2 DDNS configuration Network of SIM/UIM shall be a public address so that router can be visited for a DDNS. Step 1 Click “Applications” > “DDNS”. Figure 4-19 DDNS configuration Step 2 Configure DDNS parameter. Table 4-9 DDNS Parameter instruction Parameter Details...
  • Page 53 H792x 3G/4G Router User Manual Parameter Details Operation configured. Default is standard DDNS protocol. for customized protocol, please contact our engineer Server Port Set the port number of Value area: 1～65535 the DDNS server provided If empty, it means 80 port by the service provider.

  • Page 54: Dtu Configuration (Optional)

    DTU(Data transfer Unit)is to transfer data for meters with RS232 interface from site to center through 3G/4G network. It support TCP/UDP Client/Server mode. Step 1 Log-on WEB GUI of H7960 3G/4G routers. Step 2 Click “Applications > DTU” to open “DTU” tab.
  • Page 55 H792x 3G/4G Router User Manual Step 3 Configure “DTU” parameter. Table 4-10 DTU Parameter instruction Parameter Details Operation DTU Service Enable or Disable DTU DTU Service options Service  Enable Disable  Basic Settings  Work Mode Work mode: Select from Dropdown List Server: 3G/4G router act as Server ...
  • Page 56 H792x 3G/4G Router User Manual Parameter Details Operation occasion  UDP protocol is a connectionless unreliable transport protocol, suitable for relatively high efficiency requirements, and the occasion of relatively low reliability Received DTU port timeout which Specify time according to your Timeout receive from the data center, need...

  • Page 57: Dtu Configuration (Optional)

    DTU(Data transfer Unit)is to transfer data for meters with RS232 interface from site to center through 3G/4G network. It support TCP/UDP Client/Server mode. Step 1 Log-on WEB GUI of H7960 3G/4G routers. Step 2 Click “Applications > DTU” to open “DTU” tab.
  • Page 58 H792x 3G/4G Router User Manual Figure 4-21 DTU configuration Step 3 Configure “DTU” parameter. Table 4-11 DTU Parameter instruction Parameter Details Operation DTU Service Enable or Disable DTU DTU Service options Service Enable   Disable Hongdian Corporation...
  • Page 59 H792x 3G/4G Router User Manual Parameter Details Operation Basic Settings  Work Mode Work mode: Select from Dropdown List Server: 3G/4G router act as Server   TCP/UDP server Client  Client: 3G/4G router act as DDPClient   TCP/UDP client ...
  • Page 60 H792x 3G/4G Router User Manual Parameter Details Operation side. Within waiting time, data:1-65535ms the data sent over UDP / TCP Default value:500 packets received maximum Units:ms packet length, then sent immediately; if not more than UDP / TCP packets received maximum packet length, then wait for data until it reaches the last packet idle time , and then to...

  • Page 61: Snmp Configuration

    H792x 3G/4G Router User Manual Parameter Details Operation settings of DTU serial port Value: 5,6,7,8 Default: 8 Stopbit Set the data stop bit Select from the dropdown list, according to the practical settings of DTU serial port Value: 1,2 Default: 1 Step 4 Single click “save”...

  • Page 62: M2M Configuration

    MIB for SNMP can be downloaded from our websi te, i f necessary, please conta ct our techni cal engineers . ---END 4.3.6 M2M configuration H7960 3G/4G router has embedded a WMMP (Wireless Machine-to-Machine Protocol) protocol to realize communication with M2M (Machine-to-Machine) platform which can remotely monitor and manage the routers and its network, e.g. visit the router, patch upgrading, firmware upgrading, parameter configuration, monitor the network strength, time delay, flow.
  • Page 63 H792x 3G/4G Router User Manual Step 1 Log-on WEB GUI of H7960 3G/4G router. Step 2 Click “Applications > M2M” to open M2M configuration tab. Figure 4-23 M2M configuration Step 3 Configure M2M parameter . Parameter instruction is shown. Table 4-13 M2M Parameter instruction...

  • Page 64: Timing Configuration

    This application is to control the online time of the router to better manage network and save 3G/4G flow. H7960 can add several online periods as per the user’s requirement (e.g. hours of some day). in addition, this application can support to begi n some tasks at a time point (e.g.
  • Page 65 H792x 3G/4G Router User Manual Figure 4-25 To add timing task Step 4 Configure timing task parameter. Table 4-14 Timing task parameter instruction Parameter Details Operation Status To enable or disable a options timing task. Some task shall Enable  be enabled together with Disable ...

  • Page 66: Wake Up Configuration

    “interval” selection does not require. ---END 4.3.8 Wake up configuration 3G/4G fee is mostly based on flow. H7960 3G/4G router can get on/off line on demand. It supports on/offline or reboot triggered by voice, SMS or data. It supports max 10 cell phone Nos.
  • Page 67 H792x 3G/4G Router User Manual Step 1 Log-on WEB GUI of H7960 3G/4G router. Step 2 Click “Applications > Wake up” to open “Wake up” tab. Figure 4-26 Wake up configuration Step 3 Configure “wake up” parameter. Click “Save” to write in the flash memory, after finishing “basic setting” parameter.
  • Page 68 H792x 3G/4G Router User Manual Parameter Details Operation Triggered action includes  Task type Dropdown List options modem-up, modem-down, modem-down  reboot. modem-up   reboot Basic setting Wake up To configure actions triggered, it Dropdown List options method supports phone and data. If phone/data ...

  • Page 69: Gps Configuration (Optional)

    One phone number be set for acti ons of di fferent modems , but cannot be set as di fferent a ctions of one modem. It’s OK for ei ther SIM of the two SIMs of H7960 3G/4G router to open SMS or voice functi on, no matter whi ch slot to be ins talled.

  • Page 70: Security

    4.4.1 Summary “Security” will control where the data can pass through by analyzing IP address and port of ICMP, TCP/IP package from the destination end or source end. H7960 3G/4G router supports IP filter, domain filter and MAC filter. 4.4.2 Configuration...
  • Page 71 H792x 3G/4G Router User Manual Figure 4-28 IP Filter tab In the forwarding filtering rules.  Black List：The default allows packet forwarding, in line with the list of "discarded" rules packet cannot be forwarded through the router.  White List：The default refuses packet forwarding, in line with the list of "accept" rules packet can go through router forwarding.
  • Page 72 H792x 3G/4G Router User Manual Figure 4-30 IP Filter “Forward” type Table 4-17 IP filter parameter instruction Parameter Details Operation Type Select a filter type, you can choose Dropdown List options according to their needs, "Input" or "Forward" Input: whether to allow access to the router Forward: whether to allow the router forwarding...
  • Page 73 H792x 3G/4G Router User Manual Parameter Details Operation Mirror Rule When the filter type select Dropdown List options "Forward", it needs to be configured Enable: Base on the configured rules, system auto add totally opposite rules in addition. Opposite rules means all the source address/port and destination address/port are reverse in the rules Disabled: no treatment...

  • Page 74: Domain Filter

    H792x 3G/4G Router User Manual ---END Domain Filter Domain filter support black list and white list. It is used to forbid PCs in LAN from visit some websites or allows them to visit specific websites. Step 1 Click “Security> Domain Filter” to open “Domain Filter” tab. Figure 4-31 Domain filter tab ...

  • Page 75: Mac Filter

    H792x 3G/4G Router User Manual keyword is “google”. Accept.  Default action Actions to filter the Drop  keyword Step 3 Single click “Save” to finish configuring a rule. ---END MAC Filter Step 1 Click “Security> MAC Filter” to open “MAC Filter” tab. Figure 4-33 MAC Filter tab Table 4-19 MAC Filter explanation Paramet...
  • Page 76 H792x 3G/4G Router User Manual Step 2 Click “Add” to add a new MAC filter rule and configure MAC filtering parameter. Figure 4-34 MAC Filter configuration Table 4-20 MAC Filter Parameter instruction Parameter Details Operation Basic Settings MAC to be filtered WORD type MAC format: XX:XX:XX:XX:XX:XX Default Action...

  • Page 77: Forward Configuration

    H792x 3G/4G Router User Manual 4.5 Forward configuration 4.5.1 Summary Forward function of H7960 3G/4G router includes NAT, Routing, dynamic routing (RIP, OSPF) (optional) and QoS (optional). 4.5.2 NAT DNAT configuration rule DNAT is used to replace the destination address of packets accessing external network, router will replace the destination address of packet accessing external network into the user custom settings.
  • Page 78 H792x 3G/4G Router User Manual Figure 4-36 DNAT rule configuration Step 3 Select “DNAT” in NAT Type, to configure DNAT rule parameter. Table 4-21 DNAT Parameter instruction Parameter Details Operation Basic Settings Protocol Supports “TCP”, “UDP”, Select from Dropdown List “ICMP”...
  • Page 79 H792x 3G/4G Router User Manual Parameter Details Operation Original port The port of external IP, Value area: 1～65535 the port need to be replaced Mapping Internal IP address e.g. 192.168.8.1 address Mapping port The port of Internal IP Value area :1～65535 address Step 4 Single click “save”...
  • Page 80 H792x 3G/4G Router User Manual Table 4-22 SNAT rule instruction Parameter Details Operation Dropdown List  Protocol Convert some kind of protocol  packets into address   icmp  Original The source address need to be Manual input Address replaced Format1：A.B.C.D Format2: A.B.C.D/Mask...

  • Page 81: Static Routing

    H792x 3G/4G Router User Manual Figure 4-38 MASQ configuration Step 2 Configure MASQ rule parameter. Table 4-23 MASQ rule Parameter instruction Parameter Details Operation NAT Type To select “MASQ” Select “MASQ” Interface Interface includes: Select from Dropdown List  br0: use br0 interface as commutation address between router &...
  • Page 82 H792x 3G/4G Router User Manual based on the source address that match with the policy to forward the packets (forwarding router detects the received packet's source address, and then forward packages according to the source which matches policy route) and policy routing priority, use numbers 3 to 252 to differentiate, the smaller number with higher priority.
  • Page 83 H792x 3G/4G Router User Manual Figure 4-41 Policy Routing Interface Parameter Instruction as Table 5-24. Table 4-24 Static Routing Parameter Instruction Parameter Details Operation Basic Setting Dropdown List  Routing Type To select “Static Route” or “Policy Route” When Routing Type is “Static Route” Network Set the destination IP address Manual input...

  • Page 84: Qos (Optional)

    H792x 3G/4G Router User Manual Parameter Details Operation Static IP   Interface Network It can be configured when Manual input “static IP” is selected in source Format1: A.B.C.D/Mask type, by adding IP address or subnet manually. Source When source type is policy Dropdown List Interface route, need to manually set...
  • Page 85 H792x 3G/4G Router User Manual not delayed or dropped, while ensuring the efficient operation of the network, our H7960 3G/4G Router supports custom QoS services. Step 1 Click “Forward > QoS” to open “QoS” tab. Figure 4-42 QoS Step 2 Click Add to create a new QoS rule. The configuration interface is shown in Figure 4-43 Figure 4-43 QoS interface Step 3 QOS configuration parameter, configuration parameter instruction as Table 5 -25.
  • Page 86 H792x 3G/4G Router User Manual Parameter Details Option Rule Name QoS rule name The max to 12 characters Only set when adds a new rule and the follow-up can not be modified The rule name can not be repeated, otherwise the rule will be covered after the rule is added in front of the cover Control...

  • Page 87: Dynamic Routing (Optional)

    Protocol) , it was designed for the same technology used in small networks, and therefore adapt to most of the campus network and used in a continuous regional networks that the rate change is not big, H7960 3G/4G Router supports RIP v2 protocol. For more complex environments, generally do not use the RIP protocol.
  • Page 88 H792x 3G/4G Router User Manual Redistribute Enable or disable Click the button to select. Kernel Redistribute Kernel Enable  Disable  Step 2 Click “Add” to add a new RIP route, configuration interface as Figure 5-54. Figure 4-45 RIP route configuration interface Step 3 Configure RIP route parameter instruction, as Table 5-27.

  • Page 89: Ospf Configuration

    IGP, for a single AS (autonomous system) in the routing decisions for large networks. OSPF business can be based whether the user needs to be configured at the factory H7960 3G/4G Router. Step 1 Click “Forward > OSPF” to open “OSPF” tab, as Figure 5-55.
  • Page 90 H792x 3G/4G Router User Manual Table 4-28 OSPF parameter instruction Parameter Details Operation OSPF Service Enable or disable OSPF Service Click the button to select  Enable  Disable Redistribute Enable or disable Redistribute Click the button to select Connected Connected ...
  • Page 91 H792x 3G/4G Router User Manual AS Number Used to identify the Manual input network (only the routers Value area:[0,65535] with the same domain address can exchange routing information) When Add Type is “Neighbor”, Neighbor The router can reach in Manual input the next hop Format1: A.B.C.D/Mask When Add Type is “Interface”,...

  • Page 92: Vpn Configuration

    H792x 3G/4G Router User Manual 4.6 VPN configuration 4.6.1 Summary H7960 3G/4G router supports VPN (Virtual Private Network) including L2TP/PPTP/GRE/IPIP/IPSEC. What’s more, it supports VPN OVER VPN, e.g. GRE over IPSec, IPSec over PPTP/L2TP/GRE/IPIP. 4.6.2 VPDN configuration VPDN stands for Virtual Private Dial-up Networks. Now VPDN supports L2TP and PPTP Step 1 Click “VPN >...
  • Page 93 H792x 3G/4G Router User Manual Figure 4-49 VPDN rule configuration Step 3 Configure VPDN rule parameter. Table 4-30 VPDN rule parameter instruction Parameter Details Operation VPDN service To enable or disable the VPDN rule Click “Enable” Basic Settings Interface Name of this VPDN rule Cannot be modified after name save.

  • Page 94: Tunnel Configuration

    H792x 3G/4G Router User Manual After a VPDN rule is added, router will build VPN communication with service address automatically. To see the tunnel status, click “View” in “Tunnel” tab. Figure 4-50 L2TP tunnel status ---END 4.6.3 Tunnel configuration Tunnel technology transfers data between the networks through the Internet infrastructure.
  • Page 95 H792x 3G/4G Router User Manual Figure 4-51 Tunnel configuration Step 3 Configure Tunnel rule parameter Table 4-31 Tunnel rule parameter instruction Parameter Details Operation IP Tunnel To enable or disable IP tunnel Click “Enable” Service service Basic Settings Tunnel name Name of the tunnel, cannot be Input the name of tunnel modified after save...

  • Page 96: Ipsec Configuration

    Step 4 Single click “save” icon to finish. ---END 4.6.4 IPSec configuration Step 1 Log-on WEB GUI of H7960 3G/4G router. Step 2 Click “VPN > IPSec” to open “IPSec” tab. Figure 4-52 IPSec tab Step 3 Click “Add” to add a new IPSec rule.
  • Page 97 H792x 3G/4G Router User Manual Figure 4-53 IPSec phase 1 configuration Table 4-32 IPSec Phase 1 Parameter instruction Parameter Details Operation Basic Settings Select To select which phase of IPSec, Select “Phase 1” phase 1, phase 1 or phase IPSec Policy Name Name of phase 1, mainly to To input the name of phase 1.
  • Page 98 H792x 3G/4G Router User Manual Parameter Details Operation Authenticatio To select authentication Select from Dropdown List, presently only “PSK” supported Pre Share Key To set pre share key Max 24 letters Self Identify To set the self ID of IPSec To input the ID, need to match the ID of other side Match...
  • Page 99 H792x 3G/4G Router User Manual Figure 4-54 IPSec phase 2 configuration Table 4-33 IPSec Parameter instruction Parameter Details Operation Basic Settings Select To select which phase of Select “Phase 2” IPSec, phase 1, phase 1 or phase IPSec Policy Name Name of phase 2, mainly to To input the name of phase 2.
  • Page 100 H792x 3G/4G Router User Manual Parameter Details Operation To open or close PFS Select from Dropdown List Lifetime IPSec SA key life time Value area: 120～86400 Unit: second Transport Supports tunnel, transport Select from Dropdown List Mode and auto. Local Subnet Set local subnet No need to set for “transport”...

  • Page 101: Openvpn Configuration

    H792x 3G/4G Router User Manual Parameter Details Operation phase 1, phase 1 or phase IPSec Interface Name of this phase Input name Name Match To select a matching name of Select from Dropdown List. Phase1 “phase1” Match To select a matching name of Select from Dropdown List Phase2 “phase2”...
  • Page 102 H792x 3G/4G Router User Manual Step 2 Configure OpenVPN parameter. The parameter instruction is shown in Table. Table 4-35 OpenVPN parameter instruction Parameter Detail Operation OPENVPN Enable OPENVPN Service. Click button options: Service  Enable  Disable Basic Setting Working Supports two working modes: Dropdown list options: Mode...
  • Page 103 H792x 3G/4G Router User Manual Parameter Detail Operation the third layer data packets, such peer. as IP packets  Tap(OSI Layer 2):Equates to an Ethernet device to operate the second layer data packets, such as Ethernet data frame. Protocol Data transfer protocol type settings: Dropdown list options: TCP protocol: A kind of connection Select the required...

  • Page 104: System Configuration

    H792x 3G/4G Router User Manual Parameter Detail Operation during transmission, low safety factor Specifies the file path for the client WORD type，max 32 CA certificate bytes. Specifies the private key path for WORD type，max 32 the current client bytes. Cert Specifies the certificate file path for WORD type，max 32 the current client...

  • Page 105: Local Log

    H792x 3G/4G Router User Manual 4.7.2 Local Log Step 1 Click “System > Local Log” to open “Local Log” tab. Figure 4-57 Local Log tab Step 2 Select type of “Local Log” and then click “View” to see log. Click “Clear” to clear the log info in the “Log Table”, and click “Export” to export log in your local PC.

  • Page 106: Clock

    H792x 3G/4G Router User Manual Figure 4-58 Remote Log tab Step 2 Configure “Remote Log” parameter. Table 4-36 Remote log parameter instruction Parameter Details Operation Log Status To enable or disable remote log Click “Enable” Remote IP or IP address or Domain of remote log To input the IP address Domain server...
  • Page 107 H792x 3G/4G Router User Manual Figure 4-59 “NTP” Time Synch. Figure 4-60 Manual Time Synch. Type Step 2 Set “clock” parameters. Table 4-37 Clock Parameter instruction Parameter Details Operation To click “Enable” or  Status To enable to disable Time “Disable”...

  • Page 108: Account

    H792x 3G/4G Router User Manual Domain List NTP Server Backup Backup NTP server Manual input server domain or IP address NTP Synch. Interval Interval for NTP client to check Value area: 1～65535 time with NTP Server. E.g. Unit: second every 10 minutes Default: 600 s Time Zone Time Zone...
  • Page 109 H792x 3G/4G Router User Manual Figure 4-61 Account tab Step 2 Set account parameters. Table 4-38 Account parameter instruction Parameter Details Operation Select from Dropdown List  Account Type Visit the router on web Account Level Level of account to login Select from Dropdown List router Admin: can view and change...

  • Page 110: Network Test

    H792x 3G/4G Router User Manual Parameter Details Operation Default: 80 Step 3 Click “Save” to finish configuration. After saving, user needs to login again. ---END 4.7.6 Network Test Network Test This function includes Ping function and Trace router function. Step 1 Click “System > Network Test” to open “Network Test” tab. Figure 4-62 Network Test Tab Step 2 Input IP address or domain to be tested in “Destination”, click “Ping, to check whether the router can be linked with destination.

  • Page 111: Files

    Test result ---END 4.7.7 Files Firmware Setting H7960 3G/4G router supports upgrade firmware locally. Step 1 Click “System > Files” to open “Files” tab. Figure 4-63 Files tab If “reset” is selected, all pa rameters will be reset to factory setting.
  • Page 112 H792x 3G/4G Router User Manual CFE mode upgrading If upgrading file is larger than 6MB, CFE mode upgrading shall be used to upgrade. Step 1 Add an IP address 192.168.1. Figure 4-64 Add an IP address Step 2 Press the RESET/DEF interface. Do not release it. Hold it, meanwhile power on router, till 30 seconds, and connection to PC is built properly.
  • Page 113 You can also PING br0 address on your PC ( eg. ping 192.168.8.1 –t). i f Ping ok, upgrading is OK. ---END USB upgrade The H7960 provides USB port, and you can choose USB mode to upgrade the router. Its specific upgrade operations are as follows. Hongdian Corporation...

  • Page 114: Backup Setting

    Step 5 All the indicators keep on 3 ~ 5s,the device is automatically restart, while upgrade success. Backup setting H7960 3G/4G router supports to backup and to recover configuration file.  Click “Browse” to select a configuration file to be imported. And then click “Import” to resume the configuration as the configuration file.

  • Page 115: Factory Setting

    Factory setting H7960 3G/4G router has function to resume factory configuration. Users can set the configuration to factory mode, and also can set the current configuration into default configuration and generate a default factory configuration file in router. To resume this default factory setting, users can click “Load”...
  • Page 116 H792x 3G/4G Router User Manual Figure 4-70 Patch operation  Delete: to delete patch. Reboot /Refresh Click “Reboot” to restart the router, or click “Refresh” to refresh the page. Hongdian Corporation...

  • Page 117: Status

    Figure 4-71 Reboot /Refresh 4.8 Status 4.8.1 Summary Status provides the basic info, network status info, router info of H7960 3G/4G Router. 4.8.2 Base Information Step 1 Log-on WEB GUI of H7960 3G/4G router. Step 2 Click “Status > Base information” to open “Base Information” tab.

  • Page 118: Lan

    Software OS and application software info. version 4.8.3 LAN Step 1 Log-on WEB GUI of H7960 3G/4G router. Step 2 Click “Status > LAN” to open “LAN” tab. Figure 4-73 “LAN” info Table 4-41 LAN Parameter instruction Parameter Details...

  • Page 119: Modem

    H792x 3G/4G Router User Manual 4.8.4 Modem Step 1 Log-on WEB GUI of H7960 3G/4G router. Step 2 Click “Status > Modem” to open “Modem” tab. Figure 4-74 Modem Status page Table 4-42 Modem Parameter instruction Parameter Details Operatio Modem...

  • Page 120: Wlan Status

    H7960 series. Specific methods of operation are as follows. Step 1 Click the status > WLAN "H7960 series by road WLAN AP, station, repeater three models, the basic information of each mode as shown in figure 4 -75, figure 4-76,and figure 4-77, parameter description as shown in table 4-44, table 4-45 and table 4-46.
  • Page 121 H792x 3G/4G Router User Manual Figure 4-76 WLAN status in station mode Figure 4-77 WLAN status in repeater mode Hongdian Corporation...
  • Page 122 H792x 3G/4G Router User Manual The AP mode status parameters are illustrated in the table below. Table 4-43 AP mode status parameters Parameter Details Operation Basic Inform ation Work Mode The working mode of WLAN. SSID Identification of AP. AP Isolation Isolation status of WLAN client device.

  • Page 123: Routing Table

    H792x 3G/4G Router User Manual Parameter Details Operation Basic Inform ation Primary DNS The primary DNS address assigned by the connected AP. Secondary The secondary DNS address assigned by the connected AP. The MAC address of the AP which the router Address connected.

  • Page 124: Reset Button Function

    H792x 3G/4G Router User Manual Figure 4-78 Routing table page Table 4-46 Routing table Parameter instruction Parameter Details Operation Static route Network IP address the router can reach Subnet IP network the router can reach. It is used Mask together with “Network” Gateway Next hop IP address which the router will reach interface...
  • Page 125 H792x 3G/4G Router User Manual  Press button when the router is turned on:  Press “RESET” button and turn on the router, and keep pressing “RESET” for 2 seconds. The router will get into CFE upgrading mode. ---END Hongdian Corporation...

  • Page 126: Typical Application

    H792x 3G/4G Router User Manual Typical application 5.1 Summary H7960 3G/4G Router commonly used function includes wake up, parameter switch, VPN, etc. 5.2 ICMP detection function application Scene presentation The H7960 router provides ICMP detection function, technically speaking, ICMP is an "error detection and reporting mechanism, and it can be used to detect whether the...
  • Page 127 H792x 3G/4G Router User Manual Figure 5-1 ICMP configuration page Application result When the router dial-up successfully, the ICMP detects the destination address or backup address successfully, as shown in figure 5 -2. Figure 5-2 ICMP detect normal When a router succeeds in dialing, but when a false connection state fails to connect to the network, the ICMP test fails and the number of times tested is performed, such as modem-reset, as shown in Figure 5-3 Figure 5-3 ICMP detect fail...

  • Page 128: Dtu Function Applications

    H792x 3G/4G Router User Manual 5.3 DTU function applications Scene presentation H7960 system fully takes into account the DTU access function requirements, the system built-in and registration center and data center communication function, can provide similar DTU data terminal unit transparent data transmission function.
  • Page 129 H792x 3G/4G Router User Manual Figure 5-5 TCP mode configuration Hongdian Corporation...
  • Page 130 H792x 3G/4G Router User Manual Figure 5-6 Add text data Open the Socket tool (TCP&UDP testing tool) in the server or PC which IP is the “Server IP” in in the router’s DTU configuration, start a TCP server listening the port which is the same with “Server Port”...

  • Page 131: Parameter Select

    Figure 5-7 TCP server tool Application result The Client mode of H7960 is to make the router work as a normal TCP/UDP client, which can connect to a TCP/UDP server via the server's IP and port. After socket connection is setup, the message received on socket will be forward to RS232 serial port;...
  • Page 132 H792x 3G/4G Router User Manual Figure 5-8 Rules setting Figure 5-9 VPDN 1 configuration Hongdian Corporation...
  • Page 133 H792x 3G/4G Router User Manual Figure 5-10 VPDN 2 configuration When the active L2TP link is disconnected from the server, the router will perform parameter switching commands in the "check ICMP" by Ping, to detect whether the connection is interrupt; if Ping failure occurs (for 3 times), the router will switch to the PPTP link, and maintenance connection of the server.

  • Page 134: Vpn

    Let us check a setting example: Figure 5-13 Build IPSec PC1 connect H7960 then build IPSEC link by VPN function of H7960 with company router. I assume using IPSec tunnel mode, H7960 end local network 192.168.86.1/24, company server end 192.168.99.1/24, by IPSEC, two LAN could communicate.

  • Page 135: Parameter Setting

    H792x 3G/4G Router User Manual Parameter Setting Figure 5-14 IPSec Phase 1 Hongdian Corporation...
  • Page 136 Figure 5-16 IPSec Company router server should have same setting but the identity and subnet setting for the company router server should be the opposite of those for H7960 3G/4G Router. Result After setting H7960 3G/4G Router and company router parameter, they can connect each other by IPSEC, and ping peer subnet, you could check status by click “view”...

  • Page 137: Timing Task

    5.6 Timing Task Typical Application H7960 3G/4G Router support timing task, by setting timing task, at certain time, router will operate reboot, online command. Etc. Easier the customer operation. I assume set the router online at certain time and keep a moment, then reboot every 24 hours. You could set like below.
  • Page 138 H792x 3G/4G Router User Manual Figure 5-19 Router online Figure 5-20 router off line Figure 5-21 Router reboot Hongdian Corporation...

  • Page 139: Faq

    H792x 3G/4G Router User Manual 6.1 Hardware Failure 6.1.1 All LED dark Phenomenon Router LED all dark Possible Reason  Power supply does not match, it should be 5-36VDC  No power supply Solution  Make sure the power supply is 5～36VDC ...

  • Page 140: Dial Online Problem

    Change a Ethernet cable  Check network card setting on PC end 6.2 Dial Online Problem 6.2.1 Dial discontinue Phenomenon H7960 3G/4G Router discontinue during dialing, dial failure Possible Reason  SIM card network type do not match  SIM charges owed ...

  • Page 141: Cannot Find Sim/Usim/Uim Card

    SIM bad contact Solution  Replace SIM card  Re-install SIM card 6.2.4 Poor Signal Phenomenon H7960 3G/4G Router no signal or poor signal Possible Reason  Antenna connect wrong  Area signal weak Solution  Check the antenna and re-connect it.

  • Page 142: Vpn Cannot Communicate

    Wrong local route table, set right route table 6.4 WEB config problem 6.4.1 Updating firmware failure Phenomenon Updating firmware failure Possible Reason  Auto r eboot during updating H7960 3G/4G Router  Power supply problem  Wrong firmware  Power off during updating router...

  • Page 143: Backup Setting Problem

    H792x 3G/4G Router User Manual Solution  Check setting, disable the function which may cause reboot  Change to a suitable power supply  Ask technical support for suitable firmware  Power off during updating router, please make sure power supply normal 6.4.2 Backup setting problem Phenomenon Router import backup setting failure...

  • Page 144: Update Failure In Web Gui

    H792x 3G/4G Router User Manual  If firmware version, format do not match, please change then update again  If power off during updating, please update again 6.4.5 Update failure in WEB GUI Phenomenon Updating by WEB GUI, failed and cannot visit WEB GUI again Possible Reason Firmware oversize cause updating failure Solution...

  • Page 145: Parameter Table

    H792x 3G/4G Router User Manual Parameter Table Parameter type Range of values Normal WORD type Contains numbers, letters, and special characters( @、.、/、-、_、: )， other types are illegal characters. Example: username WORD of letter and number Contains letters and numbers, and other types are illegal characters. type Example: modem0 Letter first Word type...

  • Page 146: Abbreviation

    H792x 3G/4G Router User Manual Abbreviation Auto Table Machine CDMA Code Division Multiple Access DDNS Dynamic Domain Name Server DHCP Dynamic Host Configuration Protocol Demilitarized Zone Domain Name System EDGE Enhanced Data Rate for GSM Evolution GPRS General Packet Radio Service Global Positioning System Generic Routing Encapsulation Global System for Mobile...
  • Page 147 H792x 3G/4G Router User Manual Media Access Control Network Address Translation OSPF Open Shortest Path First PPTP Point to Point Tunneling Protocol SIM/USIM Subscriber Identify Module SNMP SIM/USIMple Network Management Protocol SOHO Small Office Home Office Transmission Control Protocol TD-SCDMA Time Division-Synchronous Code Division Multiple Access User Datagram Protocol...
  • Page 148 Create smart things F14 - F16, Tower A, Building 14, No.12, Ganli 6th Road, Longgang District, Shenzhen 518112, China. +86-755-88864288-5 +86-755-83404677 hongdianchina www.hongdian.com sales@hongdian.com Hongdian_China...

Table of Contents
