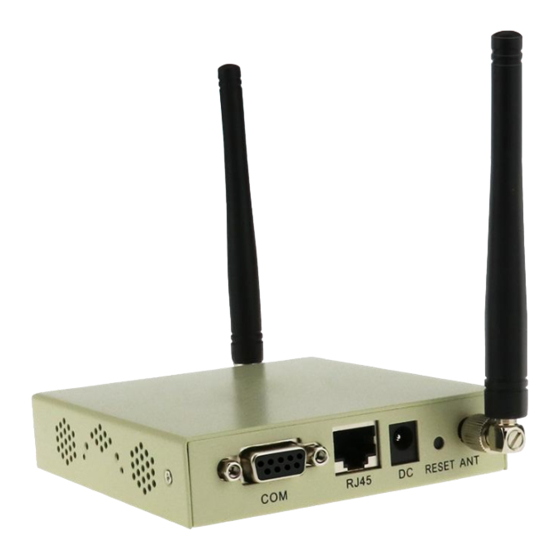

Shenzhen Hongdian Technologies H7920 User Manual

H792 series 3g/4g router
Hide thumbs Also See for H7920:
Table of Contents

Advertisement

Quick Links

Download this manual
www.hongdian.com
User Manual
H792x 3G/4G Router

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H7920 and is the answer not in the manual?

Questions and answers

Related Manuals for Shenzhen Hongdian Technologies H7920

Summary of Contents for Shenzhen Hongdian Technologies H7920

  • Page 1 www.hongdian.com User Manual H792x 3G/4G Router...
  • Page 2 Hongdian Technologies Corporation. Trademarks and Permissions and DTU are the trademarks and logos of Shenzhen Hongdian Technologies Corporation. Other trademarks and logos mentioned in this manual belong to other organizations related. Shenzhen Hongdian Technologies Corporation does not own the rights of other trademarks and logos.

  • Page 3: About This Document

    This document introduced how to use H792x and its function features. Related Versions The following table lists the product versions related to this document. Model Version H7920,H7921 Organization Chapter Description Features of H792x 3G/4G router and target market.

  • Page 4: Conventions

    H792x 3G/4G Router User Manual Conventions Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a potentially hazardous situation, which if not avoided, could result in equipment damage, data loss, performance degradation, or unexpected results.

  • Page 5: Modifying Records

    Modifying records accumulate the introduction of every document update. The document of the newest version includes all updating contents of previous document versions. Document Time of Modifying Introduction Version Modifying V1.0 2014-07-11 The manual was firstly released aiming at the release of H7920 and H7921 Router. Doc. Version 1.1...
  • Page 6 H792x 3G/4G Router User Manual Document Time of Modifying Introduction Version Modifying V1.1 2017-10-16 Manual update to doc V1.1; H792x hardware version update to V30 from V14. Doc. Version 1.1...

  • Page 7: Table Of Contents

    H792x 3G/4G Router User Manual Contents About This Document ........................ii Purpose....................................... ii Related Versions ..................................ii Organization ....................................ii Conventions....................................iii Modifying Records................................... iv 1 Product Introduction ........................1 About this chapter..................................1 1.1 Overview .....................................1 1.2 Product positioning ................................1 1.3 Function &...
  • Page 8 H792x 3G/4G Router User Manual 4.3 Basic config ..................................19 4.3.1 Login WEB GUI ..............................19 5 Router Configuration ........................20 About this chapter................................. 20 5.1 Overview ..................................20 5.2 Network configuration..............................20 5.2.1 LAN ..................................21 5.2.2 Modem ................................... 22 5.2.3 Parameter select..............................
  • Page 9 H792x 3G/4G Router User Manual 5.7.7 Files ..................................92 5.8 Status ....................................98 5.8.1 Overview ................................98 5.8.2 Base Information ..............................98 5.8.3 LAN ..................................99 5.8.4 Modem ................................. 100 5.8.5 Routing Table ..............................101 5.9 RESET button function ..............................102 6 Typical application ........................
  • Page 10 H792x 3G/4G Router User Manual Table Contents Table 2-1 H792x 3G/4G Router size ............................5 Table 2-2 H792x 3G/4G Router accessories ........................7 Table 4-1 LED instruction ..............................12 Table 5-1 LAN Parameter instruction ..........................21 Table 5-2 “Modem” Parameter instruction........................23 Table 5-3 Parameter instruction............................
  • Page 11 H792x 3G/4G Router User Manual Table 5-27 Tunnel rule parameter instruction ......................... 75 Table 5-28 IPSec Phase 1 Parameter instruction ......................78 Table 5-29 IPSec Parameter instruction ..........................80 Table 5-30 IPSec Parameter instruction ..........................81 Table 5-31 OpenVPN parameter instruction ........................83 Table 5-32 Remote log parameter instruction.........................
  • Page 12 H792x 3G/4G Router User Manual Figure Contents Figure 1-1 Network structure ..............................2 Figure 2-1 H792x 3G/4G Router Appearance ........................4 Figure 2-2 H792x 3G/4G Router Figure..........................6 Figure 2-3 Front pannel................................7 Figure 2-4 Back pannel ................................7 Figure 3-1 Pop out SIM slot ..............................9 Figure 3-2 SIM/UIM card install.
  • Page 13 H792x 3G/4G Router User Manual Figure 5-14 M2M configuration ............................41 Figure 5-15 Timing configuration ............................42 Figure 5-16 To add timing task ............................43 Figure 5-17 Wake up configuration ............................45 Figure 5-18 DTU configuration ............................47 Figure 5-19 IP Filter tab.................................51 Figure 5-20 IP Filter “Input” type ............................52 Figure 5-21 IP Filter “Forward”...
  • Page 14 H792x 3G/4G Router User Manual Figure 5-51 Account tab................................90 Figure 5-52 Network Test Tab..............................91 Figure 5-53 Files tab ................................92 Figure 5-54 Add an IP address .............................93 Figure 5-55 CFE mode upgrading ............................94 Figure 5-56 CFE upgrading page............................94 Figure 5-57 Backup setting page ............................95 Figure 5-58 Factory setting page............................96 Figure 5-59 Patch operation..............................97 Figure 5-60 Reboot ................................98...

  • Page 15: Product Introduction

    H792x 3G/4G Router User Manual Product Introduction About this chapter Chapter Content 1.1 Overview Simple introduction of H792x 3G/4G Router. Product Product Positioning of H792x 3G/4G Router Positioning Function & Unique function & features features 1.4 Specification Detail specification of this router 1.1 Overview H792x 3G/4G Router based on 3G/4G celluar comminication technology, except tradition router function like VPN, firewall, NAT, SNMP, DHCP.

  • Page 16: Function & Features

    H792x 3G/4G Router User Manual For example, in economic area, H792x 3G/4G Router connect server by IPSec & GRE to ensure data security, tiny design makes it could installed into ATM machine. All these technology ensured safe and reliable data transmission, and minimize the probability of network disconnection, and maximize the usability of economic business like ATM, POS .etc.

  • Page 17: Specification

    H792x 3G/4G Router User Manual  1.4 Specification Interface  1×10/100Mb LAN interface  1× RS-232 console port (full DTU function optional)  1× SMA-K antenna interface  1× SMA-K antenna interface (Wi -Fi, optional)  1× Standard SIM/R-UIM interface ...

  • Page 18: Product Structure

    H792x 3G/4G Router User Manual Product structure About this chapter Chapter Content 2.1 Hardware H792x 3G/4G Router hardware. 2.2 Structure Structure of H792x 3G/4G Router. 2.1 Hardware 2.1.1 Appearance & Size Appearance Figure 2-1 H792x 3G/4G Router Appearance Hongdian Corporation...

  • Page 19: Table 2-1 H792X 3G/4G Router Size

    H792x 3G/4G Router User Manual Size Table 2-1 H792x 3G/4G Router size Model Dimension Interface (mm) H792x 98×100×23  1×10/100Mb LAN interface  3G/4G 1× RS-232 console port (full Router DTU function optional)  1× SMA-K antenna interface  1× SMA-K antenna interface (Wi-Fi, optional) ...

  • Page 20: Figure 2-2 H792X 3G/4G Router Figure

    H792x 3G/4G Router User Manual Figure 2-2 H792x 3G/4G Router Figure Hongdian Corporation...

  • Page 21: Accessories

    H792x 3G/4G Router User Manual 2.1.2 Accessories Table 2-2 H792x 3G/4G Router accessories Accessories name Number Note H792x 3G/4G Router 1 pcs CD-ROM 1 pcs Optional 3G/CELLULAR antenna 1 pcs Wi-Fi antenna 1 pcs Optional GPS antenna 1 pcs Optional RJ45 cable 1 pcs Mounting...

  • Page 22: Router Installation

    H792x 3G/4G Router User Manual Router Installation About this chapter Chapter Content 3.1 Unpacking Unpack H792x 3G/4G Router box and the packing list. 3.2 How to install How to install H792x 3G/4G Router with SIM/UIM card and Ethernet cable .etc. 3.3 Power supply Power supply needs of H792x 3G/4G Router.

  • Page 23: Ethernet Cable Connection

    H792x 3G/4G Router User Manual Figure 3-1 Pop out SIM slot Step 2 Put SIM card in slot at proper direction as Figure 3-2 shows Figure 3-2 SIM/UIM card install. ---END 3.2.2 Ethernet cable connection Use Ethernet port directly connect H792x 3G/4G Router and computer, or transferred by a switch.

  • Page 24: Serial Port Connection

    H792x 3G/4G Router User Manual Figure 3-3 Single Equipment Direct Connection Multiple equipment local area network connection H792x 3G/4G Router supports to simultaneously connect to multiple equipments through a switch (such equipments may not be in the same network segment) as shown in the figure below.

  • Page 25: Power Supply

    H792x 3G/4G Router User Manual  This port for debug only, not for other application.  Do not insert any other RJ45 cable into console port, otherwise router may work abnormal. 3.3 Power supply In order to get high reliability, H792x 3G/4G Router adapt wide voltage input: +5V～ +36VDC, support hot plug and complex application environment.

  • Page 26: Before Config

    H792x 3G/4G Router User Manual Before config About this chapter Chapter Content 4.1 LED Status The meaning of LED status. 4.2 Local config How to local config H792x 3G/4G router. 4.3 Basic config Basic config & function. 4.1 LED Status There are LED on front panel of H792x 3G/4G router, they show how H792x 3G/4G router works.

  • Page 27: Local Config

    H792x 3G/4G Router User Manual 4.2 Local config Precondition  Already power on H792x 3G/4G router  Ethernet cable connect to H792x 3G/4G router You could specify a static IP or DHCP get IP for your computer. Static IP Step 1 Click “start > control panel”, find “Network Connections” icon and double click it to enter, select “Local Area Connection”...

  • Page 28: Figure 4-2 Connection Properties

    H792x 3G/4G Router User Manual Figure 4-2 Connection properties Figure 4-3 Internet protocol (TCP/IP) Hongdian Corporation...
  • Page 29 H792x 3G/4G Router User Manual You could change your IP address or add a IP address in Advanced setting.  General configuration This method will temporarily interrupts the communication between the computer under configuration and LAN, and the specific parameter configuration is shown as below: IP address: 192.168.8.* (*indicates any integral between 2 to 254) Subnet mask: 255.255.255.0 Default gateway: 192.168.8.1...

  • Page 30: Figure 4-4 Advanced Tcp/Ip Settings

    H792x 3G/4G Router User Manual  Advanced configuration If you don’t want to interrupt local PC LAN communication and configure H792x 3G/4G Router when the former network configuration exists, it is required add route (IP). The configuration operation is shown as below: Click the “Advanced…”button to enter the interface as below: Figure 4-4 Advanced TCP/IP Settings Click the “Add (A)”button under the “IP address (R)”, and fill in the IP address that you...

  • Page 31: Figure 4-5 Tcp/Ip Address

    H792x 3G/4G Router User Manual Figure 4-5 TCP/IP address After the configuration is completed, click the “Add”. By now the computer has a route to router H792x. Note: “Default gateway” depends on whether the configuration computer connects with Internet through original local network configuration. If Internet is accessed through original local network, the default gateway setting does not need to be modified;...

  • Page 32: Figure 4-6 Connectivity Check

    H792x 3G/4G Router User Manual Network Check Step 1 IP configuration check Use the command of ipconfig to check whether the IP address is correctly set or added. You can enter DOS mode and key-in command: ipconfig, for instance: C:\>ipconfig Windows IP Configuration Ethernet adapter local connection: Connection-specific DNS Suffix.

  • Page 33: Basic Config

    H792x 3G/4G Router User Manual 4.3 Basic config Through this chapter, you could achieve basic function: visit internet. 4.3.1 Login WEB GUI Step 1 Run a Internet Explorer and visit “http://192.168.8.1/”, to enter identity page. Figure 4-7 User identity page Step 2 User should use default user name and password when log in for the first time: Step 3 User name: admin Step 4 Password: admin...

  • Page 34: Router Configuration

    H792x 3G/4G Router User Manual Router Configuration About this chapter Chapter Content 5.1 Overview Enter H792x 3G/4G Router WEB GUI to config Network Network configuration & function configuration 5.3 Application Advanced function of router like timing operation, link backup .etc. 5.4 Security Security setting of H792x 5.5 Forward...

  • Page 35: Lan

    H792x 3G/4G Router User Manual 5.2.1 LAN LAN setting used to manage local area network PC which connects to H792x, make them could visit internet and the network segment connectivity normal. Step 1 Login H792x WEB GUI. Step 2 Single click “Network > LAN”. Figure 5-1 LAN window Step 3 LAN parameter.

  • Page 36: Modem

    H792x 3G/4G Router User Manual After change the LAN IP, if pa ge has no response anymore, please make sure your PC address is in the same network segment, or set a new IP to your PC to insure that. ---END 5.2.2 Modem H792x 3G/4G Router core function, connect Internet by cellular modem, H792x 3G/4G...

  • Page 37: Table 5-2 "Modem" Parameter Instruction

    H792x 3G/4G Router User Manual Figure 5-3 Modem page Input suitable parameter. Table 5-2 “Modem” Parameter instruction Parameter Details Operation Auto-dialup current modem, if all Enable   Auto-dialup modem auto-dialup disabled, router Disable  will not auto-dialup Interface Name Interface name, to identify this WORD type, up to interface...
  • Page 38 H792x 3G/4G Router User Manual Parameter Details Operation LTE, HSPA+ module force means 3G/4G auto, AUTO means 2.5G/3G/4G auto PPP process advanced parameter,  Advance Setting Single click to show do not suggest to modify the setting. advanced setting If necessary, contact us for support Authentication (need match server end, default auto-negotiation) Disable ...
  • Page 39 H792x 3G/4G Router User Manual Parameter Details Operation DNS is necessary if want visit domain Negotiation  name. In order to forbid LAN pc visit domain name, you may disable it Value area ： 1～512 After PPP dialing succeed, LCP is interval/Retry needed to keep PPP link alive.

  • Page 40: Figure 5-4 Single Module Single Sim

    H792x 3G/4G Router User Manual Figure 5-4 Single module single SIM Hongdian Corporation...

  • Page 41: Figure 5-5 Advanced Setting

    H792x 3G/4G Router User Manual Figure 5-5 Advanced setting Single click “save” icon to finish. Grey i con means enabled. ---END Hongdian Corporation...

  • Page 42: Parameter Select

    H792x 3G/4G Router User Manual 5.2.3 Parameter select Router parameter select function is used for multi -function switch, like VPN parameter switch, SIM parameter switch, multi-sever switch .etc. You could pre-config several network parameter and switch between them, to achieve multiple Telecom operator backup.

  • Page 43: Table 5-3 Parameter Instruction

    H792x 3G/4G Router User Manual Figure 5-7 add rule Table 5-3 Parameter instruction Parameter Details Operation Enable  Status For enabled rule: Only one rule is Disable  running at one time, when it checks failed, next rule start running For disabled rule: all related interface also disabled Basic settings...

  • Page 44: Network Type

    H792x 3G/4G Router User Manual Parameter Details Operation switch to rule0, if do not set, switch to next rule Select a interface to check Interface name Set related modem interface Dropdown List choose, current available option will show below Check method If state, router will check link state Dropdown List If ICMP, router will ping the ICMP...

  • Page 45: Dhcp Service

    H792x 3G/4G Router User Manual Parameter Details Operation route Gateway modem Dropdown List DNS type If Interface, will get DNS automatically Dropdown List interface  custom  DNS1/DNS Manual set DNS Example: 8.8.8.8 Interface Router will get DNS address from this Dropdown List name interface...

  • Page 46: Table 5-5 Dhcp Parameter

    H792x 3G/4G Router User Manual Figure 5-9 DHCP Step 3 Configure DHCP parameter. Step 4 DHCP parameter instructions are as Table 5 -8. Table 5-5 DHCP Parameter Parameter Details Operation  Enable DHCP Enable or Disable DHCP feature  Disable Server Basic Settings（DHCP is not recommended configure in the case of no special network requirement)
  • Page 47 H792x 3G/4G Router User Manual Parameter Details Operation Start IP When IP pool select custom Manual input configuration, configure the DHCP Format：A.B.C.D/Mask pool start IP address Example：192.168.8.2 End IP When pool select custom Manual input configuration, configure the DHCP Format：A.B.C.D/Mask pool end IP address Example：192.168.8.254 ...

  • Page 48: Application Program Configuration

    H792x 3G/4G Router User Manual 5.3 Application program configuration Based on years of customer experience for different applications, besides SNMP, DDNS, H792x 3G/4G router has developed many functions for wireless network equipment, such as ICMP check, interface flow check function, M2M terminal management function, task management function and waking on demand function.

  • Page 49: Table 5-6 Icmp Check Rules Parameter Instruction

    H792x 3G/4G Router User Manual Figure 5-11 ICMP adding page Configure the ICMP check parameter. Table 5-6 ICMP check rules Parameter instruction Parameter Details Operation ICMP check To enable or disable ICMP check Button service rules, multiple rules can be used Enable ...
  • Page 50 H792x 3G/4G Router User Manual Parameter Details Operation recognize ICMP check fails Value area ：1～65535 Retry Check time interval and max check times/normal failure times when link is OK, if Unit: second/time interval check failure times reaches the max times, then “timeout action ” will be executed, e.g.

  • Page 51: Ddns Configuration

    H792x 3G/4G Router User Manual ---END 5.3.2 DDNS configuration Network of SIM/UIM shall be a public address so that router can be visited for a DDNS. Step 1 Log-on WEB GUI of H792x 3G/4G router. Step 2 Click “Applications” > “DDNS”. Figure 5-12 DDNS configuration Step 3 Configure DDNS parameter.
  • Page 52 H792x 3G/4G Router User Manual Parameter Details Operation selected, “Server IP or Domain” will be configured. Default is standard DDNS protocol. for customized protocol, please contact our engineer Server Port Set the port number of Value area: 1～65535 the DDNS server provided If empty, it means 80 port by the service provider.

  • Page 53: Snmp Configuration

    H792x 3G/4G Router User Manual Parameter Details Operation IP, suggest 240s or above Unit: seconds Step 4 Click “save”to complete DDNS configuration DDNS in China : 88IP (www.88i p.net), 3322 (www.3322.org) DDNS outside of China : DNSEXIT (www.dnsexi t.com), ZONEEDIT(www.zoneedti .com), CHANGEIP(www.changeip.com), DYNDNS(www.members .dyndns...

  • Page 54: M2M Configuration

    H792x 3G/4G Router User Manual Step 3 Configure SNMP parameter. Table 5-8 SNMP Parameter instruction Parameter Details Operation SNMP service To enable or disable SNMP service Options: Enable  Disable  Basic Config Port SNMP port, suggest to be default Value area: 1～65535 port161 Default: 161...

  • Page 55: Table 5-9 M2M Parameter Instruction

    H792x 3G/4G Router User Manual Step 1 Log-on WEB GUI of H792x 3G/4G router. Step 2 Click “Applications > M2M” to open M2M configuration tab. Figure 5-14 M2M configuration Step 3 Configure M2M parameter . Parameter instruction is shown. Table 5-9 M2M Parameter instruction Parameter Details Operation...

  • Page 56: Timing Configuration

    H792x 3G/4G Router User Manual Parameter Details Operation platform server. The heartbeat Unit: seconds includes the network status info which will update the network info of the M2M platform Retry Times There is a retry mechanism for Value area: 1～5 package exchange between router Unit: seconds and M2M platform.

  • Page 57: Table 5-10 Timing Task Parameter Instruction

    H792x 3G/4G Router User Manual Figure 5-16 To add timing task Step 4 Configure timing task parameter. Table 5-10 Timing task parameter instruction Parameter Details Operation Status To enable or disable a options timing task. Some task shall Enable  be enabled together with Disable ...

  • Page 58: Wake Up Configuration

    H792x 3G/4G Router User Manual Parameter Details Operation period. Modem will be offline (no dialing) for other time Schedule This is linux shell command. WORD type. Max 64 digits Usually suggested not to use it. In case of need, please contact our technical engineers Set time Time type...

  • Page 59: Table 5-11 Wake Up Parameter Instruction

    H792x 3G/4G Router User Manual Step 1 Log-on WEB GUI of H792x 3G/4G router. Step 2 Click “Applications > Wake up” to open “Wake up” tab. Figure 5-17 Wake up configuration Step 3 Configure “wake up” parameter. Click “Save” to write in the flash memory, after finishing “basic setting” parameter. Table 5-11 Wake up Parameter instruction Parameter Details...
  • Page 60 H792x 3G/4G Router User Manual Parameter Details Operation Triggered action includes  Task type Dropdown List options modem-up, modem-down, modem-down  reboot. modem-up   reboot Basic setting Wake up To configure actions triggered, it Dropdown List options method supports phone and data. If phone/data ...

  • Page 61: Dtu Configuration

    H792x 3G/4G Router User Manual One phone number be set for acti ons of di fferent modems , but cannot be set as di fferent a ctions of one modem. It’s OK for ei ther SIM of the two SIMs of H792x 3G/4G router to open SMS or voi ce function, no matter whi ch slot to be ins talled.

  • Page 62: Table 5-12 Dtu Parameter Instruction

    H792x 3G/4G Router User Manual Step 3 Configure “DTU” parameter. Table 5-12 DTU Parameter instruction Parameter Details Operation DTU Service Enable or Disable DTU DTU Service options Service  Enable  Disable Basic Settings  Work Mode Work mode: Select from Dropdown List ...
  • Page 63 H792x 3G/4G Router User Manual Parameter Details Operation connectionless unreliable transport protocol, suitable for relatively high efficiency requirements, and the occasion of relatively low reliability Received DTU port timeout which Specify time according to your Timeout receive from the data center, need within the received packet data:1-65535ms...

  • Page 64: Security

    H792x 3G/4G Router User Manual Parameter Details Operation Data content Heartbeat Set heartbeat interval(when Manually input:1-65535 Interval there is no data transfer, the Units: second router send the heartbeat data content every heartbeat interval) RS232 settings Rate Set the serial port transfer Select from the dropdown list, rate according to the practical...

  • Page 65: Configuration

    H792x 3G/4G Router User Manual 5.4.2 Configuration IP Filter IP filter refers to judgment whether to allow router to f orward the data according to filter rules, thus to manage internet surfing of PC in LAN. IP filter is used to allow part of PCs in LAN to visit external WAN network or forbidden some PCs from visiting specific website.

  • Page 66: Figure 5-20 Ip Filter "Input" Type

    H792x 3G/4G Router User Manual Figure 5-20 IP Filter “Input” type Figure 5-21 IP Filter “Forward” type Hongdian Corporation...

  • Page 67: Table 5-13 Ip Filter Parameter Instruction

    H792x 3G/4G Router User Manual Table 5-13 IP filter parameter instruction Parameter Details Operation Type Select a filter type, you can choose Dropdown List options according to their needs, "Input" or "Forward" Input: whether to allow access to the router Forward: whether to allow the router forwarding Default Action...

  • Page 68: Figure 5-22 Domain Filter Tab

    H792x 3G/4G Router User Manual Parameter Details Operation Destination IP packet access router ports (when Value area: 1-65535 or Port the protocol select "icmp", requires [1-65535], it can be a no configuration) range, or a single port When the IP Filter type select “Forward” Destination IP IP packet destination IP Manual input...

  • Page 69: Table 5-14 Domain Filter Parameter Instruction

    H792x 3G/4G Router User Manual Figure 5-23 Domain filter tab Table 5-14 Domain Filter parameter instruction Parameter Details Operation Domain Keyword of domain for WORD type, max 64 digits. keyword filter E.g. www.google.com, the keyword is “google”. Accept.  Default action Actions to filter the ...

  • Page 70: Table 5-15 Mac Filter Explanation

    H792x 3G/4G Router User Manual Table 5-15 MAC Filter explanation Paramet Details Operation Input configuration  Blacklist: rules in blacklist cannot visit router, Action To activate MAC other MACs can visit router. input filtering White list: rules in white list can visit router, ...

  • Page 71: Forward Configuration

    H792x 3G/4G Router User Manual Parameter Details Operation Default Action Default actions of the rule. Can be To choose “accept” or “accept” or “Drop”: “Drop” Accept: to accept all packages  from this MAC. Drop: to drop all packages from ...

  • Page 72: Table 5-17 Dnat Parameter Instruction

    H792x 3G/4G Router User Manual Figure 5-26 NAT tab Step 3 Click “Add” to add a new NAT rule. Figure 5-27 DNAT rule configuration Step 4 Select “DNAT” in NAT Type to configure DNAT rule parameter. Table 5-17 DNAT Parameter instruction Parameter Details Operation...
  • Page 73 H792x 3G/4G Router User Manual Parameter Details Operation Original The external address, Dropdown List Address Type the address needs to interface  be converted static  Interface Indicates the external Dropdown List (when the address of IP packets to  initial address an interface of the modem...

  • Page 74: Table 5-18 Snat Rule Instruction

    H792x 3G/4G Router User Manual Figure 5-28 SNAT rule configuration Step 9 Configure SNAT rule parameter,. Parameter instruction as Table 5-22 Table 5-18 SNAT rule instruction Parameter Details Operation Dropdown List  Protocol Convert some kind of protocol  packets into address ...

  • Page 75: Table 5-19 Masq Rule Parameter Instruction

    H792x 3G/4G Router User Manual Step 10 Single click “save” icon to finish. When a SNAT rule is configured wi th port specified, selecting “all” in protocol means selecting two protocols contain "tcp", "udp"; when a SNAT rule is configured wi th no port speci fied, selecting “all” in protocol means selecting three protocols contains "tcp", "udp","i cmp".

  • Page 76: Static Routing

    H792x 3G/4G Router User Manual Step 15 Single click “save” icon to finish. MASQ rule: the source address of all packets in the LAN need to be trans ferred into the specifi c ip address of the router, so the PC from the LAN can send pa ckets out; If MASQ rule in the router will be deleted, the router LAN of the PC cannot communi ca te wi th external network.

  • Page 77: Table 5-20 Static Routing Parameter Instruction

    H792x 3G/4G Router User Manual Figure 5-31 Static Routing Interface Figure 5-32 Policy Routing Interface Parameter Instruction as Table 5-24. Table 5-20 Static Routing Parameter Instruction Parameter Details Operation Basic Setting  Dropdown List Routing Type To select “Static Route”or“Policy Route” When Routing Type is “Static Route”...
  • Page 78 H792x 3G/4G Router User Manual Parameter Details Operation route Format1: A.B.C.D/Mask Gateway Type Specify gateway type of static Dropdown List routing, includes:  interface static ip  Gateway Set a next hop IP address of Dropdown List static route, IP address of the If the gateway type selects ...

  • Page 79: Qos (Optional)

    H792x 3G/4G Router User Manual Sta ti c routing will forwa rd a ccording to the des tinati on address of the pa cket, i f the router recei ved the pa cket (e.g. source address is 1.1.1.1 des tination address is 2.2.2.2), i t will forwa rd the pa cket to next hop a ccording to the route which meets wi th the des tina tion address (2.2.2.2).

  • Page 80: Table 5-21 Qos Parameter Instruction

    H792x 3G/4G Router User Manual Step 3 QOS configuration parameter, configuration parameter instruction as Table 5 -25. Table 5-21 QoS parameter instruction Parameter Details Option Status Enable or disable QoS feature Click the button to select Basic Setting Rule Name QoS rule name The max to 12 characters Only set when adds a new...

  • Page 81: Dynamic Routing (Optional)

    H792x 3G/4G Router User Manual 192.168.8.1/24 and 192.168.9.1/24, the router QOS can control the ra te of these two subnets; If the router's bandwidth is relati vel y well-off, the router can adjus t the bandwidth based on pri ori ty and redundancy of two subnets, tha t is, the router meets the high priori ty redundancy bandwidth fi rs tl y, then meets the low priori ty subnet redundancy bandwidth.

  • Page 82: Table 5-22 Rip Parameter Instruction

    H792x 3G/4G Router User Manual Table 5-22 RIP Parameter Instruction Parameter Details Operation RIP Service Enable or disable RIP Click the button to select. Service  Enable  Disable Redistribute Enable or disable Click the button to select. Connected Redistribute Connected ...

  • Page 83: Ospf Configuration

    H792x 3G/4G Router User Manual Parameter Details Operation Network(direc Add the destination Add the destination network of RIP tly connect to network of RIP route route the router) Format: A.B.C.D/Mask Neighbor(dire Add the neighbor’s IP Add the neighbor’s IP address of RIP ctly connect address of RIP route route...

  • Page 84: Table 5-24 Ospf Parameter Instruction

    H792x 3G/4G Router User Manual Figure 5-36 OSPF Interface OSPF parameter instruction as Table 5-28 Table 5-24 OSPF parameter instruction Parameter Details Operation OSPF Service Enable or disable OSPF Service Click the button to select Enable   Disable Redistribute Enable or disable Redistribute Click the button to select Connected...

  • Page 85: Table 5-25 Ospf Route Parameter Instruction

    H792x 3G/4G Router User Manual Figure 5-37 OSPF route configuration interface Step 9 Configure RIP route parameter instruction, as Table 5-29. Table 5-25 OSPF route parameter instruction Parameter Details Option Add Type Add the type of OSPF Click the button to select Add Type route Network ...

  • Page 86: Vpn Configuration (H7921 Only)

    H792x 3G/4G Router User Manual Cost Configure the cost of the Manual input router interface, used to Value area:1-65535 learn routing table  Dropdown List Network type Configure the network  broadcast （when the type of the router non-broad  interface interface point-to-multipoint...

  • Page 87: Table 5-26 Vpdn Rule Parameter Instruction

    H792x 3G/4G Router User Manual Figure 5-38 VPDN configuration Step 4 Click “Add” to add a new VPDN rule. Figure 5-39 VPDN rule configuration Step 5 Configure VPDN rule parameter. Table 5-26 VPDN rule parameter instruction Parameter Details Operation VPDN service To enable or disable the VPDN rule Click “Enable”...

  • Page 88: Tunnel Configuration

    H792x 3G/4G Router User Manual Parameter Details Operation protocol VPDN protocol includes Select from Dropdown List, cannot be modified L2TP  after save. PPTP  Service IP or IP or domain of server to be visited To input the IP or domain Domain of server to be visited.

  • Page 89: Table 5-27 Tunnel Rule Parameter Instruction

    H792x 3G/4G Router User Manual IPIP tunnel is a simple agreement between two routers for IP packet encapsulation, IPIP tunnel interface will be like a physical interface in the interface list, many routers including Cisco, basically support the agreement. This agreement enables multiple network distribution possible.

  • Page 90: Ipsec Configuration

    H792x 3G/4G Router User Manual Parameter Details Operation Local virtual IP Virtual IP address of local tunnel Format: interface type A.B.C.D/M. Peer virtual IP Virtual IP address of peer tunnel Format: interface type A.B.C.D/M. Interface type To choose “interface” or “static Select from Dropdown List.

  • Page 91: Figure 5-42 Ipsec Tab

    H792x 3G/4G Router User Manual Figure 5-42 IPSec tab Step 3 Click “Add” to add a new IPSec rule. There are 3 phases for IPSec configuration: Phase 1 parameter Hongdian Corporation...

  • Page 92: Table 5-28 Ipsec Phase 1 Parameter Instruction

    H792x 3G/4G Router User Manual Figure 5-43 IPSec phase 1 configuration Table 5-28 IPSec Phase 1 Parameter instruction Parameter Details Operation Basic Settings Select To select which phase of IPSec, Select “Phase 1” phase 1, phase 1 or phase IPSec Policy Name Name of phase 1, mainly to To input the name of phase 1.
  • Page 93 H792x 3G/4G Router User Manual Parameter Details Operation Authenticatio To select authentication Select from Dropdown List, presently only “PSK” supported Pre Share Key To set pre share key Max 24 letters Self Identify To set the self ID of IPSec To input the ID, need to match the ID of other side Match...

  • Page 94: Table 5-29 Ipsec Parameter Instruction

    H792x 3G/4G Router User Manual Figure 5-44 IPSec phase 2 configuration Table 5-29 IPSec Parameter instruction Parameter Details Operation Basic Settings Select To select which phase of Select “Phase 2” IPSec, phase 1, phase 1 or phase IPSec Policy Name Name of phase 2, mainly to To input the name of phase 2.

  • Page 95: Table 5-30 Ipsec Parameter Instruction

    H792x 3G/4G Router User Manual Parameter Details Operation To open or close PFS Select from Dropdown List Lifetime IPSec SA key life time Value area: 120～86400 Unit: second Transport Supports tunnel, transport Select from Dropdown List Mode and auto. Local Subnet Set local subnet No need to set for “transport”...

  • Page 96: Openvpn Configuration

    H792x 3G/4G Router User Manual Parameter Details Operation IPSec, phase 1, phase 1 or phase IPSec Interface Name of this phase Input name Name Match To select a matching Select from Dropdown List. Phase1 name of “phase1” Match To select a matching Select from Dropdown List Phase2 name of “phase2”...

  • Page 97: Table 5-31 Openvpn Parameter Instruction

    H792x 3G/4G Router User Manual Figure 5-46 OpenVPN configuration page Step 3 Configure OpenVPN parameter. The parameter instruction is shown in Table 2 -1. Table 5-31 OpenVPN parameter instruction Parameter Detail Operation OPENVPN Enable OPENVPN Service. Click button options: Service ...
  • Page 98 H792x 3G/4G Router User Manual Parameter Detail Operation Dev represents the network Dropdown list options: interface type, and supports two Select the required types: working mode from Tun(OSI Layer 3):Simulates network dropdown list. layer device to operate the third Demand consistent with layer data packets, such as IP peer.
  • Page 99 H792x 3G/4G Router User Manual Parameter Detail Operation Authenticatio Configuring the VPN data transfer Dropdown list options: mode: Select the required data SSL: encrypt the network transfer type from connection in transport layer, high dropdown list. safety factor. Text: transport with text form during transmission, low safety factor Specifies the file path for the client...

  • Page 100: System Configuration

    H792x 3G/4G Router User Manual 5.7 System configuration 5.7.1 Overview “System” can let you know the status of router, firmware upgrading and other maintenance. 5.7.2 Local Log Step 1 Log-on WEB GUI of H792x 3G/4G router. Step 2 Click “System > Local Log” to open “Local Log” tab. Figure 5-47 Local Log tab Step 3 Select type of “Local Log”...

  • Page 101: Remote Log

    H792x 3G/4G Router User Manual To see “local log”, “remote log” mus t be enabled. ---END 5.7.3 Remote Log Step 1 Log-on WEB GUI of H792x 3G/4G router. Step 2 Click “System > Remote Log” to open “Local Log” tab. Figure 5-48 Remote Log tab Step 3 Configure “Remote Log”...

  • Page 102: Clock

    H792x 3G/4G Router User Manual 5.7.4 Clock Step 1 Log-on WEB GUI of H792x 3G/4G router. Step 2 Click “System > Clock” to open “Clock” tab. Figure 5-49 “NTP” Time Synch. Figure 5-50 Manual Time Synch. Type Step 3 Set “clock” parameter . Table 5-33 Clock Parameter instruction Parameter Details...

  • Page 103: Account

    H792x 3G/4G Router User Manual Select “NTP”  Time Synch. Type Type to synchronize system “Manual” time When select “NTP” in “Time Synch. Type” NTP Server IP or IP or domain of NTP server Select from Dropdown Domain List NTP Server Backup Backup NTP server Manual input server domain or IP address...

  • Page 104: Table 5-34 Account Parameter Instruction

    H792x 3G/4G Router User Manual Figure 5-51 Account tab Step 3 Set account parameters. Table 5-34 Account parameter instruction Parameter Details Operation Select from Dropdown List  Account Type Visit the router on web Account Level Level of account to login Select from Dropdown List router Admin: can view and change...

  • Page 105: Network Test

    H792x 3G/4G Router User Manual Parameter Details Operation Default: 80 Step 4 Click “Save” to finish configuration. After saving, user needs to login again. ---END 5.7.6 Network Test Network Test This function includes Ping function and Trace router function. Step 1 Log-on WEB GUI of H792x 3G/4G router. Step 2 Click “System >...

  • Page 106: Files

    H792x 3G/4G Router User Manual Parameter Details Operation tested domain to be tested Ping To use Ping to test link Click “Ping” Trace To use Trace command to test hops Click “Trace” from the router to destination Result Test result ---END 5.7.7 Files Firmware Setting...

  • Page 107: Figure 5-54 Add An Ip Address

    H792x 3G/4G Router User Manual Step 3 Click “Browse” to select upgrading file and then click “Upgrade”. ---END CFE mode upgrading If upgrading file is larger than 6MB, CFE mode upgrading shall be used to upgrade. Step 4 Add an IP address 192.168.1. Figure 5-54 Add an IP address Step 5 Press the RESET/DEF interface.

  • Page 108: Figure 5-55 Cfe Mode Upgrading

    H792x 3G/4G Router User Manual Figure 5-55 CFE mode upgrading Step 7 Click “Browse” to select upgrading file, and then click “Upload” to begin upgrading. Figure 5-56 CFE upgrading page Upgrading will need 4-6 minutes, if RUN light is on, upgrading is OK. You can also PING br0 address on your PC ( eg.

  • Page 109: Figure 5-57 Backup Setting

    H792x 3G/4G Router User Manual Figure 5-57 Backup setting page After import, router will reboot automati call y. “Key”: i f key is i nput when export configura tion file, this key need to be input in i mport. Not more than 8 di gits for key.

  • Page 110: Figure 5-58 Factory Setting

    H792x 3G/4G Router User Manual Figure 5-58 Factory setting page  Save: to save the current setting as default factory configuration setting.  Load: to resume default factory setting. Patch operation function H792x 3G/4G router supports to view and delete patch. Hongdian Corporation...

  • Page 111: Figure 5-59 Patch Operation

    H792x 3G/4G Router User Manual Figure 5-59 Patch operation  View: to view current patches.  Delete: to delete patch. Reboot Click “reboot” to restart the router. Hongdian Corporation...

  • Page 112: Status

    H792x 3G/4G Router User Manual Figure 5-60 Reboot --END 5.8 Status 5.8.1 Overview Status provides the basic info, network status info, router info of H792x 3G/4G Router. 5.8.2 Base Information Step 1 Log-on WEB GUI of H792x 3G/4G router. Step 2 Click “Status > Base information” to open “Base Information” tab. Hongdian Corporation...

  • Page 113: Lan

    H792x 3G/4G Router User Manual Figure 5-61 Base Information tab Table 5-36 Base information Parameter instruction Parameter Details Operation Router Router model info Model Router SN Router Serial No info Hardware Router hardware version info version Software OS and application software info. version 5.8.3 LAN Step 1 Log-on WEB GUI of H792x 3G/4G router.

  • Page 114: Modem

    H792x 3G/4G Router User Manual Table 5-37 LAN Parameter instruction Parameter Details Operatio LAN status To show current LAN interfaces status. IP address To show the LAN IP address. Subnet Subnet mask of LAN interface. Mask To show the MAC address of the router. address 5.8.4 Modem Step 1 Log-on WEB GUI of H792x 3G/4G router.

  • Page 115: Routing Table

    H792x 3G/4G Router User Manual Parameter Details Operation Network Current network type of the SIM in use type signal Signal of mobile network Value area: 1-31 IP Address To show the external network IP address which the router links To show which DNS router is using SIM Status Status of current SIM 5.8.5 Routing Table...

  • Page 116: Reset Button Function

    H792x 3G/4G Router User Manual Parameter Details Operation Static route Gateway Next hop IP address which the router will reach interface Interface from router to gateway metric Route No which the router reaches destination IP Policy route Priority Priority the router select route ---END 5.9 RESET button function “RESET”...

  • Page 117: Typical Application

    H792x 3G/4G Router User Manual Typical application About this chapter Chapter Content 6.1 Overview Summary some typical application of H792x 3G/4G router 6.2 Awake function How to awake H792x 3G/4G Router if not auto-dial 6.3 VPN H792x 3G/4G Router VPN setting 6.4 Timing Task Set Timing task on H792x 3G/4G Router 6.1 Overview...

  • Page 118: Vpn

    H792x 3G/4G Router User Manual Figure 6-1 Wake up/trigger setting example Effect By this setting, after router power on, if there are data trigger or you could call/SMS SIM1 number from 8618888888888 to trigger corresponding SIM online.ed modem will dial online, After 3600s, router will offline.

  • Page 119: Figure 6-2 Build Ipsec

    H792x 3G/4G Router User Manual Figure 6-2 Build IPSec PC1 connect H792x then build IPSEC link by VPN function of H792x with company router. I assume using IPSec tunnel mode, H792x end local network 192.168.86.1/24, company server end 192.168.99.1/24, by IPSEC, two LAN could communicate. Parameter Setting Figure 6-3 IPSec Phase 1 Hongdian Corporation...

  • Page 120: Figure 6-4 Ipsec Phase 2

    H792x 3G/4G Router User Manual Figure 6-4 IPSec Phase 2 Figure 6-5 IPSec Company router server should have same setting but the identity and subnet setting for the company router server should be the opposite of those for H792x 3G/4G Router. Result After setting H792x 3G/4G Router and company router parameter, they can connect each other by IPSEC, and ping peer subnet, you could check status by click “view”...

  • Page 121: Timing Task

    H792x 3G/4G Router User Manual Figure 6-6 IPSec status ～ # ping 192.168.99.1 -I 192.168.86.1 PING 192.168.99.1 (192.168.99.1) from 192.168.86.1: 56 data bytes 64 bytes from 192.168.99.1: seq=0 ttl=255 time=1569.360 ms 64 bytes from 192.168.99.1: seq=1 ttl=255 time=769.937 ms --- 192.168.99.1 ping statistics --- 2 packets transmitted, 2 packets received, 0% packet loss round-trip min/avg/max = 769.937/1169.648/1569.360 ms 6.4 Timing Task...

  • Page 122: Dtu Function Application

    H792x 3G/4G Router User Manual Figure 6-8 Router online Figure 6-9 Router off line Figure 6-10 Router reboot 6.5 DTU function application Scene presentation H792x's system fully takes into account the DTU access function requirements, the system built-in and registration center and data center communication function, can provide similar DTU data terminal unit transparent data transmission function.

  • Page 123: Figure 6-12 Tcp Mode Configuration

    H792x 3G/4G Router User Manual Parameter configuration This scenario requires the "DTU" configuration, and the configuration step is referred to as "DTU configuration" section. The parameter configuration is shown in the figures below. Figure 6-12 TCP mode configuration Hongdian Corporation...

  • Page 124: Figure 6-13 Add Text Data

    H792x 3G/4G Router User Manual Figure 6-13 Add text data Open the Socket tool (TCP&UDP testing tool) in the server or PC which IP is the “Server IP” in in the router’s DTU configuration, start a TCP server listening the port which is the same with “Server Port”...

  • Page 125: Faq

    H792x 3G/4G Router User Manual Application result The Client mode of H792x is to make the router work as a normal TCP/UDP client, which can connect to a TCP/UDP server via the server's IP and port. After socket connection is setup, the message received on socket will be forward to RS232 serial port;...

  • Page 126: Hardware Failure

    H792x 3G/4G Router User Manual 7.1 Hardware Failure 7.1.1 All LED dark Phenomenon Router LED all dark Possible Reason  Power supply does not match, it should be 5-36VDC  No power supply Solution  Make sure the power supply is 5～36VDC ...

  • Page 127: Antenna Connection

    H792x 3G/4G Router User Manual 7.1.4 Antenna Connection Phenomenon Cannot connect antenna Possible Reason  Antenna type do not match  Wrong connection Solution  Please check antenna interface, should be SMA-J  Please check antenna type, ther e are 3G/4G and WIFI, GPS antenna, do not mix them 7.2 Dial Online Problem 7.2.1 Dial discontinue Phenomenon...

  • Page 128: Cannot Find Sim/Uim Card

    H792x 3G/4G Router User Manual Solution  Connect suitable antenna  Modem cannot online, check SIM and modem setting  Modem offline, check router setting, like wake up setting, ICMP setting, check if there are any setting make router offline 7.2.3 Cannot find SIM/UIM card Phenomenon H792x 3G/4G Router cannot find SIM/UIM card...

  • Page 129: Vpn Problem

    H792x 3G/4G Router User Manual 7.3 VPN Problem 7.3.1 VPDN cannot connect Phenomenon VPDN cannot connect Possible Reason  VPDN port work abnormal  VPDN parameter wrong  VPDN peer server abnormal Solution  Make sure Modem is online  Set the correct port to VPDN ...

  • Page 130: Web Config Problem

    H792x 3G/4G Router User Manual  Wrong local route table, set right route table 7.4 WEB config problem 7.4.1 Updating firmware failure Phenomenon Updating firmware failure Possible Reason  Auto r eboot during updating H792x 3G/4G Router  Power supply problem ...

  • Page 131: Cfe Updating Failure

    H792x 3G/4G Router User Manual Solution  Check patch format, change to a right one  Change the patch name to a simple one 7.4.4 CFE Updating failure Phenomenon CFE updating failure, firmware edition no change Possible Reason  Power supply does not match ...
  • Page 132 H792x 3G/4G Router User Manual When router is power on, press and hold RESET button around 1s, router will reboot and kept all setting. Hongdian Corporation...
  • Page 133 Create smart things F14 - F16, Tower A, Building 14, No.12, Ganli 6th Road, Longgang District, Shenzhen 518112, China. +86-755-88864288-5 +86-755-83404677 hongdianchina www.hongdian.com sales@hongdian.com Hongdian_China...

This manual is also suitable for:

H7921

Table of Contents
