Shenzhen Hongdian Technologies H9303 Quick Manual

Media wifi router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
www.hongdian.com
Quick Guide
H9303 Media WiFi Router

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H9303 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shenzhen Hongdian Technologies H9303

Summary of Contents for Shenzhen Hongdian Technologies H9303

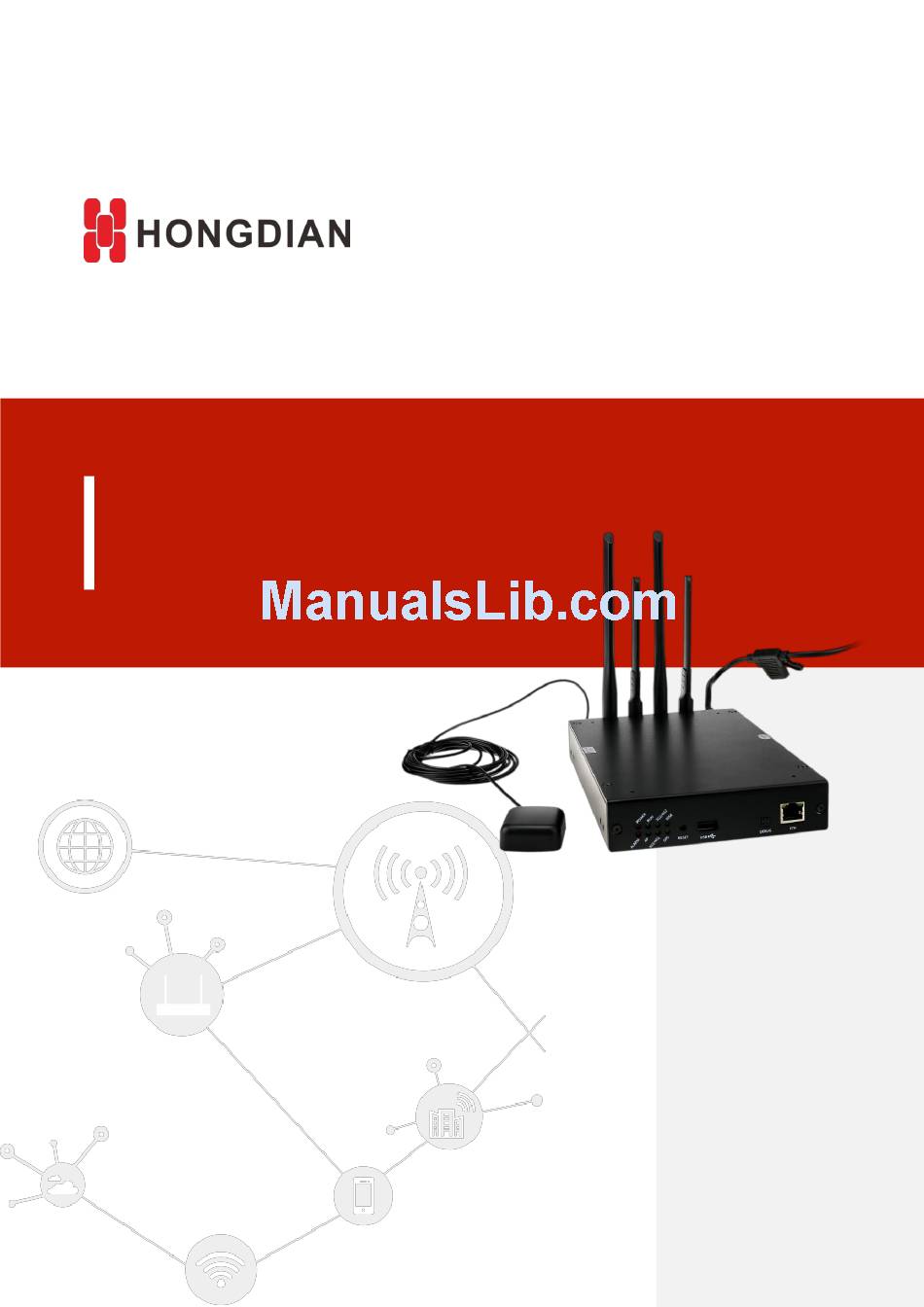

  • Page 1 Quick Guide H9303 Media WiFi Router...
  • Page 2 H9303 Media WiFi Router Quick Guide Shenzhen Hongdian Technologies Corporation provides customers with a full range of technical supports, and the users can contact headquarter of Hongdian directly. Shenzhen Hongdian Technologies Corporation F14-16,Headquarter Economic Center, Zhonghaixin Science&Tech Park, Bulan Road,...

  • Page 3: Foreword

    H9303 Media WiFi Router Quick Guide Foreword Product Version The product version corresponding to the document is as shown below. Product name Product version H9303 FreeWiFi Router Readers The document applies to the following persons:  R & D engineers ...

  • Page 4: Table Of Contents

    H9303 Media WiFi Router Quick Guide Contents Foreword ............................i Product Version ..................................i Readers ....................................... i 1 Product Introduction........................5 1.1 Summary ..................................... 5 1.2 Unpacking ................................... 5 1.3 How to install SIM card..............................6 1.4 How to install antenna and power line ......................... 8 1.5 The LED indicator function...............................
  • Page 5 H9303 Media WiFi Router Quick Guide 5.1 Summary ...................................51 5.2 Register device to platform ............................51 5.3 Assign device to other group ............................56 5.4 Remote update portal by platform ..........................58 6 Portal Resource Customization ....................61 6.1 Summary ...................................61 6.2 Replace with the same name ............................61 6.3 Add more resource................................63...
  • Page 6 H9303 Media WiFi Router Quick Guide Figures Figure 1-1 front panel ........................6 Figure 1-2 top panel ......................... 7 Figure 1-3 SIM card slot ........................7 Figure 1-4 Modem1 match SIM1 card slot ..................8 Figure 1-5 H9303 back........................8 Figure 1-6 H9303 antenna........................

  • Page 7: Product Introduction

    3G/4G, but also they can enjoy local movies, music, news and other attractive info stored in the local SSD. 1.2 Unpacking After received the box of H9303, please unpack it and check if all related accessories are complete as the shown list: Accessory name...

  • Page 8: How To Install Sim Card

    2 pcs card 1.3 How to install SIM card Step 1 Use screwdriver to open the outer casing of H9303, these screws are in the front and top panel, please refer to the following red box Fig1,Fig2: Figure 1-1 front panel...

  • Page 9: Figure 1-2 Top Panel

    H9303 Media WiFi Router Quick Guide Figure 1-2 top panel Step 2 Locate the SIM card position, Modem1 match SIM1 card slot, open the Slot and insert SIM card, then close the slot, please refer to the following red box Fig3,Fig4:...

  • Page 10: How To Install Antenna And Power Line

    Step 3 Recover the outer casing and screw of H9303. How to install antenna and power line Step 1 Locate the antenna interfaces, they are in the back of H9303, please refer to the following Fig5: Figure 1-5 H9303 back Step 2 The antenna interfaces are AP1, 3G1, 3G2, GPS, AP2(from the left side to the right side), AP1, AP2 are for Wi-Fi antenna.

  • Page 11: The Led Indicator Function

    Step 4 Insert the power line to POWER interface. 1.5 The LED indicator function The LED indicator are in the front panel of H9303, as the following Fig7: Figure 1-7 H9303 front POWER: when power is on, the POWER LED is bright all the time.
  • Page 12 H9303 Media WiFi Router Quick Guide 3G2: If H9303 is dual module device, when SIM2 card dialup successfully, the 3G2 LED is bright all the time, if dialup fail, it will blink all the time. DISK: when device detect disk successfully, the DISK LED is bright all the time.

  • Page 13: Portal Webpage

    Internet surfing, and also it can display the advertisement in each section of the webpage. You can customize your contents of the portal, another important, H9303 WiFi most support 60 concurrent users watching 480p*512kbps movie in the same time, if you import more high-definition movie(720p or up), the number of concurrent users will decrease.

  • Page 14: Advertisement Picture Customize

    H9303 Media WiFi Router Quick Guide The following webpage images are corresponds to above-mentioned portal version. Furthermore, it may be little different between this version and your actual portal version for the update reason. Before 2.2.1 Advertisement Picture Customize In this section the device manager can import the advertisement pictures, as shown below.

  • Page 15: Media Customize

    H9303 Media WiFi Router Quick Guide 2.2.2 Media Customize Following are the media display including music and videos of the level2 page. When you click a cover under the "Music" menu , then enter the level 3 page to play the music.

  • Page 16: Latest News Interface

    H9303 Media WiFi Router Quick Guide 2.2.3 Latest News Interface The portal has latest news interface as the following, for example if you have own news interface, like BBC news etc., the news program can be changed as BBC news program and it will update daily BBC news through synchronize with BBC news interface.

  • Page 17: Internet Accessing Page

    H9303 Media WiFi Router Quick Guide 2.2.5 Internet Accessing Page Following are the Internet section of the level2 page to provide the user authentication for Internet surfing. You would better insert a SIM card in the device so that it can work.

  • Page 18: How To Visit Local Resources

    H9303 Media WiFi Router Quick Guide 2.2.6 How to visit local resources When you are surfing the Internet after authentication pass, if you want to visit local resources, if your domain name is 17gimefi.com（default value）, you can enter http://17gimefi.com/ again back to the portal home page, what’s more, if your mobile...

  • Page 19: Freewifi Assistant Tool Guide

    H9303 Media WiFi Router Quick Guide FreeWiFi Assistant Tool Guide 3.1 Summary FreeWiFi Assistant Tool is mainly used to detect FreeWiFi router related status( interface status, system status ), portal webpage, update portal resources, modify FreeWiFi router configurations and export system log, it helps to know about FreeWiFi router every aspect more convenience.
  • Page 20 H9303 Media WiFi Router Quick Guide Step 2Power on FreeWiFi router and attach all antennas, connect your pc LAN to FreeWiFi router LAN via network cable, if you do not have one network cable at your side, you can enable...
  • Page 21 H9303 Media WiFi Router Quick Guide Step 4 FreeWiFi Assistant Tool will detect connection with FreeWiFi router auto, if connection success, it will show as shown below If connection failed, it will show as shown below. Hongdian Corporation...

  • Page 22: Gui Info

    H9303 Media WiFi Router Quick Guide 3.3.2 GUI info Column1 SN is FreeWiFi router SN Column2 EVDO is network type 31 is network signal strength( 0-31. the bigger number means the better network signal ) 113.114.80.109 is simcard dial up ip...

  • Page 23: Feature

    H9303 Media WiFi Router Quick Guide 3.3.3 Feature 1. Detect FreeWiFi router related status Detect FreeWiFi router related status is to know about FreeWiFi router related status Step 1 Click Detection button to run detection process Step 2 After “Export file completed!” is as shown below, detection process is done, in the same...
  • Page 24 H9303 Media WiFi Router Quick Guide Step 3 If need more detail about FreeWiFi router related status, please check syslog folder, it stores FreeWiFi router every aspect log as shown below 2. Clear ROM Clear ROM is to clear FLASH to set free more FLASH...
  • Page 25 H9303 Media WiFi Router Quick Guide Step 2 After “Success to clear ROM” is as shown below, run clear process is done 3. Import resources Import resources is to import portal content into FreeWiFi router Step1 Take updating one full advertisement for sample as shown below...
  • Page 26 H9303 Media WiFi Router Quick Guide Step2 We can see this full advertisement info via original portal Path: advertisement/image Name: full_2.jpg Size: 640*960 Format: jpg Step3 Make a new full advertisement as an old one info as shown below Hongdian Corporation...
  • Page 27 H9303 Media WiFi Router Quick Guide Step4 Cover new one into old one in original portal as shown below Step5 Click Import resources to run import resources process Hongdian Corporation...
  • Page 28 H9303 Media WiFi Router Quick Guide Step6 Resources save path selects original portal Hongdian Corporation...
  • Page 29 H9303 Media WiFi Router Quick Guide Step7 After “Import resources completed!\n” is as shown below, import resources process is done, old full advertisement has been replaced by new full advertisement Hongdian Corporation...
  • Page 30 H9303 Media WiFi Router Quick Guide One more thing, we also can import some folder content as shown below Hongdian Corporation...
  • Page 31 H9303 Media WiFi Router Quick Guide 4. Import 7z file 7z is a high compression ratio file, 7z file is smaller than other compression files, when need to import big size files( update movie etc. ), it is suggested to use import 7z file to make it.(If 7z package could not be decompressed well, please compress to tar.bz2...
  • Page 32 H9303 Media WiFi Router Quick Guide Step3 Compress Africa1.mp4 as 7z format Step4 Import Africa1.7z into /video/video as shown below Hongdian Corporation...
  • Page 33 H9303 Media WiFi Router Quick Guide One more thing, we also can update some folder content via “Import 7z file” as shown below (1) We make video folder 7z package Hongdian Corporation...
  • Page 34 H9303 Media WiFi Router Quick Guide (2) Import video.7z into /video as shown below, please note video.7z package has included /video, so video content will be stored /video/video Step5 Finish configuring 0402, about how to configure 0402, please refer to FreeWiFi Portal Update Guide, then import 0402 into video/data via “Import resources”...
  • Page 35 H9303 Media WiFi Router Quick Guide Step6 After that, updating movie is done Hongdian Corporation...
  • Page 36 H9303 Media WiFi Router Quick Guide 5. Remove resources Delete some folder or total portal Step1 Click Remove resources to run Remove resources process Step2 It will prompt warning window as shown below, if continue, please click yes Hongdian Corporation...
  • Page 37 H9303 Media WiFi Router Quick Guide Step3 Select some file or folder need to delete as shown below Hongdian Corporation...
  • Page 38 H9303 Media WiFi Router Quick Guide Step4 After “Remove hard disk resources completed” is as shown below, remove resources process is done, video folder has been removed from portal, please note not delete portal any files without technical guide 6. Import configurations...
  • Page 39 H9303 Media WiFi Router Quick Guide Step1 Click Import Configurations Step2 Select “buswifi files” folder to import all folder files 7. Export configurations Export configurations is to export FreeWiFi router configurations to configure Step1 Make one folder on your desktop, for example “buswifi files” as shown below...
  • Page 40 H9303 Media WiFi Router Quick Guide Step2 Click Export configurations to export configurations into buswifi files folder Step3 Refer to FreeWiFi Portal Update Guide to configure them as need, then save them 8. Synchronous time Make device synchronize NTP time 9.
  • Page 41 H9303 Media WiFi Router Quick Guide 10. Restart device Restart device 11. Reconnect device Reconnect detect device connection 12. Import patch Hongdian Corporation...
  • Page 42 H9303 Media WiFi Router Quick Guide 13. Configure SSID and APN Step1 Export FreeWiFi router configurations, please refer to Chapter 7 Step2 Use Notepad++ to edit cli.conf as shown below Step3 Configure SSID Hongdian Corporation...
  • Page 43 H9303 Media WiFi Router Quick Guide Step4 Configure APN Hongdian Corporation...
  • Page 44 H9303 Media WiFi Router Quick Guide Step5 After that, save cli.conf, then Import FreeWiFi router configurations, please refer to Chapter 6, finally reboot FreeWiFi router to make effect. Hongdian Corporation...

  • Page 45: Encrypted Usb Portal Update Guide

    Encrypted USB Portal Update flow: Put content you need to update into Udisk, then make USB startup, you put your Udisk into H9303 USB interface, it will take some time to update auto, after updating done, H9303 will reboot auto, which is used for vehicle update in a...
  • Page 46 H9303 Media WiFi Router Quick Guide Step4: Click Directory to select web0 folder as shown below, can not select web0 subpath Hongdian Corporation...
  • Page 47 H9303 Media WiFi Router Quick Guide Step5: Please click “Restart after upgrading” and “Udisk Run”, save to Udisk path, then start to make USB startup Hongdian Corporation...
  • Page 48 H9303 Media WiFi Router Quick Guide Step6: Afte “Updating UDisk made successfully” appears, it means USB startup made done Hongdian Corporation...
  • Page 49 H9303 Media WiFi Router Quick Guide Step7: After that, please insert Udisk into H9303 USB interface, after updating done, H9303 will reboot auto One more thing, in most cases, when we need to add more new movies, we need to configure video and data folders meantime, thus let’s make the following steps...
  • Page 50 H9303 Media WiFi Router Quick Guide (2) Click Directory to select web0 folder as shown below, can not select web0 subpath Hongdian Corporation...
  • Page 51 H9303 Media WiFi Router Quick Guide (3) After USB startup made done, please insert it into H9303 to update until H9303 restart auto Hongdian Corporation...
  • Page 52 H9303 Media WiFi Router Quick Guide Hongdian Corporation...

  • Page 53: Freewifi Platform Remote Update

    H9303 Media WiFi Router Quick Guide FreeWiFi Platform Remote Update 5.1 Summary The FreeWiFi FreeWiFi management platform is an operating platform for managing H93xx series WiFi router of our company. For its more functions and features, we have prepared another article which is FreeWiFi Management Platform User Manual ,to allow you know more detail of its usage.
  • Page 54 H9303 Media WiFi Router Quick Guide And also the updateURL and update server link are as below. cli.conf update server freewifi.hongdian.com:8888/freewifi run.conf updateUrl=http://freewifi.hongdian.com:61503/freewifi/rese/orderFileUpload.hd Here we start to do it. Step 1 Open the FreeWiFi Assistant tool to connect the device, and export the configuration files.
  • Page 55 H9303 Media WiFi Router Quick Guide Step 2 Open the exporting cli.conf file, add the URL under "Server Remote Update" line,then save. Hongdian Corporation...
  • Page 56 H9303 Media WiFi Router Quick Guide Step 3 Open the exporting run.conf file, edit the "updateURL",then save. Step 4 Import the configuration back to the device Hongdian Corporation...
  • Page 57 H9303 Media WiFi Router Quick Guide Step 5 Restart the device after import OK. Hongdian Corporation...

  • Page 58: Assign Device To Other Group

    H9303 Media WiFi Router Quick Guide Step 6 Login the platform to view the device's status The device is in the "Default Router" group of the platform for the first time registration If you couldn't view the default group of your account, you should ask the super account owner to assigned this device to your group.
  • Page 59 H9303 Media WiFi Router Quick Guide Step 1 Use the super account to login the platform, change the selecting device to another group by clicking ”Adjust Group” icon. Hongdian Corporation...

  • Page 60: Remote Update Portal By Platform

    H9303 Media WiFi Router Quick Guide Step 2 Use the general account to login the platform, and we can see the device shown in the specific group. 5.4 Remote update portal by platform Firstly, prepare the new portal content for replacing. The platform supports partially replace.
  • Page 61 H9303 Media WiFi Router Quick Guide After that, compress the folder “advertisement” to the package with the suffix ”.tar.bz2”. (In fact, the device can also identify the 7z file, but sometimes couldn't extract properly, so in my opinion, if you want to compress it to 7z file, you would better compress the folder to the zip package, then change its suffix ".zip"...
  • Page 62 H9303 Media WiFi Router Quick Guide You can observe if the resource push success in Resource Interative, ps: resource push file limit to below 100M After that, we need to reboot the FreeWiFi or wait for 1 hour, so that the resource file can download to the FreeWiFI.

  • Page 63: Portal Resource Customization

    H9303 Media WiFi Router Quick Guide Portal Resource Customization 6.1 Summary We just mention above that you can just replace the figures, music and videos of the original portal resource for updating and you can also add more media file and edit the text contents in the portal.
  • Page 64 H9303 Media WiFi Router Quick Guide Step 3 Open the browser to view the new change.You maybe need to delete the cache of the browser. Hongdian Corporation...

  • Page 65: Add More Resource

    H9303 Media WiFi Router Quick Guide 6.3 Add more resource Here we add one video to the portal resource for example. Step 1 Open the portal folder, edit the file ./video/data/0401 for adding new video.And also prepare the new media for importing.
  • Page 66 H9303 Media WiFi Router Quick Guide Hongdian Corporation...
  • Page 67 H9303 Media WiFi Router Quick Guide Pay attention that when we change the Jaon file such as 0401,we can use the Json tool to check if the grammar is right For example enter the website http://www.bejson.com to check. Step 2 After editing OK, you can import the 0401 file and the new resource media folder to the device.
  • Page 68 H9303 Media WiFi Router Quick Guide Step 3 Open the browser,you can view the new change. Hongdian Corporation...

  • Page 69: Attachments

    H9303 Media WiFi Router Quick Guide Attachments 7.1 CLI Format of Device Configuration Commands format of the WLAN interface start interface wlan format ap isolate enable bandwidth (20M|40M) channel <0-13> mode (ap|station) security (wpa|wpa2) encryption (tkip|aes) WORD lifetime <1-86400> security wep WORD...

  • Page 70: Portal Format For Updating

    H9303 Media WiFi Router Quick Guide format update server WORD 7.2 Portal Format for Updating This section use the folder portal oversea.zip as an example, describes the portal which contains the picture, music, film and the corresponding information related to the path, so as to allow maintenance personnel to quickly prepare and replace the contents of the portal.
  • Page 71 H9303 Media WiFi Router Quick Guide The remaining 2, in addition to the file name is not the same, other information is the same, the details, please enter the advertisement\image to see the corresponding file name. (2) The horizontal sliding advertising, the total default is 5, the following to take the first...
  • Page 72 H9303 Media WiFi Router Quick Guide Picture size: 282*331 Picture format: jpg Corresponding path: advertisement\image File name: 020102_001.jpg Configuration file: advertisement\data\020102 The remaining 2, in addition to the file name is not the same, other information is the same, the details, please enter the advertisement\image to see the corresponding file name.
  • Page 73 H9303 Media WiFi Router Quick Guide Picture size: 640*284 Picture format: jpg Corresponding path: advertisement\image File name: 030101_001.jpg Configuration file: advertisement\data\030101 The remaining 1, in addition to the file name is not the same, other information is the same, the details, please enter the advertisement\image to see the corresponding file name.
  • Page 74 H9303 Media WiFi Router Quick Guide Picture size: 640*284 Picture format: jpg Corresponding path: advertisement\image File name: 040101_001.jpg Configuration file: advertisement\data\040101 The remaining 3, in addition to the file name is not the same, other information is the same, the details, please enter the advertisement\image to see the corresponding file name.
  • Page 75 H9303 Media WiFi Router Quick Guide Picture size: 640*284 Picture format: jpg Corresponding path: advertisement\image File name: 080101_001.jpg Configuration file: advertisement\data\080101 The remaining 2, in addition to the file name is not the same, other information is the same, the details, please enter the advertisement\image to see the corresponding file name.
  • Page 76 H9303 Media WiFi Router Quick Guide Picture size: 640*284 Picture format: jpg Corresponding path: advertisement\image File name: 070101_001.jpg Configuration file: advertisement\data\070101 For more details, please enter advertisement\image to view the file name of the file. Hongdian Corporation...

  • Page 77: Music Class Update

    H9303 Media WiFi Router Quick Guide Music class update: 7.2.2 Take Furious7 for example as below： Music poster path: video\image\music\music_img Music poster Name: speed7.jpg (308*180) Music storage path: video\music Music file name: You Again.mp3 See Music format: MP3 Music profile: video\data\0404 For other music details, please enter the corresponding path view.

  • Page 78: Movie Updates

    H9303 Media WiFi Router Quick Guide 7.2.3 movie updates: Below take Movie channel BBC, Africa1 for example Movie Poster path: video\image Movie Poster Name: aiqing.jpg (308*180) Movie storage path: video\video Movie file name: 007.mp4 (H.264 AVC) Film format: MP4 (H.264 AVC)
  • Page 79 H9303 Media WiFi Router Quick Guide Film format: MP4 (H.264 AVC) Movie related information configuration file: video\data\0403 Hongdian Corporation...
