  • Page 1 User Manual H8922S 3G/4G Router...
  • Page 2 Hongdian Technologies Corporation. Trademarks and Permissions and DTU are the trademarks and logos of Shenzhen Hongdian Technologies Corporation. Other trademarks and logos mentioned in this manual belong to other organizations related. Shenzhen Hongdian Technologies Corporation does not own the rights of other trademarks and logos.

  • Page 3: Introduction

    H8922S 3G/4G Router User Manual Introduction Summary H8922S 3G/4G Router is a data communication terminal on mobile communication network which independently researched and developed by Hongdian Corporation. The product is based on 3G/4G wireless communication technology. It uses high performance 32-bit embedded operating system and has a full industrial design.
  • Page 4 H8922S 3G/4G Router User Manual Brief Introduction of Contents The usage of H8922S 3G/4G Router is described in the document. Section Contents 1 Product Introduction H8922S 3G/4G Router and its functional characteristics, product orientation are introduced in the chapter. 2 Product Structure H8922S 3G/4G Router software, hardware structures are introduced in the chapter.

  • Page 5: Conventions

    H8922S 3G/4G Router User Manual Convention Description Items (keywords or arguments) in brackets [ ] are optional. { x | y | ... } Optional items are grouped in braces and separated by vertical bars. One item is selected. [ x | y | ... ] Optional items are grouped in brackets and separated by vertical bars.
  • Page 6 H8922S 3G/4G Router User Manual Action Description Drag Press and hold the primary mouse button and move the pointer to a certain position. Doc.Version 1.0...
  • Page 7 2.1 Hardware Structure................................5 2.1.1 Equipment appearance and dimension ......................5 2.1.2 Equipment configuration and parts........................7 2.2 Functional Structure ................................. 8 3 Installation of H8922S 3G/4G Router ..................12 About This Chapter ................................12 3.1 Unpacking ..................................12 3.2 Installation and Wiring ..............................12 3.2.1 Installation of SIM card ............................12...
  • Page 8 H8922S 3G/4G Router User Manual 3.4 Installation Inspection ..............................15 4 Preparation before Configuration ....................16 About This Chapter ................................16 4.1 Ter minal Panel Indicator Lamp Status .........................16 4.2 Local Connection Configuration............................17 4.3 Basic configuration ................................24 4.3.1 Login WEB GUI ...............................24 5 Router Configuration ........................
  • Page 9 H8922S 3G/4G Router User Manual 5.6.5 OpenVPN Configuration............................97 5.7 System configuration ..............................101 5.7.1 Overview................................101 5.7.2 Local Log ................................101 5.7.3 Remote Log ................................102 5.7.4 Clock ..................................103 5.7.5 Account .................................104 5.7.6 Network Test................................106 5.7.7 Files..................................107 5.8 Status ....................................113 5.8.1 Overview................................113 5.8.2 Base Information..............................113 5.8.3 LAN..................................114...
  • Page 10 H8922S 3G/4G Router User Manual 7.3.3 Router can communicate but subnet cannot ....................137 7.4 WEB configuration.................................137 7.4.1 Updating firmware failure ..........................137 7.4.2 Backup setting problem .............................138 7.4.3 Updating patch failure ............................138 7.4.4 CFE Updating failure ............................138 7.4.5 Update failure in WEB GUI ..........................139 7.4.6 Forget Router Password ............................139...
  • Page 11 H8922S 3G/4G Router User Manual Table Contents Table 2-1 Specification on Dimension of H8922S 3G/4G Router ..................6 Table 2-2 List of H8922S 3G/4G Router Parts ........................7 Table 4-1 Table of Illustration of Indicator Lamps ......................16 Table 5-1 LAN Parameter instruction ..........................26 Table 5-2 WAN connection type parameter instruction....................27...
  • Page 12 H8922S 3G/4G Router User Manual Table 5-27 RIP parameter instruction ..........................84 Table 5-28 OSPF parameter instruction..........................85 Table 5-29 OSPF route parameter instruction........................86 Table 5-30 VPDN rule parameter instruction ........................89 Table 5-31 Tunnel rule parameter instruction........................91 Table 5-32 IPSec Phase 1 Parameter instruction......................93 Table 5-33 IPSec Parameter instruction..........................95...
  • Page 13 Figure 1-1 Schematic Diagram of Application for Financial Industry................2-2 Figure 1-2 Schematic Diagram of Dual Modem Online Application ................2-3 Figure 2-1 Picture of Actual Appearance of H8922S 3G/4G Router ................6 Figure 2-2 Diagram of Lower Cap for H8922S 3G/4G Router ..................7 Figure 2-3 Diagram of Dual Modem Function Module .....................
  • Page 14 H8922S 3G/4G Router User Manual Figure 5-13 Connection type window ..........................42 Figure 5-14 Link Backup ................................44 Figure 5-15 DHCP ...................................46 Figure 5-16 ICMP Check tab ..............................48 Figure 5-17 ICMP adding page.............................49 Figure 5-18 DDNS configuration............................51 Figure 5-19 SNMP configuration ............................53 Figure 5-20 M2M configuration ............................55...
  • Page 15 H8922S 3G/4G Router User Manual Figure 5-50 IPSec phase 1 configuration..........................93 Figure 5-51 IPSec phase 2 configuration..........................95 Figure 5-52 IPSec configuration tab............................96 Figure 5-53 OpenVPN configuration page .........................98 Figure 5-54 Local Log tab ..............................101 Figure 5-55 Remote Log tab ...............................102 Figure 5-56 “NTP”...
  • Page 16 H8922S 3G/4G Router User Manual Figure 6-13 router reboot..............................128 Figure 6-14 DTU Application ..............................129 Figure 6-15 TCP mode configuration ..........................130 Figure 6-16 Add text data ..............................131 Figure 6-17 TCP server tool ..............................131 Doc.Version 1.0...

  • Page 17: Hongdian Corporation

    802.11n to provide local wireless local area network (WLAN) as high as 150Mbps. The most dominant feature of H8922S 3G/4G Router is that it can support simultaneous online and backup switchover among various networks such as WAN, WLAN and 3G/4G.

  • Page 18: Figure 1-1 Schematic Diagram Of Application For Financial Industry

    H8922S 3G/4G Router User Manual platform is able to realize the statistics of 3G/4G wireless network information and status in the place where H8922S 3G/4G Router is used as well as the remote upgrade and configuration management for H8922S 3G/4G Router.

  • Page 19: Figure 1-2 Schematic Diagram Of Dual Modem Online Application

    H8922S 3G/4G Router User Manual Figure 1-2 Schematic Diagram of Dual Modem Online Application 1.3 Functions and Features Basic functions  It supports networks such as LTE, HSP A+, CDMA 2000 EV-DO Rev.A, WCDMA (HSDPA, HSUPA), TD-SCDMA, etc.; in addition, it has downward compatibility for GPRS/EDGE or CDMA 1X networks ...

  • Page 20: Other Parameters

    H8922S 3G/4G Router User Manual  It supports NTP network timing  It supports SNMP network management  It supports the delivery local logs and remote logs of systems to realize network monitoring in real time  It supports Qos (Quality of Service) (optional), and it can perform various types of QoS bandwidth intelligent management for business, protocols and IP network segments ...

  • Page 21: Product Structure

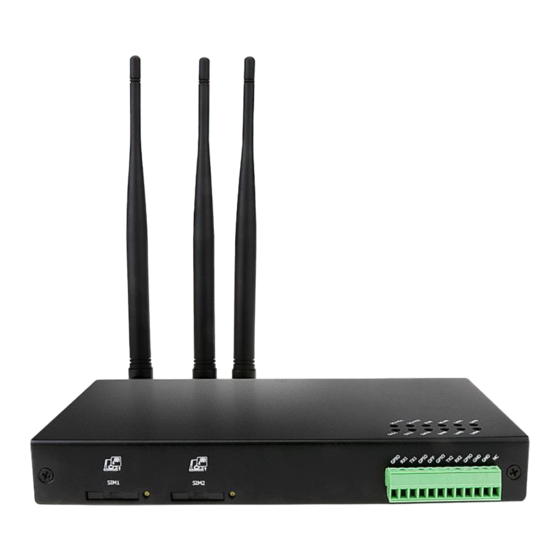

    The functional structure of H8922S 3G/4G Router is briefly Structure introduced in the section. 2.1 Hardware Structure 2.1.1 Equipment appearance and dimension External view The actual appearance of Hongdian H8922S 3G/4G Router is as shown in Figure 2-1. Hongdian Corporation...

  • Page 22: Table 2-1 Specification On Dimension Of H8922S 3G/4G Router

    4 LAN interfaces: they are used for connecting lower computers The overall structure and dimension of H8922S 3G/4G Router are as shown in Figure 2-2. In the followi ng diagra ms , the dimensions of corresponding objects a re expressed in millimeter, and i t will not be mentioned hereinafter.

  • Page 23: Equipment Configuration And Parts

    H8922S 3G/4G Router User Manual Figure 2-2 Diagram of Lower Cap for H8922S 3G/4G Router 2.1.2 Equipment configuration and parts Illustration of parts H8922S 3G/4G Router includes the parts shown in Table 2-2. Table 2-2 List of H8922S 3G/4G Router Parts...

  • Page 24: Functional Structure

    It is applicable to the application requirements of various industries and the network environments of various operators. 2.2 Functional Structure H8922S 3G/4G Router has dual modem and single mode plus WLAN, and its functional structures are as shown in Figure 2-3, Figure 2-4. Hongdian Corporation...

  • Page 25: Figure 2-3 Diagram Of Dual Modem Function Module

    H8922S 3G/4G Router User Manual Figure 2-3 Diagram of Dual Modem Function Module Hongdian Corporation...

  • Page 26: Figure 2-4 Diagram Of Single Mode Plus Wlan Functional Structure

    It maintains the normal operation of equipment Serial port It is mainly used for testing H8922S 3G/4G Router, including: configuration of all kinds of parameters, diagnosis of all types of problems of H8922S 3G/4G Router. The internet access data processing module of the router communicates with a lower computer via RJ45 network cable to provide IP data packages forwarding function for the lower computer.
  • Page 27 The module is mainly used for realizing 3G/4G Internet access function so as to realize the forwarding of IP data on terminal products. The module is mainly used to make H8922S 3G/4G Router be able to connect Internet via a wire.

  • Page 28: Installation Of H8922S 3G/4G Router

    3.2 Installation and Wiring 3.2.1 Installation of SIM card H8922S 3G/4G Router supports dual SIM card. In normal installation and usage, it is necessary to install a SIM card for two SIM slots respectively. The following content is the illustration of how to install a SIM card in the left-side SIM slot for the front panel.

  • Page 29: Ethernet Cable Connection

    ---End 3.2.2 Ethernet cable connection It is easy to use H8922S 3G/4G Router configuration: normal configuration management and data communication can be made via Ethernet cable connection. Ethernet connection can be divided into single equipment direct connection and multiple equipment local area network connection.

  • Page 30: Serial Port Line Connection

    Figure 3-4 Multiple Equipment Connection 3.2.3 Serial port line connection When H8922S 3G/4G Router and a computer are in a joint test, a serial port extension cord shall be prepared; one end of the cord is connected to the serial port of the computer and the other end is connected to the serial port of the router.

  • Page 31: Power Supply

    Step 2 Inspect whether the SIM card is correctly and properly installed and confirm whether the SIM card is valid. Step 3 Provide power supply for H8922S 3G/4G Router. The following content is about the router dialing of the left-side SIM card, and it is the same for the right-side SIM card.

  • Page 32: Preparation Before Configuration

    4.1 Terminal Panel Indicator Lamp Status There are 12 LED indicator lamps in the front panel of H8922S 3G/4G Router to indicate the working conditions and network conditions of H8922S 3G/4G Router. The illustration of indicator lamp status is as shown in Table 4-1.

  • Page 33: Local Connection Configuration

     Already power on H8922S 3G/4G router  Ethernet cable connect to H8922S 3G/4G router You could specify a static IP or DHCP get IP for your computer. Static IP Step 1 Click “start > control panel”, find “Network Connections” icon and double click it to enter, select “Local Area Connection”...
  • Page 34 Step 2 Obtain a IP address automatically, or follow below instruction. H8922S 3G/4G Router defaul t enabled DHCP server. If i t has been disabled, DHCP cannot be use. Step 3 Change or add a IP 192.168.8.* on your computer.

  • Page 35: Figure 4-2 Connection Properties

    H8922S 3G/4G Router User Manual Figure 4-2 Connection properties Figure 4-3 Internet protocol (TCP/IP) Hongdian Corporation...
  • Page 36 IP address: 192.168.8.* (*indicates any integral between 2 to 254) Subnet mask: 255.255.255.0 Default gateway: 192.168.8.1 Remember: H8922S 3G/4G Router LAN port factory default parameter: IP address: 192.168.8.1 Subnet mask: 255.255.255.0 H8922S 3G/4G Router factory default login parameter: Management interface login IP address: 192.168.8.1...

  • Page 37: Figure 4-4 Advanced Tcp/Ip Settings

    H8922S 3G/4G Router User Manual  Advanced configuration If you don’t want to interrupt local PC LAN communication and configure H8922S 3G/4G Router when the former network configuration exists, it is required add route (IP). The configuration operation is shown as below: Click the “Advanced…”...

  • Page 38: Figure 4-5 Tcp/Ip Address

    Internet through original local network configuration. If Internet is accessed through original local network, the default gateway setting does not need to be modified; if H8922S 3G/4G Router is used, you need to modify the default gateway and configure it as H8922S 3G/4G Router’s default LAN IP address 192.168.8.1.

  • Page 39: Figure 4-6 Connectivity Check

    Default Gateway ..: 192.168.8.1 Step 2 Connectivity check After the configuration is completed, you can check the connectivity between it and Galaxy H8922S 3G/4G router by ping command. Key-in ping command in system command line: Figure 4-6 Connectivity check By now, it means that the configuration computer has been connected to the router.

  • Page 40: Basic Configuration

    H8922S 3G/4G Router User Manual 4.3 Basic configuration Through this chapter, you could achieve basic function: visit internet. 4.3.1 Login WEB GUI Step 1 Run a Internet Explorer and visit “http://192.168.8.1/”, to enter identity page. Figure 4-7 User identity page...

  • Page 41: Router Configuration

    5.8 Status Router working status 5.1 Overview H8922S 3G/4G router adopts WEB GUI to configure, all parameter can be modified by this GUI, and it is easy to understand. 5.2 Network configuration Network connection configuration, including LAN, WAN, cellular network, Wi-Fi(optional), parameter switch, DHCP setting and so on.

  • Page 42: Table 5-1 Lan Parameter Instruction

    H8922S 3G/4G Router User Manual 5.2.1 LAN LAN setting used to manage local area network PC which connect to H8922S, make them could visit internet and the network segment connectivity normal. Step 1 Login H8922S WEB GUI. Step 2 Single click “Network > LAN”.

  • Page 43: Table 5-2 Wan Connection Type Parameter Instruction

    IP to your PC to insure that. ---END 5.2.2 WAN Wired connect to Internet by static IP, DHCP or PPPoE. Step 1 Login H8922S WEB GUI. Step 2 Single click “network > WAN”. Figure 5-2 WAN window Step 3 WAN connection type.
  • Page 44 H8922S 3G/4G Router User Manual Parameter Details Operation ”Connection Type” select ”PPPoE” Service Name Configure PPPoE WORD type, up to 64 characters, service name, which is not blank, please refer to usually used for parameters regulation format identification and judgment between...
  • Page 45 H8922S 3G/4G Router User Manual Parameter Details Operation Disable  Compression Negotiate which compress control  Negotiation Control Protocol protocol used on PPP link  Disable Address/Control Whether compress IP address  Negotiation Compression Disable  Protocol Field Whether compress...

  • Page 46: Modem

    ---END 5.2.3 Modem H8922S 3G/4G Router core function, connect Internet by cellular modem, H8922S 3G/4G Router support single modem single SIM, single modem dual SIM, dual modem dual SIM, those three working type provide internet connection to customers. Usually 3G network bandwidth is 1～5Mbps, 3.5G up to 20Mbps and LTE up to 100Mbps.

  • Page 47: Table 5-3 "Modem" Parameter Instruction

    H8922S 3G/4G Router User Manual Figure 5-4 Modem page Input suitable parameter. Table 5-3 “Modem” Parameter instruction Parameter Details Operation Auto-dialup current modem, if all Enable   Auto-dialup modem auto-dialup disabled, router Disable  will not auto-dialup If your router has dual cellular ...
  • Page 48 H8922S 3G/4G Router User Manual Parameter Details Operation Network type force to 2.5G or  Network type Dropdown List 3G/4G WCDMA:  auto  wcdma  edge EVDO: auto  evdo  cdma  HSPA+ module, its network type is not...
  • Page 49 H8922S 3G/4G Router User Manual Parameter Details Operation Disable  Address/Control Whether compress IP address  Negotiation Compression  Disable Protocol Field Whether compress Whether  Negotiation Compression compress IP address Disable  VJ TCP/IP Header Whether allow TCP/IP Negotiation ...

  • Page 50: Figure 5-5 Single Module Single Sim/Dual Module Dual Sim

    H8922S 3G/4G Router User Manual Figure 5-5 Single module single SIM/dual module dual SIM Figure 5-6 Single module dual SIM Hongdian Corporation...

  • Page 51: Figure 5-7 Advanced Setting

    H8922S 3G/4G Router User Manual Figure 5-7 Advanced setting Single click “save” icon to finish. Grey i con means enabled. ---END Hongdian Corporation...

  • Page 52: Wlan

    AP function, H8922S 3G/4G Router can provide wireless LAN hotspots; thro ugh Station client function, it allows H8922S 3G/4G Router access to other AP devices, such H8922S 3G/4G Router downlink machine can access the Internet via the AP connection;...

  • Page 53: Table 5-4 Wlan Parameter Instruction

    H8922S 3G/4G Router User Manual Figure 5-9 Station mode configure interface Figure 5-10 Station scan signal interface Step 4 “WLAN” configure parameter instruction, parameter instruction as Table 5 -4. Table 5-4 WLAN parameter instruction Parameter Details Operation WLAN Enable disable...
  • Page 54 H8922S 3G/4G Router User Manual Parameter Details Operation Basic Setting SSID WLAN server identity WORD type, max to 32Bytes  WLAN work mode, support Wireless Dropdown List ap/station Mode  station  Network WLAN network mode, Dropdown List Mode different network models are ...
  • Page 55 H8922S 3G/4G Router User Manual Parameter Details Operation manually add the SSID The router is used as station, Dropdown List Distribution and the router can get the IP  dhcp：get IP address from DHCP （when address when it is connected static：manually set IP address...

  • Page 56: Parameter Select (Recommend To Single Module Dual Sim Version)

    WLAN connection When the working mode select s ta tion or repea ter, H8922S Router will automati call y ma tch a ccording to the selected AP and the corresponding encryption algorithm (to keep consistent with AP encryption); sha red key upda te interval is requi red to fill in the connections of AP key and interval .

  • Page 57: Table 5-5 Parameter Instruction

    H8922S 3G/4G Router User Manual Figure 5-12 Add rule Table 5-5 Parameter instruction Parameter Details Operation  Enable Status For enabled rule: Only one rule is  Disable running at one time, when it checks failed, next rule start running...

  • Page 58: Table 5-6 Connection Type Parameter Instruction

    But Link backup function may conflict with parameter select function, if you set both, final running result may not as you presume. ---END Connection type Step 4 Login H8922S WEB GUI. Step 5 Single click “Network > Connection type”. Figure 5-13 Connection type window Table 5-6 Connection type Parameter instruction...

  • Page 59: Link Backup

    Please note, when using this feature need to other operation: 1) The default route in Forward>>Route need to be delete. 2) The Masq of each link need to be added in Forward>>NAT>>MASQ. Step 1 Login H8922S WEB GUI. Step 2 Single click “network > Link Backup”. Hongdian Corporation...

  • Page 60: Table 5-7 Link Backup Parameter

    H8922S 3G/4G Router User Manual Figure 5-14 Link Backup Table 5-7 Link Backup Parameter Parameter Details Operation Enable  Status Enable or Disable Link Backup feature  Disable Value area: 0-9  Rule Name Link Backup rule name identification Note:...

  • Page 61: Dhcp Service

    5.2.7 DHCP Service DHCP(Dynamic Host Configuration Protocol) is a LAN network protocol, enable the DHCP function, a function automatically can obtain the dynamic IP. Step 1 Login H8922S WEB GUI. Step 2 Single click “Network > DHCP Server”. Hongdian Corporation...

  • Page 62: Table 5-8 Dhcp Parameter

    H8922S 3G/4G Router User Manual Figure 5-15 DHCP Step 3 Configure DHCP parameter. Step 4 DHCP parameter instructions are as Table 5 -8. Table 5-8 DHCP Parameter Parameter Details Operation Enable  DHCP Enable or Disable DHCP feature Disable ...
  • Page 63 H8922S 3G/4G Router User Manual Parameter Details Operation Start IP When IP pool select custom Manual input configuration, configure the DHCP Format：A.B.C.D/Mask pool start IP address Example：192.168.8.2 End IP When pool select custom Manual input configuration, configure the DHCP Format：A.B.C.D/Mask pool end IP address Example：192.168.8.254...

  • Page 64: Application Program Configuration

    There is fake link (can get IP after dialing, but cannot link to destination address). Usually LCP is used to avoid this. Besides LCP, H8922S 3G/4G router can use another more reliable checking way ICMP which check the link by PING. When abnormal link is c hecked, the preset action will be executed to recover the link and systems quickly.

  • Page 65: Table 5-9 Icmp Check Rules Parameter Instruction

    H8922S 3G/4G Router User Manual Figure 5-17 ICMP adding page Configure the ICMP check parameter. Table 5-9 ICMP check rules Parameter instruction Parameter Details Operation ICMP check To enable or disable ICMP check Button service rules, multiple rules can be used Enable ...
  • Page 66 H8922S 3G/4G Router User Manual Parameter Details Operation recognize ICMP check fails Value area ：1～65535 Retry Check time interval and max check times/normal failure times when link is OK, if Unit: second/time interval check failure times reaches the max times, then “timeout action ” will be executed, e.g.

  • Page 67: Ddns Configuration

    ---END 5.3.2 DDNS configuration Network of SIM/UIM shall be a public address so that router can be visited for a DDNS. Step 1 Log-on WEB GUI of H8922S 3G/4G router. Step 2 Click “Applications” > “DDNS”. Figure 5-18 DDNS configuration Step 3 Configure DDNS parameter.

  • Page 68: Snmp Configuration

    SNMP（Simple Network Management Protocol)can monitor routers remotely and get to know the status of routers (Support interface status check, like VPN, modem etc. MIB of our company shall be used). Step 1 Log-on WEB GUI of H8922S 3G/4G router. Hongdian Corporation...

  • Page 69: Table 5-11 Snmp Parameter Instruction

    H8922S 3G/4G Router User Manual Step 2 Click “Applications >SNMP” to open the “SNMP” tab. Figure 5-19 SNMP configuration Step 3 Configure SNMP parameter. Table 5-11 SNMP Parameter instruction Parameter Details Operation SNMP service To enable or disable SNMP service Options: ...

  • Page 70: M2M Configuration

    MIB for SNMP can be downloaded from our websi te, i f necessary, please conta ct our techni cal engineers . ---END 5.3.4 M2M configuration H8922S 3G/4G router has embedded a WMMP (Wireless Machine-to-Machine Protocol) protocol to realize communication with M2M (Machine-to-Machine) platform which can remotely monitor and manage the routers and its network, e.g. visit the router, patch upgrading, firmware upgrading, parameter configuration, monitor the network strength, time delay, flow.

  • Page 71: Table 5-12 M2M Parameter Instruction

    H8922S 3G/4G Router User Manual Figure 5-20 M2M configuration Step 3 Configure M2M parameter. Parameter instruction is shown. Table 5-12 M2M Parameter instruction Parameter Details Operation M2M service To enable or disable M2M function. Button This function shall be used with our Enable ...

  • Page 72: Timing Configuration

    This application is to control the online time of the router to better manage network and save 3G/4G flow. H8922S can add several online periods as per the user’s requirement (e.g. hours of some day). in addition, this application can support to begin some tasks at a time point (e.g.

  • Page 73: Table 5-13 Timing Task Parameter Instruction

    H8922S 3G/4G Router User Manual Figure 5-22 To add timing task Step 4 Configure timing task parameter. Table 5-13 Timing task parameter instruction Parameter Details Operation Status To enable or disable a options timing task. Some task shall Enable ...
  • Page 74 H8922S 3G/4G Router User Manual Parameter Details Operation during the configured time period. Modem will be offline (no dialing) for other time Schedule This is Linux shell WORD type. Max 64 digits command. Usually suggested not to use it. In...

  • Page 75: Wake Up Configuration

    H8922S 3G/4G Router User Manual 5.3.6 Wake up configuration 3G/4G fee is mostly based on flow. H8922S 3G/4G router can get on/off line on demand. It supports on/offline or reboot triggered by voice, SMS or data. It supports max 10 cell phone Nos.
  • Page 76 H8922S 3G/4G Router User Manual Parameter Details Operation Add phone Number Phone Phone No to trigger the router WORD type. Max 32 digits. Number action. One phone No for one action of one modem. Triggered action includes  Task type...

  • Page 77: Dtu Configuration (Optional)

    One phone number be set for acti ons of di fferent modems , but cannot be set as di fferent a ctions of one modem. It’s OK for ei ther SIM of the two SIMs of H8922S 3G/4G router to open SMS or voi ce function, no ma tter whi ch slot to be ins talled.

  • Page 78: Table 5-15 Dtu Parameter Instruction

    H8922S 3G/4G Router User Manual Step 3 Configure “DTU” parameter. Table 5-15 DTU Parameter instruction Parameter Details Operation DTU Service Enable or Disable DTU DTU Service options Service  Enable  Disable Basic Settings  Work Mode Work mode: Select from Dropdown List ...
  • Page 79 H8922S 3G/4G Router User Manual Parameter Details Operation UDP protocol is a connectionless unreliable transport protocol, suitable for relatively high efficiency requirements, and the occasion of relatively low reliability Received DTU port timeout which Specify time according to your Timeout...

  • Page 80: Gps Configuration (Optional)

    5.3.8 GPS configuration (Optional) GPS is to transfer GPS data the device gets from satellite. It uses UDP protocol. Step 1 Log-on WEB GUI of H8922S 3G/4G routers. Step 2 Click “Applications > GPS” to open “GPS” tab. Hongdian Corporation...

  • Page 81: Table 5-16 Gps Parameter Instruction

    H8922S 3G/4G Router User Manual Figure 5-25 GPS configuration Table 5-16 GPS Parameter instruction Parameter Details Operation GPS Service Enable or Disable GPS GPS Service options Service  Enable  Disable  Basic Settings Work Mode Set the work mode of the...

  • Page 82: Security

    5.4.1 Overview “Security” will control where the data can pass through by analyzing IP address and port of ICMP, TCP/IP package from the destination end or source end. H8922S 3G/4G router supports IP filter, domain filter and MAC filter. 5.4.2 Configuration...

  • Page 83: Figure 5-27 Ip Filter "Input" Type

    H8922S 3G/4G Router User Manual Figure 5-27 IP filter “Input” type Figure 5-28 IP Filter “Forward” type Hongdian Corporation...

  • Page 84: Table 5-17 Ip Filter Parameter Instruction

    H8922S 3G/4G Router User Manual Table 5-17 IP filter parameter instruction Parameter Details Operation Type Select a filter type, you can choose Dropdown List options according to their needs, "Input" or "Forward" Input: whether to allow access to the router...

  • Page 85: Figure 5-29 Domain Filter Tab

    Domain filter support black list and white list. It is used to forbid PCs in LAN from visit some websites or allows them to visit specific websites. Step 6 Log-on WEB GUI of H8922S 3G/4G router. Step 7 Click “Security> Domain Filter” to open “Domain Filter” tab.

  • Page 86: Table 5-18 Domain Filter Parameter Instruction

    Actions to filter the Drop  keyword Step 9 Single click “Save” to finish configuring a rule. ---END MAC Filter Step 10 Log-on WEB GUI of H8922S 3G/4G router. Step 11 Click “Security> MAC Filter” to open “MAC Filter” tab. Hongdian Corporation...

  • Page 87: Table 5-19 Mac Filter Explanation

    H8922S 3G/4G Router User Manual Figure 5-31 MAC Filter tab Table 5-19 MAC Filter explanation Paramet Details Operation Input configuration Blacklist: rules in blacklist cannot visit router,  Action To activate MAC other MACs can visit router. input filtering ...

  • Page 88: Forward Configuration

    Both: both Input and forward.  Step 13 Single click “save” icon to finish. ---END 5.5 Forward configuration 5.5.1 Overview Forward function of H8922S 3G/4G router includes NAT, Routing, dynamic routing (RIP, OSPF) (optional) and QoS (optional). Hongdian Corporation...

  • Page 89: Figure 5-33 Nat Tab

    DNAT is used to replace the destination address of packets accessing external network, router will replace the destination address of packet accessing external network into the user custom settings. Step 1 Log-on WEB GUI of H8922S 3G/4G router. Step 2 Click “Forward > NAT” to open “NAT” tab. Figure 5-33 NAT tab Step 3 Click “Add”...

  • Page 90: Table 5-21 Dnat Parameter Instruction

    H8922S 3G/4G Router User Manual Figure 5-34 DNAT rule configuration Step 4 Select “DNAT” in NAT Type, to configure DNAT rule parameter. Table 5-21 DNAT Parameter instruction Parameter Details Operation Basic Settings Protocol Supports “TCP”, “UDP”, Select from Dropdown List “ICMP”...

  • Page 91: Figure 5-35 Snat Rule Configuration

    SNAT is the source address translation, and its role is to translate source address of IP packets into another address. Step 6 Log-on WEB GUI of H8922S 3G/4G router. Step 7 Click “Forward > NAT” to open “NAT” tab. Step 8 NAT Type select “SNAT”, Configuration interface as shown in Figure 5-47.

  • Page 92: Table 5-22 Snat Rule Instruction

    MASQ rule configuration MASQ is MASQUREADE. Step 11 Log-on WEB GUI of H8922S 3G/4G router. Step 12 Click “Forward > NAT” to open “NAT” tab. Step 13 Select “SNAT” in NAT Type. The configuration page is shown in Figure 5 -48.

  • Page 93: Static Routing

    H8922S 3G/4G Router User Manual Figure 5-36 MASQ configuration Step 14 Configure MASQ rule parameter. Table 5-23 MASQ rule Parameter instruction Parameter Details Operation NAT Type To select “MASQ” Select “MASQ” Interface Interface includes: Select from Dropdown List  br0: use br0 interface as commutation address between router &...

  • Page 94: Figure 5-37 Static Routing Interface

    Step 1 Log-on WEB GUI of H8922S 3G/4G router. Step 2 Click “Forward > Routing” to open “NAT” tab, as Figure 5 -49. Figure 5-37 Static Routing Interface Step 3 Click “Add”...

  • Page 95: Table 5-24 Static Routing Parameter Instruction

    H8922S 3G/4G Router User Manual Figure 5-39 Policy Routing Interface Parameter Instruction as Table 5-24. Table 5-24 Static Routing Parameter Instruction Parameter Details Operation Basic Setting Dropdown List  Routing Type To select “Static Route” or “Policy Route” When Routing Type is “Static Route”...

  • Page 96: Qos (Optional)

    H8922S 3G/4G Router User Manual Parameter Details Operation Interface  Network It can be configured when Manual input “static IP” is selected in source Format1: A.B.C.D/Mask type, by adding IP address or subnet manually. Source When source type is policy...

  • Page 97: Table 5-25 Qos Parameter Instruction

    H8922S 3G/4G Router supports custom QoS services. Step 1 Log-on WEB GUI of H8922S 3G/4G router. Step 2 Click “Forward > QoS” to open “QoS” tab, as Figure 5-52.

  • Page 98: Dynamic Routing (Optional)

    Protocol), it was designed for the same technology used in small networks, and therefore adapt to most of the campus network and used in a continuous regional networks that the rate change is not big, H8922S 3G/4G Router supports RIP v2 protocol. For more complex environments, generally do not use the RIP protocol.

  • Page 99: Table 5-26 Rip Parameter Instruction

    H8922S 3G/4G Router User Manual Step 1 Log-on WEB GUI of H8922S 3G/4G router. Step 2 Click “Forward > RIP” to open “RIP” tab, as Figure 5-53. Figure 5-41 RIP interface Parameter Instruction as Table 5-26. Table 5-26 RIP Parameter Instruction...

  • Page 100: Table 5-27 Rip Parameter Instruction

    H8922S 3G/4G Router User Manual Figure 5-42 RIP route configuration interface Step 4 Configure RIP route parameter instruction, as Table 5-27. Table 5-27 RIP parameter instruction Parameter Details Operation Basic Setting Add Type Add the type of RIP Click the button to select Add Type route When it is “Network”, need to...

  • Page 101: Table 5-28 Ospf Parameter Instruction

    OSPF business can be based whether the user needs to be configured at the factory H8922S 3G/4G Router. Step 6 Log-on WEB GUI of H8922S 3G/4G router. Step 7 Click “Forward > OSPF” to open “OSPF” tab, as Figure 5-55.

  • Page 102: Table 5-29 Ospf Route Parameter Instruction

    H8922S 3G/4G Router User Manual Parameter Details Operation Redistribute Enable or disable Redistribute Static Click the button to select Static Enable  Disable  Redistribute Enable or disable Redistribute Click the button to select Kernel Kernel Enable  Disable ...

  • Page 103: Vpn Configuration

    . ---END 5.6 VPN configuration 5.6.1 Overview H8922S 3G/4G router supports VPN (Virtual Private Network) including L2TP/PPTP/GRE/IPIP/IPSEC. What’s more, it supports VPN OVER VPN, e. g. GRE over IPSec, IPSec over PPTP/L2TP/GRE/IPIP. Hongdian Corporation...

  • Page 104: Vpdn Configuration

    5.6.2 VPDN configuration VPDN stands for Virtual Private Dial-up Networks. Now VPDN supports L2TP and PPTP Step 1 Log-on WEB GUI of H8922S 3G/4G router. Step 2 See “4.3.1 Login WEB GUI Step 3 Click “VPN > VPDN” to open “VPDN” tab.

  • Page 105: Table 5-30 Vpdn Rule Parameter Instruction

    H8922S 3G/4G Router User Manual Table 5-30 VPDN rule parameter instruction Parameter Details Operation VPDN service To enable or disable the VPDN rule Click “Enable” Basic Settings Interface Name of this VPDN rule Cannot be modified after name save. protocol...

  • Page 106: Tunnel Configuration

    Cisco, basically support the agreement. This agreement enables multiple network distribution possible. Step 1 Log-on WEB GUI of H8922S 3G/4G router. Step 2 Click “VPN > Tunnel” to open “Tunnel” tab. Step 3 Click “Add” to add a new tunnel.

  • Page 107: Ipsec Configuration

    Usually a public IP address, also can be a LAN IP Step 6 Single click “save” icon to finish. ---END 5.6.4 IPSec configuration Step 1 Log-on WEB GUI of H8922S 3G/4G router. Step 2 Click “VPN > IPSec” to open “IPSec” tab. Hongdian Corporation...

  • Page 108: Figure 5-49 Ipsec Tab

    H8922S 3G/4G Router User Manual Figure 5-49 IPSec tab Step 3 Click “Add” to add a new IPSec rule. There are 3 phases for IPSec configuration: Phase 1 parameter Hongdian Corporation...

  • Page 109: Table 5-32 Ipsec Phase 1 Parameter Instruction

    H8922S 3G/4G Router User Manual Figure 5-50 IPSec phase 1 configuration Table 5-32 IPSec Phase 1 Parameter instruction Parameter Details Operation Basic Settings Select To select which phase of IPSec, Select “Phase 1” phase 1, phase 1 or phase IPSec...
  • Page 110 H8922S 3G/4G Router User Manual Parameter Details Operation Authenticatio To select authentication Select from Dropdown List, presently only “PSK” supported Pre Share Key To set pre share key Max 24 letters Self Identify To set the self ID of IPSec...

  • Page 111: Table 5-33 Ipsec Parameter Instruction

    H8922S 3G/4G Router User Manual Figure 5-51 IPSec phase 2 configuration Table 5-33 IPSec Parameter instruction Parameter Details Operation Basic Settings Select To select which phase of Select “Phase 2” IPSec, phase 1, phase 1 or phase IPSec Policy Name Name of phase 2, mainly to To input the name of phase 2.

  • Page 112: Table 5-34 Ipsec Parameter Instruction

    H8922S 3G/4G Router User Manual Parameter Details Operation To open or close PFS Select from Dropdown List Lifetime IPSec SA key life time Value area: 120～86400 Unit: second Transport Supports tunnel, transport Select from Dropdown List Mode and auto. Local Subnet Set local subnet No need to set for “transport”...

  • Page 113: Openvpn Configuration

    H8922S 3G/4G Router User Manual Parame Details Operation Select To select which phase of Select “IPSec” IPSec, phase 1, phase 1 or phase IPSec Interfac Name of this phase Input name e Name Match To select a matching name Select from Dropdown List.

  • Page 114: Table 5-35 Openvpn Parameter Instruction

    H8922S 3G/4G Router User Manual Step 3 Click "VPN > OpenVPN". Step 4 Enter "OpenVPN" page, as shown in Figure 2 -4. Figure 5-53 OpenVPN configuration page Step 5 Configure OpenVPN parameter. Step 6 The parameter instruction is shown in Table 2 -1.
  • Page 115 H8922S 3G/4G Router User Manual Parameter Detail Operation Dev represents the network Dropdown list options: interface type, and supports two Select the required types: working mode from Tun(OSI Layer 3):Simulates dropdown list.  network layer device to operate Demand consistent with the third layer data packets, such peer.
  • Page 116 H8922S 3G/4G Router User Manual Parameter Detail Operation Nobind Configure whether to bind to the Click button options: specific local port. Enable  Disable  Authenticatio Configuring the VPN data transfer Dropdown list options: mode: Select the required data ...

  • Page 117: System Configuration

    “System” can let you know the status of router, firmware upgrading and other maintenance. 5.7.2 Local Log Step 1 Log-on WEB GUI of H8922S 3G/4G router. Step 2 Click “System > Local Log” to open “Local Log” tab. Figure 5-54 Local Log tab Step 3 Select type of “Local Log”...

  • Page 118: Remote Log

    To see “local log”, “remote log” mus t be enabled. ---END 5.7.3 Remote Log Step 1 Log-on WEB GUI of H8922S 3G/4G router. Step 2 Click “System > Remote Log” to open “Local Log” tab. Figure 5-55 Remote Log tab Step 3 Configure “Remote Log”...

  • Page 119: Clock

    H8922S 3G/4G Router User Manual 5.7.4 Clock Step 1 Log-on WEB GUI of H8922S 3G/4G router. Step 2 Click “System > Clock” to open “Clock” tab. Figure 5-56 “NTP” Time Synch. Figure 5-57 Manual Time Synch. Type Step 3 Set “clock” parameters.

  • Page 120: Account

    ---END 5.7.5 Account “Account” is to change username/password, change web port and forbid other users to visiting the router. Step 1 Log-on WEB GUI of H8922S 3G/4G router. Step 2 Click “System > Account” to open “Account” tab. Hongdian Corporation...

  • Page 121: Table 5-38 Account Parameter Instruction

    H8922S 3G/4G Router User Manual Figure 5-58 Account tab Step 3 Set account parameters. Table 5-38 Account parameter instruction Parameter Details Operation Select from Dropdown List  Account Type Visit the router on web Account Level Level of account to login...

  • Page 122: Network Test

    5.7.6 Network Test Network Test This function includes Ping function and Trace router function. Step 1 Log-on WEB GUI of H8922S 3G/4G router. Step 2 Click “System > Network Test” to open “Network Test” tab. Figure 5-59 Network Test Tab Step 3 Input IP address or domain to be tested in “Destination”, click “Ping, to check whether the...

  • Page 123: Files

    5.7.7 Files Firmware Setting H8922S 3G/4G router supports upgrade firmware locally. Step 1 Log-on WEB GUI of H8922S 3G/4G router. Step 2 Click “System > Files” to open “Files” tab. Figure 5-60 Files tab If “reset” is selected, all pa rameters will be reset to factory setting.

  • Page 124: Figure 5-61 Add An Ip Address

    H8922S 3G/4G Router User Manual Step 3 Click “Browse” to select upgrading file and then click “Upgrade”. ---END CFE mode upgrading If upgrading file is larger than 6MB, CFE mode upgrading shall be used to upgrade. Step 4 Add an IP address 192.168.1.

  • Page 125: Figure 5-62 Cfe Mode Upgrading

    You can also PING br0 address on your PC (ping 192.168.8.1 –t). if Ping ok, upgra ding is OK. ---END Backup setting H8922S 3G/4G router supports to backup and to recover configuration file.  Click “Browse” to select a configuration file to be imported. And then click “Import” to resume the configuration as the configuration file.

  • Page 126: Figure 5-64 Backup Setting

    Factory setting H8922S 3G/4G router has function to resume factory configuration. Users can set the configuration to factory mode, and also can set the current configuration into default configuration and generate a default factory configuration file in router. To resume this default factory setting, users can click “Load”...

  • Page 127: Figure 5-65 Factory Setting

    H8922S 3G/4G Router User Manual Figure 5-65 Factory setting page  Save: to save the current setting as default factory configuration setting.  Load: to resume default factory setting. Patch operation function H8922S 3G/4G router supports to delete patch. Hongdian Corporation...

  • Page 128: Figure 5-66 Patch Operation

    H8922S 3G/4G Router User Manual Figure 5-66 Patch operation  Delete: to delete patch. Reboot/Refresh Click “Reboot” to restart the router, or click “Refresh” to refresh the page. Hongdian Corporation...

  • Page 129: Status

    Figure 5-67 Reboot /Refresh 5.8 Status 5.8.1 Overview Status provides the basic info, network status info, router info of H8922S 3G/4G Router. 5.8.2 Base Information Step 1 Log-on WEB GUI of H8922S 3G/4G router. Step 2 Click “Status > Base information” to open “Base Information” tab.

  • Page 130: Table 5-40 Base Information Parameter Instruction

    Software OS and application software info. version 5.8.3 LAN Step 1 Log-on WEB GUI of H8922S 3G/4G router. Step 2 Click “Status > LAN” to open “LAN” tab. Figure 5-69 “LAN” info Table 5-41 LAN Parameter instruction Parameter Details...

  • Page 131: Figure 5-70 Static Ip Wan Status

    H8922S 3G/4G Router User Manual 5.8.4 WAN Step 1 Log-on WEB GUI of H8922S 3G/4G router. Step 2 Click “Status > WAN” to open “WAN” tab. There are three types of WAN status: static IP/DHCP/PPPOE. Figure 5-70 Static IP WAN status...

  • Page 132: Modem

    Local IP To show the router IP distributed by PPPoE Remote IP To show IP of PPPoE server 5.8.5 Modem Step 1 Log-on WEB GUI of H8922S 3G/4G router. Step 2 Click “Status > Modem” to open “Modem” tab. Hongdian Corporation...

  • Page 133: Table 5-43 Modem Parameter Instruction

    H8922S 3G/4G Router User Manual Figure 5-73 Modem Status page Table 5-43 Modem Parameter instruction Parameter Details Operatio Modem To show the current modem name Select Up tome To show the current on line time of the modem Unit: second Modem To show the Router’s status to link to the mobile...

  • Page 134: Routing Table

    SIM Status Status of current SIM 5.8.6 Routing Table Step 1 Log-on WEB GUI of H8922S 3G/4G router. Step 2 Click “Status > Routing Table” to open “Routing Table” tab. Figure 5-74 Routing table page Table 5-44 Routing table Parameter instruction...

  • Page 135: Reset Button Function

    H8922S 3G/4G Router User Manual Parameter Details Operation Static route Policy route Priority Priority the router select route ---END 5.9 RESET button function “RESET” button is on the rear panel and next to power interface. This button can be used when the router is in use or when the router is turned on.

  • Page 136: Typical Application

    6.2 Awake function Typical case H8922S 3G/4G router support wake up function, means router will not auto-dial after power on, but dial triggered by data or call or SMS. Then router auto in offline by idle or timeout. This function could save your data traffic fee.

  • Page 137: Figure 6-1 Wake Up/Trigger Setting Example

    H8922S 3G/4G Router User Manual parameter setting Let us check an example: Figure 6-1 Wake up/trigger setting example Effect By this setting, after router power on, if there are data trigger or you could call/SMS SIM1 or SIM2 number from 8618888888888 to trigger corresponding SIM online, modem will dial online, After 3600s, router will offline.

  • Page 138: Parameter Select

    H8922S 3G/4G Router User Manual 6.3 Parameter select Typical case H8922S 3G/4G Router provide parameter select function, when working modem disconnect or works abnormal, router will switch to another SIM swiftly according to the rule you set. And ensure the network availability.

  • Page 139: Figure 6-3 Parameter Select Setting 1

    H8922S 3G/4G Router User Manual Figure 6-3 Parameter select setting 1 Hongdian Corporation...

  • Page 140: Figure 6-4 Parameter Select Setting 2

    VPN, virtual private network, a technology based on Internet, now H8922S 3G/4G router supports L2TP/PPTP/GRE/IPIP/IPSec of VPN. L2TP used to build a virtual private network, after H8922S 3G/4G Router connect to company NAS server, PC under H8922S could visit company network like visiting the local area network.

  • Page 141: Figure 6-5 Build Ipsec

    H8922S 3G/4G Router User Manual Figure 6-5 Build IPSec PC1 connect H8922S then build IPSEC link by VPN function of H8922S with company router. I assume using IPSec tunnel mode, H8922S end local network 192.168.86.1/24, company server end 192.168.99.1/24, by IPSEC, two LAN could communicate.

  • Page 142: Figure 6-7 Ipsec Phase 2

    Figure 6-8 IPSec Company router server should have same setting but the identity and subnet setting for the company router ser ver should be the opposite of those for H8922S 3G/4G Router. Result After setting H8922S 3G/4G Router and company router parameter, they can connect each other by IPSEC, and ping peer subnet, you could check status by click “view”...

  • Page 143: Timing Task

    6.5 Timing Task Typical Application H8922S 3G/4G Router support timing task, by setting timing task, at certain time, router will operate reboot, online command. Etc. Easier the customer operation. I assume set the router online at certain time and keep a moment, then reboot every 24 hours. You could set like below.

  • Page 144: Dtu Func Tion Application

    Figure 6-13 router reboot 6.6 DTU function application Scene presentation H8922S router fully takes into account the DTU access function requirements, the system built-in and registration center and data center communication function, can provide similar DTU data terminal unit transparent data transmission function.

  • Page 145: Figure 6-14 Dtu Application

    H8922S 3G/4G Router User Manual Figure 6-14 DTU Application Parameter configuration This scenario requires the "DTU" configuration, and the configuration step is referred to as "DTU configuration" section. The parameter configuration is shown in the figures below. Hongdian Corporation...

  • Page 146: Figure 6-15 Tcp Mode Configuration

    H8922S 3G/4G Router User Manual Figure 6-15 TCP mode configuration Hongdian Corporation...

  • Page 147: Figure 6-16 Add Text Data

    H8922S 3G/4G Router User Manual Figure 6-16 Add text data Open the Socket tool (TCP&UDP testing tool) in the server or PC which IP is the “Server IP” in in the router’s DTU configuration, start a TCP server listening the port which is the same with “Server Port”...
  • Page 148 H8922S 3G/4G Router User Manual Application result The Client mode of H8922S is to make the router work as a normal TCP/UDP client, which can connect to a TCP/UDP server via the server's IP and port. After socket connection is setup, the message received on socket will be forward to RS232 serial port;...

  • Page 149: About This Chapter

    H8922S 3G/4G Router User Manual About this chapter Chapter Content 7.1 Hardware failure Possible hardware failure during using H8922S 3G/4G Router and how to handle them 7.2 Dial online problem Possible problem during dialing and how to handle them 7.3 VPN Possible problem when connecting VPN 7.4 Web configuration...

  • Page 150: Sim Slot

    H8922S 3G/4G Router User Manual 7.1.2 SIM Slot Phenomenon Cannot insert SIM card Possible Reason  SIM slot damaged  SIM card wrong direction Solution  SIM slot damaged, please contact us to repair  Check the SIM card direction, please make sure the SIM gold finger is up 7.1.3 Ethernet Connection...

  • Page 151: Dial Online Problem

    H8922S 3G/4G Router User Manual 7.2 Dial Online Problem 7.2.1 Dial discontinue Phenomenon H8922S 3G/4G Router discontinue during dialing, dial failure Possible Reason  SIM card network type do not match  SIM charges owed  Power supply do not match ...

  • Page 152: Poor Signal

    Contact Telecom Operator to confirm signal problem  Change to high-gain antenna 7.2.5 Compress Protocol not match Phenomenon H8922S 3G/4G Router dial failure, log shows compress protocol not match Possible Reason Modem compress protocol do not match with server end Solution Change compress protocol setting 7.3 VPN Problem...

  • Page 153: Vpn Cannot Communicate

    Local Router has no MASQ, please manual add VPN port MASQ  Wrong local route table, set right route table 7.4 WEB configuration 7.4.1 Updating firmware failure Phenomenon Updating firmware failure Possible Reason  Auto r eboot during updating H8922S 3G/4G Router Hongdian Corporation...

  • Page 154: Backup Setting Problem

    H8922S 3G/4G Router User Manual  Power supply problem  Wrong firmware  Power off during updating router Solution  Check setting, disable the function which may cause reboot  Change to a suitable power supply  Ask technical support for suitable firmware ...

  • Page 155: Update Failure In Web Gui

    H8922S 3G/4G Router User Manual Solution  If power supply does not match, please change then update again  If firmware version, format do not match, please change then update again  If power off during updating, please update again 7.4.5 Update failure in WEB GUI...
  • Page 156 Create smart things F14 - F16, Tower A, Building 14, No.12, Ganli 6th Road, Longgang District, Shenzhen 518112, China. +86-755-88864288-5 +86-755-83404677 hongdianchina www.hongdian.com sales@hongdian.com Hongdian_China...

Table of Contents
