Summary of Contents for NetComm NWL-12-01

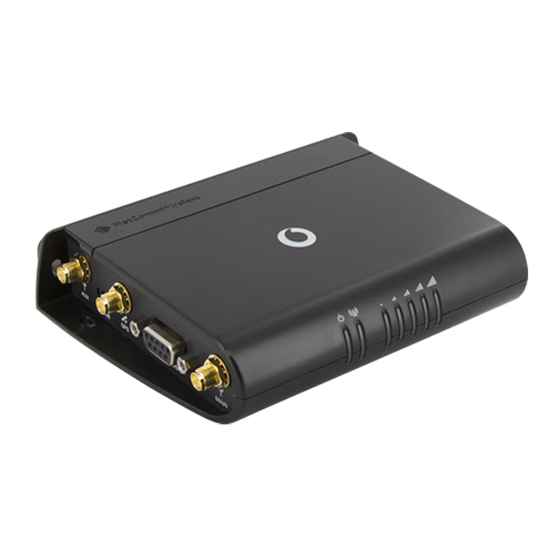

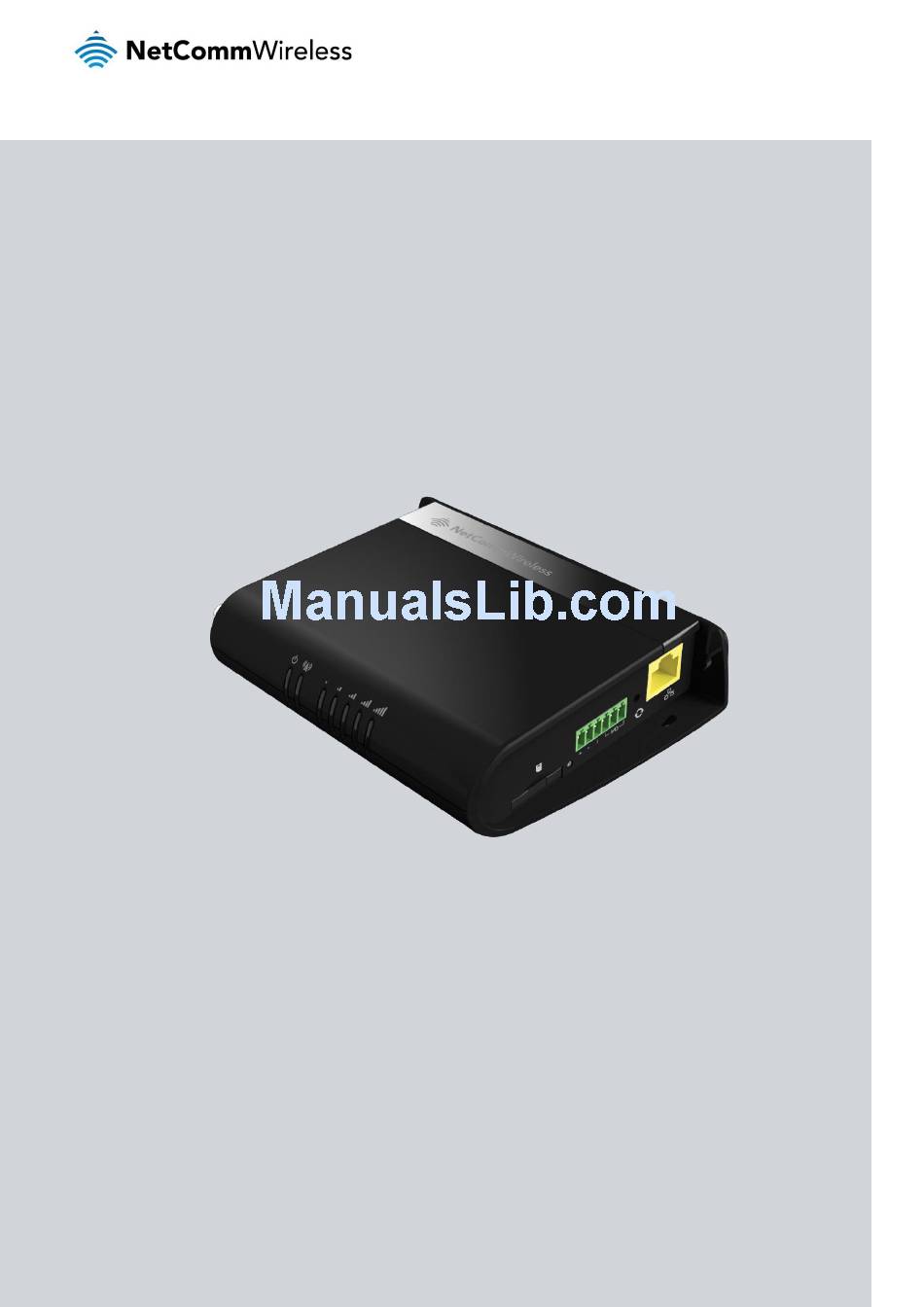

- Page 1 User Guide NWL-12 Series – 3G Light Industrial M2M Router...
- Page 2 Copyright© 2014 NetComm Wireless Limited. All rights reserved. The information contained herein is proprietary to NetComm Wireless. No part of this document may be translated, transcribed, reproduced, in any form, or by any means without prior written consent of NetComm Wireless.
-
Page 3: Table Of Contents
Appendix F: HTTPS - Uploading a self-signed certificate ....................... 127 Appendix G: RJ-45 connector ..............................129 Appendix H: Serial port wiring ..............................130 Appendix I: Inputs/Outputs ............................... 131 Overview ........................................131 Technical Data ................................... 136 Safety and product care ................................137 www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... - Page 4 Product Warranty..................................142 NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
-
Page 5: Overview
Overview Introduction This document provides you all the information you need to set up, configure and use the NetComm Wireless NWL-12 Series Router. Target audience This document is intended for system integrators or experienced hardware installers who understand telecommunications terminology and concepts. -
Page 6: Product Introduction
1 x six-way terminal block 1 x quick start guide and safety manual If any of these items are missing or damaged, please contact NetComm Wireless Support immediately. The NetComm Wireless Support website can be found at: http://support.netcommwireless.com. NetComm Wireless 3G Light Industrial M2M Router... -
Page 7: Product Features
Product features The NetComm Wireless NWL-12 Series Router is an M2M device designed by NetComm Wireless to address the rapid growth in M2M deployments. It has been designed to provide state-of-the-art features and versatility at an affordable price. Compatible with network worldwide, the NWL-12 Series Router can be managed remotely even when it does not have an Internet connection via the use of SMS diagnostics and commands. -
Page 8: Physical Dimensions And Indicators
Figure 1 – NWL-12 Series M2M Router Dimensions NWL-12 SERIES ROUTER (WITHOUT EXTERNAL ANTENNAS OR MOUNTING BRACKET ATTACHED) Width 135 mm Depth 101 mm Height 29 mm Weight 193 grams Table 2 - Device Dimensions NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... -
Page 9: Led Indicators
The term “blinking” means that the LED may pulse, with the intervals that the LED is on and off not being equal. The term “flashing” means that the LED turns on and off at equal intervals. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... -
Page 10: Ethernet Port Led Indicators
The Ethernet port is operating at a speed of 100Mbps. Amber The Ethernet port is operating at a speed of 10Mbps or no Ethernet cable is connected. Table 5 - Ethernet port LED indicators description NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... -
Page 11: Interfaces
Provides connectivity for optional external storage or a USB Ethernet dongle. Supplies up to 0.5A to Mini USB 2.0 OTG port connected device. Serial port Female DB9 port supporting 9-wire RS-232, RS-485 or RS-422 (software selectable). Table 6 – Interfaces www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... -
Page 12: Placement Of The Router
When mounted flat against the wall, the NWL-12 Series Router has a slimline form factor. Use appropriately sized screws in the mounting holes provided on the base of the unit. Figure 5 - Wall mount - Flat against the wall NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... - Page 13 Figure 7 - C Section DIN rail mount To mount the unit on a C-Section DIN rail, slide it on as illustrated below: Figure 8 - Mounting the unit on a DIN rail www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
-
Page 14: Mounting Bracket
To attach the mounting bracket, slide it onto the rear of the router as shown in the diagram below: Figure 9 - Sliding on the mounting bracket To remove the bracket, press the PUSH button and slide the router off the bracket: Figure 10 - Removing the mounting bracket NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... - Page 15 Alternatively, you can attach it to the DIN Rail by using the V bend in the bracket as illustrated below: Figure 13 - Attaching the mounting bracket to the DIN rail using the V bend www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
-
Page 16: Desk Mount
In situations where wall mounts and DIN rails are not required, you can simply place the NWL-12 Series Router on a desk using its rubber feet to prevent it from slipping. Figure 14 - Desk mount NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... -
Page 17: Installation And Configuration Of The Nwl-12 Series Router
Powering the router The NWL-12 Series Router can be powered in one of three ways: Power over Ethernet (802.3af PoE) (available on the NWL-12-01 only) DC power input via 6-pin connector (8-40V DC) DC power input via field terminated power source (8-40V DC) The green power LED on the router lights up when a power source is connected. -
Page 18: Power Consumption
Powered on, connected to packet data with average 2.0W load Powered on, connected to packet data with heavy traffic 4.0W Peak power draw at maximum 3G module transmission 5.0W power Table 9 - Average power consumption figures NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... -
Page 19: Installing The Router
Ensure the external power source is switched on and wait 2 minutes for your NWL-12 Series Router to start up. To check the status of your router, compare the LED indicators on the device with those listed in the LED Indicators section of this guide. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... -
Page 20: Advanced Configuration
For security reasons, we highly recommend that you change the passwords for the root and admin accounts upon initial installation. You can do so by navigating to the System and then Administration page. The Status page is displayed when you have successfully logged in. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... -
Page 21: Status
Advanced status details. You can toggle the sections from view by clicking the buttons to show or hide them. Extra status boxes will appear as additional software features are enabled (e.g. VPN connectivity). Figure 18 - The Status page www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... - Page 22 Cell ID A unique code that identifies the base station from within the location area of the current mobile network signal. Channel number (UARFCN) The channel number of the current 3G/2G connection. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
- Page 23 Cellular configuration ID Table 12 - Status page item details www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
-
Page 24: Networking
The data connection page allows you to configure and enable/disable the connection profile. To access this page, click on the Networking menu, and under the Wireless WAN menu, select the Data connection item. Figure 19 – Data connection settings NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... - Page 25 To manually configure a connection profile: Click the Edit button corresponding to the Profile that you wish to modify. The data connection profile settings page is displayed. Figure 20 - Data connection profile settings www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
- Page 26 WAN IP address of the router’s internal NAT IP address. This may be disabled if a framed route configuration is required and local devices require WAN IP addresses. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
- Page 27 Status page. When there is a mobile broadband connection, the WWAN section is expanded showing the details of the connection and the Status field displays Connected. To see details on the connected session, you can click the Show data usage button. Figure 22 - WWAN connection status section www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
-
Page 28: Connect On Demand
On the Connect on demand page, click the Connect on demand toggle key so that it is ON. Extra options appear. See the following sub-sections for further instructions. Figure 23 - Connect on demand configuration options NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... - Page 29 When you check the box for these options, it tells the router to ignore the request from that application type and will not dial a connection when this data type is received. Figure 27 - Connect on demand - Excluding application types www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
- Page 30 To enable the logging of the Connect on demand feature, click the Enable verbose mode toggle key to switch it ON. See the System log section for more information. Figure 29 – Connect on demand - Verbose logging configuration NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
- Page 31 The router can also be woken up by means of an SMS message using the SMS diagnostics feature by sending an executable wakeup command via SMS. See the Diagnostics section for details on using the SMS Wake up function. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
-
Page 32: Operator Settings
To scan for available networks, set the Select operator mode from automatic to Manual then click the scan button. This operation can take a few minutes and requires that the packet data session be disconnected prior to scanning. Figure 32 - Operator settings NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... -
Page 33: Sim Security Settings
If you are not redirected to the PIN settings page, to unlock the SIM: Click on the Networking menu from the top menu bar, and then click SIM security settings. Figure 34 - SIM security settings - SIM PIN locked www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... - Page 34 Note: Select Remember PIN if you do not want to enter the PIN code each time the SIM is inserted. Click the Save button. If successful, the router displays the following screen: Figure 35 - SIM security settings - SIM unlock successful NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
- Page 35 Enabling/Disabling SIM PIN protection The security PIN protection can be turned on or off using the PIN protection toggle key. Figure 36 - PIN Settings www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
- Page 36 PIN fields, then enter the desired PIN into the New PIN and Confirm new PIN fields and click the Save button. Figure 37 - PIN settings - Change PIN When the PIN has been changed successfully, the following screen is displayed: Figure 38 - SIM security settings – PIN unlock successful NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
- Page 37 You will be issued a PUK to enable you to unlock the SIM and enter a new PIN. Enter the new PIN and PUK codes. Click the Save button when you have finished entering the new PIN and PUK codes. Figure 39 - SIM security - SIM PUK locked www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
-
Page 38: Lan
In most cases, it is not necessary to disable DNS masquerading but if you need to, click the DNS masquerading toggle key to turn it OFF and then click the Save button. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... - Page 39 DNS server, the primary and secondary WINS server, as well as the advanced DHCP settings such as NTP, TFTP and Option 150/Option 160 (VoIP options). Figure 42 - DHCP configuration www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
- Page 40 In the IP Address fields, enter the IP address that you wish to reserve for the device. If the Enable toggle key is not set to ON, click it to switch it to the ON position. Click the Save button to save the settings. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
- Page 41 Clone button and the details will be copied to the address reservation list fields. Remember to click the Save button under the Address reservation list section to confirm the configuration. Figure 44 - Dynamic DHCP client list www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
-
Page 42: Routing
In the Metric field enter the metric for the route. The metric value is used by the router to prioritise routes. The lower the value, the higher the priority. To give the route the highest priority, set it to 0. Click the Save button to save your settings. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... - Page 43 Figure 47 - Active routing list Deleting static routes From the static routing list, click the icon to the right of the entry you wish to delete. Figure 48 - Deleting a static route www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
- Page 44 Using the Version drop down list, select the version of RIP that you would like to use. Select the interface for which you want RIP to apply. You can choose the LAN interface, the WWAN interface or BOTH. Click the Save button to confirm your settings. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
- Page 45 Note: Configuring VRRP changes the MAC address of the Ethernet port and therefore if you want to resume with the web configuration you must use the new IP address (VRRP IP) or on a command prompt type: arp –d <ip address> (i.e. arp –d 192.168.1.1) to clear the arp cache.(old MAC address). www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
-
Page 46: Port Forwarding
If the Source port range specifies a single port then the destination port may be configured to any port. If the Source port range specifies a range of port numbers then the Destination port range must be the same as the Source port range. Click the Save button to confirm your settings. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... - Page 47 Figure 52 - Port forwarding settings To delete a port forwarding rule, click the button on the Port forwarding list for the corresponding rule that you would like to delete. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
- Page 48 Click the DMZ toggle key to turn the DMZ function ON. Enter the IP Address of the device to be the DMZ host into the DMZ IP Address field. Click the Save button to save your settings. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
- Page 49 When DMZ is enabled, MAC/IP/Port filtering rules and the router firewall are ignored but the router will still honour the configuration of the Remote router access control settings listed under Administration Settings. Figure 54 - Router firewall toggle key www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
- Page 50 In the Current MAC / IP / Port filtering rules in system section, click the +Add button. Figure 56 - Current MAC / IP/ Port filtering rules in effect Enter the details of the rule in the section that is displayed and click the Save button. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
- Page 51 The new rule is displayed in the filtering rules list. You can edit the rule by clicking the Edit button or delete the rule by clicking the button. Figure 58 - Completed filtering rule www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
-
Page 52: Vpn
VPN connection types. Note: The following descriptions are an overview of the various VPN options available. More detailed instructions are available in separate whitepapers on the NetComm Wireless website. IPSec IPSec operates on Layer 3 of the OSI model and as such can protect higher layered protocols. IPSec is used for both site to site VPN and Remote Access VPN. - Page 53 Figure 60 – IPSec profile edit www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
- Page 54 Select the type of key or certificate to use for authentication. You can select Local private key, Local public certificate, Key / Certificate Remote public certificate, CA certificate, CRL certificate. IPSec Certificate Upload Select the IPSec certificate to upload by clicking the Browse button. Table 16 - IPSec Configuration Items NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
-
Page 55: Openvpn Server
Under the Server certificates section, select the Authentication type that you would like to use for the OpenVPN Server. Note: The Diffie-Hellman parameters can take up to 10 minutes to generate. Please be patient. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... - Page 56 Set network information button. If you do not enter the remote subnet here, any packet requests from the server to the client will not be received by the client network because it is not aware of the remote client’s subnet. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
- Page 57 Figure 63 – OpenVPN server profile settings www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
- Page 58 If it is not selected, the OpenVPN connection allows for secure communication links between this router and the remote OpenVPN server only. Use the Authentication type options to select the Authentication type that you would like to use for the OpenVPN client. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
- Page 59 In the Profile name field, type a name for the OpenVPN P2P profile you are creating. On the router designated as the server, leave the Server IP address field empty. On the router designated as the client, enter the WAN IP address/host domain name of the server. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
- Page 60 Upload button to send it to the slave. Perform the same for the other router, uploading the slave’s secret key file to master. When they are uploaded click the Save button to complete the peer-to-peer OpenVPN configuration. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
-
Page 61: Pptp Client
Figure 68 - PPTP client list Click the +Add button to begin configuring a new PPTP client profile. The PPTP client edit screen is displayed. Figure 69 - VPN PPTP client edit www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... - Page 62 Click the Save button to save the changes. The VPN will attempt to connect after your click Save. Click the Status button at the top left of the interface to return to the status window and monitor the VPN’s connection state. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
- Page 63 Click the +Add button to begin configuring a new GRE tunnelling client profile. The GRE Client Edit screen is displayed. Figure 71 – GRE client edit Click the Enable GRE Tunnel toggle key to switch it to the ON position. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
- Page 64 Click the Save button to save the changes. The VPN will attempt to connect after your click Save. Click the Status button at the top left of the interface to return to the status window and monitor the VPN’s connection state. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
-
Page 65: Services
In the Username and Password fields, enter the logon credentials for your DDNS account. Enter the password for the account again in the Verify password field. Click the Save button to save the DDNS configuration settings. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... -
Page 66: Network Time (Ntp)
System Log entries and Firewall settings where the current system time is displayed and recorded. Any NTP server available publicly on the internet may be used. The default NTP server is 0.netcomm.pool.ntp.org. Figure 73 - NTP settings... -
Page 67: Data Stream Manager
SMS, GPS, USB) and performs any required translation or data processing by each virtual data tunnel. Customers interested in developing their own applications to create custom mappings can contact NetComm Wireless about our Software Development Kit. The data stream manager provides a wide range of possibilities and expands upon simple PAD functionality to include the forwarding and translation of data between any of the input and output ports of the router. - Page 68 115200bps baud rate, 8 data bits, 1 stop bit, no parity, in RS-232 mode and with flow control turned off. Figure 77 - Data stream manager - GPS to Serial port example NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
- Page 69 This example demonstrates common settings for sending raw traffic received on the built-in (or USB) serial port to a TCP/IP server running on the router. Figure 78 - Data stream manager – Serial to IP example www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
- Page 70 This example shows a configuration allowing received SMS messages to be forwarded to a TCP client running on the router which sends the SMS message to TCP server 123.45.67.89 on port 2000. Figure 79 - Data stream manager – SMS to IP example NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
-
Page 71: Watchdogs
Connect-on-demand session is idle, or the PDP context is disabled by the user. Therefore, we recommended that you disable this feature if Connect-on-demand is configured or if the PDP context is intentionally disconnected on occasion. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... - Page 72 Note: The Periodic Ping timer should not be set to a value of less than 300 seconds to allow the router time to reconnect to the cellular network following a reboot. To disable the periodic ping reset monitor, set Fail count to 0. Figure 81 – Ping watchdog settings NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
- Page 73 Note: The randomise reboot time is not persistent across reboots; each time the router is due to reboot, it randomly selects a time less than or equal to the Randomise reboot time. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
-
Page 74: Snmp
The Download button displays the Management Information Base (MIB) of the router. The MIB displays all the objects of the router that can have their values set or report their status. The MIB is formatted in the SNMP-related standard RFC1155. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... -
Page 75: Snmp Traps
To send a manual SNMP Heartbeat, click the Send heartbeat button. When you have finished configuring the SNMP traps, click the Save button to save the settings. Note: When a factory reset is performed via SNMP, the SNMP settings are preserved. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... -
Page 76: Tr-069
Note: You must have your own compatible ACS infrastructure to use TR-069. In order to access and configure the TR-069 settings you must be logged into the router as the root user. Note: When a factory reset of the router is performed via TR-069, the TR-069 settings are preserved. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... - Page 77 ACS inform messages. In the Inform Period field, enter the number of seconds between the inform messages. Click the Save button to save the settings. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
-
Page 78: Gps
To access the GPS configuration screen, select the Services item from the top menu bar then the GPS item on the left. Finally, select the GPS configuration menu item. To use the GPS function, set the GPS operation toggle key to ON and click the Save button. Figure – GPS configuration NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... - Page 79 You may manually force the router to check for an update regardless of the next scheduled update time by clicking the Update Now button. When you have finished configuring the settings, click the Save button to save the changes. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
- Page 80 Toggles the Odometer function on and off. Specifies the minimum distance that the router must travel from its current position before the Threshold Odometer reading increases. Table 18 - Odometer configuration options NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
-
Page 81: Io Configuration
This can be useful for applications where monitoring of the transition between low and high is used to trigger an action. Table 19 - IO configuration options www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... - Page 82 There are also wiring examples in Appendix I of this User Guide. Contact NetComm Wireless Technical Support for access to the Software Development Kit. NetComm Wireless 3G Light Industrial M2M Router...
-
Page 83: Low Power Mode
To begin using Low power mode, set the Low power mode functionality toggle key to the ON position. Extra settings are displayed. These settings, including the enabling or disabling of Low power mode functionality, only take effect when you click the Save button. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... - Page 84 3600 seconds (1 hour), depending on which condition occurs first. Figure 93 - Sleep after specified duration or triggered by ignition pin NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
- Page 85 There is also a provision to reboot the router after a specified period of time, regardless of whether the conditions of Events 1 and/or 2 are met. This can be viewed as a fall back option in the case that those Events are missed. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
- Page 86 Events 2 occurs, the router wakes up. Alternatively, if neither or only one of the events occurs, the router waits for the time specified in the Always wake up after field and then wakes up when that time has been reached. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
-
Page 87: Sms Messaging
The Setup page provides the options to enable or disable the SMS messaging functionality and SMS forwarding functionalities of the router. SMS messaging is enabled by default. Figure 97 - General SMS Configuration www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... - Page 88 “192.168.20.3” on port “2002” at the same time. To disable redirection to a TCP or UDP address, clear the TCP server address and UDP server address fields and click the Save button. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
-
Page 89: New Message
When you have finished typing your message and you are ready to send it, click the Send button. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... - Page 90 Add to White list. Click this button to add the sender’s mobile number to the white list on the router. Delete button. Click this button to delete the corresponding message. Refresh button. Click this button to refresh the inbox or outbox to see new messages. Table 22 - Inbox/Outbox icons NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
-
Page 91: Diagnostics
We highly recommended that you use the white list and a password when utilising this feature to prevent unauthorised access. See the White list description for more information. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... - Page 92 The maximum limit can be set per hour, day, week or month. The router will send a maximum of 100 replies by default. The number of messages sent is shown below the options. The total transmitted message count resets after a reboot or at the beginning of the time frame specified. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
- Page 93 Destination number field and optionally define a password in the Password field. When you have finished adding numbers click the Save button to save the entries. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
-
Page 94: Sending An Sms Diagnostic Command
ON, the router will send a reply if the command is correct but a variable or value is incorrect, for example, due to misspelling. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... -
Page 95: Sms Command Format
PASSWORD set VARIABLE1=VALUE1; set VARIABLE2=VALUE2; set VARIABLE3=VALUE3 If required, values can also be bound by an apostrophe, double apostrophe or back tick. For Example: “set VARIABLE=’VALUE’” “set VARIABLE=”VALUE”” “set VARIABLE=`VALUE`” “get VARIABLE” www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... - Page 96 Instructs the router to generate new public SSH keys. ssh.clearkeys Instructs the router to clear the client public SSH key files. Table 24 - List of basic SMS diagnostic commands NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
- Page 97 Returns the PPPoE status, currently configured dial string and service name set pppoe set pppoe=1, telstra.internet, test Sets the PPPoE status on, APN to telstra.internet, and service name to test. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
- Page 98 The get plmnscan SMS command enables you to perform a scan of the cellular networks available at the time of the scan. It returns the following semi-colon separated information for each network in range: Network Type (3G, 2G) Provider's Name Operator Status (available, forbidden, current) NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
- Page 99 Sets the operator and network type to a manual selection made by the user where “505” is the Mobile Country Code for Australia, “3” is the Mobile Network Code for Vodafone and “7” is the 3G network type. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
-
Page 100: Sms Diagnostics Examples
Send SMS to reset to factory default settings Required PASSWORD execute factorydefaults Not required get status Send SMS to retrieve status of router Required PASSWORD get status Not required get sessionhistory NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... - Page 101 Generate set of public/private keys on the host Required PASSWORD execute ssh.genkeys Not required execute ssh.clearkeys Clear client public keys stored on host Required PASSWORD execute ssh.clearkeys Table 29 - SMS diagnostics example commands www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
-
Page 102: System
Log data is stored in RAM and therefore, when the unit loses power or is rebooted, it will lose any log information stored in RAM. To ensure that log information is accessible between reboots of the router there are two options: Enable the Log to non-volatile memory option Use a remote syslog server NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... - Page 103 Show extended system log messages with full debugging level details. Info Show informational messages only. Notice Show normal system logging information. Error Show error condition messages only. Table 30 - System log detail levels www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
- Page 104 IPSec VPN tunnels will be disconnected as a change in logging level requires the IPSec service to be restarted. To download the IPSec log, click the Download IPSec log button and you will be prompted to save the file. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
-
Page 105: System Configuration
Note: All current settings on the router will be lost when performing a restore of factory default settings. The device IP address will change to 192.168.1.1 and the default username root and default password admin will be configured. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... -
Page 106: Updating The Firmware
Series Router. When firmware files have been uploaded, they can also be installed from this page. PDF files, such as this user guide may also be uploaded for access on the router’s help page. For more information on application development, contact NetComm Wireless about our Software Development Kit. Figure 108 - Upload page Updating the Firmware The firmware update process involves first updating the recovery image firmware and then updating the main firmware image. - Page 107 The recovery firmware image is flashed and when it is complete, the router displays “The firmware update was successful” and returns to the main Upload screen. Figure 111 - Recovery firmware flash process www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
- Page 108 Hold down the reset button on the router for 15-20 seconds to reboot and restore the factory default settings of the router. See the Restoring factory default settings section for more information. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
- Page 109 The Package Manager page is used to provide details of any user installed packages on the router and allow them to be uninstalled. For more information on application development, contact NetComm Wireless about our Software Development Kit. Figure 113 – Software applications manager The Application name, Version number of the application, the architecture type and time of installation are all displayed.
-
Page 110: Administration Settings
The Administration settings page is used to enable or disable protocols used for remote access and configure the passwords for the user accounts used to log in to the router. Figure 114 - Administration page NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... - Page 111 Enter the username and password to login to the router and click Log in. Note: To perform functions like Firmware upgrade, device configuration backup and to restore and reset the router to factory defaults, you must be logged in with the root manager account. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
-
Page 112: Https Key Management
Enter the certificate details using the appropriate fields. Each field must be completed in order to generate a certificate. Figure 115 - Generate self signed HTTPS certificate Note: The Country field must contain a code for the desired country from the list below. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... - Page 113 Cayman Islands Qatar International Algeria Kazakhstan Reunion US Military Ecuador Laos Romania Network Estonia Saint Lucia Serbia Non-Profit Organization Egypt Liechtenstein Russian Federation ARPA Old style Arpanet Western Sahara Sri Lanka Rwanda www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
- Page 114 The web server on the router restarts and you are logged out of the router. Click OK to be taken back to the login screen. Figure 116 - New certificate successfully generated message NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
-
Page 115: Ssh Key Management
Select the types of authentication you want to use by clicking the Enable password authentication and Enable key authentication toggle keys on or off. Note that you may have both authentication methods on but you may not turn them both off. Click the Save button to confirm your settings. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... - Page 116 Upload button, browse to the file and click Open. When the file is uploaded, it is examined for validity. If the key file is not a valid public key, it will not be uploaded. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
- Page 117 The wait period begins from the time the Save button is clicked. When the wait period expires, the LEDs will turn off. If the router is rebooted, the LED power off timer is reset. The router will boot up and wait for the configured time before turning off again. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
-
Page 118: Logging Out
Note: It can take up to 2 minutes for the router to reboot. Logging out To log out of the router, click the icon at the top right corner of the web user interface. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... -
Page 119: Appendix A: Tables
Table 36 - RS-232 Wiring ........................130 Table 37 - RS-485 Half Duplex Wiring ....................130 Table 38 - RS-485 (RS-422) Full Duplex Wiring ..................130 Table 39 - Technical Specifications of the NWL-12 Series routers ............136 www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... -
Page 120: Appendix B: Device Mounting Dimensions
Appendix B: Device Mounting Dimensions The image below is at 100% scale and may be used as a template for mounting the device. All dimensions shown are in millimetres. Figure 121 - Device mounting dimensions NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... -
Page 121: Appendix C: Mounting Bracket
Appendix C: Mounting Bracket The image below is at 100% scale and may be used as a template for mounting the bracket. All dimensions shown are in millimetres. Figure 122 - Mounting bracket www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... -
Page 122: Appendix D: Default Settings
NWL-12 SERIES ROUTER TELNET ACCESS Username: root Password: admin Table 34 - Telnet Access NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... -
Page 123: Restoring Factory Default Settings
When you have reset your NWL-12 Series Router to its default settings you will be able to access the device’s configuration web interface using http://192.168.1.1 with username admin or root and password admin. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... -
Page 124: Appendix E: Recovery Mode
In your browser, navigate to http://192.168.1.1. The router’s recovery mode is hardcoded to use this address regardless of the IP address that was configured in the main system. The router’s recovery console is displayed. Figure 123 - Recovery console NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... -
Page 125: Status
The only functionality provided here is the ability to clear the system log, filter by log level and downloading of the log file. Figure 125 - Recovery mode – Log www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... -
Page 126: Application Installer
Click the Reboot button to reboot the router to the main firmware image. Figure 128 - Recovery mode - Reboot NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... -
Page 127: Appendix F: Https - Uploading A Self-Signed Certificate
The file upload screen is displayed. Figure 129 - Upload page Click the Choose a File button and locate your server certificate file and click Open. Figure 130 - Browse for server.crt www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... - Page 128 Click the Install link next to the server.crt file then click OK on the prompt that is displayed. The certificate file is installed. Repeat this for the key file. When each file is installed it is removed from the list of stored files. Figure 132 - Installing the server.crt file NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
-
Page 129: Appendix G: Rj-45 Connector
DC + unused White/Blue DC + unused stripe Green solid Tx - Tx - DC - White/Brown DC - unused stripe Brown solid DC - unused Table 35 - RJ-45 connector pin outs www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... -
Page 130: Appendix H: Serial Port Wiring
RS-485 (RS-422) FULL DUPLEX WIRING SIGNAL NAME DESCRIPTION — Receive (Differential pair A) Receive (Differential pair B) Transmit (Differential pair B) — Transmit (Differential pair A) Ground Table 38 - RS-485 (RS-422) Full Duplex Wiring NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... -
Page 131: Appendix I: Inputs/Outputs
Appendix I: Inputs/Outputs Overview The NWL-12-01 and NWL-12-02 are equipped with a 6-way terminal block connector providing 3 identical multipurpose inputs and outputs as well as a dedicated ignition input. These inputs and outputs may be independently configured for various functions,... -
Page 132: Wiring Examples
Note: NetComm Wireless does not offer any further advice on the external wiring requirements or wiring to particular sensors, and will not be responsible for any damage to the unit or any other device used in conjunction with it. Using outputs to control high voltage equipment can be dangerous. -
Page 133: Digital Inputs
A NAMUR sensor is a range of sensors which conform to the EN 60947-5-6 / IEC 60947-5-6 standards. They basically have two states which are reflected by the amount of current running through a sense resistor. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... - Page 134 An example below shows the internal pull-up voltage and 1K resistor activated. The voltage received depends on the combination of resistors and the value of the resistance of the sensor itself. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
- Page 135 The previous examples of wiring can be used to come up with a system. The following test case is an example of how the I/O’s can be used to enhance a simple router setup. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router...
-
Page 136: Technical Data
Dimensions & 135mm (L) x 101mm (W) x 29mm (D) / 193g Weight Regulatory FCC, PTCRB, CE, GCF, WEEE, RoHS, RCM, IC, e-mark Compliance Table - Technical Specifications of the NWL-12 Series routers NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... -
Page 137: Safety And Product Care
European market. The wireless device is approved to be used in the member states of the EU. NetComm Wireless declares that the wireless device is in compliance with the essential requirements and other relevant provisions of the Radio and Telecommunications Terminal Equipment Directive 1999/5/EC (R&TTE Directive). -
Page 138: Fcc Statement
EN 301 511 V9.0.2, EN 301 908-1 V5.2.1, EN 301 908-2 V5.2.1 EN 300 328 V1.8.1 (for NWL-12-01) EN 300 440-1 V1.6.1, EN 300 440-2 V1.4.1 RoHS Directive (2011/65/EU) EN 50581: 2012 NOTE: To comply with the RF exposure requirements, this equipment must be operated with a minimum of 20 cm separation from the user. -
Page 139: Electrical Safety
Arrange power and Ethernet cables in a manner such that they are not likely to be stepped on or have items placed on them. Ensure that the voltage and rated current of the power source match the requirements of the device. Do not connect the device to an inappropriate power source. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... -
Page 140: Device Heating
Interference in cars Please note that because of possible interference to electronic equipment, some vehicle manufacturers forbid the use of devices in their vehicles unless an external antenna is included in the installation. NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com... -
Page 141: Explosive Environments
Blasting caps and areas Turn off your device or wireless device when in a blasting area or in areas posted turn off “two-way radios” or “electronic devices” to avoid interfering with blasting operations. www.netcommwireless.com NetComm Wireless 3G Light Industrial M2M Router... -
Page 142: Product Warranty
Product Warranty For warranty information please visit http://www.netcommwireless.com/product/m2m/nwl-12 NetComm Wireless 3G Light Industrial M2M Router www.netcommwireless.com...
