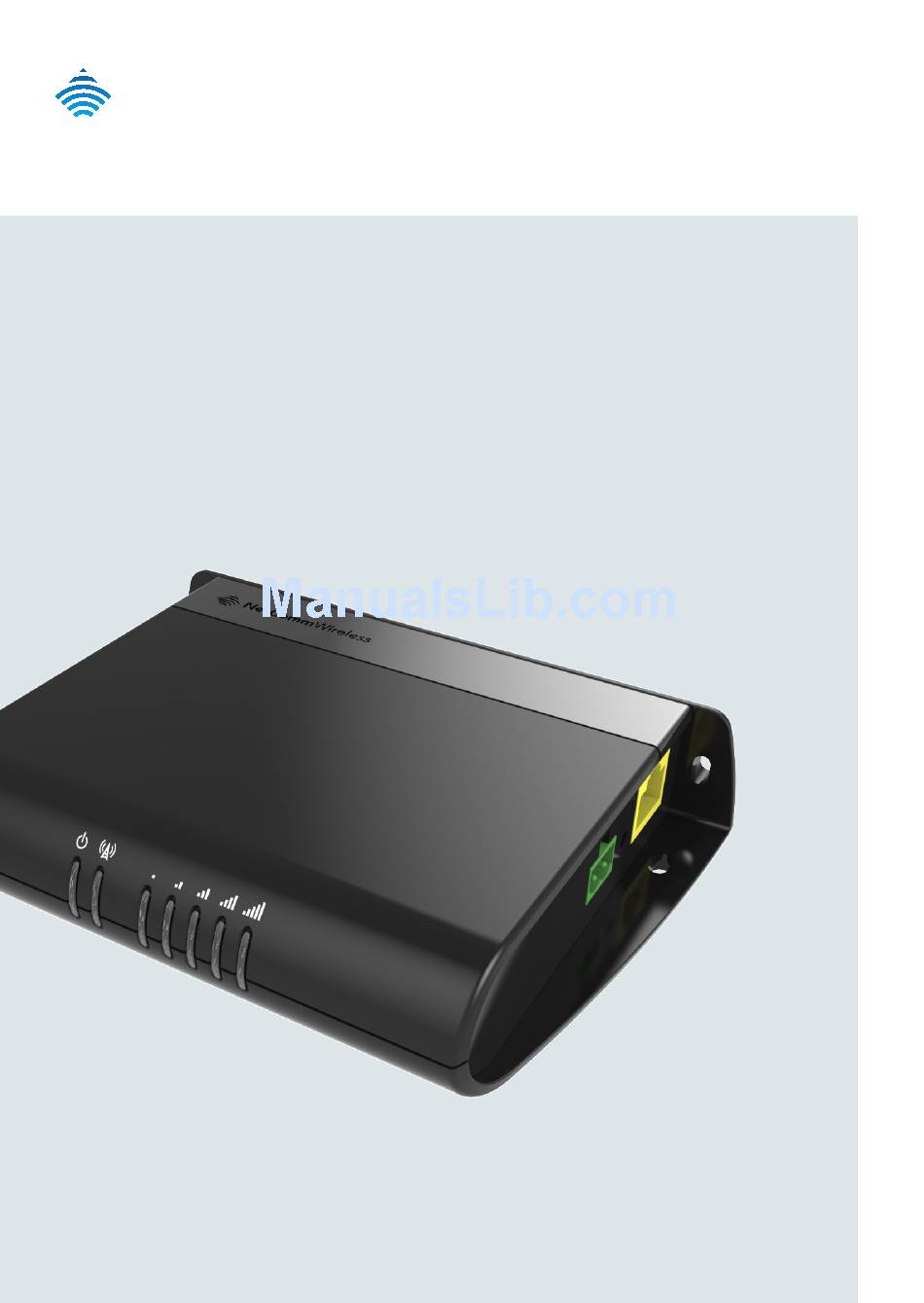

- Page 1 NetCommWireless Quick Start Guide M2M CDMA Router NWL-11...
-
Page 2: Package Contents
Quick Start Guide This quick start guide is designed to get you up and running quickly with your new NWL-11 M2M CDMA router. More advanced set up instructions can be found in the user manual which can be downloaded from http://www.netcommwireless.com/product/m2m/nwl-11... -
Page 3: Device Overview
NWL-11 - M2M CDMA Router Device overview ITEM DESCRIPTION Main antenna socket SMA female connector for an optional external antenna. Two-way captive power Terminal block for connecting power cable. Operates in the 8-35V DC range. Reset button Press and hold for less than 5 seconds to reboot to normal mode. -
Page 4: Getting Started
Flathead screwdriver (no. 3) for terminating power input wires. Notebook or PC for advanced configuration. Additional fasteners and screwdrivers for specific wall or rail mounting. Mounting options The NetComm Wireless NWL-11 router can be installed quickly and easily in a variety of locations. MOUNT TYPE DESCRIPTION BENEFITS... -
Page 5: Wall Mount
NWL-11 - M2M CDMA Router Wall mount a) Flat against the wall b) Perpendicular to the wall... - Page 6 NetCommWireless c) Mounted via DIN rail bracket DIN Rail mounting bracket DIN Rail mounting bracket Push to release V Bend allows you to snap the DIN bracket onto the middle of a DIN rail, rather than sliding it onto the end.
-
Page 7: Desk Mount
NWL-11 - M2M CDMA Router C Section DIN rail mount Top hat DIN rail mount Desk mount... -
Page 8: Overview Of Led Indicators
NetCommWireless Overview of LED indicators LED ICON NAME COLOR STATE DESCRIPTION Power Power off Double flash Powering up Power on Power on in recovery mode Slow flashing Hardware error Network Connected via WWAN Blinking Traffic via WWAN Slow flashing Connecting data session Registered network Slow flashing Registering network... -
Page 9: Installing Your Device
Mount your router in a suitable location using the options listed in the Mounting options section of this guide. When selecting a location to mount the NWL-11 router, keep in mind that it houses two high performance internal antennas designed to provide optimum signal strength in a wide range of environments. - Page 10 NetCommWireless DC power via field terminated power source If an 8-35V DC power supply is available, you can insert the wires into the supplied terminal block to power your router. Use a no. 3 flathead screwdriver to tighten the terminal block screws and secure the power wires, making sure the polarity of the wires are correctly matched, as illustrated below.
- Page 11 PoE network switch or PoE power injector). Switch on your power supply and wait 2 minutes for your NetComm Wireless NWL-11 router to start up and connect to the mobile network. Your router is now connected. To check the status of your router, compare the LED indicators on the...
- Page 12 Before you can use your NWL-11 router, a broadband plan must first be added to it. To add a service to your NWL-11 router, contact your wireless operator (e.g. Verizon Wireless). You will need to provide the wireless operator with the MEID of your router to provision a service.
-
Page 13: Admin Account
NWL-11 - M2M CDMA Router Step 2 Attach the supplied yellow Ethernet cable 8P8C to the LAN Ethernet port on your router and the other to your computer. Then access the user interface by entering http://192.168.1.1/ into your web browser, enter your username and password and click Log in. - Page 14 NetCommWireless Step 3 Once logged in you’ll see the Status page. The Status page displays an overview of information about the network your router is connected to (if any), signal strength and data connection status. The first time you log in to the router, its activation status is deactivated and the router prompts you to activate it with a pop-up window containing the following text: “This device is not currently activated on a service provider network.
- Page 15 When the activation process is complete, the router displays the Status page. The word Activated appears in the Activation Status field on the Status page. Your NWL-11 router is now activated and ready for use. For more information on advanced configuration, refer to the full product...
-
Page 16: Configuring Multiple Devices
NetCommWireless Configuring multiple devices To apply your advanced configuration settings to more than one NetComm Wireless NWL-11 router, follow these simple steps. Step 1 Back up your router’s configuration Log in to the web configuration interface, click on the System menu, select System Configuration and click on Settings Backup / Restore. - Page 17 From the Restore saved settings section, click on Choose a File and select the backup configuration file on your computer. Click Restore to copy the settings to the new NetComm Wireless NWL-11 router. The router will apply these settings and inform you it will reboot - click on OK.
-
Page 18: Safety And Product Care
NetCommWireless Safety and product care RF exposure Your device contains a transmitter and a receiver. When it is on, it receives and transmits RF energy. When you communicate with your device, the system handling your connection controls the power level at which your device transmits. This device meets the government’s requirements for exposure to radio waves. -
Page 19: Fcc Statement
NWL-11 - M2M CDMA Router FCC statement FCC compliance Federal Communications Commission Notice (United States): Before a wireless device model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. -
Page 20: Electrical Safety
NetCommWireless Electrical safety Accessories Only use approved accessories. Do not connect with incompatible products or accessories. Connection to a car Seek professional advice when connecting a device interface to the vehicle electrical system. Distraction Operating machinery Full attention must be given to operating the machinery in order to reduce the risk of an accident. Product handling You alone are responsible for how you use your device and any consequences of its use. - Page 21 NWL-11 - M2M CDMA Router Do not use or install this product in extremely hot or cold areas. Ensure that the device is installed in an area where the temperature is within the supported operating temperature range (-20°C to 65°C) Do not use your device in an enclosed environment or where heat dissipation is poor.
-
Page 22: Faulty And Damaged Products
NetCommWireless Children Do not leave your device and its accessories within the reach of small children or allow them to play with it. They could hurt themselves or others, or could accidentally damage the device. Your device contains small parts with sharp edges that may cause an injury or which could become detached and create a choking hazard. -
Page 23: Medical Devices
NWL-11 - M2M CDMA Router Hearing aids People with hearing aids or other cochlear implants may experience interfering noises when using wireless devices or when one is nearby. The level of interference will depend on the type of hearing device and the distance from the interference source, increasing the separation between them may reduce the interference. - Page 24 For firmware updates or if you have any technical difficulties with your product, please refer to the support section of our website. support.netcommwireless.com NETCOMM WIRELESS LIMITED ABN 85 002 490 486 Head Office, 18-20 Orion Road Lane Cove, Sydney, NSW 2066, Australia...
