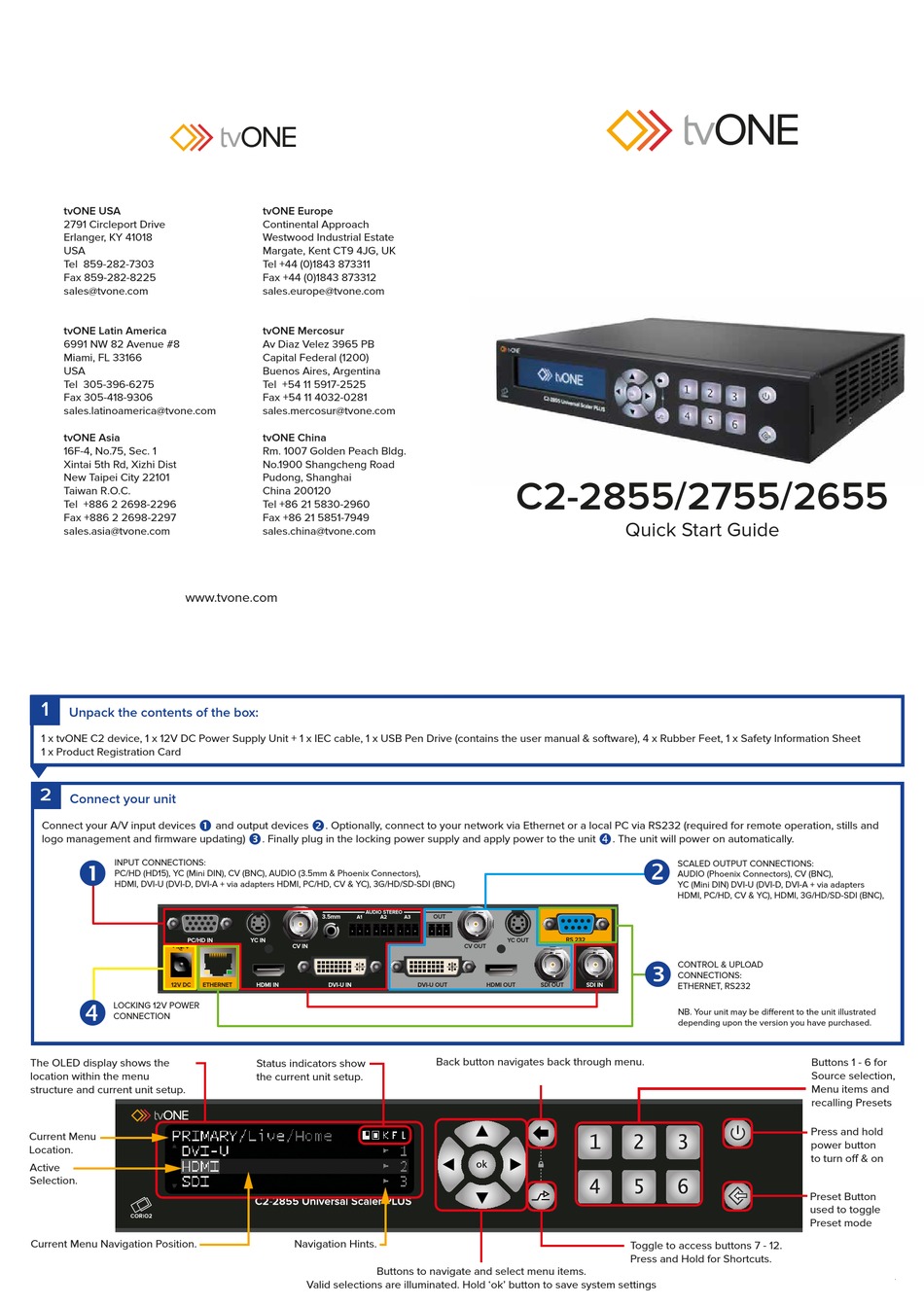

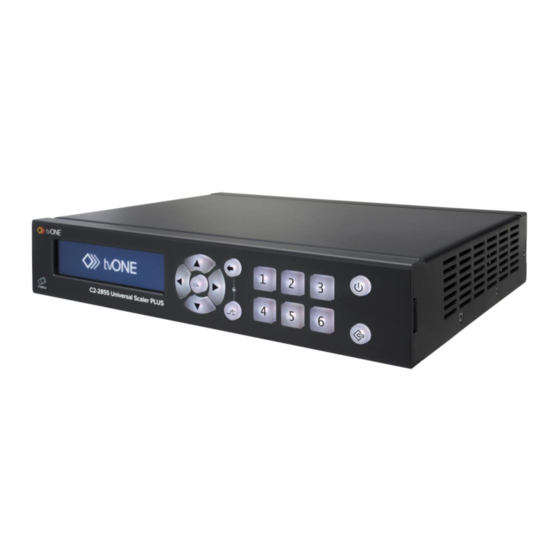

Tvone C2-2855 Quick Start Manual

tvONE USA
2791 Circleport Drive
Erlanger, KY 41018
USA
Tel 859-282-7303
Fax 859-282-8225
sales@tvone.com
tvONE Latin America
6991 NW 82 Avenue #8
Miami, FL 33166
USA
Tel 305-396-6275
Fax 305-418-9306
sales.latinoamerica@tvone.com
tvONE Asia
16F-4, No.75, Sec. 1
Xintai 5th Rd, Xizhi Dist
New Taipei City 22101
Taiwan R.O.C.
Tel +886 2 2698-2296
Fax +886 2 2698-2297
sales.asia@tvone.com
www.tvone.com
1
Unpack the contents of the box:
1 x tvONE C2 device, 1 x 12V DC Power Supply Unit + 1 x IEC cable, 1 x USB Pen Drive (contains the user manual & software), 4 x Rubber Feet, 1 x Safety Information Sheet
1 x Product Registration Card
2
Connect your unit

Connect your A/V input devices
logo management and firmware updating)

INPUT CONNECTIONS:
PC/HD (HD15), YC (Mini DIN), CV (BNC), AUDIO (3.5mm & Phoenix Connectors),
HDMI, DVI-U (DVI-D, DVI-A + via adapters HDMI, PC/HD, CV & YC), 3G/HD/SD-SDI (BNC)
PC/HD IN
- +
12V DC ETHERNET

LOCKING 12V POWER
CONNECTION
The OLED display shows the
location within the menu
structure and current unit setup.
Current Menu
Location.
Active
Selection.
Current Menu Navigation Position.
tvONE Europe
Continental Approach
Westwood Industrial Estate
Margate, Kent CT9 4JG, UK
Tel +44 (0)1843 873311
Fax +44 (0)1843 873312
sales.europe@tvone.com
tvONE Mercosur
Av Diaz Velez 3965 PB
Capital Federal (1200)
Buenos Aires, Argentina
Tel +54 11 5917-2525
Fax +54 11 4032-0281
sales.mercosur@tvone.com
tvONE China
Rm. 1007 Golden Peach Bldg.
No.1900 Shangcheng Road
Pudong, Shanghai
China 200120
Tel +86 21 5830-2960
Fax +86 21 5851-7949
sales.china@tvone.com

and output devices . Optionally, connect to your network via Ethernet or a local PC via RS232 (required for remote operation, stills and

. Finally plug in the locking power supply and apply power to the unit
AUDIO STEREO
3.5mm
A1 A2
YC IN
CV IN
HDMI IN DVI-U IN
Status indicators show
the current unit setup.
Navigation Hints.
Buttons to navigate and select menu items.
Valid selections are illuminated. Hold 'ok' button to save system settings
C2-2855/2755/2655
OUT
A3
RS 232
YC OUT
CV OUT
DVI-U OUT HDMI OUT SDI OUT
Back button navigates back through menu.

Quick Start Guide


. The unit will power on automatically.

SCALED OUTPUT CONNECTIONS:
AUDIO (Phoenix Connectors), CV (BNC),
YC (Mini DIN) DVI-U (DVI-D, DVI-A + via adapters
HDMI, PC/HD, CV & YC), HDMI, 3G/HD/SD-SDI (BNC),

CONTROL & UPLOAD
CONNECTIONS:
ETHERNET, RS232
SDI IN
NB. Your unit may be di erent to the unit illustrated
depending upon the version you have purchased.
Toggle to access buttons 7 - 12.
Press and Hold for Shortcuts.
Buttons 1 - 6 for
Source selection,
Menu items and
recalling Presets
Press and hold
power button
to turn o & on
Preset Button
used to toggle
Preset mode
