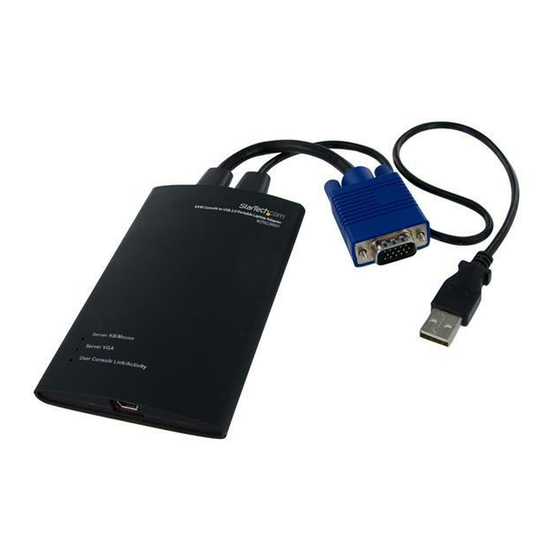

KVM Console to USB 2.0 Portable
Laptop Adapter
NOTECONS01
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 01/26/2012
Advertisement
Table of Contents
Related Manuals for StarTech.com NOTECONS01
Summary of Contents for StarTech.com NOTECONS01

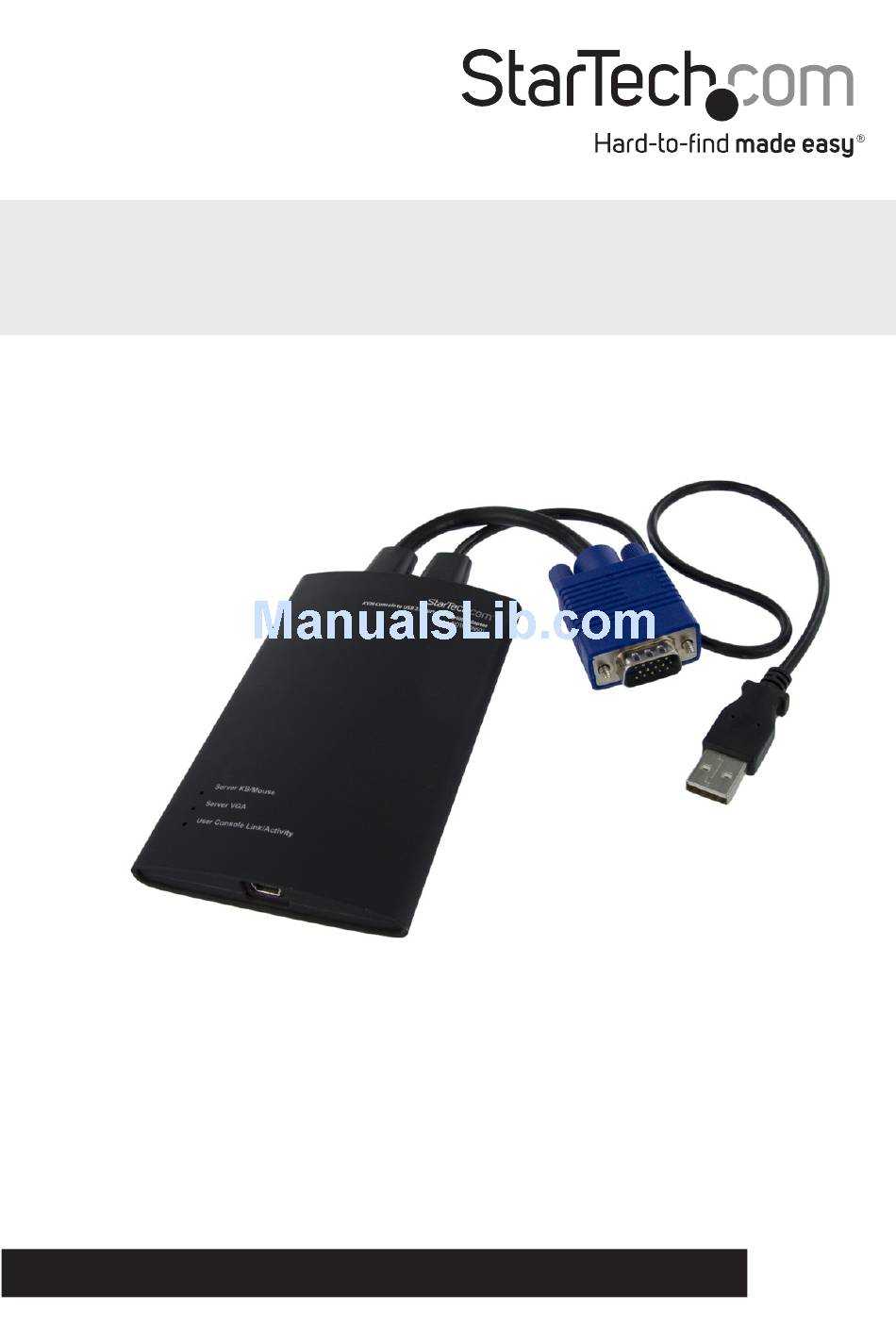

- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 01/26/2012...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Table of Contents Introduction ................................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation................................2 Driver Installation ............................2 Hardware Installation ..........................2 LED Indicators .............................3 Using the USB Crash Cart Adapter ......................4 Zooming .................................4 Toolbar ................................5 Video Menu ..............................7 Keys Menu Item ............................8 Mouse Menu ..............................9 Toolbar Menu ..............................11 Troubleshooting ...............................12 Specifications ..............................13... -
Page 4: Introduction
Introduction Packaging Contents • 1 x USB Crash Cart Adapter • 1 x USB to PS/2 adapter • 1 x USB A to Mini-B cable • 1 x Driver and Software CD-ROM or USB flash drive System Requirements Notebook Requirements • USB 2.0 enabled notebook computer • 20MB available hard drive space • 24-bit capable display... -
Page 5: Installation
Connect the attached DE-15 VGA cable and the USB type A cable into the desired server. For DVI-I (analog) computer systems, please use a DVI to VGA adapter (StarTech.com ID: DVIVGAMF). A USB to PS/2 adapter is included for systems that require a PS/2 connected keyboard (mouse will not be available). -
Page 6: Led Indicators
LED Indicators Server KB/Mouse: This lights up when the emulated USB keyboard/mouse is working. It will blink briefly whenever the emulated mouse moves, or emulated key is pressed. Constant flashing indicates some problem with the USB connection to the server. This can happen if disconnected, or if the host’s operating system is not enumerating the USB device. -
Page 7: Using The Usb Crash Cart Adapter
Using the USB Crash Cart Adapter Once connected, the real-time video from the attached host computer is shown centered in the main window. Zooming By design, this program will never show scroll bars. The entire video picture is always completely visible. -
Page 8: Toolbar
Also in the Zoom menu is an option to center the window on the screen. This can be handy when it is off the edge of the screen. There is also a shortcut for maximize (toggle). This is the same as clicking the maximize button in the title bar of the main window. More Tips • If the laptop is widescreen (16:10 aspect, or 1280x800, etc), it may be helpful to locate the toolbar along the left or right vertical edge. - Page 9 From left to right: 1. ( ) Change orientation of tool bar between horizontal (shown) and vertical. 2. ( ) Quit the Pocket Console application immediately. 3. ( ) Fine-tune video picture. 4. ( ) Open Video-related settings window. 5. ( ) Take a snapshot of screen, save as PNG, JPG, BMP file.
-
Page 10: Video Menu
Video Menu There are three functions available under the Video menu: Auto fine-tune picture, Video Settings and Save PNG snapshot. Auto fine-tune picture Use to automatically adjust the sampling phase of the video. This makes the picture sharper and reduces USB traffic. This is generally not required since this operation is automatically performed when video is applied. -
Page 11: Keys Menu Item
Capture Video Mode Details Displays then saves the current video mode settings used on the server, to a text file. Sets the default maximum video resolution on the USB Crash Cart Adapter. 1280x1024 is the factory set default. Keys Menu Item Most keystrokes are forwarded directly to the sever. -
Page 12: Mouse Menu
Simulate Hotplug (reset) Clicking on this menu item will ‘hotplug’ the USB going to the host keyboard and mouse. Hot plugging simulates unplugging the USB cable and immediately reconnecting it. It will reset the USB keyboard and mouse emulation completely. This can be used if the host operating system is confused. - Page 13 MacOS X Scaling If you are controlling a Mac OS X computer with the USB Crash Cart Adapter, you should select this special mode. Without it, you will see that the two mouse pointers are aligned correctly at the center of the screen, but drift apart as you move closer to the edges of the screen.
-
Page 14: Toolbar Menu
To release captured mouse... In absolute mouse mode, you may simply move the laptop mouse over the window and click as desired. In relative mode, the mouse doesn’t do anything until you click once on the desktop. This captures the mouse and subsequent clicks and motion are sent to the controlled host. A dialog is shown to remind you how to get back to your laptop desktop. -
Page 15: Troubleshooting
Troubleshooting Symptom Problem/Suggested Course of Action No lights Adapter has no power from either USB connection. Try other USB ports. Black bar on left/top of image Use the Picture Positioning arrows on the Video Settings dialog to shift the image leftwards /upwards until no black can be seen. -
Page 16: Specifications
Specifications Connectors (Notebook) USB mini-B female DE-15 VGA male (integrated cable) Connectors (Server) USB type A male (integrated cable) Server KB/Mouse LEDs Server VGA User Console Link/Activity Maximum Video Resolution 1920x1200@60Hz Dimensions 73.0mm x 135.0mm x 15.0mm Weight 0.14kg Windows XP(32/64bit)/ Vista(32/64bit)/ Compatible Operating Systems 7(32/64bit)/ Server 2008 R2, Mac OS x, and (Notebook) -
Page 17: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 18 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
