StarTech.com 8STNOTECONS02X Quick Start Manual

Quick start guide
Rugged crash cart adapter
NOTECONS02X
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging contents
• 1 x rugged crash cart adapter
• 1 x USB A to mini-B cable
• 1 x USB software key
• 1 x quick start guide
System requirements
Notebook requirements
• USB 2.0-enabled notebook computer
• 20 MB of available hard drive space
• 24-bit capable display
• One of the following operating systems:
• Windows® 7 (32-bit and 64-bit)
• Windows 8 (32-bit and 64-bit)
• Windows 8.1 (32-bit and 64-bit)
• Windows Vista® (32-bit and 64-bit)
• Windows XP® (32-bit and 64-bit)
• Windows Server® 2008 R2
• Windows Server 2003 (32-bit and 64-bit)
• Mac OS 10.6 and later (tested up to 10.10)
• Linux 2.6.x to 3.13x (32-bit and 64-bit)
Server requirements
• VGA-enabled video card (DVI support via optional DVIVGAMF
adapter)
• USB keyboard and mouse support
Operating system requirements are subject to change. For the latest
requirements, please visit www.startech.com/NOTECONS02X.
Product overview
For the latest information, technical specifications, and support for this
product, please visit www.startech.com/NOTECONS02X.

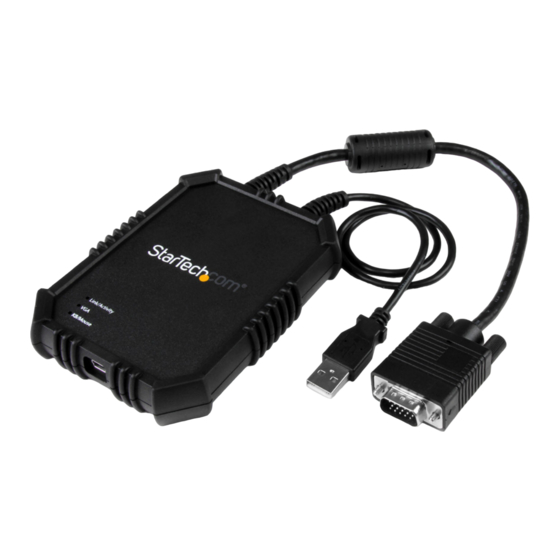

About the rugged crash cart adapter
Y
ou must install the provided software on the laptop to be able to
use the crash cart adapter. You don't need to make any changes to the
server(s) being controlled, and the crash cart adapter can be connected or
disconnected at any time. You don't need to start or shut down the software
before you unplug the crash cart adapter.
Install the software
Windows
1. Disconnect the crash cart adapter and cancel any Add new
2. Insert the provided USB software key and run the setup.exe
3. Follow the on-screen instructions to complete the installation.
4. Use the provided USB A to mini-B cable to connect the crash cart
5. A Found New Hardware dialog window should appear.
6. Windows locates the device driver files and installs them
7. Open the main application and begin using the crash cart
Note: You don't need to restart your computer to complete the
installation.
*actual product may vary from photos
Link and activity LED
VGA LED
Keyboard and mouse LED
USB connector
15-pin VGA connector
hardware dialog windows.
installation program.
adapter to a free USB port on your notebook. You don't need the
other server connections at this point.
automatically. This is a one-time step that you won't need to
complete again.
adapter.
Manual Revision: 06/17/2015
