Summary of Contents for StarTech.com ICUSB232

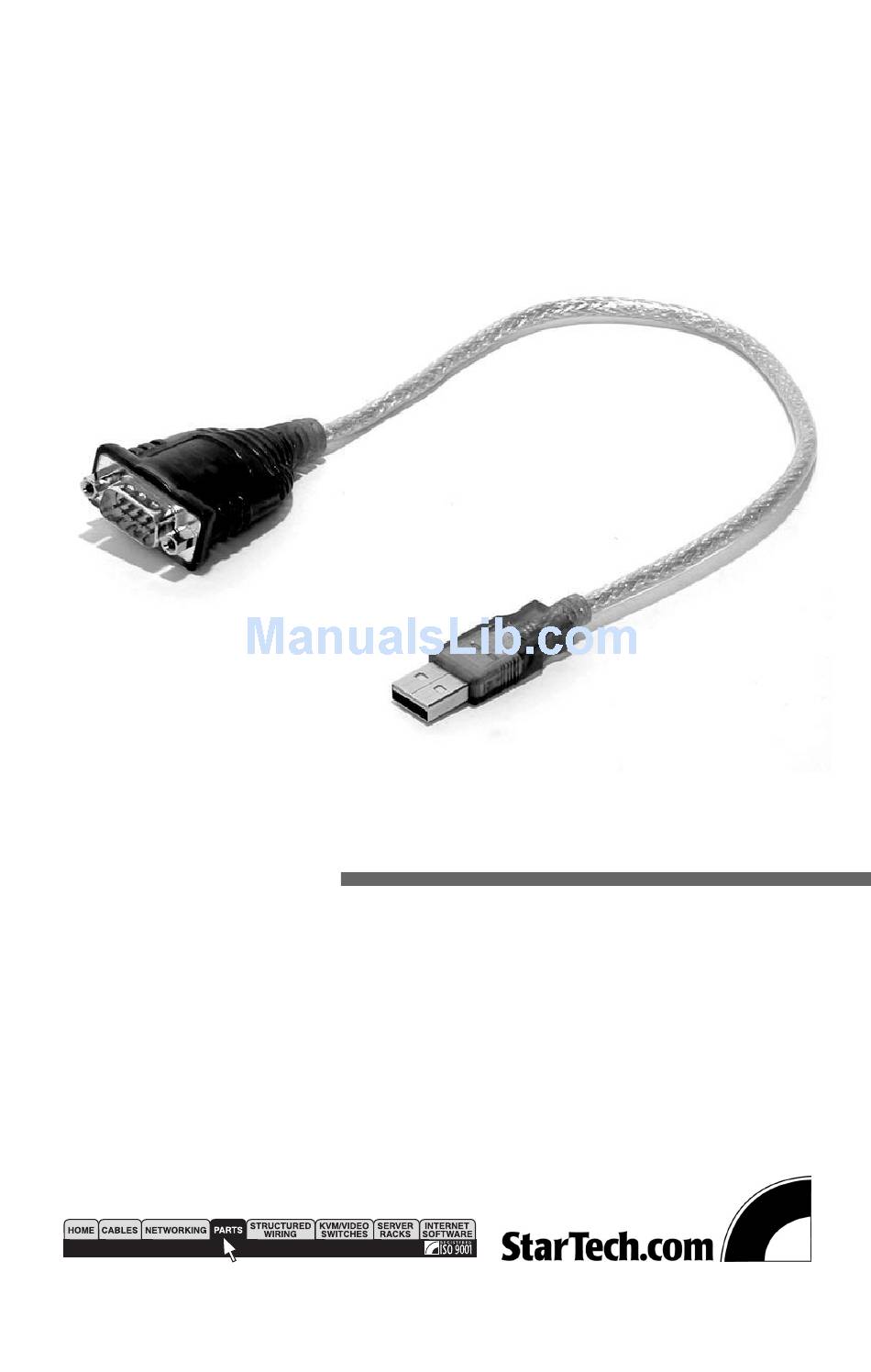

- Page 1 USB Converter USB to RS-232 Serial Converter Installation Manual ICUSB232...

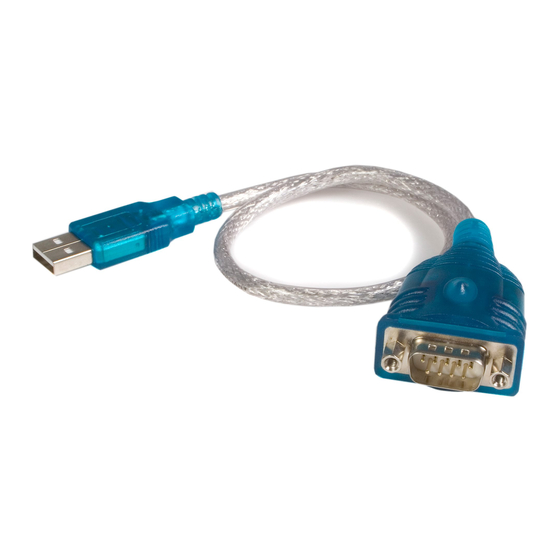

- Page 2 Overview The StarTech.com ICUSB232 USB Serial adapter provides an external plug-and-play RS-232 serial connection for computers, notebooks, laptops and handheld computing devices that support USB specifications. Peripherals such as modems, PDAs, digital cameras and ISDN terminal adapters are provided with a data transfer rate of over 500 Kbps.
-
Page 3: Specifications
Specifications Connectors Type A plug Serial DB9 Male Data Transfer Rate Over 230 Kbps Cable Length 35 cm Data Transfer/Handshaking (orange) LEDs 450 mW Power Consumption Power Mode BUS Powered V1.1 Compliant USB Specification 5 ~ 40 degrees C Operating Temperature Storage Temperature -20 ~ 60 degress C Humidity... -
Page 4: Getting Started
Getting Started This section is designed to help you prepare the ICUSB232 for installation. Please read through this section carefully before attempting to install the converter. Unpacking the ICUSB232 This package should contain: 1 x ICUSB232 USB Serial adapter 1 x Driver CD... - Page 5 If the Installation is completed successfully, you should see an entry for USB to Serial Cable. Peripheral Installation 1. With the computer booted up and the ICUSB232 adapter already plugged into the computer’s USB port, plug the peripheral into the ICUSB232; then turn the peripherals On.
- Page 6 2. Connect your USB/Serial cable to the computer’s USB port. 3. Click “OK”. 4. Type a folder name for the ICUSB232. 5. Open the folders to the new file you have created. 6. Drag the file “PL2303G” into the system extension “Apple Extras”, and restart your computer.
-
Page 7: Db 9 Pin Assignments
DB 9 Pin Assignments Assignment... -
Page 8: Radio And Tv Interference
Radio and TV Interference This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
