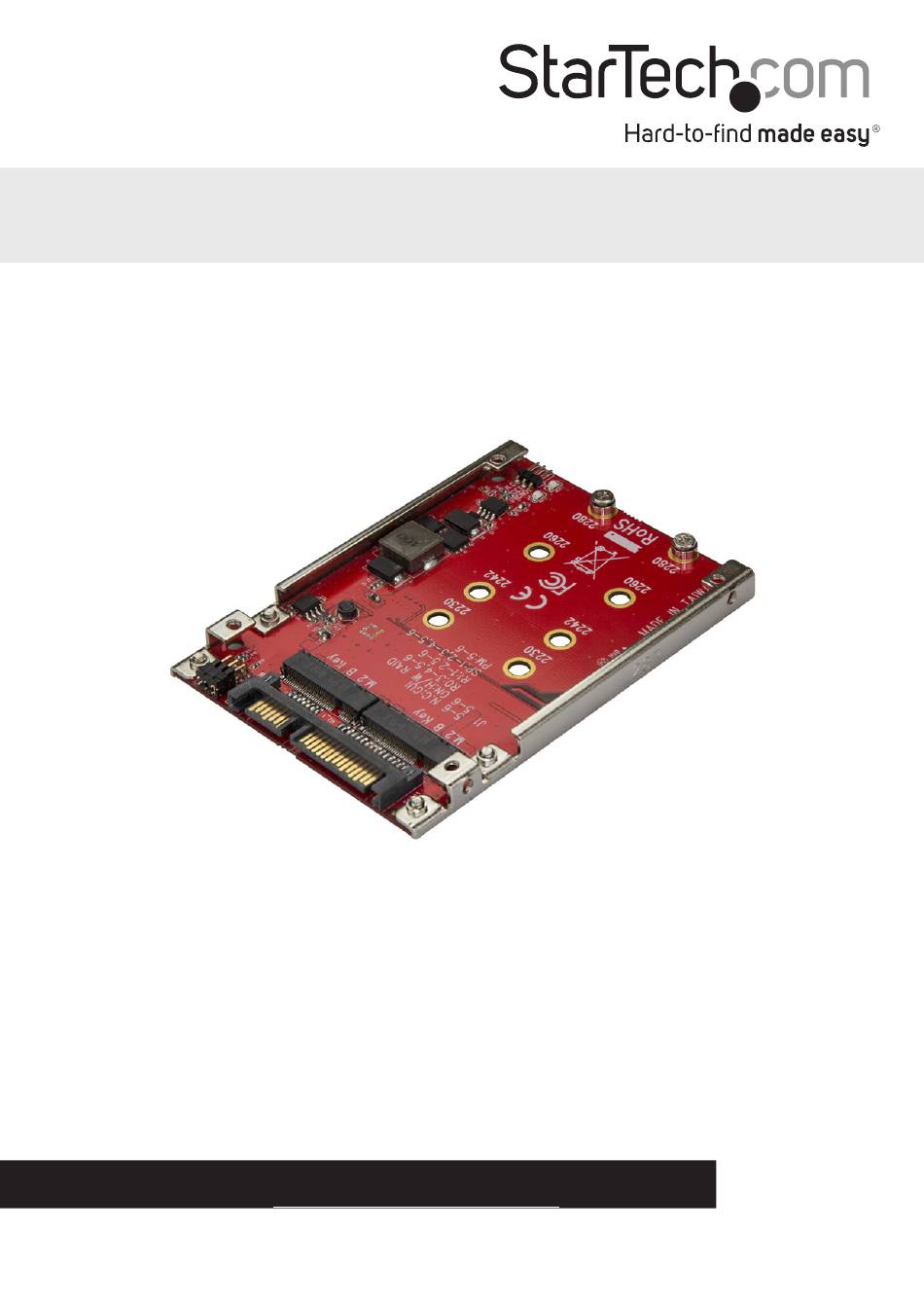

Dual-Slot M.2 Drive to SATA Host Adapter
for M.2 NGFF SSDs - RAID
S322M225R
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/S322M225SR.
Manual Revision: 08/21/2017
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com 0065030875141
Summary of Contents for StarTech.com 0065030875141
- Page 1 Dual-Slot M.2 Drive to SATA Host Adapter for M.2 NGFF SSDs - RAID S322M225R *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product diagram ..................1 Package contents ...................2 Requirements ..................2 About the LED indicators ..............2 Install and connect the host adapter ..........3 Prepare a hard drive for use ..............4 Windows OS ..............................4 macOS ................................5 About RAID modes .................5 Configure a RAID mode .................6 Technical support ...................7 Warranty information ................7... -
Page 4: Product Diagram
Product diagram Power LED RAID jumper switches M.2 NGFF key B connectors Drive installation holes (8 total) Drive-mounting hardware Activity/link LEDs Instruction manual... -
Page 5: Package Contents
The S322M225R is OS independent and doesn’t require any additional drivers or software. Requirements are subject to change. For the latest requirements, please visit www.StarTech.com/S322M225R. About the LED indicators The S322M225R features one power LED and two drive activity/link LEDs. -
Page 6: Install And Connect The Host Adapter
Install and connect the host adapter Warning! Always handle storage devices with caution. Make sure that you’re properly grounded by wearing an anti-static strap when you install any computer component. If an anti-static strap isn’t available, touch a large, grounded metal surface for several seconds to discharge any built-up static electricity. -
Page 7: Prepare A Hard Drive For Use
Prepare a hard drive for use Windows OS If you install a hard drive that has data on it, the hard drive appears under My Computer or Computer with a drive letter assigned to it. If you install a brand-new hard drive that doesn’t contain any data, you must prepare the hard drive for use. -
Page 8: Macos
macOS If you install a brand-new hard drive that doesn’t contain any data, you must prepare the hard drive for use. Warning! When you complete the following steps, you create a partition that uses the entire hard drive space. 1. Do one of the following: •... -
Page 9: Configure A Raid Mode
Consult the following table to determine which pins to short in order to set a RAID mode: RAID mode Short pins RAID 1 1-2, 5-6 RAID 0 3-4, 5-6 SPAN 1-2, 3-4, 5-6 JBOD/PM Configure a RAID mode Warning! When you set or change your RAID configuration, you will erase the data or metadata on your existing drives. -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
