Summary of Contents for Oricom Secure 310

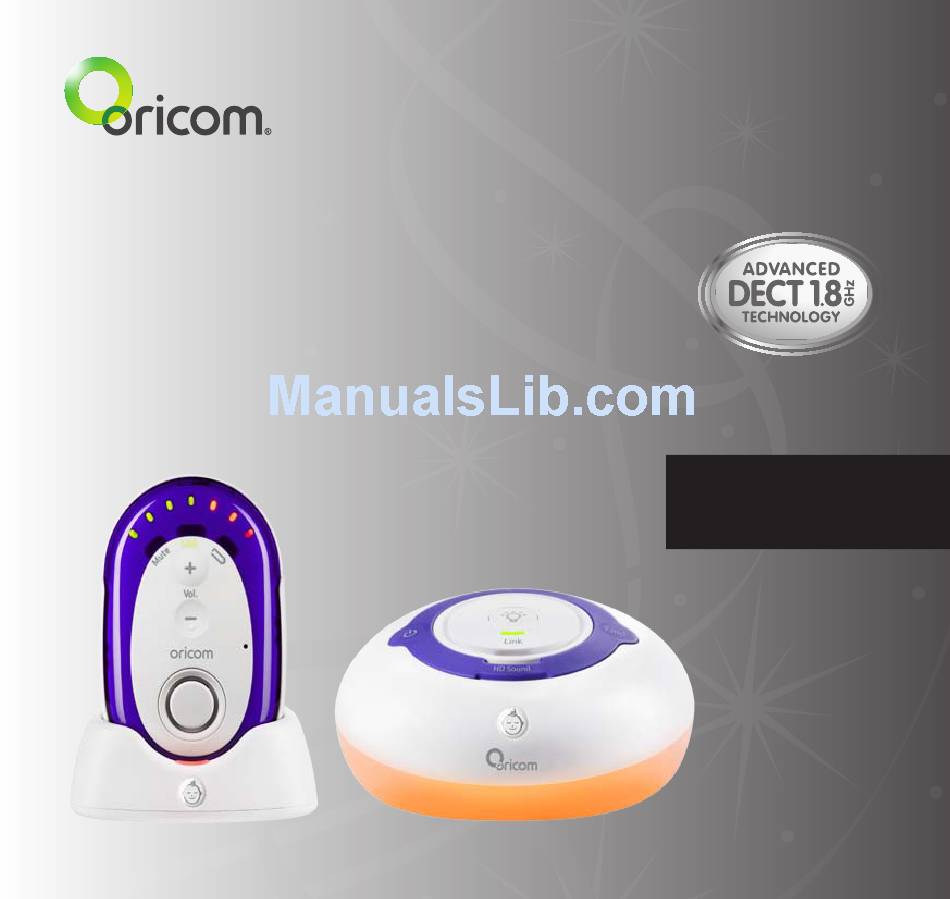

- Page 1 DECT Digital Baby Monitor Secure 310 User Guide...
-
Page 3: Table Of Contents
TABLE OF CONTENTS iMporTAnT SAfETy inforMATion ............4 GETTinG STArTED .................. 7 oriCoM DiGiTAl BABy MoniTor ............8 SETTinG Up ....................12 USinG yoUr DiGiTAl BABy MoniTor ........... 17 TroUBlESHooTinG ................25 WArrAnTy ....................27... -
Page 4: Important Safety Information
Customer support team. Our dedicated local team are more likely to be able to help you than the retailer where you made your purchase. • Your ORICOM Baby Monitor is designed to be an aid and should not be used as a substitute for responsible and proper adult supervision of a child. - Page 5 impOrTANT SAFETy iNFOrmATiON • The installation location plays an important role in ensuring proper operation. Therefore, maintain a distance of at least one meter from other electronic equipment, such as microwave ovens or hi−fi devices, otherwise they could cause interference. During continual use the Baby unit power adaptors may become warm to the touch.
- Page 6 • If you believe the batteries are damaged, remove product from the charger and stop using the product. Contact Oricom for assistance. Never use a damaged battery. Disposal Always dispose of your products at the end of their life in accordance with your local waste disposal requirements.
-
Page 7: Getting Started
Need help? • Parent unit charger If you need assistance setting up or using your Oricom Digital Baby Monitor call our Support • 2 x power adaptors team on 1300 889 785. If you would like any additional or replacement rechargeable batteries for the parent unit (Part No.BAT1300MAH) order... -
Page 8: Oricom Digital Baby Monitor
OriCOm DiGiTAL BABy mONiTOr parent unit power on/off (on top of unit) Press and hold to switch the power on or off. lanyard attach point (top of unit) Baby sound level lEDs You can loop a lanyard Indicates the level of received (not supplied) through here. -
Page 9: Parent Unit Charger
OriCOm DiGiTAL BABy mONiTOr parent unit charger front Charging light Red when the Parent unit is correctly placed on the charger. Back power socket For connection to the mains power socket via the power adaptor cable supplied. -
Page 10: Baby Unit
OriCOm DiGiTAL BABy mONiTOr Baby unit Microphone nightlight Press to switch the Nightlight on or off. power on/off Press and hold to switch the power on or off. find Press to emit an alert beep from the Parent unit –... - Page 11 OriCOm DiGiTAL BABy mONiTOr Back of Baby unit power socket For connection to the mains power socket via the power adaptor cable supplied.
-
Page 12: Setting Up
SETTiNG up parent unit 1. Plug one of the power adaptor cables into the socket marked on the back of the Parent unit charger and plug the other end into the mains power wall socket and switch the power on. 2. - Page 13 SETTiNG up 3. Place the Parent unit into the charger. The red charging light will illuminate on the charger and the battery icon will start scrolling on the Parent until display to indicate that the batteries are being charged. Charging light Leave the batteries to charge for 16 hours to reach maximum charge.
- Page 14 Parent unit. Eventually they will need to be replaced. New batteries can be obtained from the Oricom Digital Baby Monitor Support Centre 1300 889 785. The Parent unit rechargeable batteries will lose charge over a period of time, even if switched off.
-
Page 15: Switch On And Link The Parent And Baby Units
SETTiNG up Switch on and link the parent and Baby units 1. Press and hold the button on the Baby unit for 1 second. The nightlight will briefly illuminate and then the green Link indicator will flash. 2. Press and hold the button on the Parent unit until all the LEDs on the unit briefly illuminate. - Page 16 SETTiNG up If the link is broken: • check that the mains power is plugged in and switched on at the Baby unit • check that both units are switched on • check that the batteries are charged in the Parent unit •...
-
Page 17: Using Your Digital Baby Monitor
uSiNG yOur DiGiTAL BABy mONiTOr Switching on/off Switch the Baby unit on 1. Press and hold the button for 1 second. The nightlight will briefly illuminate and then the green Link indicator will flash until it links with the Parent unit. Once linked the green Link indicator will remain on. -
Page 18: Baby Sound Level Led Indicators
uSiNG yOur DiGiTAL BABy mONiTOr Baby sound level lED indicators lEDs 1-2 = Green lEDs 3-4 = Green lEDs 5-7 = red (or Amber if Mute low is on) The seven LEDs across the top of the Parent unit light up to indicate the level of sound being received from the Baby unit. -
Page 19: Adjust The Parent Unit Loudspeaker Volume
uSiNG yOur DiGiTAL BABy mONiTOr Adjust the parent unit loudspeaker volume There are 5 volume levels and off (Mute). The default loudspeaker volume is Level 3. 1. Press to select the required level. You will hear a difference in volume as you keep pressing the button(s). -
Page 20: Crying Alert
uSiNG yOur DiGiTAL BABy mONiTOr Mute All feature – parent unit only The Mute All feature prevents any sound coming from the Parent unit loudspeaker. With Mute All on you can still monitor your baby using the Baby sound level LED indicators (page 18) and the Crying Alert (below). 1. -
Page 21: Talk Back
uSiNG yOur DiGiTAL BABy mONiTOr When Mute Low is switched on, any sounds from the Baby unit to the Parent unit will be muted unless a sound is made above a set level. The set level are sounds that are louder than the first two green LEDs would register, as described in ‘Baby sound level LED indicators’... - Page 22 uSiNG yOur DiGiTAL BABy mONiTOr You will be able to activate Talk Back mode even if other functions have been activated at the Baby unit like Music playback or Nightlight on. Do not press the button when the Baby unit and Parent unit are positioned in the same room. High-pitch noise will be generated if the button is pressed when Baby unit and Parent unit are close to each other or within 3 metres distance.
-
Page 23: List Of Tones
uSiNG yOur DiGiTAL BABy mONiTOr list of tones Your Baby Monitor unit can produce various tones. They have the following meaning: Tone Meaning Single tone Confirmation tone e.g. setting saved. Double tone (fast) Error tone e.g. max volume reached when adjusting volume. - Page 24 uSiNG yOur DiGiTAL BABy mONiTOr reset the parent unit 1. Within 3 seconds of the Parent unit being switched on, press and hold the button for at least 10 seconds. The display will show reset for 2 seconds during the reset and then you will hear a confirmation beep once the reset has been performed.
-
Page 25: Troubleshooting
TrOuBLESHOOTiNG Should you experience difficulties operating the SC310 please refer to the troubleshooting guide below. If you still experience difficulties please contact Oricom Customer Support on 1300 889 785 for assistance. Troubleshooting problems Solutions Link light does not − Check that both the Baby and Parent units are come on switched on. - Page 26 TrOuBLESHOOTiNG Battery low on − Put the Parent unit back on the charger to charge. Parent unit − Place Parent unit back on the charger as frequently as possible or ideally leave it on the charger to ensure the batteries remain charged. −...
-
Page 27: Warranty
Warranty. Any implied warranties that may be imposed by law are limited in duration to the Warranty Period. Oricom warrants that the product is free from defects in materials or workmanship during the Warranty Period. This Warranty does not extend to any product from which the serial number has been removed or was purchased outside of Australia. - Page 28 No change to the conditions of this Warranty is valid unless it is made in writing and signed by an authorised representative of Oricom. Oricom will not be in breach of a warranty expressly set out in this User Guide or under the Competition and Consumer Act 2010 and excludes any liability for...
- Page 29 4 modification to the product or services carried out on the production by anyone other than Oricom or Oricom's authorised service provider. Oricom will not be liable for any damages caused by the product or the failure of the product to perform, including any lost profits or savings or special, incidental or consequential damages.
-
Page 31: Customer Support
If you have any problems setting up or using this product you will find use-full tips and information in the Troubleshooting section of this user guide as well as “Frequently Asked Questions” on our website www.oricom.com.au. If you have further questions about using the product after reviewing the resources above or would like to purchase replacement parts or accessories please call our Customer Support Team.
