PowerEdge R410 Technical Guidebook

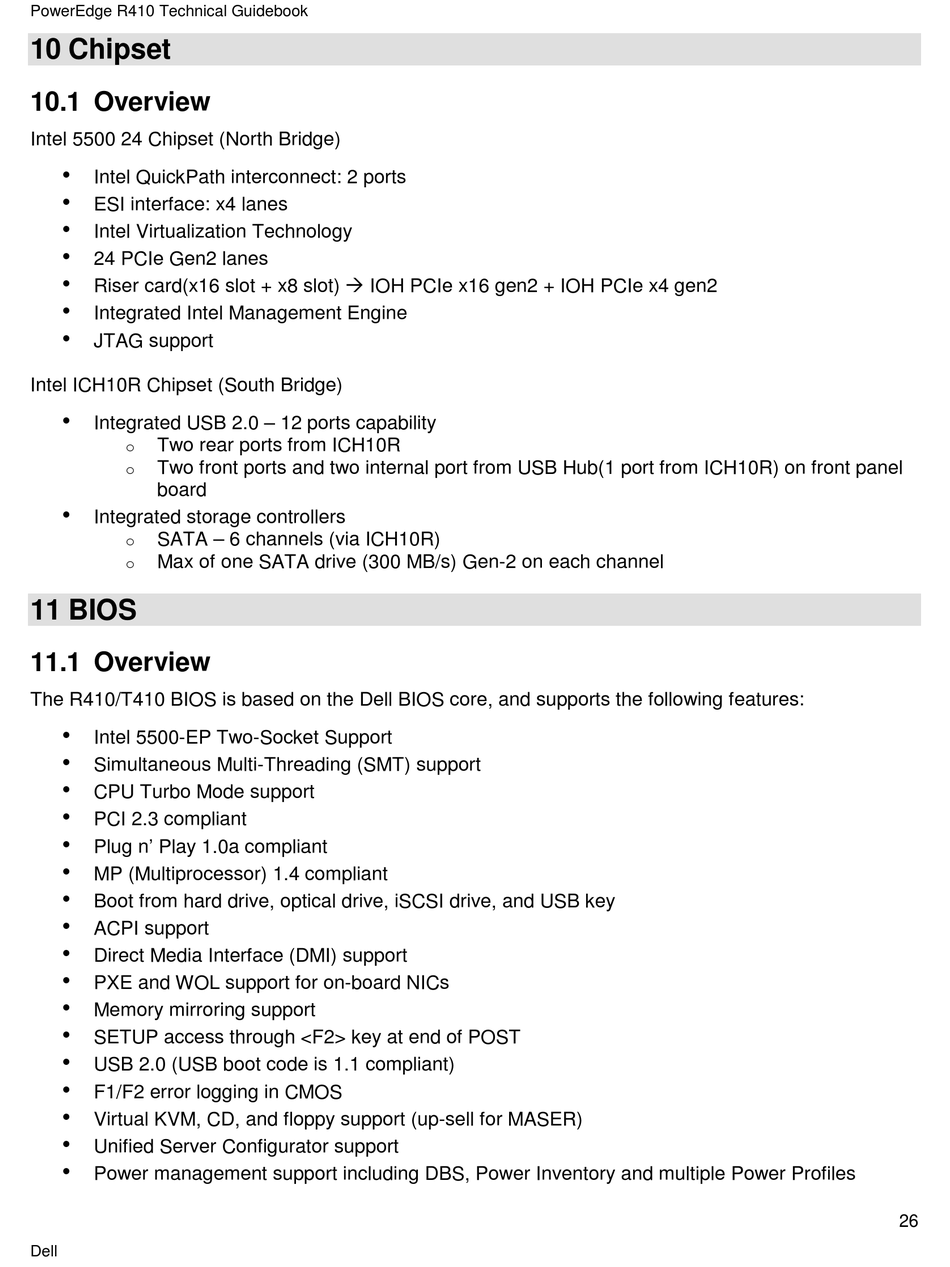

10 Chipset

10.1 Overview

Intel 5500 24 Chipset (North Bridge)
•
Intel QuickPath interconnect: 2 ports
•
ESI interface: x4 lanes
•
Intel Virtualization Technology
•
24 PCIe Gen2 lanes
•
Riser card(x16 slot + x8 slot)  IOH PCIe x16 gen2 + IOH PCIe x4 gen2
•
Integrated Intel Management Engine
•
JTAG support
Intel ICH10R Chipset (South Bridge)
•
Integrated USB 2.0 – 12 ports capability
Two rear ports from ICH10R
o
Two front ports and two internal port from USB Hub(1 port from ICH10R) on front panel
o
board
•
Integrated storage controllers
SATA – 6 channels (via ICH10R)
o
Max of one SATA drive (300 MB/s) Gen-2 on each channel
o

11 BIOS

11.1 Overview
The R410/T410 BIOS is based on the Dell BIOS core, and supports the following features:
•
Intel 5500-EP Two-Socket Support
•
Simultaneous Multi-Threading (SMT) support
•
CPU Turbo Mode support
•
PCI 2.3 compliant
•
Plug n' Play 1.0a compliant
•
MP (Multiprocessor) 1.4 compliant
•
Boot from hard drive, optical drive, iSCSI drive, and USB key
•
ACPI support
•
Direct Media Interface (DMI) support
•
PXE and WOL support for on-board NICs
•
Memory mirroring support
•
SETUP access through <F2> key at end of POST
•
USB 2.0 (USB boot code is 1.1 compliant)
•
F1/F2 error logging in CMOS
•
Virtual KVM, CD, and floppy support (up-sell for MASER)
•
Unified Server Configurator support
•
Power management support including DBS, Power Inventory and multiple Power Profiles
Dell
26
