PowerEdge R410 Technical Guidebook

4.10 Control Panel/LCD

Front control panel
LCD Status Description
LCD module and
cable/connector
Dell

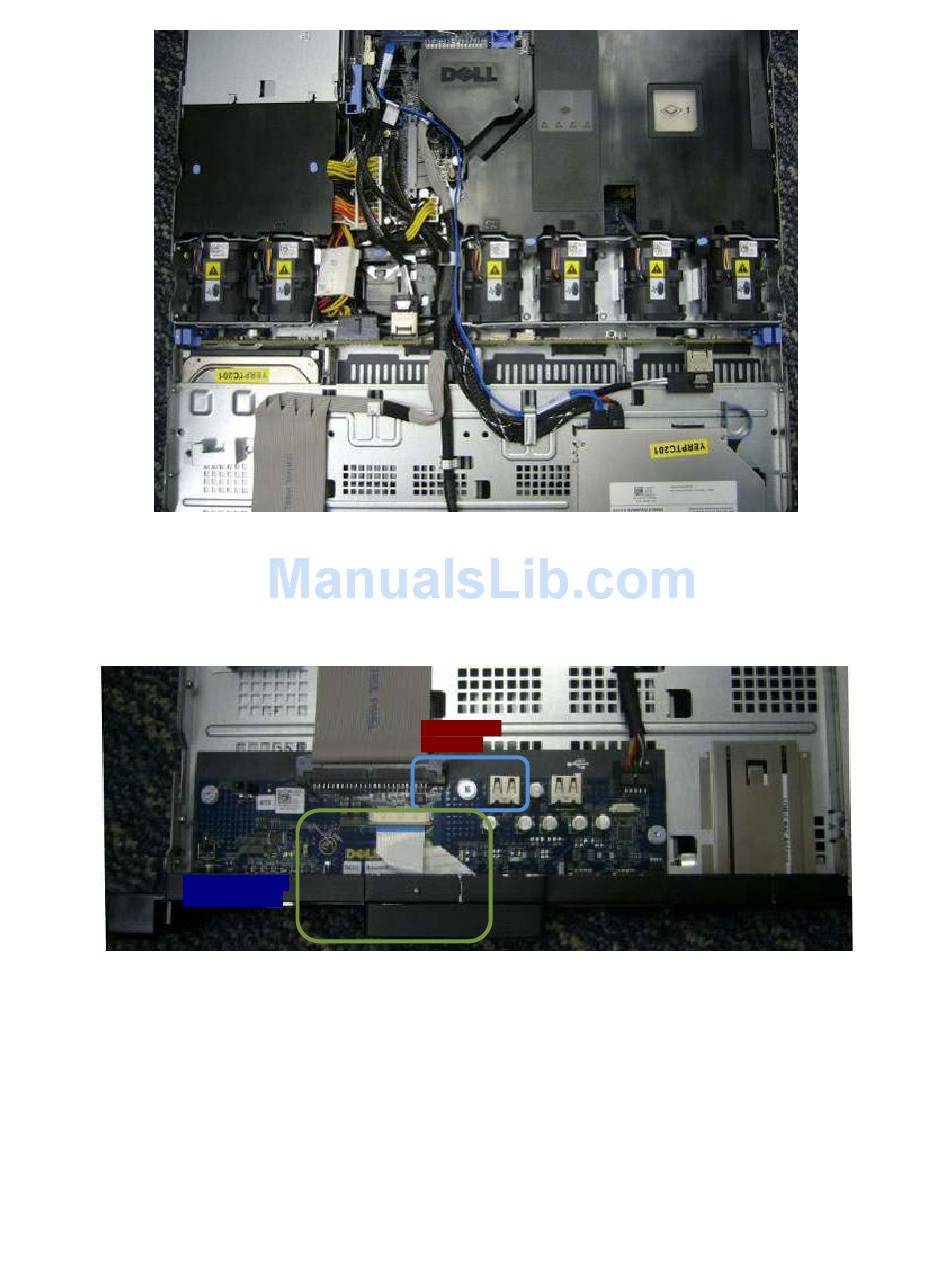

Figure 13. R410 Fans
Internal USB
connector
Figure 14. Front Controller Board with LCD
12
