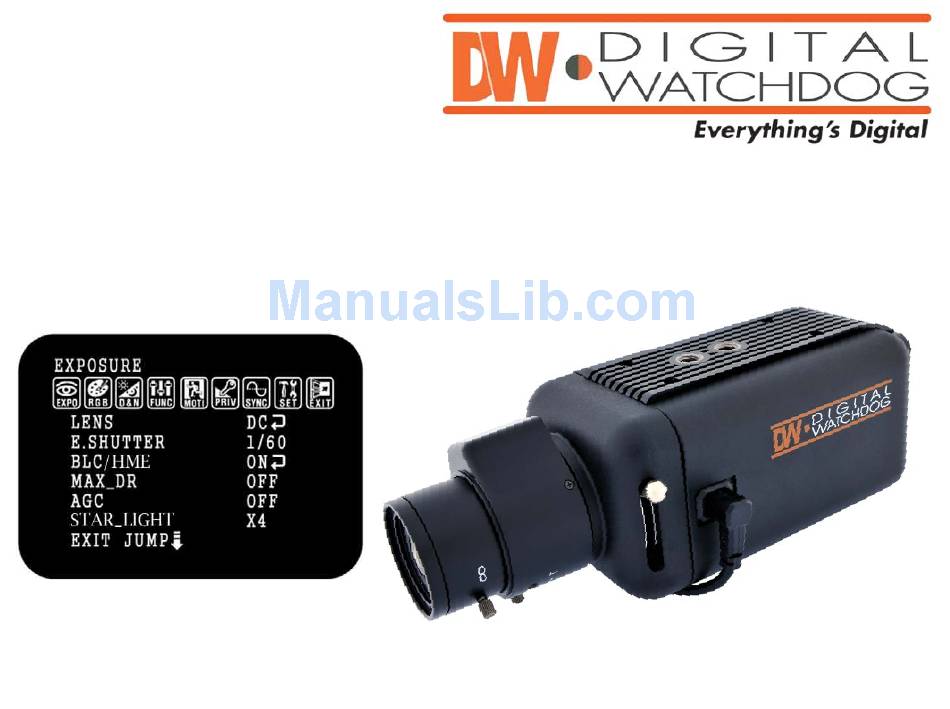

  • Page 1 Infinity C233W User Manual Version #2: Camera with ICON Menu 11192010...

  • Page 2: Fcc Compliance

    PRECAUTIONS  Do not open or modify.  Do not open the case except during maintenance and installation, for it may be dangerous and can cause damages.  Do not put objects into the unit.  Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages. ...
  • Page 3 FEATURES 1/3” Sony Super HAD II CCD High Resolution 560 TV Lines True Day & Night / TDN5 (Electro Magnetic Mechanism) Star-Light (Super Low Light Technology) Max-DR (Electronic Wide Dynamic Range) Enables the camera to capture perfect images in both bright and dark environments simultaneously. 3D-DNR (3D Digital Noise Reduction) Produces less noise and more color during low-light application.

  • Page 4: Adjustment Of Back Focus

    ADJUSTMENT OF BACK FOCUS 1. Please make sure the lens is C or CS Mount. To use C Mount lens, please fix the lens into front camera after mounting the included C ring to the lens. To use CS Mount lens, fix the lens directly into the front camera without the C ring.
  • Page 5 DIMENSIONS (mm)

  • Page 6: Day & Night

    EXPOSURE LENS DC (0~100) / MANUAL / VIDEO. (DC Lens is recommended.) SHUTTER 1/160 /1/100 / FLC / 1/250 ~ 10000 / SENS-UP x2 ~ x250 OFF / ON BLC (Back Light Compensation) HIGH / MIDDLE / LOW / OFF AGC (Auto Gain Control) MAX-DR OFF / ON (0 ~ 20) (Electronic Wide Dynamic Range)
  • Page 7 FUNCTION MIRROR OFF / MIRROR / V-FLIP / ROTATE SHARPNESS 0 ~ 31 GAMMA 0.05 ~ 1.00 / USER FREEZE OFF / ON NEGATIVE OFF/ ON OFF / LOW / MIDDLE / HIGH 3D-DNR 3D-DNR (3D Digital Noise Reduction) D-ZOOM OFF / ON (x1.0 ~ x32 PTZ) OFF / ON SLC (Side Light Compensation)
  • Page 8 PRIVACY MASK 1 OFF / ON MASK 2 OFF / ON MASK 3 OFF / ON MASK 4 OFF / ON MASK 5 OFF / ON MASK 6 OFF / ON EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET SETUP CAMERA ID 0 ~ 255 TITLE...
  • Page 9 SYNC SYNC INTERNAL / AUTO V-PHASE 0 ~ 199 EXIT JUMP EXIT / SAVE & EXIT / FACTORY SET EXIT EXIT Exit the menu SAVE&EXIT Exit the menu and save the setting FACTORY SET Reset the menu setting to factory default...

  • Page 10: Specifications

    Camera TYPE Color / BW C233W SPECIFICATIONS: Mount 3D Bracket Image Device Super HAD II CCD Size 1/3" Pixels-Total 811(H) x 508 (V) Pixels-Effective 768(H) x 494 (V) Scanning System 525 line, 2:1Interlace Horizontal Frequency Internal Mode 15,734Hz Vertical Frequency Internal Mode 59.94Hz F1.2 0.14 Lux...
