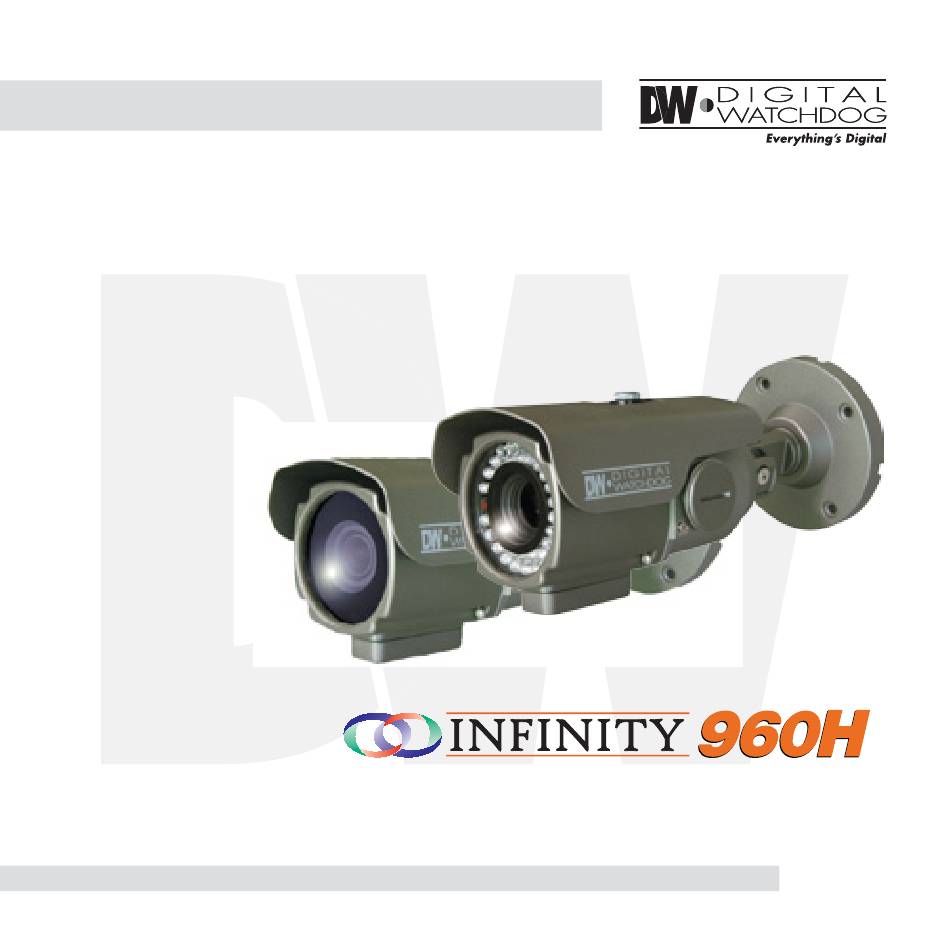

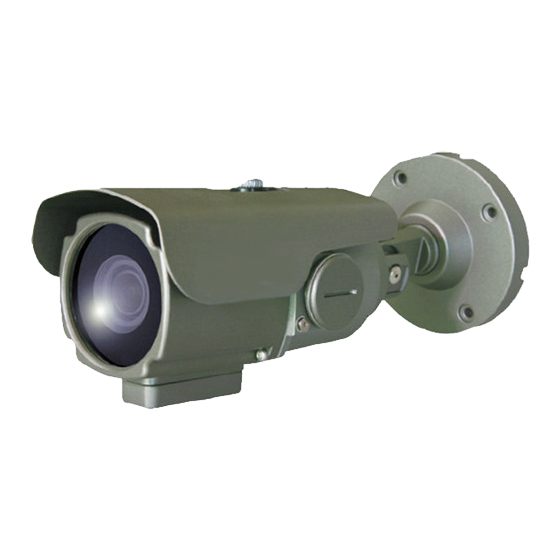

- Page 1 960H Outdoor Bullet Camera Double Arm Bracket DWC-B1567WD DWC-B1567WTIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 11192012...
- Page 2 PRECAUTIONS Do not open or modify. Do not open the case except during maintenance and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
- Page 3 Table of Contents Introduction Features Parts and Descriptions Dimensions Installation Included Accessories Easy Installation Connecting to Monitors _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Control Board _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Adjusting the Lens Camera Setting Angle Camera OSD Menu and Glossary...
- Page 4 FEATURES* DWC-B1567WD / DWC-B1567WTIR 1/3” 960H High Resolution CCD 700 TV Lines 3.3~12mm Varifocal Auto Iris Lens True Day and Night (DWC-B1567WTIR only) Star-Light (Super Low Light Technology) EWDR (Electronic Wide Dynamic Range) 3D-DNR (3D Digital Noise Reduction) HME (Highlight Masking Exposure) AGC / BLC / AWB Negative Imaging Mirror Image Control...
- Page 5 PART & DESCRIPTIONS* RS 485 No IR Front Case Rear Case BNC Jack Zoom, Focus Housing Control Board Power Input Connector DC 12V / AC24V Voltage Sunshield Control Cap Assembly Screw Lens Double Arm Bracket Fixing Screw Set Screw...
- Page 6 DIMENSIONS IN MILLIMETERS (INCHES)* 230(9.05”) 86.5(3.40”) 122(4.80”) 96.5(3.79”) No IR 78.0(3.07”) 5(0.19”) 68.0(2.67”) 96.0(3.77”) 86.5(3.40”)
- Page 7 INSTALLATION* 1. User Manual 2. Mounting Template 3. Four (4) Screws and Four (4) Dry Wall Anchors 4. Second Video Jack 5. Tool 6. L-Wrench ...
- Page 8 EASY INSTALLATION* Use the 4 mounting screws to install the camera on the wall or ceiling. Then, follow the next step on the pages 9-12. NPT 3/4” Pipe *Installation Using a Junction Box *Note: Electrical junction box and required screws sold separately.
- Page 9 CONNECTING TO MONITORS* 12VDC/24VAC CCTV Monitor Left Right Down 2nd Video Output Monitor 30cm Power Connection - 12VDC/24VAC Dual Voltage (Auto polarity detection and protection) All cameras are equipped with a service monitor output on the camera module.
- Page 10 CONTROL BOARD* Joystick Secondary Connector Functions: To Access Control Board: [1] Remove clear plastic ring from the [1] Joystick - control cap. Controls the OSD menu. [2] Turn Control Cap counter-clockwise [2] Secondary Connector - T ests video output connector. until cap separates completely from the camera body.
- Page 11 ADJUSTING THE VARIFOCAL DC AUTO IRIS LENS* Follow the instructions provided below to make any lens adjustments. To adjust the field of view, use the L-Wrench to turn the zoom screw (located on the bottom of the camera) counter-clockwise to zoom in, or clockwise to zoom out. Adjust the focus the same way as described above AFTER the desired zoom position is established.
- Page 12 CAMERA SETTING ANGLE* Locking screw for 360˚ panning angle. Locking screw for 90˚tilting angle. CAUTION : 1. Do not rotate it more than 360° 2. Do not twist it many times unnecessarily.
- Page 13 MODULE OSD MENU* EXPOSURE COLOR DAY NIGHT LENS WB MODE D&N MODE Manual / DC 0~99 AWC / ATW / MANUAL / PUSH AUTO / COLOR / B&W E.SHUTTER R-Y GAIN C-SUP 1/60, 1/100 FLC, 1/120 ~ 100000/ 0~255 0~100 x256 ~ X2 B-Y GAIN A-SUP...
- Page 14 EXPOSURE LENS MANUAL mode supports MANUAL Select DC and control Joystick to DC mode supports an a Fixed Board lens adjust the brightness level from Auto-Iris Varifocal lens. or a Manual Iris lens. 0~99. E. SHUTTER 1/60 is the default shutter speed. Select 1/100FLC for flickerless mode.
- Page 15 EXPOSURE Backlight compensation prevents When ON is selected, BLC levels subjects from appearing too dark in can be adjusted from 0 ~ 255 in five defined areas of a scene when areas. backlighting is present. MAX-DR When ON is selected, the Max-DR Max Dymanic Range provides clear level can be adjusted from 0 to 20.
- Page 16 EXPOSURE Auto Gain Control automatically adjusts the video gain to enhance picture brightness in low light conditions. Select AGC OFF / LOW / MIDDLE / HIGH. STARLIGHT Starlight automatically activates the slow shutter function when a scene is too dark. You can adjust the frame integration level from X2 to X256, or select OFF.
- Page 17 COLOR WB MODE Auto White Balance Control mode compensates for color temperature changes between 2000K and 18000K. Auto Tracking White Balance Control mode compensates for color temperature changes between 2500K and 9500K. Users can control the white balance manually MANUAL by changing RED GAIN (M.WB R) and BLUE GAIN (M.WB B).
- Page 18 DAY NIGHT DAY & NIGHT AUTO Camera switches between day and night automatically depending on certain light levels. COLOR Camera always stays in day mode. Camera always stays in night mode. ※ If AUTO is selected, please define the following settings. ▪...
- Page 19 FUNCTION MIRROR Flips the image horizontally. MIRROR / OFF SHARPNESS Sets the image sharpness. The higher the number, the sharper the image. 0~25 Controls the output signal level. The higher the GAMMA setting, the darker the dark colors will be. 0.45 is the default. NEGA Negative reverses the color signals (C and Y).
- Page 20 FUNCTION Highlight Masking Exposure masks highlights and allows objects to appear more clearly. If ON is selected, the HME level can be adjusted from 0-60. EXIT JUMP EXIT Exit the OSD without saving. SAVE & EXIT Exit the OSD after saving the current settings. FACTORY SET Go back to factory default settings.
- Page 21 MOTION MOTION The camera can detect movement and display an alarm on the screen. SET WINDOW If ON is selected, 1 ~ 240 motion areas appear. Select from 1 to 240 cells. To exit: go to cell in upper right-hand corner and move joystick to the right to return to the OSD menu.
- Page 22 MOTION SHOW INDI. TRACE Set the motion detection indicator to OFF / ICON / TRACE. If ICON is selected, a blue bell will appear in the upper left hand corner of the screen when motion is detected. If TRACE is selected, the area where motion was detected will be highlighted.
- Page 23 PRIVACY You can hide some parts of the screen for privacy masking. Total 6 different privacy masking zones are available. MASK 1~ MASK 6 Select On or OFF for each mask OFF / ON (MASK 1 through 6). If ON is selected, you can set the area to be masked and the shape and color of the mask. Select SET WINDOW.
- Page 24 SYNC SYNC MODE Select AUTO / INTERNAL. - Select AUTO (L/L) to synchronize video signals when two or more cameras are using AC power in a switching system. - Select INTERNAL if camera uses DC power. V-PHASE When more than two cameras are installed in a switching system, phase difference in the AC power line can occur.
- Page 25 SET-UP CAMERA ID Assign an ID number for the camera. Select a value from 0 to 254 . TITLE Display a title for the camera on the screen. Select ON / OFF . If ON is selected, define the following settings: - EDIT to select characters.
- Page 26 SET-UP DPC (Dead Pixel Cancellation) Dead Pixel Cancellation automatically removes defective pixels in real time. Select OFF or AUTO. If AUTO is selected, define the following: - WHITE THR.: Cancels the white defective pixels. - BLACK THR.: Cancels the black defective pixels. - DPC LEVEL: Adjusts the sensitivity level of the dead pixel cancellation.
- Page 27 SET-UP LANGUAGE Select langauge to dispay on the monitor. Select ENG / CHN. BAUDRATE Adjust the data communication speed. Select 2400 / 4800 / 9600 / 14400 / 19200 / 38400.
- Page 28 SET-UP OMNI LENS Set the OMNI LENS menus when you use an Omni Focus Lens. If 0 (=ON) is selected, set the following sub-menus: ALARM Works with the MOTION DETECT function. When motion is detected, the camera gives off an alarm. Select ON or OFF. READ TIME Set how many seconds to stay zoomed in when alarm occurs.
- Page 29 EXIT EXIT Exit the OSD without saving. SAVE & EXIT Exit the OSD after saving the current settings. FACTORY SET Go back to factory default.
- Page 30 TROUBLESHOOTING Before sending your camera for repair, check the following or contact one of our technical specialists. No VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the menu setup of the camera. Check the power supply and make sure the camera has the proper voltage and current.
- Page 31 WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR : For the initial five (5) years and one (1) year on IR LED from the original purchase date,...
- Page 32 LIMITS AND EXCLUSIONS* There are no express warranties except as listed above. The Warrantor will not be liable for incidental or consequential damages (including without limitation or damage to recording media), resulting from the use of these products or arising out of any breach of the warranty.
- Page 33 SPECIFICATIONS* VIDEO Image Sensor 960H Sharp CCD Total Pixels 1020 (H) x 507 (V), 520K Pixels Scanning System 2 : 1 Interlace Frequency 15.734KHz (H), 59.95Hz (V) Synchronization Internal or Auto Horizontal Resolution 650 TV Lines [Color], 700 TV Lines [B/W] Minimum Illumination F1.2 (30IRE): 0.3 Lux [Color]...
- Page 34 Motion Detection OFF / ON Privacy Zones OFF / ON Programmable Zones) Title ON / OFF (Up to 16 Characters) Language ENGLISH / CHINESE ENVIRONMENTAL Operating Temperature C ~ 55 C (14 F ~ 131 Operating Humidity Less than 90% (Non-Condensing) Storage Temperature C ~ 70 C (-4...
