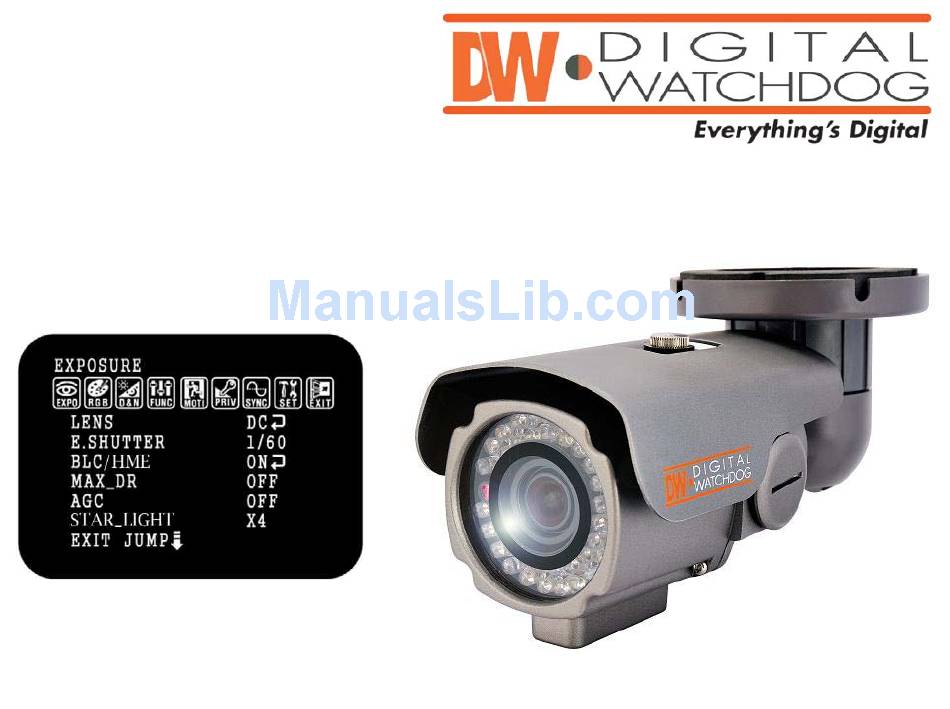

- Page 1 Infinity B1367WTIR650 User Manual Version #2: Camera with ICON Menu 11192010...
-
Page 2: Fcc Compliance
PRECAUTIONS Do not open or modify. Do not open the case except during maintenance and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages. ... - Page 3 FEATURES 1/3” Sony Super HAD II CCD High Resolution 560 TV Lines 6 ~ 50mm Varifocal Auto Iris Lens 250ft Range IR with Intelligent Camera Sync True Day & Night / TDN5 (Electro Magnetic Mechanism) Star-Light (Super Low Light Technology) Max-DR (Electronic Wide Dynamic Range) Enables the camera to capture perfect images in both bright and dark environments simultaneously.
-
Page 4: Installation And Adjustment
INSTALLATION AND ADJUSTMENT Included with DW Bullet Camera: User Manual Mounting Template Two Security L-Key Secondary BNC Cable for a Field Monitor Four (4) Screws and Four (4) Dry Wall Anchors... - Page 5 DIMENSION (mm) & POWER REQUIREMENT RS485 (Black+ / White - ) POWER REQUIREMENT: 12VDC @1A 24VAC @ .500mA POWER WIRE MAXIMUM DISTANCE COAXIAL CABLE TYPE MAXIMUM DISTANCE Wire Gauge 12VDC 24VAC 24 AWG 80feet 323feet RG59/ U 750feet 22 AWG 128feet 513feet RG6/U...
-
Page 6: Camera On-Screen Display
CAMERA ON-SCREEN DISPLAY Functional Control of On-Screen Display [SW1] Functional of Video Out [CON2] Functional when using Pan Focus Lens [OPTION] The LED around the lens flickers 3 times when you push [SW3] for 2 seconds. Then, the function of [SW1] changes from OSD Control Key to Zooming Control Key. -
Page 7: Day & Night
EXPOSURE LENS DC (0~100) / MANUAL / VIDEO. (DC Lens is recommended.) SHUTTER 1/160 /1/100 / FLC / 1/250 ~ 10000 / SENS-UP x2 ~ x250 OFF / ON BLC (Back Light Compensation) HIGH / MIDDLE / LOW / OFF AGC (Auto Gain Control) MAX-DR OFF / ON (0 ~ 20) (Electronic Wide Dynamic Range) - Page 8 FUNCTION MIRROR OFF / MIRROR / V-FLIP / ROTATE SHARPNESS 0 ~ 31 GAMMA 0.05 ~ 1.00 / USER FREEZE OFF / ON NEGATIVE OFF/ ON OFF / LOW / MIDDLE / HIGH 3D-DNR 3D-DNR (3D Digital Noise Reduction) D-ZOOM OFF / ON (x1.0 ~ x32 PTZ) OFF / ON SLC (Side Light Compensation)
- Page 9 PRIVACY MASK 1 OFF / ON MASK 2 OFF / ON MASK 3 OFF / ON MASK 4 OFF / ON MASK 5 OFF / ON MASK 6 OFF / ON EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET SETUP CAMERA ID 0 ~ 255 TITLE...
-
Page 10: Save And Exit
SYNC SYNC INTERNAL / AUTO V-PHASE 0 ~ 199 EXIT JUMP EXIT / SAVE & EXIT / FACTORY SET EXIT EXIT Exit the menu SAVE&EXIT Exit the menu and save the setting FACTORY SET Reset the menu setting to factory default... -
Page 11: Specifications
Camera TYPE Color / BW B1367WTIR650 SPECIFICATIONS: Mount 3D Bracket Image Device Super HAD II CCD Size 1/3" Pixels-Total 811(H) x 508 (V) Pixels-Effective 768(H) x 494 (V) Scanning System 525 line, 2:1Interlace Horizontal Frequency Internal Mode 15,734Hz Vertical Frequency Internal Mode 59.94Hz Min.
