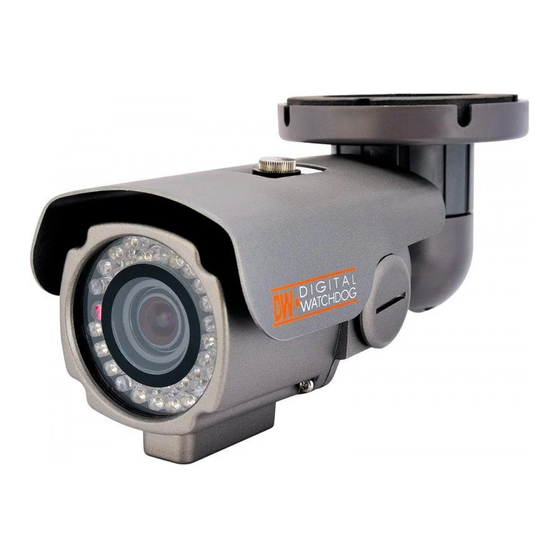

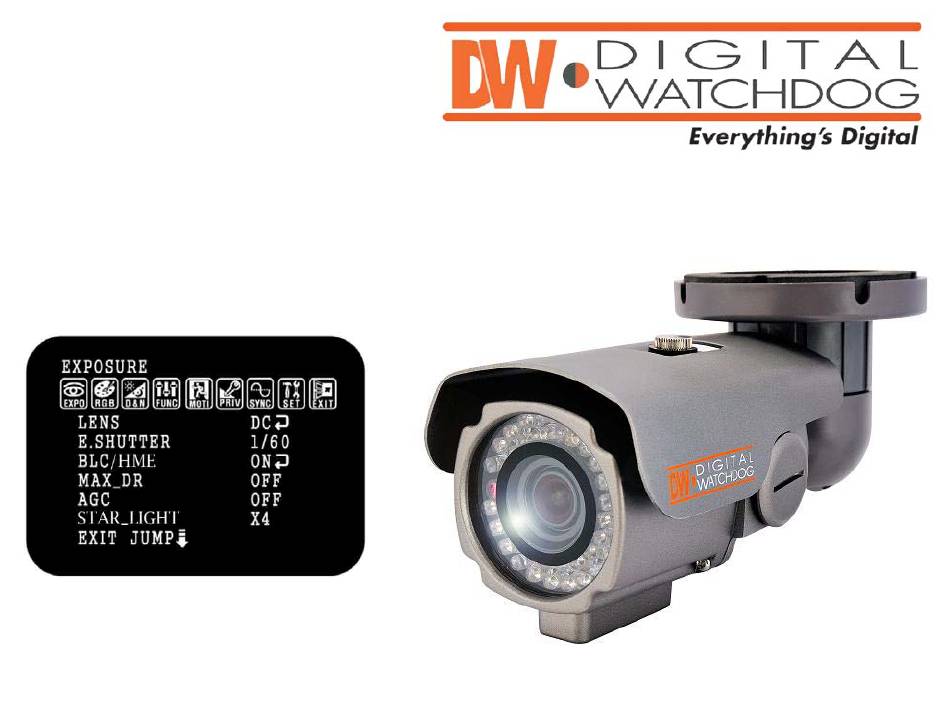

- Page 1 Infinity OMNI-Plus B2382TIR User Manual Version #2: Camera with ICON Menu 11192010...
-
Page 2: Fcc Compliance
PRECAUTIONS Do not open or modify. Do not open the case except during maintenance and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages. ... - Page 3 FEATURES 1/3” Sony Super HAD II CCD High Resolution 560TV Lines OMNI-Focus 2.9~8.5mm 3X Motorized Zoom, Auto Iris 70ft Range IR with Intelligent Camera Sync True Day & Night / TDN5 (Electro Magnetic Mechanism) Max-DR (Electronic Wide Dynamic Range) Enables the camera to capture perfect images in both bright and dark environments simultaneously. 3D-DNR (3D Digital Noise Reduction) Produces less noise and more color during low-light application.
-
Page 4: Installation And Adjustment
INSTALLATION AND ADJUSTMENT Included with DW Bullet Camera: User Manual Mounting Template One Security L-Key Secondary BNC Cable for a Field Monitor Four (4) Screws and Four (4) Dry Wall Anchors IR Remote Controller... - Page 5 DIMENSION (mm) & POWER REQUIREMENT RS485 (Black+ / White - ) POWER REQUIREMENT: 12VDC @1A 24VAC @ .500mA POWER WIRE MAXIMUM DISTANCE COAXIAL CABLE TYPE MAXIMUM DISTANCE Wire Gauge 12VDC 24VAC 24 AWG 80feet 323feet 22 AWG 128feet 513feet RG59/ U 750feet 20 AWG 203feet...
-
Page 6: Ir Remote Controller
IR REMOTE CONTROLLER Key Button Press [KEY] button + [ID]. Menu Access and Control (Default is “001” for ID=1.) Point the remote control towards the camera, then press and hold [0] until the Red LED light starts flashing. Zoom Function Press and hold the [KEY] button, until LED turns a Control solid Red color. -
Page 7: Camera On-Screen Display
CAMERA ON-SCREEN DISPLAY Functional Control of On-Screen Display [SW1] Functional of Video Out [CON2] Functional when using Pan Focus Lens [OPTION] The LED around the lens flickers 3 times when you push [SW3] for 2 seconds. Then, the function of [SW1] changes from OSD Control Key to Zooming Control Key. -
Page 8: Day & Night
EXPOSURE LENS DC (0~100) / MANUAL / VIDEO. (DC Lens is recommended.) SHUTTER 1/160 /1/100 / FLC / 1/250 ~ 10000 / SENS-UP x2 ~ x250 OFF / ON BLC (Back Light Compensation) HIGH / MIDDLE / LOW / OFF AGC (Auto Gain Control) MAX-DR OFF / ON (0 ~ 20) (Electronic Wide Dynamic Range) - Page 9 FUNCTION MIRROR OFF / MIRROR / V-FLIP / ROTATE SHARPNESS 0 ~ 31 GAMMA 0.05 ~ 1.00 / USER FREEZE OFF / ON NEGATIVE OFF/ ON OFF / LOW / MIDDLE / HIGH 3D-DNR 3D-DNR (3D Digital Noise Reduction) D-ZOOM OFF / ON (x1.0 ~ x32 PTZ) OFF / ON SLC (Side Light Compensation)
- Page 10 PRIVACY MASK 1 OFF / ON MASK 2 OFF / ON MASK 3 OFF / ON MASK 4 OFF / ON MASK 5 OFF / ON MASK 6 OFF / ON EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET SETUP CAMERA ID 0 ~ 255 TITLE...
-
Page 11: Save And Exit
SYNC SYNC INTERNAL / AUTO V-PHASE 0 ~ 199 EXIT JUMP EXIT / SAVE & EXIT / FACTORY SET EXIT EXIT Exit the menu SAVE&EXIT Exit the menu and save the setting FACTORY SET Reset the menu setting to factory default... -
Page 12: Specifications
Camera TYPE Color / BW B2382TIR SPECIFICATIONS: Mount 3D Bracket Image Device Super HAD II CCD Size 1/3" Pixels-Total 811(H) x 508(V) Pixels-Effective 768(H) x 494(V) Scanning System 525 line, 2:1Interlace Horizontal Frequency Internal Mode 15,734Hz Vertical Frequency Internal Mode 59.94Hz Min.
