USB 2.0 1-to-2 Standalone Flash Drive
Duplicator
USBDUP12
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 02/20/2013
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com USBDUP12
Summary of Contents for StarTech.com USBDUP12
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 02/20/2013...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 Front ......................2 Back ......................2 How to Use ....................3 1. Copy .....................5 1.1 Synchronous Copy ..........................5 1.2 Asynchronous Copy ......................... 6 2. Compare ....................7 3. Copy + Compare .................7 4. Capacity Check ...................7 5. - Page 4 6.3.2 H5 R/W 100% ............................ 10 6.3.3 Setup Range ............................. 10 6.3.4 Setup Error Limit ..........................10 6.4 Quick Erase ............................10 6.5 Full Erase ..............................11 6.6 DoD Erase .............................. 11 6.7 System Update ............................ 11 6.8 Calc. Checksum ........................... 11 7.
-
Page 5: Introduction

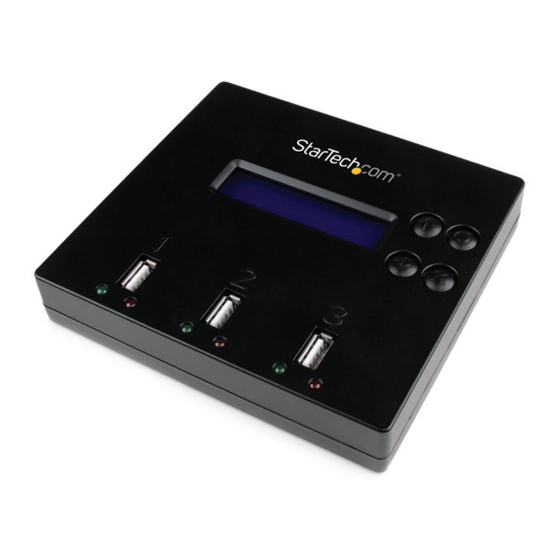

Introduction The USBDUP12 USB 2.0 1:2 Standalone Flash Drive Duplicator offers a quick and easy solution for duplicating/cloning a USB flash drive to one or two target USB flash drives without connecting to a computer system. Featuring high performance duplications at up to 1.5GB per minute, the flash drive copier has a lightweight design, and user friendly interface using the integrated LCD display. -
Page 6: Front
Front Forward USB Master Port Backward Signal LED USB Target Port Back DC Power Power Port Switch Instruction Manual... -
Page 7: How To Use
How to Use Menu Options 1. Copy 2. Compare 3. Copy + Compare 4. Capacity Check 5. Information 5.1 USB Info 5.2 System Info 6. Utility 6.1 Format 6.1.1 Auto Format 6.1.2 FAT Format 6.1.3 FAT32 Format 6.2 Measure Speed 6.3 Media Check 6.3.1 H3 Sake 100% 6.3.2 H5 RW 100%... - Page 8 Menu Options (Continued) 7. Setup 7.1 Start-up Menu 7.2 Copy Area 7.2.1 System and Files 7.2.2 Whole Media 7.3 Button Beep 7.4 Asynchronous Hold Time 7.5 Target Tolerance 7.6 Asynchronous Mode 7.7 Check Before Copy 7.8 Power Off Time Between Copy + Compare 7.9 Language 7.10 Working Mode...
-
Page 9: Copy
1. Copy There are two types of copy modes, Asynchronous Copy and Synchronous Copy. The system will check the content size of the source before executing the ‘copy’ function. If the source content size is less than the system’s buffer memory, it will automatically start an Asynchronous copy. -
Page 10: Asynchronous Copy
NOTE: a. When the copy is in progress, the green LED will flash for each Flash drive that is connected. When the copy has finished, the green LED will stop flashing and remain illuminated. If an error occurs, the red LED will illuminate. b. -
Page 11: Compare
NOTE: a. When the copy is in progress, the green LED will flash for each Flash drive that is connected. When the copy has finished, the green LED will stop flashing and remain illuminated. If an error occurs, the red LED will illuminate. b. -
Page 12: Information
[#3] SIZE: 1847M [#2] SIZE: 1847M Wrong Size: 752M Capacity 0K Green Light: Correct Size Red Light: Wrong Size NOTE: a. This function may change the data and format on the Flash drive. b. To protect the source drive’s data, the system does not check the capacity of the source drive. -
Page 13: Utility
6. Utility 6.1 Do Format 6.1.1 Auto Format Insert a Flash drive device into one of the destination slots and press OK to begin formatting. 1. This function will automatically detect the capacity of the Flash drive and format accordingly. If the Flash drive is already FAT16 or FAT32, the original format will not be changed. -
Page 14: Media Check
6.3 Media Check Analyze the Flash drive’s quality. There are two types of methods to check the drive, ‘H3 Safe’ and ‘H5 R/W’ . Before starting a quality check, you can change the range and error limit using functions ‘6.3.3 Setup Range’ and ‘6.3.4 Set Error Limit’ respectively. 6.3.1 H3 Safe 100% Check the Flash drive’s quality by reading the drive. -
Page 15: Full Erase
6.5 Full Erase Erase the Flash drive’s content and format. 6.6 DoD Erase This function complies with the U.S.A Department of Defense (DoD 5220) standard to fully erase the Flash drive three times to guarantee the data has been deleted. NOTE: The source drive will not be formatted. -
Page 16: Button Beep
7.3 Button Beep Turn audio feedback ON/OFF. ON by default. 7.4 Asyn Hold time Set the time to cancel an Asynchronous copy when you’ve temporarily finished copying and all of the Flash drive devices have been removed, but the copy job has not been manually cancelled. -
Page 17: Working Mode
7.10 Working Mode There are 5 duplication speeds: • Slowest Mode • Slower Mode • Normal Mode (default setting) • Faster Mode • Fastest Mode Change the duplication speed. Normal speed is recommended for most Flash drive types. If there is a high failure rate when duplicating, try lowering the speed. 7.11 Set HDD Mode Choose ‘Active Mode’... -
Page 18: Specifications
Specifications Number of Ports 3 (1 x Source, 2 x destination) External Connectors 3 x USB 2.0 type A female Duplication Rate Up to 1.5GB/m Media Supported USB 1.1/ USB 2.0 Internal Memory 64MB Display LCD Monochrome display Controls 4 push buttons (Up, Down, OK, Esc) 3 x Green (Activity/Successful Copy) LEDs 3 x Red (Error) -
Page 19: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 20 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
