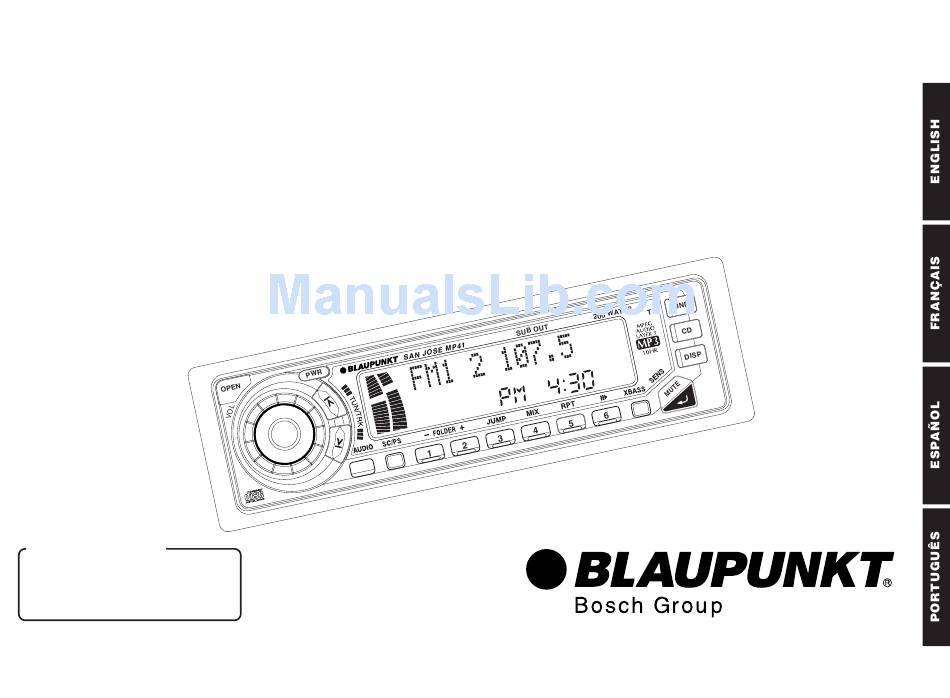

SAN JOSE MP41
High-Power FM/AM/CD/MP3 Receiver with Detachable Face
Autoradio FM/AM à Lecteur CD/MP3 de Forte Puissance et à Face Amovible
Receptor FM/AM/Reproductor de CD/MP3 de Alta Potencia y con Panel Extraíble
Rádio FM/AM/CD/MP3 de Alta Potência
com Face Removível
Important Notice
Prior to Installation, "Demo
Mode" should be defeated.
See page 7.
Robert Bosch Corporation
Sales Group —
Blaupunkt Division
2800 South 25th Avenue,
Broadview, Illinois 60155
Advertisement
Table of Contents
Related Manuals for Blaupunkt SAN JOSE MP41
Summary of Contents for Blaupunkt SAN JOSE MP41
- Page 1 SAN JOSE MP41 High-Power FM/AM/CD/MP3 Receiver with Detachable Face Autoradio FM/AM à Lecteur CD/MP3 de Forte Puissance et à Face Amovible Receptor FM/AM/Reproductor de CD/MP3 de Alta Potencia y con Panel Extraíble Rádio FM/AM/CD/MP3 de Alta Potência com Face Removível...
-
Page 2: Fcc Warning
FCC WARNING Precautions This equipment has been tested and found to comply with the • Avoid installing the unit where it would be subject to high Handling Compact Discs limits for a Class B device, pursuant to Part 15 of the FCC temperatures, such as in direct sunlight or a hot air stream Rules. - Page 3 Handling the Front Panel Attaching the Front Panel Detaching the Front Panel Notes • Be sure to use this unit with the front panel closed. Place the right hand side of the front panel so that the parts The unit is automatically switched off when the front panel A of the front panel are engaged with the parts B of the unit Press the firmly to open the flip down front panel.
-
