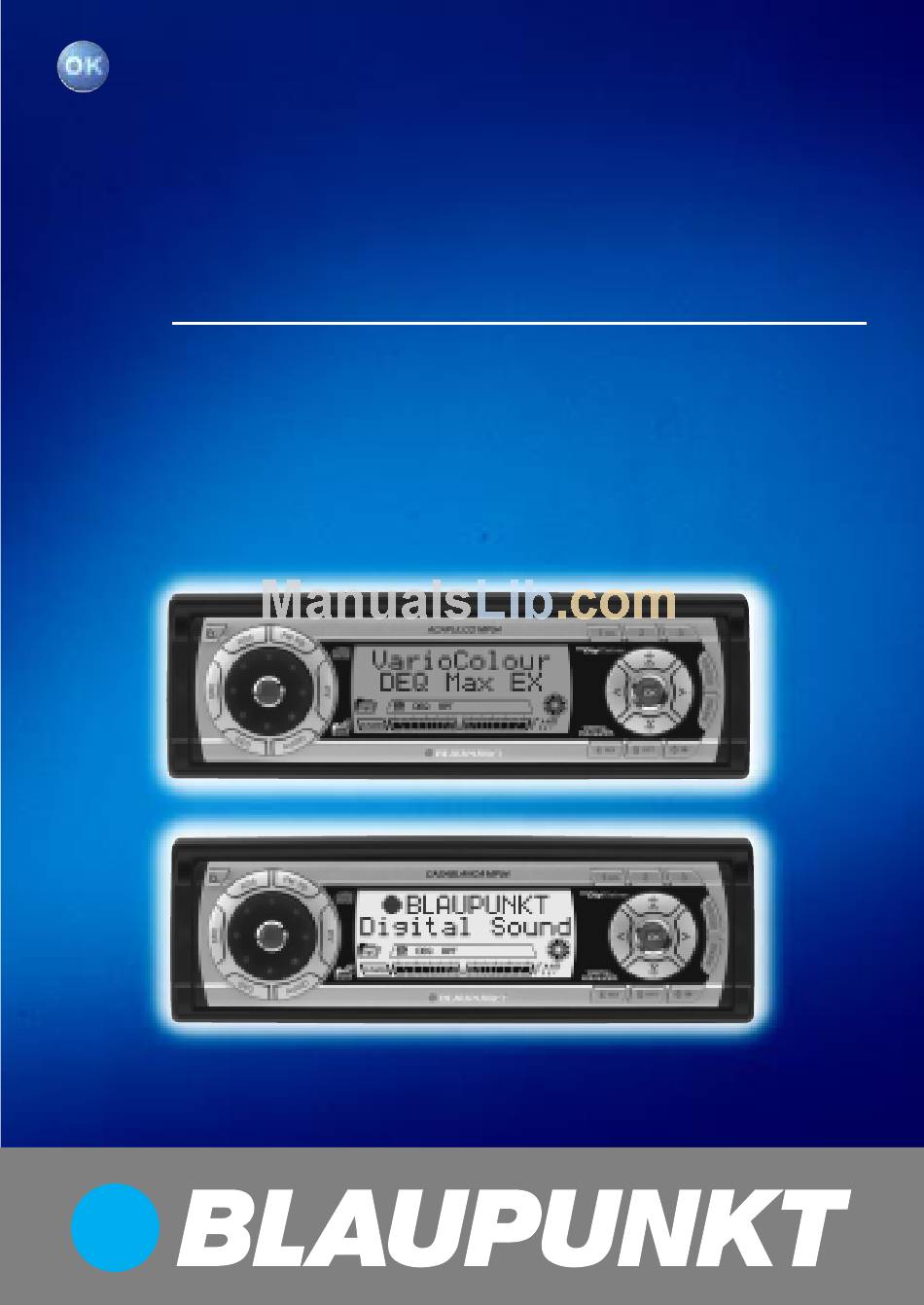

- Page 1 Radio / CD / MP3 Acapulco MP54 US Casablanca MP54 US Operating instructions 7 644 275 310 7 644 295 310 http://www.blaupunkt.com...
- Page 2 Open here...
- Page 4 CONTROLS Button to switch the device on/ off and operate the volume mute feature button to open the flip-release control panel RDS button to switch the RDS function on/off (Radio Data Sys- tem). FM button to select FM radio mode as the source and select the FM memory banks.
-
Page 5: Table Of Contents
Notes and accessories ... 7 Road safety ... 7 Installation ... 7 Accessories ... 7 Activating / deactivating demo mode ... 8 Detachable control panel ... 8 Theft protection ... 8 Detaching the control panel ... 8 Attaching the control panel ... 9 Switching on/off ... - Page 6 Switching the power meter on/off .. 38 Adjusting the display brightness ... 38 Adjusting the viewing angle ... 39 Setting the display illumination colour (only Acapulco MP54) ... 39 External audio sources ... 41 Switching the AUX input on/off ... 41 Specifications ... 42 Amplifier ...
-
Page 7: Notes And Accessories
You cannot switch the device on/off us- ing the remote control. Amplifiers You can use all Blaupunkt and Velocity amplifiers. -
Page 8: Activating / Deactivating Demo Mode
NOTES AND ACCESSORIES CD changers You can connect the following Blaupunkt CD changers: CDC A 08, IDC A 09 and CDC A 03. Compact Drive MP3 You can connect the Compact Drive MP3 instead of a CD-changer in order to play MP3 music tracks. If you decide... -
Page 9: Attaching The Control Panel
CONTROL PANEL Note: All the current settings are saved. Any CD already inserted in the de- vice remains there. The device switches off automati- cally after approx. one minute. Attaching the control panel Hold the control panel at approxi- mately right angles to the device. Slide the control panel into the de- vice’s guides that are positioned on the left and right at the lower edge... -
Page 10: Adjusting The Volume
ADJUSTING THE VOLUME Adjusting the volume You can adjust the volume in steps from 0 (off) to 50 (maximum). To increase the volume, turn the volume control 5 clock- wise. To decrease the volume, turn the volume control 5 anti- clockwise. -
Page 11: Setting The Volume Of The Confirmation Beep
You will need a cable for this with the following Blaupunkt number: 7 607 001 503. You can find out from your Blaupunkt dealer which navigation systems can be used with your car sound system. You can set the volume level at which telephone calls and navigation an- nouncements will initially be heard. -
Page 12: Radio Mode
ADJUSTING THE VOLUME Press the MENU button 9. button 7 repeatedly Press the until “VOLUME MENU” appears in the display. Press the OK button : to display the volume menu. button 7 repeat- Press the edly until “AUTO SOUND” appears in the display. -
Page 13: Selecting The Waveband / Memory Bank
Selecting the waveband / memory bank Selecting the waveband / memory bank You can use this device to receive pro- grammes broadcast over the FM and AM wavebands. There are three mem- ory banks (FM1, FM2 and FMT) for the FM waveband and two memory banks (AM and AMT) for the AM waveband. -
Page 14: Storing Stations
RADIO MODE Storing stations Storing stations manually Select the memory bank that you want: FM1, FM2, FMT or AM, AMT. Tune into the station that you want. Press and hold down one of the station buttons 1 - 3 6 or 4 - 6 ; for longer than two seconds to as- sign the station to that button. -
Page 15: Programme Type (Pty)
When you have finished making your changes, press the MENU button 9. Note: The scanning time that you set is also applied by the system to scan- ning carried out in CD/MP3 mode and CD-changer mode. Programme type (PTY) Besides transmitting the station name, some FM stations also provide informa- tion on the type of programme that they are broadcasting. -
Page 16: Optimising Radio Reception
RADIO MODE Assigning a programme type to a station button Select a programme type using the button 7. Press and hold down the station button 1 - 3 6 or 4 - 6 ; that you want for longer than two seconds. The programme type will then be as- signed to the selected button 1 - 3 6 or 4 - 6 ;. -
Page 17: Naming Radio Stations (Only Fm)
Naming radio stations (only FM) This device allows you to give stored radio stations their own name. The name can be up to eight characters long. This name is displayed in the sec- ond line of the display beneath the fre- quency. -
Page 18: Cd Mode
CD MODE CD mode You can use this device to play stand- ard audio CDs, CD-Rs and CD-RWs with a diameter of 12 cm. To avoid prob- lems when playing CDs, you should not burn CDs at speeds greater than 16- speed. -
Page 19: Scanning Tracks (Scan)
Cancelling MIX Press the 4 MIX button ; again. “MIX CD OFF” appears briefly in the display and the MIX symbol disappears. Scanning tracks (SCAN) You can scan (briefly play) all the tracks on the CD. Press and hold down the OK but- ton : for longer than two sec- onds. -
Page 20: Displaying Cd Text/Cd Name
CD MODE Note: In the menu you can configure whether you want to display the CD text or the CD name. For fur- ther information, please read the following section entitled “Display- ing CD text”. CD text can only be displayed if the appropriate information is con- tained on the CD. - Page 21 Press the OK button :. You will now enter editing mode. If your CD does not have a name yet, “ABC- DEFGH” appears in the display. The first text input position flashes. buttons 7 to select Use the the character that you want. If you want an empty space, simply se- lect the underscore.
-
Page 22: Ejecting A Cd
CD MODE Ejecting a CD button 2. Press the The flip-release panel opens out to- wards you. Press the eject button A next to the CD compartment. The CD is ejected. Remove the CD and close the con- trol panel. Note: If a CD is ejected, the drive will au- tomatically draw it back in again af-... - Page 23 This device supports as many subdirec- tories as your burner software can cre- ate despite the fact that the maximum directory depth defined by the ISO 9660 standard is only 8. T001 T002 T003 T004 T005 T001 T002 T003 T004 T005 T006 You can name each directory using a...
-
Page 24: Switching To Mp3 Mode
MP3 MODE Do not use mix-mode CDs contain- ing both CD-audio tracks and MP3 tracks. If you try playing a mix- mode CD, the device will only play the CD-audio tracks. Switching to MP3 mode MP3 mode is activated in the same way as normal CD mode. -
Page 25: Selecting Tracks
Selecting the directory in browse mode You can display the current and subse- quent directory in both lines of the dis- play. The directories are displayed with the names that you created when burn- ing the CD. Whilst the directories are being displayed, you can use the arrow buttons to display and select all the available directories. -
Page 26: Scanning Tracks - Scan (Not In Mp3 Browse Mode)
MP3 MODE Cancelling MIX To cancel MIX, briefly and repeatedly press the 4 MIX button ; until “MIX OFF” ap- pears in the display. The MIX symbol disappears. Scanning tracks – SCAN (not in MP3 browse mode) You can scan (briefly play) all the tracks on the CD. -
Page 27: Cd-Changer Mode
MP3 MODE Press the MENU button 9. button 7 repeat- Press the edly until “VARIOUS MENU” ap- pears in the display. Press the OK button :. button 7 repeat- Press the edly until “MP3 INFO” appears in the display. buttons 7 to switch Use the between the “ON”... -
Page 28: Changing The Display
CD CHANGER MODE Changing the display You can choose from various display options in CD-changer mode: “NORMAL MODE”: First line: Track number Second line: CD number / CD name and playing time “CLOCK MODE”: First line: Track number. Second line: CD number / CD name and clock time “MINIMAL MODE”: First and second line: Track... -
Page 29: Scanning All Tracks On All Cds (Scan)
Scanning all tracks on all CDs (SCAN) To scan (briefly play) all the tracks on all the inserted CDs in ascending order, press and hold down the OK but- ton : for longer than two sec- onds. “SCAN” and the selected display mode appear alternately in the display. - Page 30 CD CHANGER MODE Deleting a CD name Listen to the CD whose name you want to delete. Press the MENU button 9. button 7 repeat- Press the edly until “VARIOUS MENU” ap- pears in the display. Press the OK button :. button 7 repeat- Press the edly until “CD NAME EDIT”...
-
Page 31: Clock Time
CLOCK time Displaying the time You can make the clock time appear continuously in the bottom part of the display while any audio source is acti- vated. For further information, please read the “Configuring the display” sec- tions in the relevant chapters. Setting the clock automatically You can configure the system to set the clock time automatically using the RDS... -
Page 32: Displaying The Time Continuously When The Device Is Off And The Ignition Is On
CLOCK TIME Displaying the time continuously when the device is off and the ignition is on To display the time when the device is off and the vehicle ignition is on, press the MENU button 9. button 7 repeat- Press the edly until “CLOCK MENU”... -
Page 33: Setting The Left/Right Volume Distribution (Balance)
SOUND Setting the left/right volume distribution (balance) To adjust the left/right volume distribu- tion (balance), press the AUDIO button >. “BASS” appears in the display. button 7 repeat- Press the edly until “BALANCE” appears in the display. button 7 to ad- Press the just the balance (right/left). -
Page 34: Equalizer
EQUALIZER Equalizer The Casablanca MP54 is fitted with a digital DEQ Max equalizer. The Acapul- co has a DEQ Max EX equalizer. This means you have three 5-band equalizers, six sound presets and sev- en vehicle presets at your disposal. -
Page 35: Automatic Equalizer Calibration (Only Acapulco Mp54)
7 until the vehicle type that you want is displayed. Press the DEQ button ?. The settings are saved. Automatic equalizer calibration (only Acapulco MP54) You can electronically calibrate and store values for three different situations, e.g.: EQ 1 for the driver only... -
Page 36: Manually Adjusting The Equalizer
EQUALIZER Press the OK button :. A countdown is shown in the display. Afterwards you will hear a test sound and calibration begins. Note: Follow the instructions shown in the dis- play during calibration! Manually adjusting the equalizer Notes on adjusting the settings We recommend you use a CD that you are familiar with for making changes to the settings. -
Page 37: Help Adjusting The Equalizer
Note: Please note that you can boost or reduce one frequency in each equalizer band. Proceed in the way described above with all the equal- izer bands that you want to adjust. Press the OK button : or the DEQ button ? to close the menu. The settings are saved. -
Page 38: Adjusting The Display Settings
ADJUSTING THE DISPLAY SETTINGS Adjusting the display settings Switching the bar graph on/off You also have the option of switching off the bar graph in the bottom line of the display. Press the MENU button 9. button 7 repeat- Press the edly until “VARIOUS MENU”... -
Page 39: Adjusting The Viewing Angle
When you have finished making your changes, press the MENU button 9. Setting the display illumination colour (only Acapulco MP54) When setting the display illumination, you can choose one of four preset col- ours or you can mix a colour yourself... - Page 40 OK : button and then the MENU button 9. The settings are saved. Mixing the button illumination colour (only Acapulco MP54) You can mix your own button/key illu- mination colour using the two primary colours red and green.
-
Page 41: External Audio Sources
If you want to connect an external au- dio source, you will need an adapter cable. You can obtain this cable (Blaupunkt no.: 7 607 897 093) from your author- ised Blaupunkt dealer. Switching the AUX input on/off Press the MENU button 9. -
Page 42: Specifications
SPECIFICATIONS Specifications Amplifier Output power: 4 x 18 watts sine at 14.4 V and 1% dis- tortion factor at 4 ohms. 4 x 26 watts sine in accordance with DIN 45324 at 14.4 V at 4 ohms. 4 x 50 watts max. power Tuner Wavebands:... - Page 43 09-435 99236 01-4010 7320 01-89583 8394 01-4598830 02-369 62464 40 2085 023-565 6331 66-817 157 01-2185 11111 916-467952 08-7501810 01-8471650 02-6130 0514 01-324 8756 022-8771260 0212-3460040 708-6817188 +55-19 3745 2773 +604-6413 640 Blaupunkt GmbH CM/PSS 8 622 403 890 WWW: http://www.blaupunkt.com...
