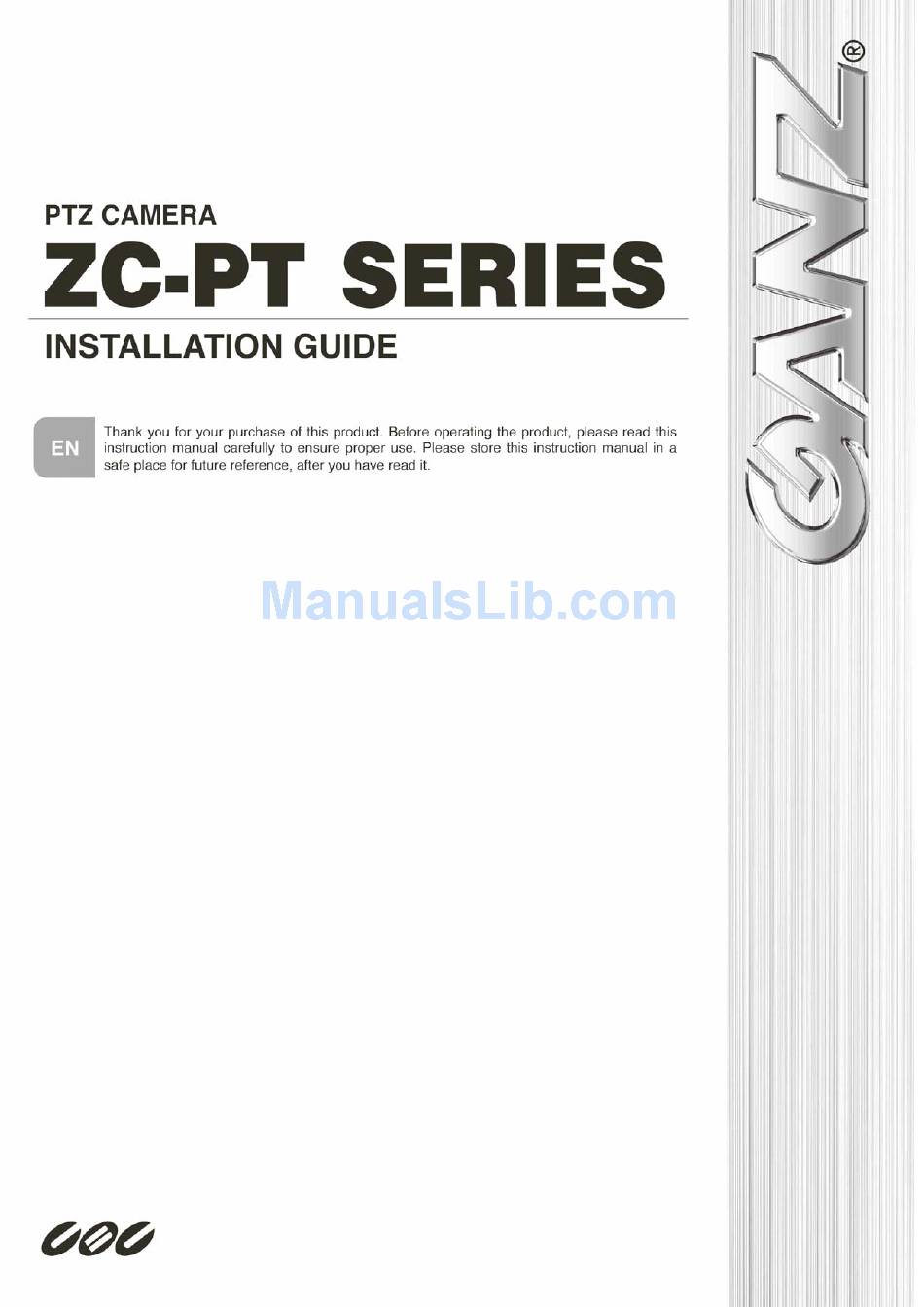

Ganz ZC-PT Series Installation Manual

Zc-pt series
Hide thumbs Also See for ZC-PT Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading

Related Manuals for Ganz ZC-PT Series

Summary of Contents for Ganz ZC-PT Series

  • Page 2 Installation Guide Preface The information provided in this manual was current when published. The company reserves the right to revise and improve its products. All specifications are subject to change without notice. Notice To work with the PTZ cameras, any installer or technician must have the following minimum qualifications: •...
  • Page 3 Installation Guide English Disposal of your old appliance 1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
  • Page 4 Installation Guide 4. Weitere Informationen zur Entsorgung des alten Geräts erhalten Sie bei der Stadtverwaltung, beim Entsorgungsamt oder in dem Geschäft, wo Sie das Produkt erworben haben. Italiano/Italian INFORMAZIONE AGLI UTENTI Ai sensi dell’art. 13 del Decreto Legislativo 25 luglio 2005, n. 151 "Attuazione delle direttive 2002/95/CE, 2002/96/CE e 2003/108/CE, relative alla riduzione dell'uso di sostanze pericolose nelle apparecchiature elettriche ed elettroniche, nonché...
  • Page 5 Installation Guide Português/Portuguese Eliminação do seu antigo aparelho 1. Quando este símbolo de latão cruzado estiver afi xado a um produto, signifi ca que o produto é abrangido pela Directiva Europeia 2002/96/EC. Todos produtos eléctricos electrónicos devem eliminados separadamente da coleta de lixo municipal através de pontos de recolha designados, facilitados pelo governo ou autoridades locais.
  • Page 6 Installation Guide Cautions • Handle the camera carefully Do not abuse the camera. Avoid striking, shaking, etc. The camera could be damaged by improper handing or storage. • Do not disassemble the camera To prevent electric shock, do not remove screws or covers. There are no user serviceable parts inside.

  • Page 7: Table Of Contents

    Installation Guide Table of Contents Introduction ..........................8 Package Content ........................10 PTZ Camera Setups and Cable Connections ..............12 Preparations for PTZ Camera Setups (Indoor Camera) ........12 Preparations for PTZ Camera Setups (Outdoor Camera)........12 PTZ Camera Setups ..................15 3.3.1 Switch Definition ..................15 3.3.2 Communication Switch Setting ............15...
  • Page 8 Installation Guide System Integration........................ 67 Using Pelco Keyboard ..................67 Using Phillips Allegiant Keyboard ..............69 Appendix A: Technical Specification..................71...

  • Page 9: Introduction

    Installation Guide Introduction ZC-PT series integrated indoor PTZ Camera is a new subcompact designed to deliver superb performance and durability with an intelligent and stylish housing that is suitable in any security and surveillance installation. ZC-PT-XT series is a new weather resistant integrated outdoor PTZ Camera.
  • Page 10 Installation Guide Connect the PTZ Camera to other devices as shown in the diagram to complete a video surveillance solution. NOTE: To extend the network distance up to 1.2 km (4000 feet) and to protect the connected devices, it is highly recommended to place a repeater at the mid-point.

  • Page 11: Package Content

    Installation Guide Package Content Before proceeding, please check the box contains the items listed here. If any item is missing, or if damage is evident, DO NOT install or operate the product and contact your dealer for assistance. Indoor PTZ Camera Standard Package Hard Ceiling Mount Fixing Plate Optical Cover...
  • Page 12 Installation Guide Outdoor PTZ Camera Standard Package Camera Body with Screws Security screw Water-proof rubber Outdoor Mount Kit Lubricant Cable for Power, Power Cord Installation Guide Video, RS-485 & Quick Guide and Alarm...

  • Page 13: Ptz Camera Setups And Cable Connections

    Installation Guide PTZ Camera Setups and Cable Connections Before installing or connecting the PTZ Camera, please refer to this section and complete preparations for camera setups and various switch setting. Preparations for PTZ Camera Setups (Indoor Camera) There will be a PE cloth sheet covered inside the camera cover and a lens cap on the lens for shipping protection.
  • Page 14 Installation Guide STEP 3 Remove the protective cover and PE cloth. STEP 4 Attach the camera cover to the camera body. Before doing that, apply some lubricant on the cover’s water-proof rubber to make the installation process smoother. Note that the tiny protrusion on the camera cover must align with one of the four holes on the camera body.
  • Page 15 Installation Guide STEP 6 Screw the camera cover and body together. STEP 7 Set the switches located on the bottom of the camera body. Refer to section 3.3 PTZ Camera Setups for detailed information about various switch setting.

  • Page 16: Ptz Camera Setups

    Installation Guide PTZ Camera Setups Before connecting the camera to other devices of CCTV system, please complete the camera ID and communication switch setting. These switches are located on the bottom of the camera. 3.3.1 Switch Definition Please refer to the following figures and table for switch location and definitions. Indoor PTZ Camera Outdoor PTZ Camera Camera Control Protocol Switch...

  • Page 17: Ptz Camera Id Setting

    Installation Guide RS-485 is the interface that communicates the PTZ Camera and its control device; for this reason, the RS-485 setup of the PTZ Camera and the control device must be the same. The RS-485 default setting is half-duplex (see the diagram follows). Please do not change the default setting without qualified specialist or supplier’s notice.
  • Page 18 Refer to below table and turn the arrow to choose a protocol for your camera. Switch No. Protocol Baud Rate 9600 Pelco D 2400 Pelco P 4800 Chiper 9600 Philips 9600 GANZ-PT 9600 AD422 4800 DM P 9600 Pelco D 4800 Pelco D 9600 Pelco P 2400 Pelco P 9600...

  • Page 19: Cables And Connections

    Installation Guide Cables and Connections The PTZ Camera is supplied with one integrated 22-pin Data Cable for connecting with the power, video, and RS-485/audio input & audio output cables. Please read the following sections thoroughly before making connections. 3.4.1 Cable Requirements For operation, the PTZ Camera requires video, RS-485 and power cables as described below: •...

  • Page 20: 22-Pin Connector Definition

    Installation Guide 3.4.3 22-Pin Connector Definition With the 22-pin connector, installers can simply connect the power, video and RS-485 cables to the camera at once. For the definition of each pin, please refer to the list below. Definition Cable Definition Cable AC 24-1 ALM-1...

  • Page 21: Rs-485 Connector Definition

    Installation Guide 3.4.4 RS-485 Connector Definition RS-485 is the interface that communicates the camera and its control device. Please connect the control keyboard to the speed dome through the terminal block. The recommended cables for RS-485 communication are CAT 5 cables; maximum cable length for over 24-gauge wire is 4000 feet (1219 meters).

  • Page 22: Cable Wiring And Connection

    Installation Guide Cable Wiring and Connection Users may need to conduct cable wiring when: (1) Connecting self-provided cords to the connector housing (shown in the figure below) instead of using the equipped data cable or (2) Connecting alarm input and output devices. The table follows will illustrate the way to wire cords into the connector housing.

  • Page 23: Ptz Camera Installation

    Installation Guide PTZ Camera Installation Basing on different installation environments, both of the Indoor and Outdoor PTZ Camera can be installed on ceiling, on wall or on pole. In the following sections, various installation accessories, installation methods and installation procedures will be described in detail.

  • Page 24: Optional Accessories

    Installation Guide Optional Accessories Indoor PTZ Camera Accessories Transparent Cover/Smoke Cover (ZCA-CB-5.4/SB-5.4) Diameter: 137 mm (5.4 inches) 5.4’’ Transparent Cover 5.4’’ Smoke Cover Power Adapter ZCA-100-1.5A Input: 100~115VAC/Output: 24VAC 36VA ZCA-220-1.5A Input: 220~230VAC/Output: 24VAC 36VA NOTE: When wiring, make sure the G/Y wire (Ground) inserted into the mid-pin of the terminal block.
  • Page 25 Installation Guide Power Adapter ZCA-100-3.0A Input: 100~115VAC/Output: 24VAC 72VA ZCA-220-3.0A Input: 220~230VAC/Output: 24VAC 72VA NOTE: When wiring, make sure the G/Y wire (Ground) inserted into the mid-pin of the terminal block. Mounting Accessories Hard Ceiling Mount (ZCA-HC200) / Indoor Camera For Hard Ceiling use.
  • Page 26 Installation Guide T-Bar Ceiling Mount (ZCA-TB200) / Indoor Camera For in-ceiling Installation use. Height: 170 mm (6.7 inches); Diameter: 180 mm (7.1 inches); 0.5 kg (1.1 lbs) Ceiling Panel For ceiling mounting. Zn platted; 610×305 mm (24×12 inches); Diameter: 135 mm (5.3 inches) Standard Pendent Mount White;...
  • Page 27 Installation Guide Mini Pendent Mount (ZCA-GT100) / Indoor/Outdoor White; 184×104×115.2 mm (7.24×4.09×4.54 inches) Supplied with rubber washer-8×1, pendent tube washer×1, spring washer-8×1 and M8*12 screw×1. Straight Tube (ZCA-ST25,ST50) / Indoor/Outdoor White; Iron; Height: 250/500 mm (9.8/19.7 inches); Diameter: 50 mm (2 inches) 1 kg (2.2 lbs) / 1.8 kg (4 lbs).
  • Page 28 Installation Guide Pole Mount Adapter (ZCMA-PMA-H/ ZCMA-PMA-Q) White; Height: 51mm (2 inches); Diameter: 52mm (2.04 inches); Thread size:1 1/2” (ZCMA-PMA-H), 1 1/4” ( ZCMA-PMA-Q ) ZCMA-PMA-H ZCMA-PMA-Q Corner Standard Mounting Plate (ZCA-CST) / Indoor/Outdoor White; 222(L)×204(W)×117(D) mm (8.7×8×4.6 inches); 2 kg (4.4 lbs). Supplied with washer-8×4, spring washer×4, M8*20 screw×4, M8 nut×4.
  • Page 29 Installation Guide Pole Wide Direct Mounting (ZCA-PWDM) / Indoor/Outdoor White; 270(L)×170(W)×60(D) mm (10.6×6.7×2.4 inches); Diameter: 112~130 mm (4.4~5 inches); 1 kg (2.2 lbs). Supplied with stainless steel straps×4, M8*16 screw×4, washer×4, spring washer×4 Corner Thin Box (ZCA-CTB) ) / Indoor/Outdoor White, 300(L)×164(W)×222(D) mm (11.8×6.5×8.7 inches);...
  • Page 30 Installation Guide Pole Thin Box (ZCA-PTB) ) / Indoor/Outdoor White; 291(L)×170(W)×250(D) mm (11.5×5.3×9.5 inches); 3.1 kg (6.9 lbs); Supplied with M8*16 screw×4, washer×4, spring washer×4, stainless steel straps×4. Pole Wide Box (ZCA-PWB) ) / Indoor/Outdoor White, 270(L)×166(W)×155(D) mm (10.6×6.5×6.1 inches); 3.2 kg (7.1 lbs); Supplied with M8*16 screw×4, washer×4, spring washer×4, stainless steel straps×4.
  • Page 31 Installation Guide Stainless Steel Straps For fixing Pole Direct Mounting/ Pole Box on the pole. Width: 0.63”; 0.02 kg (0.04 lbs) Stainless Strap Cutter For tension, cut and crimp stainless steel straps. 1.4 kg (3.1 lbs) Suitable for straps width: 1/2”, 5/8”, 3/4” Other Application Accessories Repeater/Converter ZCA-RS422-485: RS-485/RS-232 Repeater...

  • Page 32: Ceiling Mount

    Installation Guide RS485 Distribution Unit (ZCA-DS4/8/16) Relay control codes to speed dome cameras. Dimension: 432×44×90 mm (17×17.32×35.43 inches) Ceiling Mount Generally, there are three kinds of ceiling mounting methods: hard-ceiling, in-ceiling and mounting with straight tube. Refer to the following sections for more detailed information.

  • Page 33: Hard-Ceiling Mounting / Indoor

    Installation Guide 4.3.1 Hard-Ceiling Mounting / Indoor Hard Ceiling Mounting is a standard way of installation for Indoor PTZ Camera, and general mounting accessories are equipped in the standard indoor PTZ Camera package. Here lists the items and tools needed to mount the Camera onto the ceilings.
  • Page 34 Installation Guide STEP 3 Attach the Mount to the ceiling. Mark the locations where all three ceiling holes should go. STEP 4 Drill these holes on the hard ceiling. STEP 5 Fix the Mount to the holes on the hard ceiling with three screws. STEP 6 Thread the data cable through the center hole of the Mount and...

  • Page 35: In-Ceiling Mounting / Indoor

    Installation Guide STEP 8 Fix the decoration ring to the bracket. NOTE: Make sure the optical cover is removed before carrying out the procedure. STEP 9 Place the optical cover back. 4.3.2 In-Ceiling Mounting / Indoor Follow the steps to install the PTZ Camera with T-Bar Ceiling mount (ZCA-TB200) accessory for In-Ceiling Mounting.
  • Page 36 Installation Guide Step 2: Attach the separated wing to the PTZ Camera, as shown in the diagram. STEP 3 Place the Red Sticker on the ceiling plate, and cut the circle part out of the ceiling. STEP 4 Put up the T-Bar into the ceiling opening.
  • Page 37 Installation Guide STEP 6 Tighten the screws, and the T-Bar wings will adhere to the ceiling. STEP 7 Put the cable through the center hole of the T-bar and connect it to the PTZ Camera. STEP 8 Mount the PTZ Camera to the Bracket and rotate it clockwise.

  • Page 38: In-Ceiling Mounting With Ceiling Panel

    Installation Guide 4.3.3 In-Ceiling Mounting with Ceiling Panel To mount the PTZ camera to a suspended ceiling with the T-Bar, the ceiling panel could be employed, as shown in the figure below. Follow the steps below for installing the ceiling panel. Step 1: Cut the ceiling half.
  • Page 39 Installation Guide 3) Fix the suspension bracket to the ceiling with proper screws and screw anchors (not supplied). 4) Thread the cables through the Straight Tube and the Indoor Mount kit. NOTE : After threading the cables, please block the cable entry hole with the supplied sponge(s) to avoid insects entering the tube.
  • Page 40 Installation Guide Ceiling Mounting: Straight Tube + Indoor Mount Kit Outdoor PTZ Camera: Items Needed • PTZ Camera • Outdoor Mount Kit (supplied) • Data Cable (supplied) • Straight Tube and other equipped items (optional accessory) • Waterproof Rubber (supplied) •...
  • Page 41 Installation Guide coming out of the outlet. NOTE : After running the cable(s) through the Straight Tube, please block the Tube’s outlet with the supplied sponge to avoid insects entering the tube. 6) Thread the cable(s) through the Outdoor Mount Kit and join the Outdoor Mount Kit to the Straight Tube with the supplied screws and washers.

  • Page 42: Wall Mount

    Installation Guide Wall Mount The PTZ Camera can be mounted on the wall with Mini Pendent Mount, Standard Pendent Mount and Wall Box. Please follow the installation instructions below for mounting the PTZ Camera via different ways. 4.4.1 Mini Pendant Mount (ZCA-GT100) Indoor PTZ Camera: Items Needed •...
  • Page 43 Installation Guide two ways as shown in the illustrations below. Sponge Sponge 5) Thread the cable(s) through the Indoor Mount Kit and join the Indoor Mount Kit to the Mini Pendent Mount with the supplied screws and washers. Then adjust the Waterproof Rubber to the joint.
  • Page 44 Installation Guide Outdoor PTZ Camera: Items Needed • PTZ Camera • Outdoor Mount Kit (supplied) • Data Cable (supplied) • Mini Pendent Mount and equipped items (optional accessory) • Waterproof Rubber (supplied) • M5 Standard/Security Screw (supplied) • Screws and Screw Anchors for fixing the Mini Pendent Mount (not supplied) Tools Needed •...
  • Page 45 Installation Guide Sponge Sponge 5) Thread the cable(s) through the Outdoor Mount Kit and join the Outdoor Mount Kit to the Mini Pendent Mount with the supplied screws and washers. Then adjust the Waterproof Rubber to the joint. 6) Connect the cable(s) to the PTZ Camera. 7) Join the PTZ Camera to the Outdoor Mount Kit with the supplied M5 screw and washers.

  • Page 46: Standard Pendent Mount

    Installation Guide 4.4.2 Standard Pendent Mount Indoor PTZ Camera: Items Needed: • PTZ Camera • Data Cable (supplied) • Standard Pendent Mount and equipped items (optional accessory) • Indoor Mount Kit (optional accessory) • Waterproof Rubber (Indoor Mount Kit’s accessory) •...
  • Page 47 Installation Guide Wall Mounting: Standard Pendent Mount + Indoor Mount Kit Outdoor PTZ Camera: Items Needed • PTZ Camera • Outdoor Mount Kit (supplied) • Data Cable (supplied) • Standard Pendent Mount and equipped items (optional accessory) • Waterproof Rubber (supplied) •...
  • Page 48 Installation Guide 3) Attach the Waterproof Rubber to the Standard Pendent Mount. 4) Run the cable(s) through the Standard Pendent Mount with the Data Cable’s 22-pin cable coming out of the outlet. NOTE: Please block the cable entry hole with the supplied sponge to avoid insects entering the Pendent Mount.

  • Page 49: Wall Box Mounting (Zca-Wbm)

    Installation Guide 4.4.3 Wall Box Mounting (ZCA-WBM) Indoor PTZ Camera: Items Needed • PTZ Camera • Data Cable (supplied) • Standard/Mini Pendent Mount and equipped items (optional accessory) • Wall Box Mounting (optional accessory) • Indoor Mount Kit (optional accessory) •...
  • Page 50 Installation Guide washers. Wall Box Mounting: Wall Box Mounting + Standard/Mini Pendent Mount + Indoor Mount Kit Outdoor PTZ Camera: Items Needed • PTZ Camera • Outdoor Mount Kit (supplied) • Data Cable (supplied) • Standard/Mini Pendent Mount and equipped items (optional accessory) •...
  • Page 51 Installation Guide Then run the cable(s) through the hole on the Wall Box Mounting with the Data Cable’s 22-pin cable coming out. 3) Fasten the Standard/Mini Pendent Mount onto the Wall Box Mounting with the supplied screws and washers. Then thread the cable(s) through the Standard/Mini Pendent Mount with the cable(s) coming out of the Pendent Mount’s outlet.

  • Page 52: Corner Mount

    Installation Guide Corner Mount 4.5.1 Standard/Mini Corner Mounting Plate (ZCA-CST/MCP) Indoor PTZ Camera: Items Needed • PTZ Camera • Data Cable (supplied) • Standard/Mini Pendent Mount and equipped items (optional accessory) • Standard/Mini Corner Mounting Plate (herein collectively called “Corner Mounting Plate”;...
  • Page 53 Installation Guide washers. Corner Wall Mounting: Corner Standard/Mini Mounting Plate + Standard/Mini Pendent Mount + Indoor Mount Kit Outdoor PTZ Camera: Items Needed • PTZ Camera • Outdoor Mount Kit (supplied) • Data Cable (supplied) • Standard/Mini Pendent Mount and equipped items (optional accessory) •...
  • Page 54 Installation Guide 2) Fix the Corner Mounting Plate on the corner of the wall with proper screws and screw anchors. Then run the cable(s) through the hole on the Corner Mounting Plate with the Data Cable’s 22-pin cable coming out. 3) Fasten the Standard/Mini Pendent Mount onto the Corner Mounting Plate with the supplied screws and washers.

  • Page 55: Corner Thin/Wide Box Mounting (Zca-Ctb/Cwb)

    Installation Guide 4.5.2 Corner Thin/Wide Box Mounting (ZCA-CTB/CWB) Indoor PTZ Camera: Items Needed • PTZ Camera • Data Cable (supplied) • Standard/Mini Pendent Mount and equipped items (optional accessory) • Corner Thin/Wide Box (optional accessory) • Indoor Mount Kit (optional accessory) •...
  • Page 56 Installation Guide Corner Box Mounting: Corner Thin/Wide Box + Standard/Mini Pendent Mount + Indoor Mount Kit Outdoor PTZ Camera: Items Needed • PTZ Camera • Outdoor Mount Kit (supplied) • Data Cable (supplied) • Standard/Compact Pendent Mount and equipped items (optional accessory) •...
  • Page 57 Installation Guide 3) Fasten the Standard/Mini Pendent Mount onto the Corner Thin/Wide Box with the supplied screws and washers. Then thread the cable(s) through the Standard/Mini Pendent Mount with the cable(s) coming out of the Pendent Mount’s outlet. NOTE: Please block the cable entry hole with the supplied sponge to avoid insects entering the Pendent Mount.

  • Page 58: Pole Mount

    Installation Guide Pole Mount 4.6.1 Pole Thin/Wide Direct Mounting (ZCA-PTDM/PWDM) Indoor PTZ Camera: Items Needed • PTZ Camera • Data Cable (supplied) • Standard/Mini Pendent Mount and equipped items (optional accessory) • Pole Thin/Wide Direct Mounting (optional accessory) • Indoor Mount Kit (optional accessory) •...
  • Page 59 Installation Guide Pole Direct Mounting: Pole Thin/Wide Direct Mounting + Standard/Mini Pendent Mount + Indoor Mount Kit Outdoor PTZ Camera: Items Needed • PTZ Camera • Outdoor Mount Kit (supplied) • Data Cable (supplied) • Standard/Mini Pendent Mount and equipped items (optional accessory) •...
  • Page 60 Installation Guide through the Standard/Mini Pendent Mount with the cable(s) coming out of the Pendent Mount’s outlet. NOTE: Please block the cable entry hole with the supplied sponge to avoid insects entering the Pendent Mount. See the illustrations in section 4.4.1 Compact Pendent Mount >...

  • Page 61: Pole Thin/Wide Box Mounting (Zca-Ptb/Pwb)

    Installation Guide 4.6.2 Pole Thin/Wide Box Mounting (ZCA-PTB/PWB) Indoor PTZ Camera: Items Needed • PTZ Camera • Data Cable (supplied) • Standard/Mini Pendent Mount and equipped items (optional accessory) • Pole Thin/Wide Box Mounting (optional accessory) • Indoor Mount Kit (optional accessory) •...
  • Page 62 Installation Guide Pole Box Mounting: Pole Thin/Wide Box + Standard/Mini Pendent Mount + Indoor Mount Kit Outdoor PTZ Camera: Items Needed: • PTZ Camera • Outdoor Mount Kit (supplied) • Data Cable (supplied) • Standard/Mini Pendent Mount and equipped items (optional accessory) •...
  • Page 63 Installation Guide Standard/Mini Pendent Mount with the cable(s) coming out of the Pendent Mount’s outlet. NOTE: Please block the cable entry hole with the supplied sponge to avoid insects entering the Pendent Mount. See the illustrations in section 4.4.1 Compact Pendent Mount > Step 4) Attach the Waterproof Rubber to the Standard/Mini Pendent Mount.

  • Page 64: System Expansion

    Installation Guide System Expansion Connecting with Connector Box (Indoor Use) Ideally being used in indoor installation circumstances, a Connector Box provides easy wiring and well organized connection between alarms, cameras and other devices, for easy installation. To connect the connector box with other devices: •...

  • Page 65: Connecting With Power Box

    Installation Guide Connecting with Power Box A power box contains a 24V AC adapter, two terminal blocks (for communication and power) and one alarm board. With an IP66 case, the Power Box is ideal for outdoor installation environment. Two models are available: 100~115V AC power input (P1030) and 220~230V AC (P2030).

  • Page 66: Repeater Application

    Installation Guide Repeater Application To integrate other surveillance devices with the cameras or to extend the distance of communications, users could employ three kinds of repeater/converter, as shown below. With the advanced circuit design, these repeaters/converters offer 1KVrms isolation voltage and surge protection capability. The exiting network can be protected by the repeaters/converters.

  • Page 67: Rs485 Distribution Unit (Zca-Ds4/8/16)

    Installation Guide RS485 Distribution Unit (ZCA-DS4/8/16) The RS-485 Distribution Unit (SDU) is designed to relay control codes to cameras. It is capable of communicating with cameras up to 1 kilometer away. Additionally, the SDU can be installed in either “star” or “daisy chain” configuration with up to 160 cameras (see the diagrams below).

  • Page 68: System Integration

    Installation Guide System Integration The PTZ Camera is allowed to be integrated into other suppliers' surveillance systems with large set of built-in protocols. Refer to the following sections for more information. Using Pelco Keyboard The PTZ Camera can be controlled through the Pelco keyboard. Please follow the instructions below to manipulate the camera.
  • Page 69 Installation Guide Set Auto Pan To set “Auto Pan”, please enter the OSD and go to the By OSD Auto Pan setting menu. The following Presets allows you to execute Auto Pan quickly. ***<7 9> + <Preset>: Auto Pan 1 <7 9 ~ 8 2><Preset>...

  • Page 70: Using Phillips Allegiant Keyboard

    Installation Guide Using Phillips Allegiant Keyboard The PTZ Camera can be integrated into Philips Allegiant systems through D77R3 repeaters. Please follow the instructions to control the cmera through Philips Allegiant systems. Symbol Definition <shot> Command dome cameras to go to specific preset position. <set>...
  • Page 71 Installation Guide Set and execute CRUISE To start recording “Cruise”, press the keys <ON> + <5 <ON> + <5 0> + <Enter> 0> + <Enter>. To end recording “Cruise”, press the keys <ON> + <5 <OFF> + <5 0> + <Enter> 0>...

  • Page 72: Appendix A: Technical Specification

    Auto / Manual Back Light Compensation On / Off OPERATION Built-in Protocol Ganz-PT, Pelco D&P, VCL, Philips, AD-422, JVC, Kalatel, etc. English, French, German, Italian, Japanese, Polish, Portuguese, Multi-Language OSD Russian, Spanish, Turkish, Simplified Chinese, Traditional Chinese Pan Travel 360° endless Tilt Travel -10°...
  • Page 73 Installation Guide Items 18× Model 26× Model 35× Model Auto Flip Digital / Mechanical / Off Digital Slow Shutter On / Off On / Off On / Off Electronic Image Stabilizer On / Off Motion Detection On / Off On / Off On / Off Wide Dynamic Range On / Off...
  • Page 74 AGC control Auto / Manual Back Light Compensation On/Off OPERATION Built-in Protocol Ganz-PT, Pelco D&P, VCL, Philips, AD-422, JVC, Kalatel, etc. Multi-Language OSD English, French, German, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Turkish, S. Chinese, T. Chinese Pan Travel 360° endless Tilt Travel -10°...
  • Page 75 Installation Guide Home Function Preset, Sequence, Auto pan, Cruise Auto Flip Mechanical/Digital/Off Digital Slow Shutter On/Off Motion Detection On/Off Wide Dynamic Range On/Off Day/Night: IR Cut Filter Auto/Manual Image Freeze On/Off Image Inverse On/Off On/Off Noise Reduction On/Off Alarm Input Alarm Output Alarm Reaction Preset, Sequence, Auto pan, Cruise...
  • Page 76 Installation Guide...
