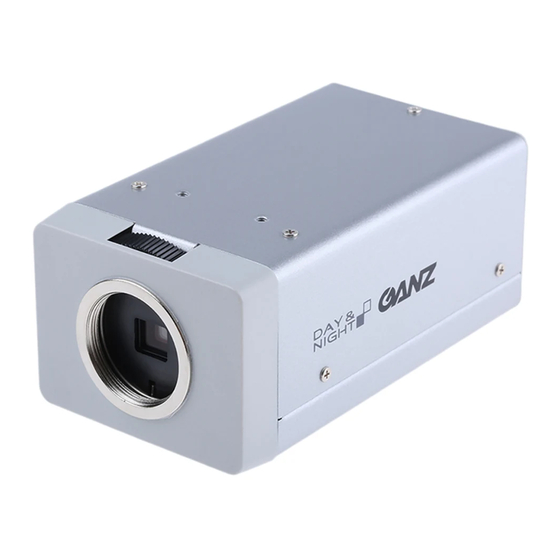

Summary of Contents for Ganz ZC-YX270P
-
Page 2: Table Of Contents
• 12 V DC/24 V AC auto switching power supply. (ZC-YX270P, ZC-NX270P, ZC-YXW270P, ZC-NXW270P) • The new Wide Dynamic Range (WDR) processing technology offers the high dynamic range of approximately 82dB, ensuring sharp images even if the pictures are shot in mixed indoor/outdoor scenes with backlight. -
Page 3: Safety Precautions
This symbol indicates that there is a possibility of death or damage to operator or others. (1) Use only 24V AC power supply marked class 2 or +12V DC regulated power supply marked class 2. (ZC-YX270P, ZC-NX270P, ZC-YXW270P, ZC-NXW270P) (2) Use only with a 230 V AC power supply. -
Page 4: Part Names And Functions
PART NAMES AND FUNCTIONS RS485 MODE-SEL B/W-FIX A+ A- B+ B- RS485 MODE-SEL B/W-FIX A+ A- B+ B- RS485 VIDEO IRIS LEFT RIGHT DOWN MODE-SEL MENU B/W-FIX LOCK TERM OFF A+ A- B+ B- AC24V IRIS VIDEO +12VDC 12 V DC/24 V AC / Model with communication function b... - Page 5 1 Flange back adjustment wheel Video iris lens adjustment If the focus needs to be adjusted after the While using a video iris lens, make sure lens has been mounted, loosen the flange to make this adjustment. Activate the back locking screw (2) and rotate the adjustment screen of the video iris lens by adjustment wheel to adjust.
- Page 6 5 Video output connector 7 Auto-iris output connector Connected to the TV monitor with a coaxial For connecting the cable of an auto-iris lens, cable. the pin assignment is as shown below. (While using the auto-iris lens, set the Auto-iris 6 Power input terminal Mode switch (3) to “DC”...
- Page 7 9 RS485 communication terminal b Video output terminal (with communication function) (ZC-NX270PU, ZC-NXW270PU) The RS485 communication function enables Connected to the NVT Receiver using a UTP remote operation of the OSD function. cable (AWG 22 to 24). * For initial settings of the camera for RS485 b...
-
Page 8: Camera Mounting
CAMERA MOUNTING The camera can be attached to a tripod, fixer or other mounting device from either the top or bottom side by using the mounting screw holes (1/4-inch, 20 UNC) of the tripod set base plate. The tripod set base plate can be moved by first removing the two screws and then attaching the base plate to the top or bottom. -
Page 9: Model Description
E; AC230V, U; UTP (Un-shield Twisted Pair cable) or None; DC12V / AC24V W; WDR (Wide Dynamic Range) or None; EDR (Extended Dynamic Range) N; True Day/Night or Y; Digital Day/Night ZC-YX270P ; EDR, Digital Day/Night ZC-YXW270P ; WDR, Digital Day/Night ZC-NX270P ;... -
Page 10: Specifications
SPECIFICATIONS EDR Type Digital Day/Night model True Day/Night model Model No. ZC-YX270P ZC-YX270PE ZC-YX270PU ZC-NX270P ZC-NX270PE TV system Scanning system 2:1 Interlace Image sensor 1/3-type Interline transfer CCD Effective pixels 976 (H) × 582 (V) Scanning frequency 15.625kHz (H) / 50.0Hz (V) Video output 1.0V (p-p) / 75Ω... - Page 11 WDR type Digital Day/Night model True Day/Night model Model No. ZC-YXW270P ZC-YXW270PE ZC-YXW270PU ZC-NXW270P ZC-NXW270PE TV system Scanning system 2:1 Interlace Image sensor 1/3-type Interline transfer CCD Effective pixels 976 (H) × 582 (V) Scanning frequency 15.625kHz (H) / 50.0Hz (V) Video output 1.0V (p-p)/75Ω...
- Page 12 176-1.0...
