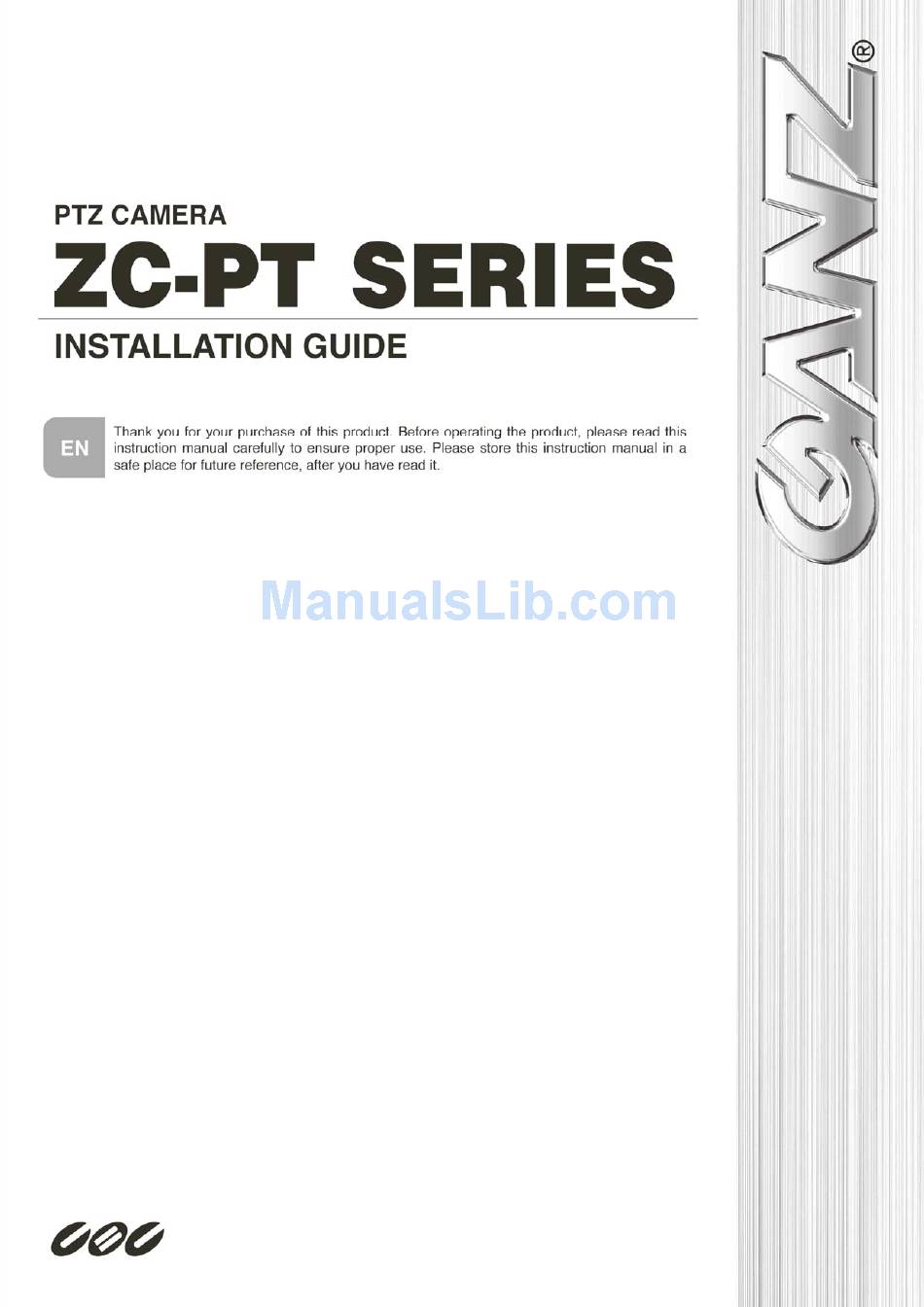

Ganz ZC-PT Series Installation Manual
Hide thumbs
Also See for ZC-PT Series:
- Installation manual (76 pages) ,
- User manual (73 pages) ,
- Installation manual (53 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Ganz ZC-PT Series
Summary of Contents for Ganz ZC-PT Series
- Page 3 Installation Guide Preface The information given in this manual was current when published. The company reserves the right to revise and improve its products. All specifications are subject to change without notice. Notice This manual provides the installation information for indoor Mini Speed Dome Cameras.
- Page 4 Installation Guide This symbol on the product or on its packaging indicates that this product shall not be treated as household waste in accordance with Directive 2002/96/EC. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
-
Page 5: Warnings And Cautions
Installation Guide Warnings and Cautions • Handle the camera carefully Do not abuse the camera. Avoid striking, shaking, etc. The camera could be damaged by improper handing or storage. • Installing electricity wiring carefully Ask qualified personnel of electrical wiring for the installation. Please note that input electricity to the unit is at tolerance of DC 12V/AC 24V ±... -
Page 6: Table Of Contents
Installation Guide Table of Contents Introduction ......................... 1 Standard Package Contents ..................2 Camera Setups and Cable Connections ..............4 Preparations for Dome Camera Setups ................4 Dome Camera Setups ..................... 7 3.2.1 Switch Definition ....................7 3.2.2 Communication Switch Setting ................. 8 3.2.3 ID Setup ...................... -
Page 7: Introduction
Installation Guide Introduction The Mini Speed Dome Camera is a new subcompact high speed dome camera designed to deliver superb performance and durability with an intelligent and stylish housing that is suitable in any security and surveillance installation. The Dome Camera supports one cabling for easy installation, and can be integrated with various digital surveillance products, such as DVRs, Control Keyboards, and accessories for a total surveillance solution. -
Page 8: Standard Package Contents
Installation Guide Standard Package Contents Before proceeding, please check the box contains the items listed here. If any item is missing, or if damage is evident, DO NOT install or operate the product and contact your dealer for assistance. Indoor Model Data Cable for Power Supply, Video and Audio (DC 12V) Dome Camera... - Page 9 Installation Guide Outdoor Model Dome Camera with Data Cable for Power Supply, Video, Alarm and RS-485 Outdoor Mount Kit (AC 24V) Lubricant M3 Standard Screw (x1) M3 Security Screw (x1) M5 Standard Screw (x1) Waterproof Rubber M5 Security Screw (x1) Security Torx Optical Cover Quick Guide...
-
Page 10: Camera Setups And Cable Connections
Installation Guide Camera Setups and Cable Connections Before installing or connecting the Dome Camera, please refer to this section and complete preparation, switch setting and communication switch settings. Preparations for Dome Camera Setups The following installation procedure is for the outdoor Dome Camera equipped with the sunshield. - Page 11 Installation Guide STEP 4 Smear some lubricant on the surface of the dome cover’s waterproof rubber ring. Then attach the dome cover to the camera body by first aligning the center point on the dome cover with one of the four holes on the dome camera housing as shown in the figure.
- Page 12 Installation Guide STEP 6 Screw the dome cover and camera body together with the supplied M3 Standard/Security Screw. For fastening the Security Screw, please use the supplied Security Torx. STEP 7 Then tighten the two Slotted Screws on the camera housing as shown in the figure by turning them counterclockwise.
-
Page 13: Dome Camera Setups
Installation Guide Dome Camera Setups Before connecting the Dome Camera to other devices of CCTV system, please complete the Dome Camera’s ID and communication switch setting. These switches are located on the bottom of the Dome Camera. 3.2.1 Switch Definition Please refer to the diagrams and tables accompanied with for use of each switch/connector. -
Page 14: Communication Switch Setting
Installation Guide 3.2.2 Communication Switch Setting The analog Dome Camera’s communication switches are specified in the table below. Communication Switch SW 1 RS-485 Setting SW 2 SW 3 Termination SW 4 Line Lock SW 5 Factory Default Reset Camera Upgrade SW 6 RS-485 is the interface that communicates the Dome Camera and its control device;... -
Page 15: Camera Control Protocol Setup
Speed Dome Camera. Switch No. Protocol Baud Rate 9600 Pelco D 2400 Pelco P 4800 Chiper 9600 Philips 9600 GANZ-PT 9600 AD422 4800 DM P 9600 Pelco D 4800 Pelco D 9600 Pelco P 2400 Pelco P... -
Page 16: Cables And Connections
Installation Guide If select protocol: Pelco D, which is of switch no. 01 and baud rate 2400, for instance, set the SW 6 to “ON,” with the rest to “OFF,” as shown below. For switch configuration details, please refer to Appendix B: Switch Settings Index Table in the Dome Camera’s User Manual. -
Page 17: 22-Pin Data Cable
Installation Guide 3.3.2 22-Pin Data Cable The analog Speed Dome Camera’s Data Cables are illustrated as follows. Indoor Model DC 12V Data Cable Outdoor Model AC 24V Data Cable NOTE: Be careful not to pull the cables improperly during installation. Additionally, it is suggested to fasten the cables after cable connection is completed. -
Page 18: 22-Pin Connector Definition
Installation Guide 3.3.3 22-Pin Connector Definition With the 22-pin connector, installers can simply connect the power, video and RS-485 cables to the Dome Camera at once. Particularly, the alarm pins are serviceable for connecting alarm input and output devices, such as alarm sensors, sirens or flashing lights with the surveillance system. -
Page 19: Rs-485 Connector
Installation Guide 3.3.4 RS-485 Connector RS-485 is the interface that communicates the Dome Camera and its control device. Please connect the Control Keyboard to the Speed Dome Camera through the terminal block. The recommended cables for RS-485 communication are CAT 5 cables; maximum cable length for over 24-gauge wire is 4000 feet (1219 meters). - Page 20 Installation Guide Insert the terminal into the pin holes on the connector housing, with the hook outward, as indicated in the figure. To unlock the terminal, press the hook, as indicated in the figure, with a proper tool and pull it out gently. Connect the 22-pin connector to its (Indoor) mating port on the back plate of the...
-
Page 21: Dome Camera Installation
Installation Guide Dome Camera Installation In the following sections, various Dome Camera installation accessories, installation methods and installation procedures will be described in detail. The next section will provide the Dome Camera’s dimensions for your reference before installation. Camera Dimensions The indoor Dome Camera’s dimensions are 131 x 200 mm (5.2 x 7.9 Ø... -
Page 22: Optional Accessories
Installation Guide Optional Accessories Dome Camera Accessories Power Adapter ZCA-100-1.5A (Input: 100~115VAC/Output: 24VAC 36VA) ZCA-220-1.5A (Input: 220~230VAC/Output: 24VAC 36VA) NOTE: When wiring, make sure the Ground wire inserted into the mid-pin of the terminal block Transparent/ Vandal Proof Cover (for outdoor dome) Diameter: 147 mm (5.8 inches) Smoke Cover (for outdoor dome) Diameter: 147 mm (5.8 inches) - Page 23 Installation Guide Mounting Accessories Indoor Mount Kit For mounting the indoor Dome Camera onto a Standard Pendent Mount/Straight Tube. White; Diameter: 140 mm (5.5 inches); Height: 74 mm (2.9 inches); 0.3 kg (0.7 lbs) Hard Ceiling Mount (ZCA-HC200) / Indoor Camera For Hard Ceiling use.
- Page 24 Installation Guide Standard Pendent Mount / Indoor/Outdoor White; 348×104×138.6 mm (13.7×4.1×5.5 inches); 1.5 kg (3.3 lbs); Diameter: 45 mm (1.8 inches). Supplied with M8x12 screw x1, spring washer-8 x1, pendent tube washer x1, rubber washer-8 x1 and sponge x2. Mini Pendent Mount (ZCA-GT100) / Indoor/Outdoor White;...
- Page 25 Installation Guide Swan Tube (ZCA-GT200) /Outdoor For mounting with Swan Tube. White; Iron, Dimension: 835 x 300 mm (32.9×11.8 inches); Diameter: 45 mm (1.8 inches); Weight: 3.8 kg (8.4 lbs); Supplied with pendent tube washer x1, rubber washer-8 x1, waterproof rubber x1, spring washer-8 x1 and M8x12 screw x1. Mini Corner Plate (ZCA-MCP) For mounting with Compact Pendent Mount.
- Page 26 Installation Guide Corner Standard Mounting Plate (ZCA-CST) White, 222×204×117 mm (8.7×8×4.6 inches); 2 kg (4.4 lbs); Supplied with washer-8 x4, spring washer-8 x4, M8x16 screw x4, and M8 nut x4. Corner Thin Box Mounting (ZCA-CTB) White/Ivory, 300×164×222 mm (11.8×6.5×8.7 inches); 3 kg (6.7 lbs); Supplied with M8x16 screw x4, washer-8 x4, and spring washer-8 x4.
- Page 27 Installation Guide Pole Thin Box Mounting (ZCA-PTB) White/Ivory; 291×136×242 mm (11.5×5.4×9.5 inches); 3.1 kg (6.9 lbs); Supplied with M8x16 screw x4, washer-8 x4, spring washer x4 and stainless steel straps x4. Pole Wide Box Mounting (ZCA-PWB) White/Ivory, 270×166×155 mm (10.6×6.5×6.1 inches); 3.2 kg (7.1 lbs); Supplied with M8x16 screw x4, washer-8 x4, spring washer-8 x4 and stainless steel straps x4.
- Page 28 Installation Guide Pole Thin Direct Mounting (ZCA-PTDM) White/Ivory, 232×136×60 mm (9.1×5.4×2.4 inches); Diameter: 112~140 mm (4.4~5.5 inches); 0.7 kg (1.6 lbs); Supplied with stainless steel straps x4, M8x16 screw x4, washer x4 and spring washer-8 x4. Pole Wide Direct Mounting (ZCA-PWDM) White/Ivory, 270×170×60 mm (10.6×6.7×2.4 inches);...
- Page 29 Installation Guide Other Application Accessories Repeater/Converter ZCA-RS422-485: RS-485/RS-422 Repeater ZCA-RS232-485: RS-232 between RS-485/RS-422 ZCA-BP-485: Bi-phase to RS-485/RS-422 ZCA-RS422-485 ZCA-RS232-485 ZCA-BP-485 Connector Box (ZCA-CB) /Indoor Recommended for wiring indoor dome alarm cables. White Color. 92×42 mm (3.7×1.7 inches); 0.13 kg (0.3 lbs); Supplied with cable×1, bracket×1 and M3x6 screw×2. Signal Distribution Unit (ZCA-DS4/8/16) Relay control codes to speed dome cameras.
-
Page 30: Ceiling Mount
Installation Guide Ceiling Mount The Dome Camera can be mounted to the concrete ceiling with the supplied Hard Ceiling Mount and optional accessory: Straight Tube. 4.3.1 Hard Ceiling Mount The indoor Dome Camera can be mounted to the concrete ceiling with the supplied Hard Ceiling Mount. - Page 31 Installation Guide STEP 1 Fasten the Fixing Plate on the Dome Camera’s back plate by first inserting the side with three holes into its mate slot on the camera’s back plate. Push the plate inside the slot to the left, aligning the three holes on the Fixing Plate to the ones on the back plate, and then screw the Fixing Plate tightly...
- Page 32 Installation Guide STEP 5 Fix the Mount with three screws. STEP 6 Remove the Optical Cover of the Dome Camera. STEP 7 Connect the Data Cable through the central hole of the Mount to the Dome Camera’s corresponding connector. STEP 8 Attach the Dome Camera to the Mount and rotate it clockwise.
- Page 33 Installation Guide STEP10 Assemble the Decoration Ring to the Mount by pushing it up through the camera body and aligning the three pillar-like fasteners corresponding holes of the Decoration Ring. STEP 11 Replace the Dome Camera’s Optical Cover. The hard ceiling installation is complete.
-
Page 34: In-Ceiling (T-Bar) Mounting
Installation Guide 4.3.2 In-Ceiling (T-Bar) Mounting The indoor Dome Camera can be mounted with the optional accessory: In-Ceiling (T-Bar) Mount. The items and tools needed for in-ceiling installation are listed as follows. Package Contents: • Lock Bar x1 • M3x6 Screw x2 •... - Page 35 Installation Guide STEP 2 Place supplied Ceiling Sticker onto the ceiling, and cut the circle part (Diameter: 162 mm) out of the ceiling. STEP 3 Hold up the In-Ceiling (T-Bar) Mount and put it into the opening. STEP 4 Tighten the three fixing screws on the In-Ceiling (T-Bar) Mount as shown in the figure.
- Page 36 Installation Guide Figure Top view of fixed In-Ceiling (T-Bar) Mount. When screwing the In-Ceiling (T-Bar) Mount’s wing will keep approaching to the ceiling board until it is completely flush with the board. NOTE: Please make sure In-Ceiling Mount’s wings are completely flush with the ceiling board STEP 6 Run the Data Cable through the...
-
Page 37: Straight Tube
Installation Guide STEP 8 Screw the Dome Camera onto the In-Ceiling Mount with the supplied M3 screw. Installation is finished. 4.3.3 Straight Tube The Straight Tube is available in different length: 25 cm and 30 cm. Package Contents: • M8x12 Screw x1 •... - Page 38 Installation Guide Items Needed: • Dome Camera • Data Cable (supplied) • Straight Tube and equipped items (optional accessory) • Indoor Mount Kit (optional accessory) • Waterproof Rubber (Indoor Mount Kit’s accessory ) • Screws and Screw Anchors for fixing the Straight Tube onto the ceiling (not supplied) Tools Needed: •...
- Page 39 Installation Guide Ceiling Mount: Straight Tube + Indoor Mount Kit...
-
Page 40: Wall Mount
Installation Guide Wall Mount The Dome Camera can be mounted on the wall with Compact Pendent Mount, Standard Pendent Mount and Wall Box. Please follow the installation instructions below for mounting the Dome Camera via different ways. 4.4.1 Swan Tube Package Contents: •... -
Page 41: Compact Pendent Mount
Installation Guide Wall Mount: Swan Tube + Indoor Mounting Kit 4.4.2 Compact Pendent Mount Package Contents: • Rubber Washer-8 x1 • Pendent Tube Washer x1 • Spring Washer-8 x1 • M8x12 Screw x1 Items Needed: • Dome Camera • Data Cable (supplied) •... - Page 42 Installation Guide Follow the steps below to mount the Dome Camera with the Compact Pendent Mount. 1) Make a cable entry hole on the wall to recess the cables. Otherwise, users could push up the Cable Entry Board on the Compact Pendent Mount’s Mounting Plate to place the cables, as shown in the photo below.
-
Page 43: Standard Pendent Mount
Installation Guide Wall Mounting: Compact Pendent Mount + Indoor Mount Kit 4.4.3 Standard Pendent Mount Package Contents: • M8x12 Screw x1 • Spring Washer-8 x1 • Pendent Tube Washer x1 • Rubber Washer-8 x1 • Sponge x2 Items Needed: • Dome Camera •... - Page 44 Installation Guide could push up the cable entry board on the Standard Pendent Mount’s mounting plate to place the cables (see the illustration in section 4.4.2 Compact Pendent Mount > Step 1). 2) Fix the Standard Pendent Mount on the wall with proper screws and screw anchors.
-
Page 45: Wall Box Mounting
Installation Guide 4.4.4 Wall Box Mounting Package Contents: • M8x16 Screw x4 • Washer-8 x4 • Spring Washer-8 x4 Items Needed: • Dome Camera • Data Cable (supplied) • Standard/ Compact Pendent Mount and equipped items (optional accessory) • Wall Box Mounting (optional accessory) •... - Page 46 Installation Guide 5) Thread the cable(s) through the Indoor Mount Kit and join the Indoor Mount Kit to the Standard/ Compact Pendent Mount with the supplied screws and washers. Then adjust the Waterproof Rubber to the joint. 6) Connect the cable(s) to the Dome Camera. 7) Join the Dome Camera to the Indoor Mount Kit with the supplied screw and washers.
-
Page 47: Corner Mount
Installation Guide Corner Mount 4.5.1 Corner Standard Mounting Plate/Corner Plate Mini Package Contents: • Washer-8 x4 • Spring Washer-8 x4 • M8x16 Screw x4 • M8 Nut x4 Items Needed: • Dome Camera • Data Cable (supplied) • Standard/ Compact Pendent Mount and equipped items (optional accessory) •... - Page 48 Installation Guide 5) Thread the cable(s) through the Indoor Mount Kit and join the Indoor Mount Kit to the Standard/ Compact Pendent Mount with the supplied screws and washers. Then adjust the Waterproof Rubber to the joint. 6) Connect the cable(s) to the Dome Camera. 7) Join the Dome Camera to the Indoor Mount Kit with the supplied screw and washers.
-
Page 49: Corner Thin/Wide Box Mounting
Installation Guide 4.5.2 Corner Thin/Wide Box Mounting Package Contents: • M8x16 Screw x4 • Washer-8 x4 • Spring Washer-8 x4 Items Needed: • Dome Camera • Data Cable (supplied) • Standard/ Compact Pendent Mount and equipped items (optional accessory) • Corner Thin/Wide Box (optional accessory) •... - Page 50 Installation Guide 6) Connect the cable(s) to the Dome Camera. 7) Join the Dome Camera to the Indoor Mount Kit with the supplied screw and washers. Corner Box Mounting: Corner Thin/Wide Box + Standard/ Compact Pendent Mount + Indoor Mount Kit...
-
Page 51: Pole Mount
Installation Guide Pole Mount 4.6.1 Pole Thin/Wide Direct Mounting Package Contents: • Stainless Steel Straps x4 • M8x16 Screw x4 • Washer x4 • Spring Washer-8 x4 Items Needed: • Dome Camera • Data Cable (supplied) • Standard/ Compact Pendent Mount and equipped items (optional accessory) •... - Page 52 Installation Guide 5) Thread the cable(s) through the Indoor Mount Kit and join the Indoor Mount Kit to the Standard/ Compact Pendent Mount with the supplied screws and washers. Then adjust the Waterproof Rubber to the joint. 6) Connect the cable(s) to the Dome Camera. 7) Join the Dome Camera to the Indoor Mount Kit with the supplied screw and washers.
-
Page 53: Pole Thin/Wide Box Mounting
Installation Guide 4.6.2 Pole Thin/Wide Box Mounting Package Contents: • M8x16 Screw x4 • Washer-8 x4 • Spring Washer x4, • Stainless Steel Straps x4 Items Needed: • Dome Camera • Data Cable (supplied) • Standard/ Compact Pendent Mount and equipped items (optional accessory) •... - Page 54 Installation Guide 6) Connect the cable(s) to the Dome Camera. 7) Join the Dome Camera to the Indoor Mount Kit with the supplied screw and washers. Pole Box Mounting: Pole Thin/Wide Box + Standard/Compact Pendent Mount + Indoor Mount Kit...
-
Page 55: System Expansion
Installation Guide System Expansion Connecting with Connector Box Ideally being used in indoor installation circumstances, a Connector Box provides easy wiring and well organized connection between alarms, cameras and other devices, for easy installation. To connect the connector box with other devices: •... -
Page 56: Data Formats Transforming
Installation Guide Data Formats Transforming To integrate other surveillance devices with the Speed Dome Cameras, we provide three kinds of converter/repeater to transform the communication formats between devices. If a converter/repeater is used, the total network distance of the surveillance system can be extended, and the connected devices will also be protected. -
Page 57: Signal Distribution Unit
Installation Guide Signal Distribution Unit The RS-485 Signal Distribution Unit (SDU) is designed to relay control codes to Speed Dome Cameras. It is capable of communicating with cameras up to 1.0 kilometers away. Additionally, the SDU can be installed in either “star” or “daisy chain”... -
Page 58: System Integration
Installation Guide System Integration The Dome Camera is allowed to be integrated into other suppliers' surveillance systems with large set of built-in protocols. Refer to the following sections for more information. Using Pelco Keyboard The Speed Dome Camera can be controlled through a Pelco keyboard which built in with D protocol and P protocol. -
Page 59: Using Philips Allegiant Keyboard
Installation Guide Using Philips Allegiant Keyboard The Dome Cameras can be integrated into Philips Allegiant systems through D77R3 repeaters. Please follow the instructions to control Dome Cameras through Philips Allegiant systems. Symbol Definition <shot> Command dome cameras to go to a specific preset position. <set>... -
Page 60: Appendix A: Technical Specification
1/1 ~ 1/10k sec. AGC control Auto / Manual Back Light Compensation On / Off OPERATION Ganz-PT, Pelco D&P, VCL, Philips, AD-422, JVC, etc. Built-in Protocol Multi-Language OSD English, French, German, Italian, Portuguese, Spanish Pan Travel 360° endless -10° ~ 190°... - Page 61 Installation Guide Item Mini Speed Dome Camera On / Off Wide Dynamic Range Day/Night: IR Cut Filter On / Off On / Off Image Freeze Image Inverse On / Off On / Off Noise Reduction On / Off Alarm Input Alarm Output Alarm Reaction Preset, Sequence, Auto pan, Cruise...
