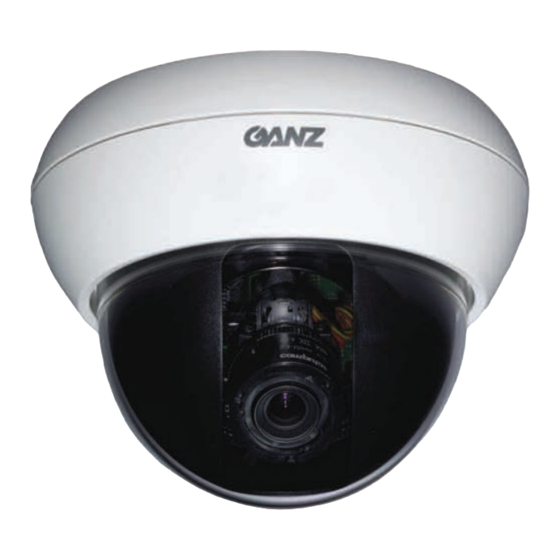

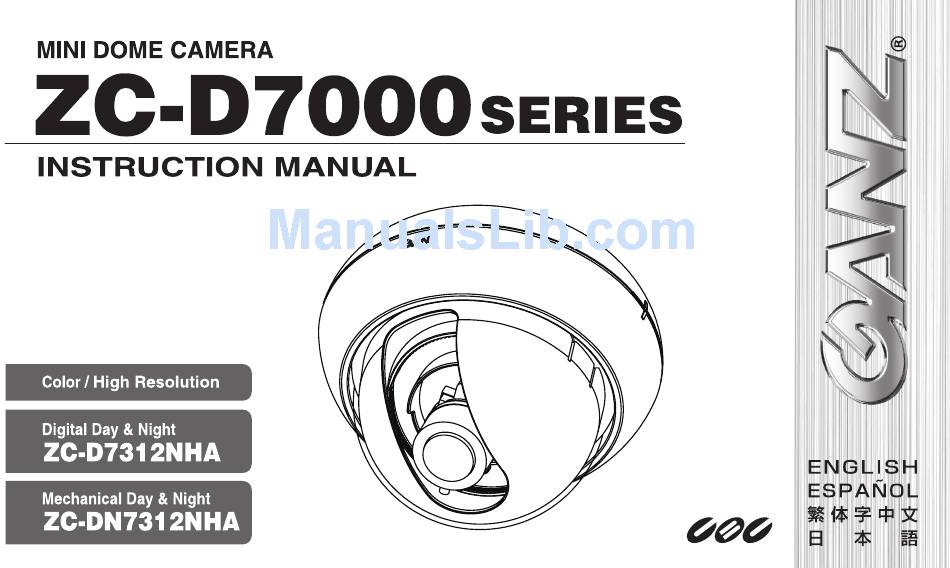

Ganz ZC-D7000 SERIES Instruction Manual

Ganz ZC-D7000 SERIES Instruction Manual

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZC-D7000 SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ganz ZC-D7000 SERIES

  • Page 2: Product Features

    Thank you for your purchase of this product. Before operating the product, please read this instruction manual carefully to ensure proper use of the product. Please store this instruction manual in a safe place for future This symbol indicates that there is a possibility of injury or damage to equipment. reference.
  • Page 3: Parts Description

    Camera body interior PARTS DESCRIPTION Mode setting switch Exterior Camera mounting hole Lens Dome base Line phase adjustment Focus adjustment lever volume DC iris adjustment View angle volume Camera body adjustment lever Lens Service monitor Inner cover jack Power input jack Video output connector Dome cover Accessories...
  • Page 4: Installation And Adjustment

    Attach the camera body. INSTALLATION AND ADJUSTMENT Attach the camera body to the ceiling or wall. Installation preparation Remove the dome cover. Insert a fl at-bladed screwdriver into the groove between the dome cover and the dome base, and then twist the screwdriver. You can have the cables run on the exterior surface of the ceiling or wall.
  • Page 5: Connecting The Cables

    Connecting the cables Connect the power and video cables. Be sure to check that the cables are connected correctly before turning the power on. Connect the video cable. Turning on the power when the cables are connected with incorrect Connect the video cable to the video output connector on the camera polarity may damage the camera.
  • Page 6 Setting the mode setting switch Do not alter the position of the mode setting switch marked “FIX” from its factory default setting. If the set position is changed, the auto iris may become inoperable. Enables the automatic Day/Night switching. (Low light conditions: B/W, Normal light: color) Digital Day/Night model: The digital processing provides high sensitivity pictures.
  • Page 7: Adjusting The Camera Direction

    Adjusting the line phase Adjusting the view angle and focus Use an AC power-source synchronization phase Move the lever to adjust focus and angle of view. adjustment volume to adjust the phase of power synchronization (The default position is where the adjuster is fully turned to the left).
  • Page 8: Specifications

    SPECIFICATIONS Model No. ZC-D7312NHA ZC-DN7312NHA D-DN (Digital Day/Night) function model M-DN (Mechanical Day/Night) function model Focal length 3.3 mm - 12 mm Max. aperture ratio 1 : 1.4 Iris F1.4 - F360C (DC auto iris) Angle of view (Wide to Tele) 125.7°...
