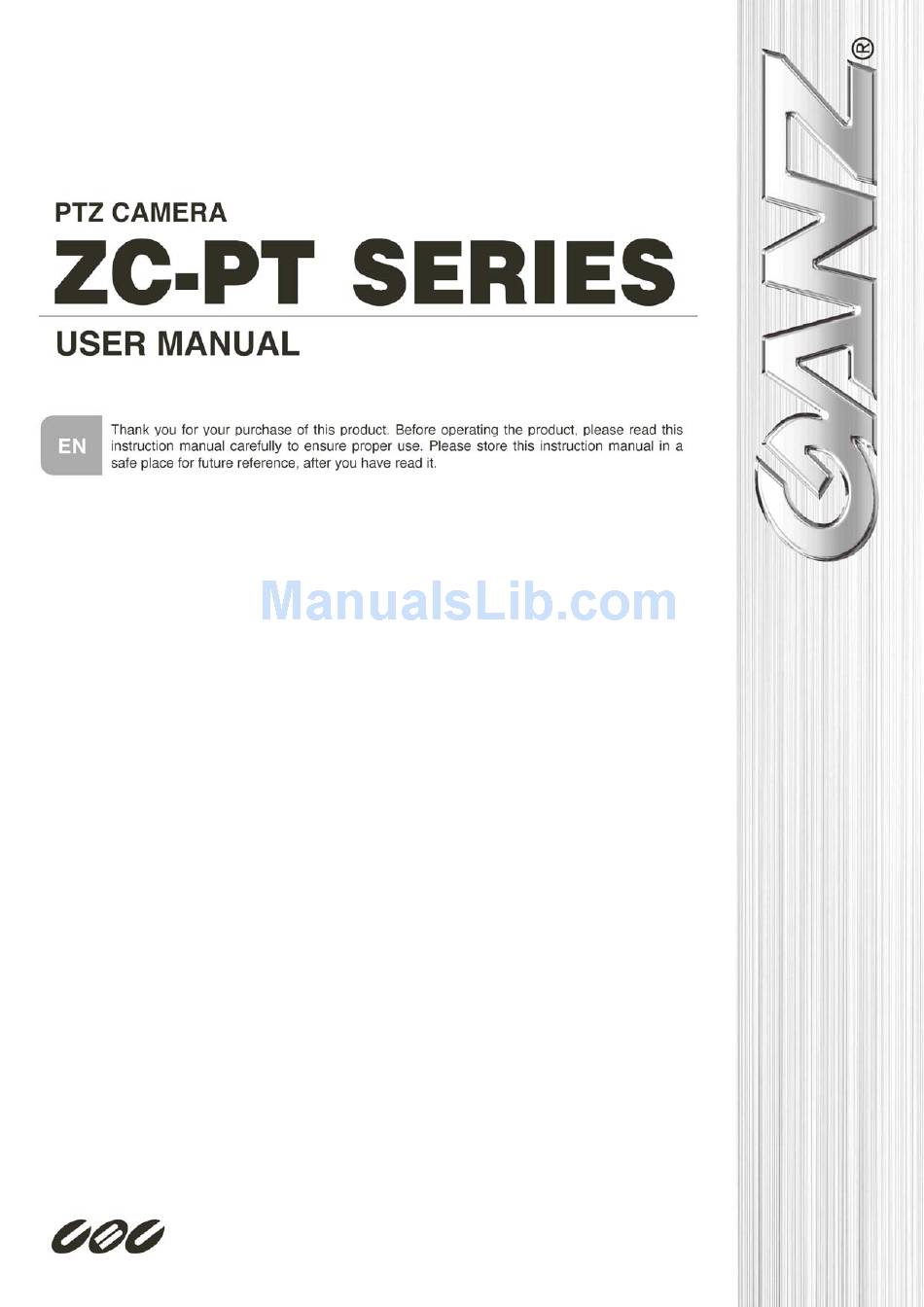

Ganz ZC-PT Series User Manual

Hide thumbs Also See for ZC-PT Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
/6\r4
English Version 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZC-PT Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ganz ZC-PT Series

Summary of Contents for Ganz ZC-PT Series

  • Page 1 /6\r4 English Version 1.1...
  • Page 2 User’s Manual Preface The information provided in this manual was current when published. The company reserves the right to revise and improve its products. All specifications are subject to change without notice. Notice To work with the PTZ Cameras, any installer or technician must have the following minimum qualifications: •...
  • Page 3 User’s Manual Disposal of your old appliance 1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

  • Page 4: Warning Notices

    User’s Manual Warning Notices • Handle the camera with care Do not abuse the camera. Avoid striking, shaking, etc. The camera could be damaged by improper handing or storage. • Do not dismantle the camera To prevent electric shock, do not remove screws or covers. There are no user serviceable parts inside.

  • Page 5: Table Of Contents

    User’s Manual Table of Contents 1. Overview ............................ 6 Product Features......................7 Product Application......................8 2. Connecting the PTZ Camera ....................9 Package Content......................9 Switch/Connector Definition ...................11 Communication Switch Setting..................11 PTZ Camera ID Setting ....................12 PTZ Camera Control Protocol ..................13 22-Pin Connector Definition ..................
  • Page 6 User’s Manual EXIT......................37 ・ 3.3.9 ID DISPLAY ..................... 38 3.3.10 TITLE DISPLAY ....................38 3.3.11 TITLE SETTING ....................38 3.3.12 PRESET ......................39 3.3.13 SEQUENCE ....................40 3.3.14 AUTOPAN......................42 3.3.15 CRUISE ......................44 3.3.16 HOME SETTING ..................... 45 3.3.17 IR FUNCTION (Removable IR Blocking)............

  • Page 7: Overview

    User’s Manual Overview The ZC-PT series integrated indoor PTZ Camera is a new sub-compact model designed to deliver superb performance and durability combined with an intelligent and stylish housing that is suitable for any security and surveillance installation. The ZC-PT-XT series is a new weather resistant integrated outdoor PTZ Camera. The...

  • Page 8: Product Features

    User’s Manual triggered. Various built-in protocols including Ganz-PT, Ganz-S, Pelco, VCL, Philips, AD-422 (Manchester) etc., provide connectivity to other surveillance systems, allowing the integrated PTZ Camera to be used in conjunction with systems from other manufacturers. Dependability and ultra high reliability are key factors of the camera design. Every PTZ Camera is assembled with meticulous care and thorough testing at our ISO 9001 certified factory.

  • Page 9: Product Application

    User’s Manual • Image Inverse • Electronic Image Stabilizer (Optional) • Removable IR blocking filter Product Application Connect the PTZ Camera to other devices as shown in the diagram to create a complete video surveillance solution. NOTE: To extend the network distance up to 1.2 km (4000 feet) and to protect the connected devices, it is highly recommended to place a repeater at the mid-point.

  • Page 10: Connecting The Ptz Camera

    User’s Manual Connecting the PTZ Camera Please refer to the sections below for details of how to set and connect the PTZ Camera. In order to control PTZ Camera, a control keyboard or alternative control device is required. Package Content Before proceeding, please check that the box contains the items listed here.
  • Page 11 User’s Manual Outdoor PTZ Camera Standard Package Camera Body & Screws Security screw Water-proof rubber Vandal Proof Cover Lubricant Cable for Power, Power Cord Installation Guide Video, RS-485 & Quick Guide and Alarm...

  • Page 12: Switch/Connector Definition

    User’s Manual Switch/Connector Definition The PTZ Camera’s ID and communication protocol must be configured before connecting the camera to other devices. The switches used to configure these settings are located on the bottom of the PTZ Camera. Indoor PTZ Camera Outdoor PTZ Camera Camera Control Protocol Switch Communication Switch...

  • Page 13: Ptz Camera Id Setting

    User’s Manual default setting without seeking the advice of a qualified specialist or the supplier. The SW 3 and SW 4 are used for termination and line lock adjustment respectively. The SW 5 is mainly used when users want to restore the camera to the factory default status;...

  • Page 14: Ptz Camera Control Protocol

    KALATEL RS485 4800 KALATEL RS422 *GANZ-PT is for ZC-PT series PTZ Camera. GANZ-S is for ZC-S series PTZ Camera. For example, select protocol Pelco D with a baud rate of 2400, the protocol switch should be set as shown below.

  • Page 15: 22-Pin Connector Definition

    User’s Manual NOTE: Change the PTZ Camera’s control protocol only when the camera is powered off. After changing protocol, please do the following procedure: (1) Set SW 5 (Communication switch) on. (2) Power on the camera and check the message on the screen. (3) Power off and set SW 5(Communication switch) off.

  • Page 16: Rs-485 Connector

    User’s Manual The 22-pin connector definition is listed in the table below. Definition Cable Definition Cable AC 24-1 ALM-1 20AWG/18AWG ALM NC ALM-3 ALM-2 AC 24-2 20AWG/18AWG ALM NO ALM-4 ALM-5 20AWG/18AWG ALM COM ALM-6 ALM-7 ALM-8 24AWG ALM GND VGND 20AWG Alarm ISOG...

  • Page 17: Operation And Configuration

    User’s Manual Operation and Configuration OSD Display Format The information shown on the screen is described in terms of the corresponding OSD display, its position and its function in the table below. Position Function OSD Display Description Motion MOTION Alarm Detect Message Alarm ALARM 1 Alarm Message...

  • Page 18: Osd Menu Tree

    User’s Manual OSD Menu Tree The OSD setup menu structures of each model is listed separately in the following section. The star symbol indicates the factory default. For a detailed function description, please refer to section 3.3 Configuration Menu. 3.2.1 18×/26×...
  • Page 19 User’s Manual Item Layer 1 Layer 2 Layer 3 Default AUTO CALI. <ON>, <OFF> SYSTEM RESET EXIT <ON>, <OFF> ID DISPLAY <ON>, <OFF> TITLE DISPLAY <01> ~ <16> TITLE SETTING PRESET SET <001>~<256> ENTER PRESET RUN <001>~<256> ENTER PRESET EXIT ENTER SEQUENCE LINE <1>...
  • Page 20 User’s Manual Item Layer 1 Layer 2 Layer 3 Default THRESHOLD NONE; MOTION: <001> ~ <255> EXIT <ON>, <OFF> WDR FUNCTION PRIVACY <ON>, <OFF> SWITCH TRANSPARENCY <ON>, <OFF> <BLACK>, <HI GRAY>, <LO GRAY>, <WHITE>, COLOR <RED>, <GREEN>, <BLUE>, <CYAN>, BLACK <YELLOW>, <MAGENTA>...

  • Page 21: 35× Model

    User’s Manual 3.2.2 23×/35× Model Item Layer 1 Layer 2 Layer 3 Default <ENGLISH>, <JAPANESE>, <PORTUGUESE>, <SPANISH>, <FRENCH>, <GERMAN>, <ITALIAN>, <POLISH>, <RUSSIAN>, ENGLISH LANGUAGE <TRADITIONAL CHINESE>, <SIMPLIFIED CHINESE>, <TURKISH> DEFAULT <ON>, <OFF> CAMERA BLC LEVEL <00> ~ <30> <ON> EXIT + SAVE: YES BACKLIGHT <OFF>...
  • Page 22 User’s Manual Item Layer 1 Layer 2 Layer 3 Default PRESET SET <001>~<256> ENTER PRESET RUN <001>~<256> ENTER PRESET EXIT ENTER SEQUENCE LINE <1> ~ <8> SEQUENCE <01> ~ <64> POINT PRESET POS. <001> ~ <255>, <END> SEQUENCE SPEED <01> ~ <15> DWELL TIME <000>...
  • Page 23 User’s Manual Item Layer 1 Layer 2 Layer 3 Default V CENTER<000> ~ <255> H SIZE <000> ~ <127> V SIZE <000> ~ <127> EXIT + SAVE CLEAR MASK <01> ~ <08>, <RESET> MASK DISPLAY <FIRST>, <LAST> FIRST EXIT TIME DISPLAY <ON>, <OFF>...

  • Page 24: Configuration Menu

    User’s Manual Configuration Menu The detailed functions and parameter settings for your PTZ Camera can be set in the OSD (On Screen Display) menu using a control unit, such as a control keyboard (ZCA-SC201). The items in each model’s OSD menu are described in the following sections.

  • Page 25: Default Camera

    User’s Manual 3.3.2 DEFAULT CAMERA The DEFAULT CAMERA option is used to restore some camera settings back to default setting. The settings that are affected include Backlight, Focus, AE, WBC, Aperture, Zoom Speed and Digital Zoom. Once any one of the items is modified, the setting will become <OFF>...

  • Page 26: Focus

    User’s Manual MAIN PAGE 1 LANGUAGE ENGLISH DEFAULT CAMERA BACKLIGHT FOCUS AUTO AE MODE AUTO WBC MODE AUTO SETUP MENU 1 ENTER SETUP MENU 2 ENTER 3.3.4 FOCUS The focus of the PTZ Camera can be operated in two modes: Auto Focus mode and Manual Focus mode.
  • Page 27 User’s Manual MAIN PAGE 1 LANGUAGE ENGLISH DEFAULT CAMERA BACKLIGHT FOCUS AUTO AE MODE ENTER WBC MODE AUTO SETUP MENU 1 ENTER SETUP MENU 2 ENTER 23×/35× Model: • AUTO The optimum focus is achieved using the internal digital circuit. Users can adjust the minimum auto focus range for certain special conditions;...

  • Page 28: Ae Mode

    User’s Manual 3.3.5 AE MODE The exposure is the amount of light captured by the image sensor and is determined by the width of lens diaphragm opening (iris adjustment), the amount of exposure by the sensor (shutter speed) and other exposure parameters. This option allows users to define how the Auto Exposure (AE) function works.
  • Page 29 User’s Manual pass; options range from F1.6 ~ F28. MANUAL In the mode, users can adjust shutter speed (1/10000 ~ 1), iris value (F1.6 ~ F28) and gain value (-3dB ~ 28dB). • EXIT Exit the AE MODE menu and go back to the Main Page 1 to continue to set the WBC mode.

  • Page 30: Wbc Mode

    User’s Manual NOTE: For 23× and 35× models, If AE MODE is set as SHUTTER, IRIS or AGC mode rather than AUTO mode, the following functions will be turned off automatically: WDR, Digital Slow Shutter and Alarm Detect. Additionally, when WDR/Alarm Detect is turned on, AE MODE will become AUTO.
  • Page 31 User’s Manual • INDOOR 3200 K base mode. • OUTDOOR 5800 K base mode. • The PTZ Camera records the signals from a screen in the range from 2000 K to 10000 K. • MANUAL In this mode, the user can change the white balance value manually; R gain and B gain are adjustable in the range from 0 to 127.

  • Page 32: Setup Menu 1

    User’s Manual After WBC relevant parameter setups are completed, please exit the WBC MODE menu and go back to the Main Page 1 to continue to set other functions under the Setup Menu 1. MAIN PAGE 1 LANGUAGE ENGLISH DEFAULT CAMERA BACKLIGHT FOCUS AUTO...

  • Page 33: Zoom Speed

    User’s Manual • ZOOM SPEED This option is used to set the zoom speed for operating the PTZ Camera. 18×/26× Model: For these models, the zoom speed options are <1> (slow) ~ <8> (fast). The default setting is <8>. 23×/35× Model: For this model, the options are <FAST>...

  • Page 34: Digital Noise Reduction (35× Model)

    User’s Manual 23×/35× Model: The shutter speed is adjustable in 23× and 35× models. With the slowest shutter speed, the user can see objects in a dark environment under 0.1 lux or see smooth video image with a higher shutter speed. For the 23× model, the options are from <1/2>...

  • Page 35: Freeze

    User’s Manual • FREEZE Freeze function allows to hold the image while the camera is moving between preset positions such as in PRESET (see section 3.3.12) and SEQUENCE (see section 3.3.13) modes. For example, when the Dome Camera is manipulated to run from point A to point B, if the Freeze function is activated, the first view that users would see is point A.

  • Page 36: Setup Menu 2

    User’s Manual functions under the Setup Menu 2. 18×/26× Model: 23×/35× Model: MAIN PAGE 1 MAIN PAGE 1 LANGUAGE ENGLISH LANGUAGE ENGLISH DEFAULT CAMERA DEFAULT CAMERA BACKLIGHT BACKLIGHT FOCUS AUTO FOCUS AUTO AE MODE ENTER AE MODE AUTO WBC MODE AUTO WBC MODE AUTO...

  • Page 37: Angle Adjuster

    User’s Manual NOTE: Flip setting is manual-controlled only. If a Preset or a point for other function (ex. Sequence) is set in the position that can only be reached through FLIP motion, when Flip is off, the position cannot be reached anymore.

  • Page 38: System Reset

    User’s Manual • SYSTEM RESET Select this item for system reboot. SYSTEM RESET Select this function for system reboot. Press “ENTER” and system reboot will start up. DEFAULT SYSTEM This function allows users to restore the camera to its factory default state. Press “ENTER”...

  • Page 39: Id Display

    User’s Manual 3.3.9 ID DISPLAY Press the direction key down to turn the MAIN MENU page from 1 to 2, and then the menu item <ID DISPLAY> will be shown on the top. Users are allowed to choose whether the Dome Camera’s ID will be displayed on screen for identifying the domes. For more information, refer to section 2.4 PTZ Camera ID Setting.

  • Page 40: Preset

    User’s Manual STEP 5: Choose a character with direction keys and then press <ENTER> to input. For example: <A > <ENTER>, <B> <ENTER>, <C> <ENTER> TITLE: ABC STEP 6: To delete input characters, move the cursor to <LEFT> or <RIGHT> and press <ENTER>...

  • Page 41: Sequence

    User’s Manual • EXIT Exit the PRESET menu and go back to the MAIN PAGE 2 to carry on setup of sequence. MAIN PAGE 2 ID DISPLAY TITLE DISPLAY TITLE SETTING PRESET ENTER SEQUENCE ENTER AUTOPAN ENTER CRUISE ENTER HOME SETTING ENTER NOTE: Users could set preset points through the control keyboard.
  • Page 42 User’s Manual Sequence Point following the last Sequence Point when the amount of sequence points (see the previous section) is less than 64 points. NOTE: If not all 64 points are used, please set the point following the last Sequence Point as “END” (PRESET POSITION) so that the sequence line can work properly.

  • Page 43: Autopan

    User’s Manual 3.3.14 AUTOPAN Auto-pan means motion of scanning an area horizontally so that the PTZ Camera can catch horizontal view. The parameters are listed as follows. AUTOPAN AUTOPAN LINE START POINT TO FIND END POINT TO FIND DIRECTION RIGHT SPEED RUN AUTOPAN ENTER...
  • Page 44 User’s Manual Start RIGHT LEFT RIGHT LEFT Dome (clockwise) (anti-clockwise) End Point • SPEED This option is for defining the PTZ Camera rotation speed while running auto-pan. The speed is adjustable from 1 to 4 (10 ~ 45 degree/sec.). • RUN AUTOPAN After all setting related to auto-pan are completed, select this item to execute the auto-pan function.

  • Page 45: Cruise

    User’s Manual 3.3.15 CRUISE CRUISE is a route formed with manual operation, through adjusting pan, tilt position and zoom parameters, which can be stored and recalled to execute repeatedly. CRUISE CRUISE LINE RECORD START ENTER RECORD END ENTER RUN CRUISE ENTER EXIT •...

  • Page 46: Home Setting

    User’s Manual MAIN PAGE 2 ID DISPLAY TITLE DISPLAY TITLE SETTING PRESET ENTER SEQUENCE ENTER AUTOPAN ENTER CRUISE ENTER HOME SETTING ENTER NOTE: Users could execute the cruise function through the control keyboard. Please refer to its user manual for further information. 3.3.16 HOME SETTING The user can set an operating mode to ensure constant monitoring.
  • Page 47 User’s Manual SEQUENCE LINE Select a sequence line that the PTZ Camera should execute after the Return Time function is activated. The sequence line(s) should be defined prior either in the SEQUENCE setup menu or through the keyboard. AUTOPAN LINE Select an auto-pan line that the PTZ Camera should execute after the Return Time function is activated.

  • Page 48: Ir Function (Removable Ir Blocking)

    User’s Manual 3.3.17 IR FUNCTION (Removable IR Blocking) The IR blocking filter enables the PTZ Camera to capture a clear image at night time or in low light conditions. During the day, the IR blocking filter is fitted to block the infrared light and ensure a clear image;...
  • Page 49 User’s Manual • Select the item to disable IR function. NOTE: When Alarm Detect function (see section 3.3.19 ALARM DETECT) is turned on, IR function will automatically switch to ON/OFF mode. Sub-menu of IR Function: IR FUNCTION THRESHOLD IR COLOR COLOR EXIT＋SAVE THRESHOLD...

  • Page 50: Alarm Setting

    User’s Manual 3.3.18 ALARM SETTING The PTZ Camera provides eight alarm inputs and one alarm output (N.O. or N.C) to connect alarm devices. This function enables the PTZ Camera to work in conjunction with an alarm system to capture images of a particular event. For wiring details, please refer to the installation guide and/or qualified service personnel.
  • Page 51 User’s Manual • ALARM ACTION The alarm actions include PRESET, SEQUENCE, AUTOPAN and CRUISE functions. Select one of these modes so that certain action will be executed when an alarm is triggered. Use the right direction key of the control keyboard to select a particular action mode, and the items listed below will change in accordance with your selected alarm action.
  • Page 52 User’s Manual alarm takes place. If other modes (SEQUENCE/AUTOPAN/CRUISE) have been selected, the camera will keep executing the selected mode (DWELL TIME: ALWAYS) until alarm condition is released or users rotate the joystick to change the status of the PTZ Camera. NOTE: The dwell time is only adjustable when selecting Preset as the alarm action.

  • Page 53: Alarm Detect

    User’s Manual 3.3.19 ALARM DETECT When the alarm detect function is activated, the camera will detect movement within a monitoring area and then send an alarm signal automatically. There will be a flash warning notice: MOTION displayed in the upper left corner of the screen. 18x/26x Model: ALARM DETECT DETECT SWITCH...
  • Page 54 User’s Manual MOTION Motion Detection function allows detecting suspicious motion and triggering alarms when motion volume in the detected area reaches/exceeds the determined sensitivity threshold value. The main menu is shown below: ALARM DETECT DETECT SWITCH DETECT MODE MOTION BLOCK MODE FRAME SET FRAME DISABLE THRESHOLD...
  • Page 55 User’s Manual H/V SIZE Adjust the frame size via changing H/V size value using the right/left keys on the keyboard. MODE Assign a trigger action for a motion detection frame. Options include PRESET, SEQUENCE, AUTOPAN and CRUISE. When motion is detected within a frame, the PTZ Camera will execute the specific trigger action.

  • Page 56: Wdr Function (18X/26X/23×/35× Model)

    User’s Manual 23×/35× Model: • The camera will automatically execute motion detection within the monitoring area. NOTE: For the 23× and 35× models, when Alarm Detect is turned on, the following functions will be affected: 1) AE becomes AUTO mode; 2) IR becomes ON/OFF mode;...
  • Page 57 User’s Manual • Under the item, users can define three parameters’ value: RATIO LEVEL (000 ~ 128), SHUTTER SPEED (000 ~ 128) and IRIS OFFSET (000 ~ 128), as shown in the following column. WDR MODE RATIO LEVEL SHUTTER SPEED IRIS OFFSET EXIT NOTE: The parameter effects set here will be limited if Image Inverse...

  • Page 58: Privacy Mask

    User’s Manual 3.3.21 PRIVACY MASK The Privacy Mask function aims to avoid any intrusive monitoring. Users can adjust the camera view position using the joystick, and adjust the mask size and area via the direction keys on the control keyboard. When setting a mask, it is suggested to set it at least twice bigger (height and width) than the masked object.
  • Page 59 User’s Manual MASK01 MENU H CENTER V CENTER H SIZE V SIZE EXIT+SAVE H CENTER The original horizontal centre of the mask zone is the centre of the screen; it can be moved to another position by adjusting the horizontal value using the LEFT/RIGHT keys.
  • Page 60 User’s Manual 18×/26× Model: MAIN PAGE 3 IR FUNCTION AUTO ALARM SETTING ENTER ALARM DETECT WDR FUNCTION PRIVACY MASK ENTER TIME SETTING ENTER SCHEDULE ENTER EXIT OSD 23×/35× Model: For the 23× and 35× models, when Privacy Mask function is enabled, Alarm Detect function will automatically be disabled.
  • Page 61 User’s Manual H CENTRE (000~255) The original centre of the mask zone is the centre of the screen. The user can move the centre of the mask zone to another position by pressing the LEFT/RIGHT keys on the keyboard to adjust the value. V CENTRE (000~255) The original centre of the mask zone is the centre of the screen.

  • Page 62: Time Setting

    User’s Manual then display the mask zone. • EXIT Exit the PRIVACY MASK page and go back to the MAIN PAGE 3 to carry on setup of time related setting. 23×/35× Model: MAIN PAGE 3 IR FUNCTION AUTO ALARM SETTING ENTER ALARM DETECT WDR FUNCTION...

  • Page 63: Schedule

    User’s Manual 18×/23×/26×/35× Model: MAIN PAGE 3 IR FUNCTION AUTO ALARM SETTING ENTER ALARM DETECT WDR FUNCTION PRIVACY MASK ENTER TIME SETTING ENTER SCHEDULE ENTER EXIT OSD 3.3.23 SCHEDULE The schedule function enables users to program a preset point or function (Sequence/Auto-pan/Cruise) automatically to perform in a specific period of time.

  • Page 64: Exit Osd

    User’s Manual SEQUENCE Users can select the SEQUENCE mode as an action carried out in a schedule point. AUTOPAN Users can select the AUTOPAN mode as an action carried out in a schedule point. CRUISE Users can select the CRUISE mode as an action carried out in a schedule point.

  • Page 65: Appendix A: Technical Specifications

    User’s Manual Appendix A: Technical Specifications Items 18× Model 23× Model 26× Model 35× Model CAMERA 1/4" EXview 1/4" CCD 1/4" EXview 1/4" CCD CCD Sensor Progressive Scan 18× 26× Optical Zoom 1× ~ 12× variable Digital Zoom NTSC 380k Effective Pixels 440k 530 TVL...
  • Page 66 User’s Manual Items 18× Model 23× Model 26× Model 35× Model Resume after Power loss Zone Title Preset, Sequence, Auto pan, Cruise Home Function Digital / Mechanical / Off Auto Flip On / Off On / Off On / Off On / Off Digital Slow Shutter On / Off...

  • Page 67: Osd Menu Notes

    User’s Manual OSD Menu Notes The following OSD menu tables are provided for users to record various PTZ Camera setting. <18×/26× Model> Item Layer 1 Layer 2 Layer 3 Notes <ENGLISH>, <JAPANESE>, <PORTUGUESE>, <SPANISH>, <FRENCH>, <GERMAN>, <ITALIAN>, <POLISH>, <RUSSIAN>, LANGUAGE <SIMPLIFIED CHINESE>, <TURKISH>...
  • Page 68 User’s Manual Item Layer 1 Layer 2 Layer 3 Notes <ON>, <OFF> ID DISPLAY <ON>, <OFF> TITLE DISPLAY <01> ~ <16> TITLE SETTING PRESET SET <001>~<256> PRESET RUN <001>~<256> PRESET EXIT SEQUENCE LINE <1> ~ <8> SEQUENCE <01> ~ <64> POINT PRESET POS.
  • Page 69 User’s Manual Item Layer 1 Layer 2 Layer 3 Notes PRIVACY <ON>, <OFF> SWITCH TRANSPARENCY <ON>, <OFF> <BLACK>, <HI GRAY>, <LO GRAY>, <WHITE>, COLOR <RED>, <GREEN>, <BLUE>, <CYAN>, <YELLOW>, <MAGENTA> H CENTER: L/R PRIVACY MASK V CENTER: D/U SET MASK <01>...

  • Page 70: 23×/35× Model

    User’s Manual 23×/35× Model> Item Layer 1 Layer 2 Layer 3 Notes <ENGLISH>, <JAPANESE>, <PORTUGUESE>, <SPANISH>, <FRENCH>, <GERMAN>, <ITALIAN>, <POLISH>, <RUSSIAN>, LANGUAGE <TRADITIONAL CHINESE>, <SIMPLIFIED CHINESE>, <TURKISH> DEFAULT <ON>, <OFF> CAMERA BLC LEVEL <00> ~ <30> <ON> EXIT + SAVE: YES BACKLIGHT <OFF>...
  • Page 71 User’s Manual Item Layer 1 Layer 2 Layer 3 Notes PRESET SET <001>~<256> PRESET RUN <001>~<256> PRESET EXIT SEQUENCE LINE <1> ~ <8> SEQUENCE <01> ~ <64> POINT PRESET POS. <001> ~ <255>, <END> SEQUENCE SPEED <01> ~ <15> DWELL TIME <000>...
  • Page 72 User’s Manual Item Layer 1 Layer 2 Layer 3 Notes V CENTER<000> ~ <255> H SIZE <000> ~ <127> V SIZE <000> ~ <127> EXIT + SAVE CLEAR MASK <01> ~ <08>, <RESET> MASK DISPLAY <FIRST>, <LAST> EXIT TIME DISPLAY <ON>, <OFF>...
  • Page 73 User’s Manual...
