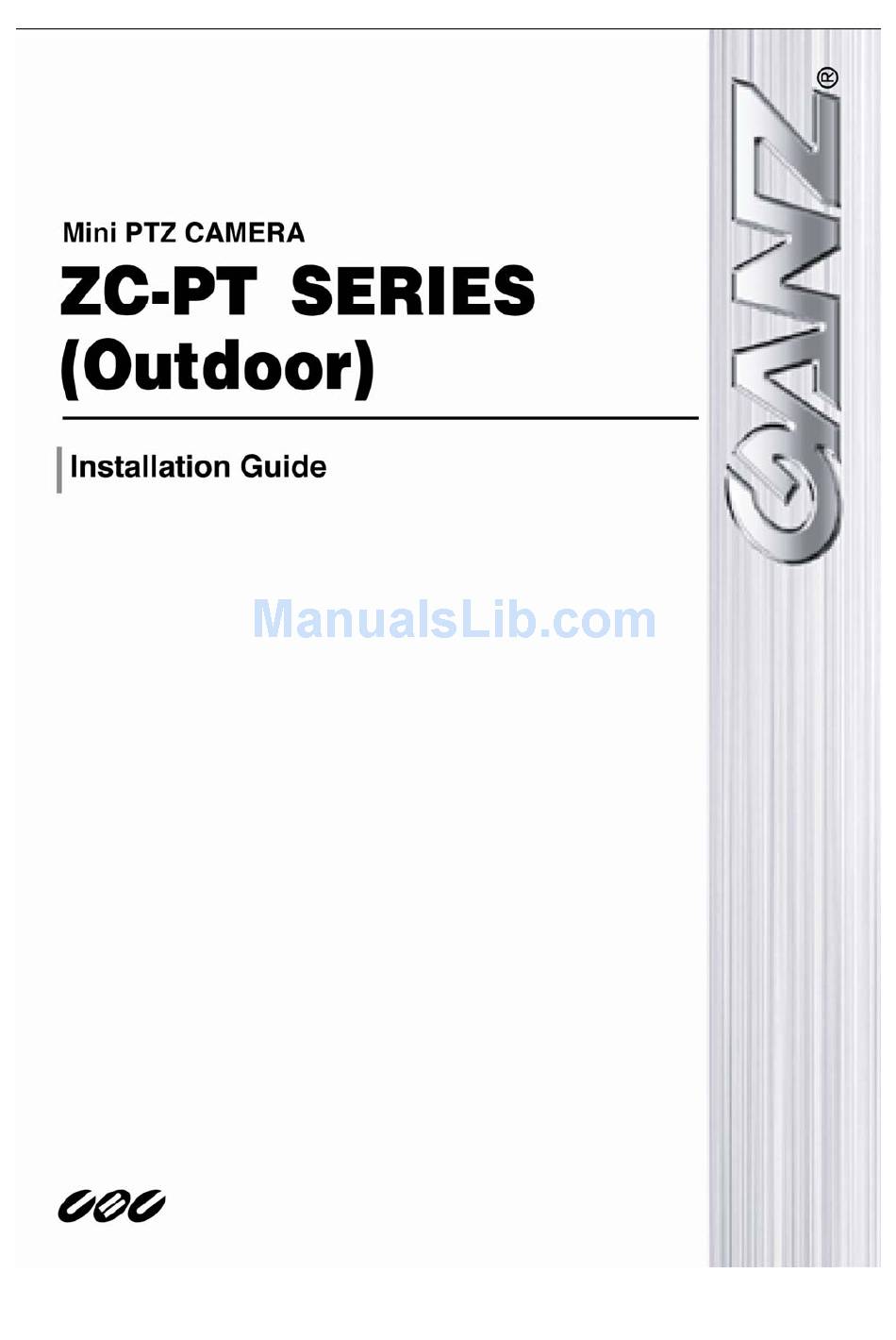

Ganz ZC-PT Series Installation Manual

Mini ptz camera
Hide thumbs Also See for ZC-PT Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Installation Manual

Advertisement

Table of Contents
loading

Related Manuals for Ganz ZC-PT Series

Summary of Contents for Ganz ZC-PT Series

  • Page 2 Installation Guide Preface Information given in this manual was current when published. The company reserves the right to revise and improve its products. All specifications are subject to change without notice. Notice This manual provides installation information for the outdoor Integrated High Speed Dome Camera.
  • Page 3 Installation Guide This symbol on the product or on its packaging indicates that this product shall not be treated as household waste in accordance with Directive 2002/96/EC. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

  • Page 4: Warnings And Cautions

    Installation Guide Warnings and Cautions • Handle the camera carefully Do not abuse the camera. Avoid striking, shaking, etc. The camera could be damaged by improper handing or storage. • Installing electricity wiring carefully Ask qualified personnel of electrical wiring for the installation. Please note that input electricity to the unit is at tolerance of DC 12V/AC 24V ±...

  • Page 5: Table Of Contents

    Installation Guide Table of Contents Introduction........................6 Standard Package Content ..................7 Camera Setups and Cable Connection ..............9 Preparations for Dome Camera Setups ............9 Dome Camera Setups..................12 3.2.1 Switch Definition ................12 3.2.2 Communication Switch Setting ............13 Analog Dome Camera ...............13 IP Dome Camera................14 3.2.3 ID Setting (Analog Model)..............14 3.2.4...
  • Page 6 Installation Guide Data Formats Transforming................45 Signal Distribution ...................46 Coaxial Telemetry....................47 System Integration ....................48 Using Pelco Keyboard..................48 Using Philips Allegiant Keyboard..............49 Appendix A: Technical Specification ................50...

  • Page 7: Introduction

    Installation Guide Introduction With weather resistant feature, the Mini PTZ Camera is applicable to outdoor installation. The PTZ Camera supports one cabling for easy installation, and can be integrated with various digital surveillance products, such as DVRs, Control Keyboards, and accessories for a total surveillance solution. In addition, large set of built-in protocols provide connectivity to other surveillance systems.

  • Page 8: Standard Package Content

    Installation Guide Standard Package Content Before proceeding, please check the box contains the items listed here. If any item is missing or has defects, DO NOT install or operate the product and contact your dealer for assistance. Analog Dome Camera Package Dome Camera with Data Cable for Power Supply, Video, Outdoor Mount Kit...
  • Page 9 Installation Guide IP Dome Camera Package Dome Camera with Data Cable for Power Supply, Video, Outdoor Mount Kit Audio and Alarm (AC 24V) M3 Standard Screw (x1) Lubricant M3 Security Screw (x1) M5 Standard Screw (x1) Waterproof Rubber M5 Security Screw (x1) Security Torx Quick Guide CD: Operation...

  • Page 10: Camera Setups And Cable Connection

    Installation Guide Camera Setups and Cable Connection Before installing or connecting the Dome Camera, please refer to this section and complete preparations for Dome Camera setups and various switch settings. Preparations for Dome Camera Setups The following installation procedure is for the outdoor Dome Camera equipped with the sunshield.
  • Page 11 Installation Guide STEP 4 Smear some lubricant on the surface of the dome cover’s waterproof rubber ring. Then attach the dome cover to the camera body by first aligning the center point on the dome cover with one of the four holes on the dome camera housing as shown in the figure.
  • Page 12 Installation Guide STEP 6 Screw the dome cover and camera body together with the supplied M3 Standard/Security Screw. For fastening the Security Screw, please use the supplied Security Torx. STEP 7 Then tighten the two Slotted Screws on the camera housing as shown in the figure by turning them counterclockwise.

  • Page 13: Dome Camera Setups

    Installation Guide Dome Camera Setups Before connecting the Dome Camera to other devices of CCTV system, please complete the Dome Camera’s ID and communication switch settings. These switches are located on the bottom of the Dome Camera. 3.2.1 Switch Definition Please refer to the following figure and table for switch location and definitions.

  • Page 14: Communication Switch Setting

    Installation Guide 3.2.2 Communication Switch Setting The table below shows the function of each switch within the Communication Switch for the analog and IP Dome Cameras. Analog Dome Camera Communication Switch SW 1 RS-485 Setting SW 2 Termination SW 3 Line Lock SW 4 System Initialization...

  • Page 15: Ip Dome Camera

    Installation Guide IP Dome Camera The IP Dome Camera’s communication switches are specified in the table below. Each switch’s default setting is shown as the figure below. DO NOT change the default setting, or some functions may not work properly. Communication Switch SW 1 Audio Setting...

  • Page 16: Camera Control Protocol Setup (Analog Model)

    Installation Guide 3.2.4 Camera Control Protocol Setup (Analog Model) Define the protocol you are going to use basing on the devices of your surveillance system. Generally, use one protocol even the devices are provided from different manufacturers. Use the switch to set your camera control protocol and the baud rate.

  • Page 17: Cable Definition And Requirements

    Installation Guide Cable Definition and Requirements For operation, the integrated Dome Camera requires the video cable to carry the video signals to the remote viewing site, power cable to power the Dome Camera and RS-485 data cable to carry commands from the control device. 3.3.1 Cable Requirements For operation, the Speed Dome Cameras require video and Data Cables as...

  • Page 18: Ip Dome Camera

    Installation Guide NOTE: Be careful not to pull the cables improperly during installation. Additionally, it is suggested to fasten the cables after cable connection is completed. Furthermore, when wiring the AC 24V power cable, make sure the Ground wire is inserted into the mid-pin of the terminal block.

  • Page 19: Analog Dome Camera

    Installation Guide Analog Dome Camera The analog Dome Camera’s 22-pin connector definition is listed as below. Definition Cable Definition Cable AC 24-1/DC (＋) 20AWG/18AWG ALM-1 ALM NC ALM-3 AC 24-2/DC (－) 20AWG/18AWG ALM-2 ALM NO ALM-4 20AWG/18AWG ALM-5 ALM COM ALM-6 ALM-7 ALM-8...

  • Page 20: Rs-485 Connector Definition (Analog Model)

    Installation Guide 3.3.4 RS-485 Connector Definition (Analog Model) RS-485 is the interface that communicates the Dome Camera and its control device. Please connect the control keyboard to the Dome Camera through the terminal block. The recommended cables for RS-485 communication are CAT 5 cables;...

  • Page 21: Ethernet Cable Connection

    Installation Guide Insert the terminal into the pin holes on the connector housing, with hook outward, indicated in the figure. To unlock the terminal, press the hook, as indicated in the figure, with a proper tool and pull it out gently.

  • Page 22: Dome Installation

    Installation Guide Dome Installation Basing on user’s installation environments, the Dome Camera can be installed on ceiling, on wall or on pole. In the following section, various Dome Camera’s installation accessories, installation methods and installation procedures will be described in detail. In addition, the next section will provide the Dome Camera’s dimension for your reference before installation.
  • Page 23 Installation Guide Transparent/Vandal Proof/Smoke Cover Diameter: 147 mm (5.8 inches) Power Adapter 77H07-A1030 (Input: 100~115VAC/Output: 24VAC 72VA) 77H07-A2030 (Input: 220~230VAC/Output: 24VAC 72VA) NOTE: When wiring, make sure the G/Y wire (Ground) inserted into the mid-pin of the terminal block. Mounting Accessories Standard Pendent Mount White;...
  • Page 24 Installation Guide Compact Pendent Mount 184×104×115.2 mm (7.24×4.09×4.54 inches); 0.6 kg (1.2 lbs) Supplied with rubber washer-8×1, pendent tube washer×1, spring washer-8×1 and M8*12 screw×1. Straight Tube Iron, Height: 250/500 mm (9.8/19.7 inches) ,Diameter: 50 mm (2 inches) 1 kg (2.2 lbs) / 1.8 kg (4 lbs), Supplied with rubber washer-8×1, pendent tube washer×1, spring washer-8×1 and M8*12 screw×1.
  • Page 25 Installation Guide Corner Standard Mounting Plate 222(L)×204(W)×117(D) mm (8.7×8×4.6 inches); 2 kg (4.4 lbs); Supplied with washer-8×4, spring washer×4, M8*16 screw×4, M8 nut×4. Pole Thin Direct Mounting 232(L)×136(W)×60(D) mm (9.1×5.4×2.4 inches); Diameter: 112~140 mm (4.4~5.5 inches); 0.7 kg (1.6 lbs). Supplied with stainless steel straps×4, M8*16 screw×4, washer×4. Pole Wide Direct Mounting 270(L)×170(W)×60(D) mm (10.6×6.7×2.4 inches);...
  • Page 26 Installation Guide Corner Thin Box 300(L)×164(W)×222(D) mm (11.8×6.5×8.7 inches); 3 kg (6.7 lbs); Supplied with washer×4, M8*16 screw×4 and spring washer×4. Power Box can be set inside the thin box. Corner Wide Box 232(L)×234(W)×210(D) mm (9.1×9.2×8.3 inches); 2.7 kg (6 lbs); Supplied with washer×4, M8*16 screw×4 and spring washer×4.
  • Page 27 Installation Guide Pole Wide Box 270(L)×166(W)×155(D) mm (10.6×6.5×6.1 inches); 3.2 kg (7.1 lbs); Supplied with M8*16 screw×4, washer×4, spring washer×4, stainless steel straps×4. Power Box can be set inside the wide box. Wall Box Mounting 270(L)×166(W)×95(D) (10.6×6.5×3.7 inches); 2.2 kg (4.84 lbs); Supplied with M8*16 screw×4, washer×4, spring washer×4 Power Box can be set inside the wall box.
  • Page 28 Installation Guide Other Application Accessories Repeater/Converter D77R1: RS-485/RS-232 Converter D77R2: RS-232 between RS-485/RS-442 D77R3: Bi-phase to RS-485/RS-422 D77R1 D77R2 D77R3 Power Box White, 186.5×147 mm (7.3×5.8 inches); 2.6 kg (5.8 lbs) P1030 (Input: 110~115VAC/Output: 24VAC 72VA) P2030 (Input: 220~230VAC/Output: 24VAC 72VA) Signal Distribution Unit Relay control codes to speed Dome Cameras.

  • Page 29: Ceiling Mounting With Straight Tube

    Installation Guide Ceiling Mounting with Straight Tube The Straight Tube is available in different length: 25 cm and 30 cm. Items Needed: • Dome Camera • Outdoor Mount Kit (supplied) • Data Cable (supplied) • Ethernet Cable (IP Dome Camera) •...
  • Page 30 Installation Guide Ceiling Mount: Straight Tube + Outdoor Mount Kit...

  • Page 31: Wall Mount

    Installation Guide Wall Mount The Dome Camera can be mounted on the wall with Compact Pendent Mount, Standard Pendent Mount and Wall Box. Please follow the installation instructions below for mounting the Dome Camera via different ways. 4.4.1 Compact Pendent Mount Items Needed: •...
  • Page 32 Installation Guide 3) Attach the Waterproof Rubber to the Compact Pendent Mount. 4) Run the cable(s) through the Compact Pendent Mount with the Data Cable’s 22-pin cable coming out of the outlet. NOTE: Please block the cable entry hole with the supplied sponge to avoid insects entering the Pendent Mount.

  • Page 33: Standard Pendent Mount

    Installation Guide 4.4.2 Standard Pendent Mount Items Needed: • Dome Camera • Outdoor Mount Kit (supplied) • Data Cable (supplied) • Ethernet Cable (IP Dome Camera) • Standard Pendent Mount and equipped items (optional accessory) • Waterproof Rubber (supplied) • M5 Standard/Security Screw (supplied) •...
  • Page 34 Installation Guide Wall Mounting: Standard Pendent Mount + Outdoor Mount Kit...

  • Page 35: Wall Box Mounting

    Installation Guide 4.4.3 Wall Box Mounting Items Needed: • Dome Camera • Outdoor Mount Kit (supplied) • Data Cable (supplied) • Ethernet Cable (IP Dome Camera) • Standard/Compact Pendent Mount and equipped items (optional accessory) • Wall Box Mounting (optional accessory) •...
  • Page 36 Installation Guide 7) Join the Dome Camera to the Outdoor Mount Kit with the supplied M5 screw and washers. Wall Box Mounting: Wall Box Mounting + Standard/Compact Pendent Mount + Outdoor Mount Kit...

  • Page 37: Corner Mount

    Installation Guide Corner Mount 4.5.1 Corner Standard Mounting Plate/Corner Plate Mini Items Needed: • Dome Camera • Outdoor Mount Kit (supplied) • Data Cable (supplied) • Ethernet Cable (IP Dome Camera) • Standard/Compact Pendent Mount and equipped items (optional accessory) •...
  • Page 38 Installation Guide Mount Kit to the Standard/Compact Pendent Mount with the supplied screws and washers. Then adjust the Waterproof Rubber to the joint. 6) Connect the cable(s) to the Dome Camera. 7) Join the Dome Camera to the Outdoor Mount Kit with the supplied M5 screw and washers.

  • Page 39: Corner Thin/Wide Box Mounting

    Installation Guide 4.5.2 Corner Thin/Wide Box Mounting Items Needed: • Dome Camera • Outdoor Mount Kit (supplied) • Data Cable (supplied) • Ethernet Cable (IP Dome Camera) • Standard/Compact Pendent Mount and equipped items (optional accessory) • Corner Thin/Wide Box (optional accessory) •...
  • Page 40 Installation Guide 6) Connect the cable(s) to the Dome Camera. 7) Join the Dome Camera to the Outdoor Mount Kit with the supplied M5 screw and washers. Corner Box Mounting: Corner Thin/Wide Box + Standard/Compact Pendent Mount + Outdoor Mount Kit...

  • Page 41: Pole Mount

    Installation Guide Pole Mount 4.6.1 Pole Thin/Wide Direct Mounting Items Needed: • Dome Camera • Outdoor Mount Kit (supplied) • Data Cable (supplied) • Ethernet Cable (IP Dome Camera) • Standard/Compact Pendent Mount and equipped items (optional accessory) • Pole Thin/Wide Direct Mounting (optional accessory) •...
  • Page 42 Installation Guide 6) Connect the cable(s) to the Dome Camera. 7) Join the Dome Camera to the Outdoor Mount Kit with the supplied M5 screw and washers. Pole Direct Mounting: Pole Thin/Wide Direct Mounting + Standard/Compact Pendent Mount + Outdoor Mount Kit...

  • Page 43: Pole Thin/Wide Box Mounting

    Installation Guide 4.6.2 Pole Thin/Wide Box Mounting Items Needed: • Dome Camera • Outdoor Mount Kit (supplied) • Data Cable (supplied) • Ethernet Cable (IP Dome Camera) • Standard/Compact Pendent Mount and equipped items (optional accessory) • Pole Thin/Wide Box Mounting (optional accessory) •...
  • Page 44 Installation Guide Pole Box Mounting: Pole Thin/Wide Box + Standard/Compact Pendent Mount + Outdoor Mount Kit...

  • Page 45: System Expansion

    Installation Guide System Expansion Connecting with Power Box A power box contains a 24V AC adapter, two terminal blocks (for communication and power) and one alarm board. With an IP66 case, the Power Box is ideal for outdoor installation environment. Two models are available: 100~115V AC power input (P1030) and 220~230V AC (P2030).

  • Page 46: Data Formats Transforming

    Installation Guide Data Formats Transforming To integrate other surveillance devices with the Speed Dome Cameras, we provide three kinds of converter/repeater to transform the communication formats between devices. If a converter/repeater is used, the total network distance of the surveillance system can be extended, and the connected devices will also be protected.

  • Page 47: Signal Distribution

    Installation Guide Signal Distribution The RS-485 Signal Distribution Unit (SDU) is designed to relay control codes to Speed Dome Cameras. It is capable of communicating with cameras up to 1.0 kilometers away. Additionally, the SDU can be installed in either “star” or “daisy chain”...

  • Page 48: Coaxial Telemetry

    Installation Guide Coaxial Telemetry The Coaxial Telemetry is a low-cost solution to long distance connection between Dome Cameras and controlling devices (e.g. DVR and keyboard). It simplifies the work of wiring by transmitting video and RS-485 control signals via one BNC line, so that to bring users economical benefits. The following is the coaxial telemetry application diagram.

  • Page 49: System Integration

    Installation Guide System Integration The Dome Camera is allowed to be integrated into other suppliers' surveillance systems with large set of built-in protocols. Refer to the following sections for more information. Using Pelco Keyboard The Speed Dome Camera can be controlled through a Pelco keyboard which built in with D protocol and P protocol.

  • Page 50: Using Philips Allegiant Keyboard

    Installation Guide Cable Definition (D Protocol Keyboard to PTZ Camera) T x+ Tx - T x+ T x- Rx + For D Protoc ol Ke yb oa rd Fo r Sp ee d Dom e Using Philips Allegiant Keyboard The Dome Cameras can be integrated into Philips Allegiant systems through D77R3 repeaters.

  • Page 51: Appendix A: Technical Specification

    Installation Guide Appendix A: Technical Specification Items Indoor Mini PTZ Camera CAMERA 1/4" EXview CCD CCD Sensor Optical Zoom Digital Zoom 1× ~ 12× variable NTSC 380k Effective Pixels 440k Horizontal Resolution 540 TVL NTSC / PAL Scanning System Internal / Line Lock Synchronization 1.0 Vp-p / 75 Ω, BNC Video Output...
  • Page 52 Installation Guide Home Function Preset, Sequence, Auto pan, Cruise Auto Flip Digital / Mechanical / Off Digital Slow Shutter On / Off Motion Detection On / Off On / Off Wide Dynamic Range Day/Night: IR Cut Filter On / Off Image Freeze On / Off Image Inverse...
  • Page 53 Installation Guide **Motion Detection function is available in 2010 Q3. **All Specifications are subject to change without notice.
