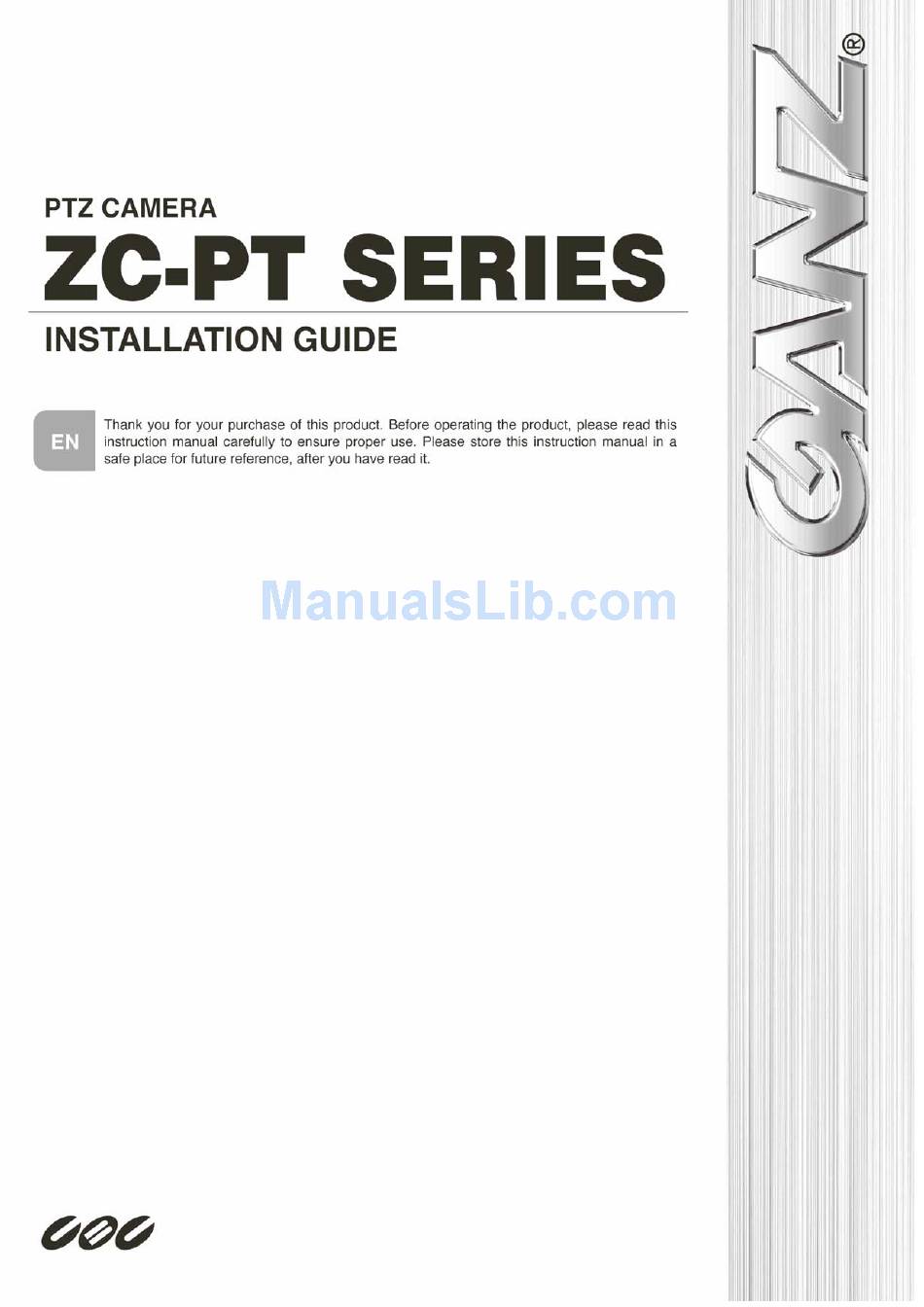

Ganz ZC-PT Series Installation Manual

Hide thumbs Also See for ZC-PT Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Installation Manual

Advertisement

Table of Contents
loading

Related Manuals for Ganz ZC-PT Series

Summary of Contents for Ganz ZC-PT Series

  • Page 2 Installation Guide Preface The information provided in this manual was current when published. The company reserves the right to revise and improve its products. All specifications are subject to change without notice. Notice To work with the PTZ cameras, any installer or technician must have the following minimum qualifications: •...

  • Page 3: Warning Notices

    Installation Guide Warning Notices • Handle the camera with care Do not abuse the camera. Avoid striking, shaking, etc. The camera could be damaged by improper handing or storage. • Do not dismantle the camera To prevent electric shock, do not remove screws or covers. There are no user serviceable parts inside.

  • Page 4: Table Of Contents

    Installation Guide Contents Introduction ..........................5 Standard Package Content..................... 6 PTZ Camera Setups and Cable Connection ................. 7 Preparations for Indoor PTZ Camera Setups ..............7 Preparations for Outdoor PTZ Camera Setups ............. 7 PTZ Camera Setups ...................... 9 3.3.1 Switch Definition ....................
  • Page 5 Installation Guide Appendix A: Technical Specification ..................40...

  • Page 6: Introduction

    In addition, it supports one cabling for easy installation. Large set of built-in protocols, including Ganz-PT, Ganz-S, Pelco, VCL, Philips, AD-422 (Manchester), etc., provide connectivity to other suppliers’ surveillance systems.

  • Page 7: Standard Package Content

    Installation Guide Standard Package Content Before proceeding, please check the box contains the items listed here. If any item is missing or has defects, DO NOT install or operate the product and contact your dealer for assistance. Indoor PTZ Camera Standard Package Hard Ceiling Mount and 5.4”...

  • Page 8: Ptz Camera Setups And Cable Connection

    Installation Guide PTZ Camera Setups and Cable Connection Before installing or connecting the PTZ camera, please refer to this section and complete preparation, switch setting and communication switch settings. Preparations for Indoor PTZ Camera Setups There will be a PE cloth sheet covered inside the dome cover and a lens cap on the lens for shipping protection.
  • Page 9 Installation Guide STEP 3 Remove the protective cover and PE cloth. STEP 4 Attach the dome cover to the dome body. Before doing that, apply some lubricant on the cover’s water-proof rubber to make the installation process smoother. Note that the tiny protrusion on the dome cover must align with one of the four holes on the dome body.

  • Page 10: Ptz Camera Setups

    Installation Guide DO NOT press the cover, as shown in the figure; this might cause damage to the dome body. STEP 6 Screw the dome cover and body together. STEP 7 Set the switches located on the bottom of the dome body. Refer section 3.3 PTZ Camera Setups for detailed information...

  • Page 11: Communication Switch Setting

    Installation Guide Indoor PTZ camera Outdoor PTZ camera Reserved Communication Switch PTZ camera ID Switch PTZ camera Control Protocol Switch RJ-45 Connector (for IP PTZ camera only) 22-Pin Connector 3.3.2 Communication Switch Setting The table below shows the function of each pin within the communication switch. Communication Switch Pin 1 RS-485 Setting...

  • Page 12: Camera Id Setting

    Installation Guide RS-485 Setting Half-duplex Full-duplex 3.3.3 Camera ID Setting Use the switch to change your PTZ camera ID by turning the arrow to the desired number. For example, if the camera ID is 123, the ID switch should be set as below. NOTE: No two PTZ cameras should be given the same ID, or communication conflict may occur.

  • Page 13: Camera Cable Definition And Requirements

    Installation Guide Switch no. Protocol Baud rate 9600 Pelco D 2400 Pelco P 4800 Chiper 9600 Philips 9600 Ganz-PT 9600 AD422 4800 DM P 9600 Pelco D 4800 Pelco D 9600 Pelco P 2400 Pelco P 9600 Ganz-S 4800 Ganz-S...

  • Page 14: Cable Requirements

    Installation Guide 3.4.1 Cable Requirements For operation, the PTZ cameras require video and data cables as described below: • The video cable sends video signals to a remote viewing site. Using a coaxial BNC cable to send video signals is recommended. •...

  • Page 15: 22-Pin Connector Definition

    Installation Guide 3.4.3 22-Pin Connector Definition With the 22-pin connector, installers can simply connect the power, video and RS485 cables to the PTZ camera at once. The alarm pins are serviceable for connecting alarm input and output devices, such as alarm sensors, sirens or flashing lights with the surveillance system.

  • Page 16: Rs-485 Connector

    Installation Guide 3.4.4 RS-485 Connector RS-485 is the interface that the PTZ camera uses to communicate with its control unit. Connect the control keyboard to the camera via the terminal block. The recommended cables for RS-485 communication are CAT 5 cables; the maximum cable length for wire with a gauge above 24 is 4000 feet (1219 meters).

  • Page 17: Ptz Camera Installation

    Installation Guide PTZ Camera Installation Basing on user’s installation environments, the PTZ camera can be installed on ceiling, on wall or on pole. In the following section, various camera installation accessories, installation methods and installation procedures will be described in detail.
  • Page 18 Installation Guide Ceiling Panel For ceiling mounting with T-bar. Zn platted; 610×305 mm (24×12 inches); Diameter: 155 mm (6.1 inches) Transparent Cover/Smoke Cover Diameter: 137 mm (5.4 inches); 127 mm (5.0 inches) Transparent cover: ZCA-CB-5, ZCA-CB-5.4 Smoke cover: ZCA-SB-5, ZCA-SB-5.4 5’’...
  • Page 19 Installation Guide Outdoor PTZ Camera Accessories Sunshield (ZCA-SSH) White Color, Height: 129.5 mm (5.05 inches); Diameter: 190 mm (7.48 inches); 0.15 kg (0.33 lbs) Vandal Proof (Transparent)/Clear Cover (PMMA)/Smoke Cover Diameter: 137 mm (5.4 inches) Vandal proof cover: ZCA-VP-XT / Clear cover: ZCA-CB-XT / Smoke cover: ZCA-SB-XT Security Screw Set (equipped with Vandal Proof Cover) Mounting Accessories Gooseneck Tube (ZCA-GT200)
  • Page 20 Installation Guide Straight Tube (ZCA-ST25, ZCA-ST50) White; Iron; Height: 250/500 mm (9.8/19.7 inches); Diameter: 50 mm (2 inches) 1 kg (2.2 lbs) / 1.8 kg (4 lbs). Supplied with rubber washer-8×1, pendant tube washer×1, spring washer-8×1 and waterproof rubber×1, M8*12 screw×1. Wall Box Mounting (ZCA-WBM) Ivory, 270(L)×166(W)×95(D) mm (10.6×6.5×3.7 inches);...
  • Page 21 Installation Guide Pole Thin Direct Mounting (ZCA-PTDM) White/Ivory; 232(L)×136(W)×60(D) mm (9.1×5.4×2.4 inches); Diameter: 112~140 mm (4.4~5.5 inches); 0.7 kg (1.6 lbs). Supplied with stainless steel straps×4, M8*16 screw×4, washer×4. Pole Wide Direct Mounting (ZCA-PWDM) White/Ivory; 270(L)×170(W)×60(D) mm (10.6×6.7×2.4 inches); Diameter: 112~130 mm (4.4~5 inches);...
  • Page 22 Installation Guide Corner Wide Box (ZCA-CWB) White/Ivory; 232(L)×234(W)×210(D) mm (9.1×9.2×8.3 inches); 2.7 kg (6 lbs); Supplied with washer×4, M8*16 screw×4 and spring washer×4. Pole Thin Box (ZCA-PTB) White/Ivory; 291(L)×170(W)×250(D) mm (11.5×5.3×9.5 inches); 3.1 kg (6.9 lbs); Supplied with M8*16 screw×4, washer×4, spring washer×4, stainless steel straps×4. Pole Wide Box (ZCA-PWB) White/Ivory, 270(L)×166(W)×155(D) mm (10.6×6.5×6.1 inches);...
  • Page 23 Installation Guide Stainless Steel Straps For fixing Pole Direct Mounting/Pole Box on the pole. Width: 0.63”, 0.02 kg (0.04 lbs) Stainless Strap Cutter (ZCA-T02) For tension, cut and crimp stainless steel straps. 1.4 kg (3.1 lbs) Suitable for straps width: 1/2”, 5/8”, 3/4”. Other Application Accessories Repeater/Converter ZCA-RS422-485: RS-485/RS422 Converter...

  • Page 24: Ceiling Mount

    Installation Guide Connector Box (ZCA-CB) Recommended for wiring indoor PTZ camera alarm cables. White Color. 92×42 mm (3.7×1.7 inches); 0.13 kg (0.3 lbs); Supplied with cable×1, bracket×1 and M3*6 screw×2. Power Adapter ZCA-100-1.5A (Input: 100~115VAC/Output: 24VAC 1.5A) ZCA-100-3.0A (Input: 100~115VAC/Output: 24VAC 3.0A) ZCA-220-1.5A (Input: 220~235VAC/Output: 24VAC 1.5A) ZCA-220-1.5A (Input: 220~235VAC/Output: 24VAC 3.0A) Ceiling Mount...

  • Page 25: Hard Ceiling Mounting (Zca-Hc200)

    Installation Guide In-ceiling mount (cables recessed) 4.2.1 Hard Ceiling Mounting (ZCA-HC200) Hard ceiling mount is a standard accessory equipped with indoor PTZ camera. Here lists the items and tools needed to mount the camera onto the ceilings. The supplied items are all in the PTZ camera package. Items Needed: •...
  • Page 26 Installation Guide STEP 2 Unpack the package and take out the decoration ring. Remove the hard ceiling mount from the decoration ring. STEP 3 Fix the ceiling mount to the ceiling. Mark the locations where all three ceiling holes should be. STEP 4 Drill the corresponding holes in the hard ceiling.

  • Page 27: T-Bar Ceiling Mounting (Zca-Tb200)

    Installation Guide STEP 7 Fix the dome body to the bracket and rotate the dome body clockwise. Tighten the fixing screw to fix the dome body in place. STEP 8 Fix the decoration ring to the bracket and then place the optical cover.
  • Page 28 Installation Guide Follow the steps to install the PTZ camera with T-bar ceiling mount. Step 1: Disassemble the wing (indicated in the diagram) from the T-bar ceiling mount, and take out the supplied screw in the small bag. Step 2: Fix the separated wing to the PTZ camera, as shown in the diagram.
  • Page 29 Installation Guide STEP 5 Rotate T-bar wings of the hinge to fix the T-bar at the edge of the ceiling hole. STEP 6 Tighten the screws on the hinge, and the T-bar wings will adhere to the ceiling. STEP 7 Put the 22-pin data cable through the center hole of the T-bar and connect it to the dome...

  • Page 30: Ceiling Mount With Straight Tube (Zca-St25/50)

    Installation Guide STEP 9 Assemble the decoration ring to the T-bar and then place the optical cover. 4.2.3 Ceiling Mount with Straight Tube (ZCA-ST25/50) Follow the steps to mount the PTZ camera with the straight tube. 1) Ensure that the ceiling can support the weight of the PTZ camera and straight tube.

  • Page 31: Wall Mount

    Installation Guide Wall Mount 4.3.1 Wall Mounting with Gooseneck Tube (ZCA-GT200) The following figures show how cables run through the tube in different ways. Cables exposed Cables recessed Follow the steps to mount the PTZ camera with the gooseneck tube. 1) Make a cable entry hole on the wall to recess the cables.

  • Page 32: Wall Box Mounting (Zca-Wbm)

    Installation Guide Indoor PTZ Camera Outdoor PTZ Camera (Gooseneck tube + indoor pole mount adaptor) (Gooseneck tube + waterproof rubber) 4.3.2 Wall Box Mounting (ZCA-WBM) Follow the steps to mount the outdoor PTZ camera with the wall box and gooseneck tube.

  • Page 33: Corner Mount

    Installation Guide Corner Mount 4.4.1 Corner Standard Mounting Plate (ZCA-CST) With the corner mounting plate and gooseneck, the PTZ camera can be mounted on wall. There are various types of corner mounting accessories with different width. 1) Make a cable entry hole on the wall to recess the cables. Otherwise, cables can be threaded through the cable entry hole on the tube.

  • Page 34: Pole Mount

    Installation Guide Pole Mount 4.5.1 Pole Thin/Wide Direct Mounting (ZCA-PTDM/ZCA-PWDM) The PTZ camera can be installed on a pole with a thin or wide pole mounting accessory and a gooseneck. 1) Fasten the suspension mounting plate on a pole with equipped stainless straps. 2) Fix the gooseneck tube to the pole mounting plate.

  • Page 35: Pole Thin/Wide Box Mounting (Zca-Ptb/Zca-Pwb)

    Installation Guide Indoor PTZ Camera Outdoor PTZ Camera (Pole mounting + gooseneck tube + indoor (Pole mounting + gooseneck tube + pole mount adaptor) waterproof rubber) 4.5.2 Pole Thin/Wide Box Mounting (ZCA-PTB/ZCA-PWB) Follow the steps to mount the PTZ camera with the pole box and gooseneck tube. 1) Fasten the pole box on a pole with equipped stainless straps.

  • Page 36: System Expansion

    Installation Guide System Expansion Connecting with Connector Box (Indoor Application) Ideally being used in indoor installation circumstances, a connector box provides easy wiring and well organized connection between alarms, cameras and other devices, for easy installation. To connect the connector box with other devices: •...

  • Page 37: Connecting With Power Box (Outdoor Application)

    Installation Guide Connecting with Power Box (Outdoor Application) A power box contains a 24V AC adapter, two terminal blocks (for communication and power) and one alarm board. With an IP66 case, the power box is ideal for outdoor installation environment. Two models are available: 100~115V AC power input (ZCA-100-1.5A/ZCA-100-3.0A) and 220~230V AC (ZCA-220-1.5A/ZCA-220-3.0A).
  • Page 38 Installation Guide Connect dome cameras to other devices, as shown in the diagram below, to complete a video surveillance system.

  • Page 39: System Integration

    Installation Guide System Integration The PTZ camera is allowed to be integrated into other suppliers' surveillance systems with large set of built-in protocols. Refer to the following sections for more information. Using Pelco Keyboard The PTZ camera can be controlled through a Pelco keyboard which is equipped with D and P protocols.

  • Page 40: Using Philips Allegiant Keyboard

    Installation Guide Cable Definition (D Protocol Keyboard to PTZ Camera) Tx - Rx - For D Protocol Keyboard For SpeedDome Using Philips Allegiant Keyboard The PTZ cameras can be integrated into Philips Allegiant systems through ZCA-BP-485 repeater (Bi-Phase to RS-485/RS-422). Please follow the instructions to control PTZ cameras through Philips Allegiant keyboard.
  • Page 41 1/1~1/10k sec 1/1.5~1/30k sec 1/1~1/10k sec Auto / Manual AGC control On / Off Back light compensation OPERATION Ganz-S , Ganz-PT, Pelco-P&D, VCL, Philips, AD-Manchester, AD-422 etc. Built-in protocols 360° continuous Pan travel -10°~100° -10°~190° Tilt travel 1°~90°/s Manual speed Presets 0.225°...
