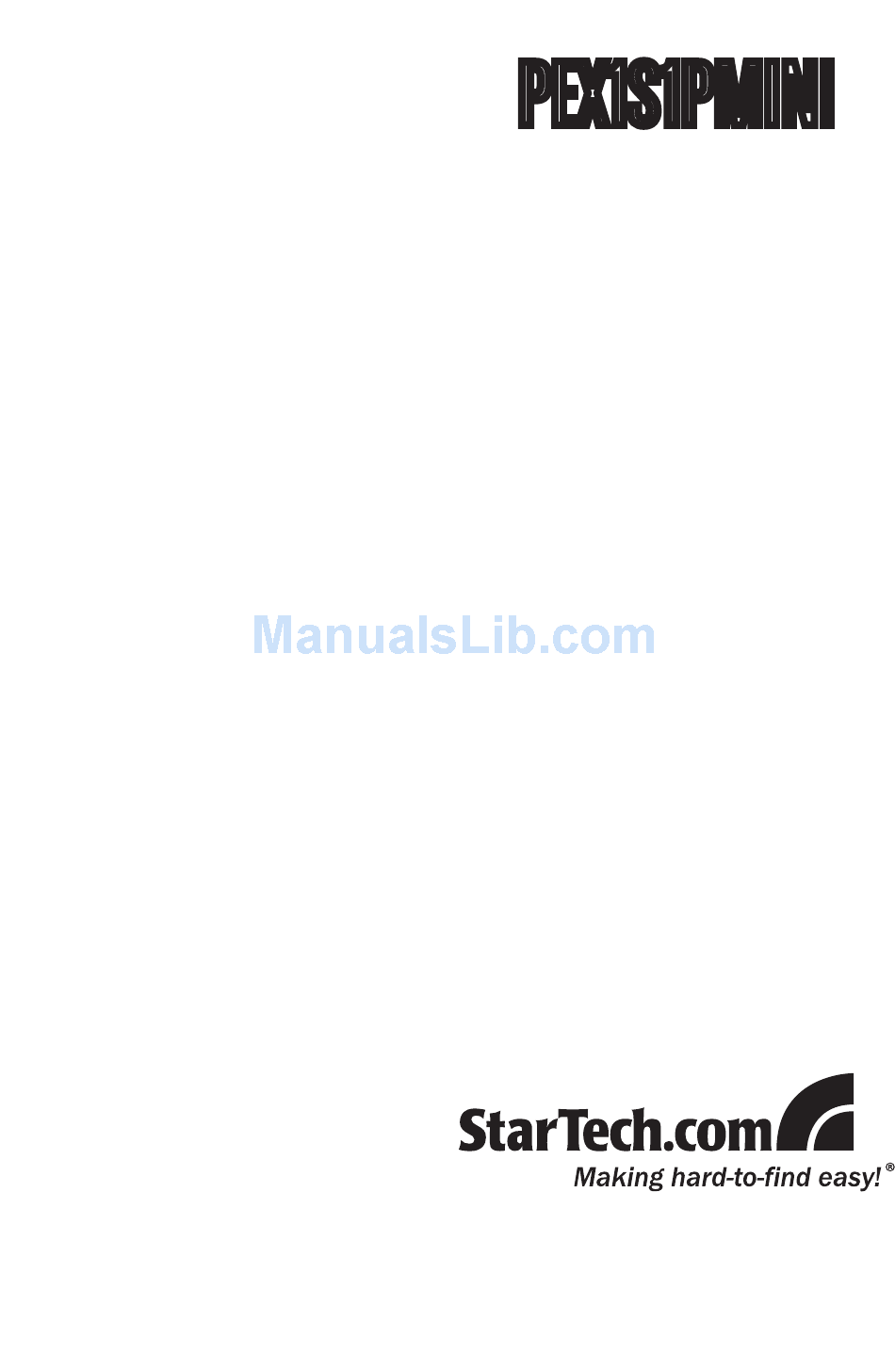

- Page 1 PEX1S1PMINI Instruction Manual Mini PCI Express Serial Adapter 1 Port Serial, 1 Port Parallel Mini PCI Express Combo Adapter Card...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an en- dorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 1 Hardware Installation ..............1 Driver Installation .................2 Verifying the Installation ...............3 Specifications ..............4 Technical Support ............5 Warranty Information ............5... -
Page 4: Introduction
Introduction Packaging Contents • 1 x PEX1S1PMINI adapter card • 1 x DB9 to board adapter cable • 1 x DB25 to board adapter cable • 1 x Driver CD • 1 x Instruction Manual System Requirements • Mini PCI Express enabled computer system •... -
Page 5: Driver Installation
Connect both of the adapter cables in the respective header connectors on the Mini PCI Express adapter card. Line up and install the Mini PCI Express adapter card with the Mini PCI Express slot on the motherboard. Match up the gap in the card connector, with the notch in the slot. -
Page 6: Verifying The Installation
Verifying the Installation From the main desktop, right-click on “My Computer” (“Computer” in Vista), then select Manage. In the new Computer Management window, select Device Manager from the left window panel. Double-click on the “Ports (COM & LPT)” option. The appropriate number of additional COM ports and parallel ports (LPT) should be visible. -
Page 7: Specifications
Specifications Bus Interface PCI Express rev 1.1 (3.3V) 1 x DB25 External Connectors 1 x DB9 2x5-pin header (serial) Internal Connectors 2x13-pin header (parallel) Chipset Oxford OXPCIe952 UART 16C950 Serial: RS-232 Operating Modes Parallel: SPP/EPP/ECP - IEEE1284 Dimensions 50.0mm x 30.0mm Compatible Operating Windows 2000/XP/Server 2003/ Systems... -
Page 8: Technical Support
Technical Support StarTech.com’s lifetime technical support is an integral part of our com- mit-ment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our com- prehensive selection of online tools, documentation, and downloads. - Page 9 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
