The fi xture you've received is a rugged, tough piece of pro lighting equipment,
and as long as you take care of it, it will take care of you. That said, like
anything, you'll need to take care of it if you want it to operate as designed.
In transit, keep the fi xtures in cases.
Common sense and taking care of your fi xtures will be the single biggest thing
you can do to keep them running at peak performance and let you worry about
designing a great light show, putting on a great concert, or maximizing your
client's satisfaction
Damage incurred in shipping is the responsibility of the shipper, and
must be reported to the carrier immediately upon receipt of the items.
Claims must be made within seven (7) days of receipt.

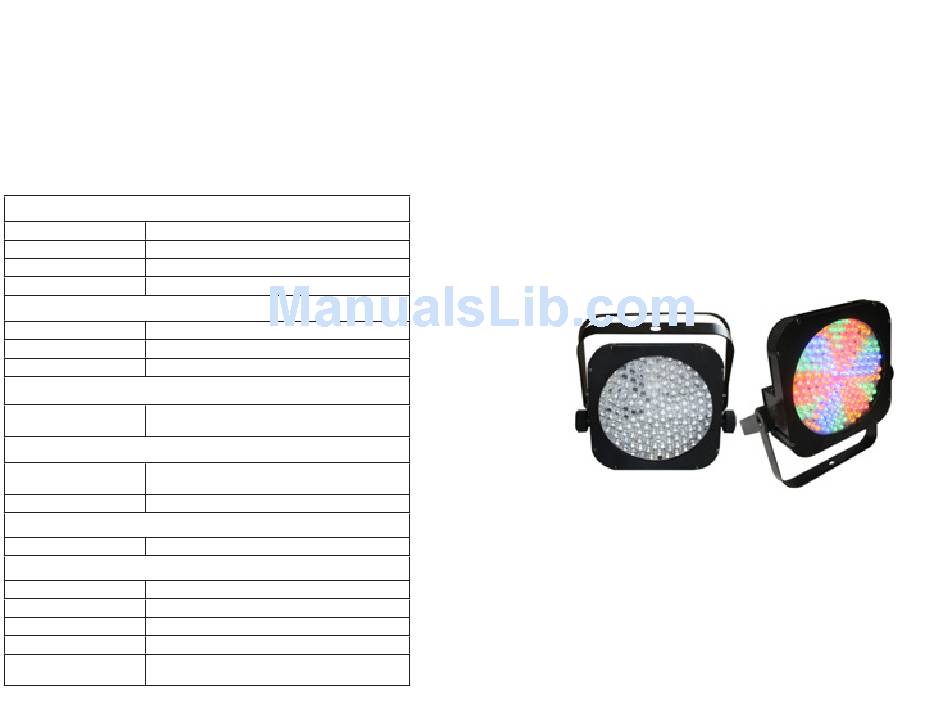

Weight & Dimensions
Length
8.25 inches (210 mm)
Width
2.5 inches (63.5 mm)
Height
8.25 inches (210 mm)
Weight
4.0 lbs (1.8 kg)
Power
Operating Voltage
100-240VAC, 50-60 Hertz
Fuse
3A 250V
Power Consumption
20W
Light Source
LED
144x 10mm 100K Hrs
Optical
Beam Angle
21 degrees
32 degree fi eld
Luminous Intensity
3,000 Lux @ 1m
Thermal
Max. Operating Temp.
104 degrees F (40 degrees C) ambient
Control
Protocol
USITT DMX-512
DMX Channels
7
Input
3-pin XLR Male
Output
3-pin XLR Female
Standalone, Master/Slave, Sound Active,
Other Operating Modes
Color Preset, Standalone color mixing
Page 8

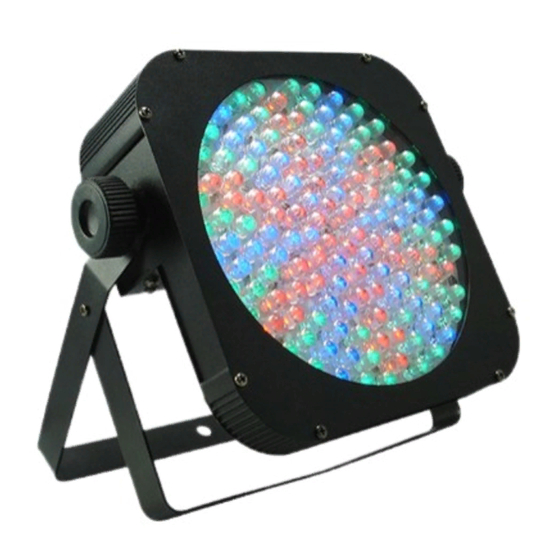

SLIM PAR64 144 RGBW / RGBA LED PAR CAN
144 LED FLAT LED PAR CAN
USER MANUAL
Page 1
Advertisement
Table of Contents
Related Manuals for Blizzard Lighting SLIM PAR64 144 RGBW
Summary of Contents for Blizzard Lighting SLIM PAR64 144 RGBW
- Page 1 Common sense and taking care of your fi xtures will be the single biggest thing you can do to keep them running at peak performance and let you worry about SLIM PAR64 144 RGBW / RGBA LED PAR CAN designing a great light show, putting on a great concert, or maximizing your client’s satisfaction...
-
Page 2: Getting Started
GETTING STARTED SAFETY INSTRUCTIONS What’s In The Box? • Please keep this User Guide for future use. If you sell the unit to someone • 1 x RGBW / RGBA Flat LED PAR Fixture else, be sure that they also receive this User Guide. •... - Page 3 CONTROL FEATURES • Color mixing via 144 10mm Red, Green, Blue, White / Amber LEDs • Variable electronic strobe Connecting Multiple Flat LED PARs • Variable electronic dimmer You will need a serial data link to run light shows using a DMX-512 •...
-
Page 4: Operating Adjustments
OPERATING ADJUSTMENTS Troubleshooting NOTE: After making any adjustment, the fi xture will return to the correct mode Symptom Solution after approximately 5 seconds. Fixture Auto- Check the fan in the fi xture. If it is stopped or moving DMX Mode Shut Off slower than normal, the unit may have shut itself off due to high heat.
