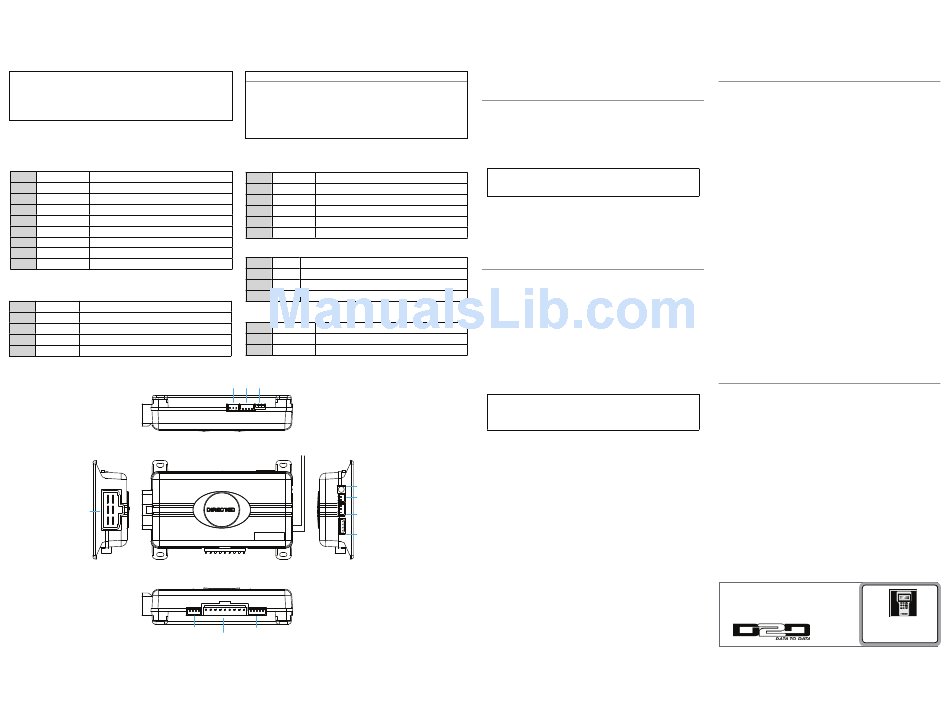

Quick Reference Install Guide
Remote Start with Keyless Entry
4205-series, 1-button remote

Wiring Connections

Primary Harness (H1), 9-pin connector
H1/1 LIGHT GREEN BLACK (-) 200mA FACTORY ALARM DISARM OUTPUT
H1/2 GREEN/WHITE (-) 200mA FACTORY ALARM REARM OUTPUT
H1/3 YELLOW (+) IGNITION OUT (TO ALARM)
H1/4 WHITE/BLUE (-) ACTIVATION INPUT
H1/5 ORANGE (-) 500mA GROUND WHEN LOCKED/ANTI-GRIND OUTPUT
H1/6 BROWN (-) 200mA HORN OUTPUT
H1/7 RED/WHITE (-) 200mA TRUNK RELEASE OUTPUT*
BLACK GROUND INPUT
H1/8
WHITE (+/-) LIGHT FLASH OUTPUT
H1/9
*Option not available on 1- button
Remote Start harness, (H3) 5-pin connector
H3/1 BLACK/WHITE (-) NEUTRAL SAFETY SWITCH INPUT
H3/2 VIOLET/WHITE TACHOMETER INPUT
H3/3 BROWN (+) BRAKE SHUTDOWN INPUT
H3/4 GRAY (-) HOOD PIN SWITCH SHUTDOWN INPUT
H3/5 BLUE/WHITE (-) 200 mA 2ND STATUS/REAR DEFOGGER OUTPUT
End View
Heavy
Gauge
Relay
Satellite Harness
© 2013 Directed. All rights Reserved.
Guide Translations
For a Spanish version of the Installation Guide, please download it from
www.directechs.com under Resources.
Estimado Cliente:
Si buscas los guías de instalación, por favor de bajar lo del Resources en el
sitio www.directechs.com
Heavy Gauge Relay, 6-pin connector
1 RED (+) (30A) HIGH CURRENT 12V INPUT
2 PINK/WHITE OUTPUT TO SECOND IGNITION/ACCESSORY CIRCUIT
3 RED (+) (30A) HIGH CURRENT 12V INPUT
4 ORANGE OUTPUT TO ACCESSORY CIRCUIT
5 PURPLE OUTPUT TO STARTER CIRCUIT
6 PINK OUTPUT TO PRIMARY IGNITION CIRCUIT
Satellite harness - 4-pin connector
1 BLUE (-) 200mA STATUS OUTPUT
2 ORANGE (-) 200mA ACCESSORY OUTPUT
3 PURPLE (-) 200mA STARTER OUTPUT
4 PINK (-) 200mA IGNITION OUTPUT
Door Lock, 3-pin connector
LIGHT BLUE (-) UNLOCK OUTPUT
1
2 EMPTY NOT USED
3 GREEN (-) LOCK OUTPUT
ESP D2D Parking light jumpers
Side View
Antenna
End View
Top View
LED (Programming
indicator)
Control Button
(Valet Switch)
Door Lock/unlock
Harness
Antenna
Side View
Remote Start Harness
Primary Harness

Installation Points

Tach Learning
To learn the tach signal:
1. Start the vehicle with the key.
2. Within 5 seconds, press and hold the Valet (Control) button.
3. After 3 seconds the system LED will light constant when the tach signal is
learned.
4. Release the Valet (Control) button.
Important: This unit can learn the tachometer with the analog input or
through D2D using an interface module. The unit confirms which source
is used by flashing the parking lights.
When programming tach learning with:
• Analog, the parking lights flash one time
• D2D interface module, the parking lights flash twice
If the tachometer input on the system is connected to the vehicle, the D2D tachometer
input will be ignored.
Virtual Tach
Note: Virtual tach is not recommended for diesel vehicles.
To program Virtual Tach:
1. After the install is complete, remote start the car.
2. If the car does not start on the first attempt, let the remote start attempt again.
3. Once the car starts, let it run until the parking lights come on.
4. When the parking lights come on, shut off the remote start with the remote -
that's it! Virtual Tach is programmed.
Virtual Tach handles disengaging the starter motor during remote starting – it does
not address over-rev. If the customer wants to have the over-rev protection capabil-
ity, the tach wire must be connected. This may involve more installation shop
charges than initially quoted.
Important: If the Virtual Tach mode over cranks or doesn't crank the
vehicle long enough to start and run the car, use the Bitwriter to add or
subtract the starter output time. You can adjust the output time in incre-
ments of 50msec of the learned time using the Bitwriter.
Reset and Deletion
If a feature/virtual tach needs to be reset or the remote controls need to be deleted,
use the following procedure.
1. Turn the ignition to the ON position (The heavy gauge pink wire must be con-
nected).
2. Within 10 seconds, press and release the Valet button: 2 times if you want to
delete remotes, 3 times to reset features or 4 times to reset virtual tach. These
features are described next.
Delete remotes: This feature erases all remotes from the memory of the
system. This is useful in cases when a customer's remote is lost or stolen.
Note: This does not reset the programmed features of the system or reset
the Virtual Tach setting.
Reset Features: This resets all features of the system to the factory default
settings.
Note: This feature does not delete the remotes from the system or reset
the Virtual Tach setting
Virtual Tach Reset: Deletes all previously learned values for Virtual Tach,
and on the next remote start sequence the unit begins virtual tach initial-
ization.
Note: The "Zap" feature on the Bitwriter does not reset the Virtual tach
setting.
3. Once you have selected the function step, press the Valet button once more
and hold it. The LED flashes and the horn honks to confirm the selected func-
tional step. Do not release the Valet button.
4. While holding the Valet button, press the button on the remote control. The
horn honks to confirm that the feature has been successfully reset. You can now
release the Valet button.
Remote Start Shutdown Diagnostics
To perform shutdown diagnostics:
With the ignition Off, press and hold the Valet button.
1.
2. Turn the ignition On and then back Off while holding the Valet button.
3. Release the Valet button.
4. Press and release the Valet button. The LED flashes to report the last
shutdown for one minute or until the ignition is turned on, as shown in the
following table:
LED Flashes Shutdown Mode
1 flash Timed out
2 flashes Over-rev shutdown
3 flashes Low or no RPM, low battery (voltage and virtual tach modes)
4 flashes Transmitter shutdown (or optional push button)
5 flashes (-) Hood Shutdown (H3/4 GRAY)
6 flashes (+) Shutdown (H3/3 BROWN)
7 flashes (-) Neutral safety shutdown (H3/1 BLACK/WHITE)
8 flashes Wait-to-start timed out
Bitwriters with a date code of 6a or older require an IC
upgrade (p/n 998M). Some bitwriters with a date code of
6B do not require the IC upgrade, refer to tech tip # 1112
for more information.
The Bitwriter® (p/n 998U)
requires chip version 2.7 or
newer to program this unit.
1
