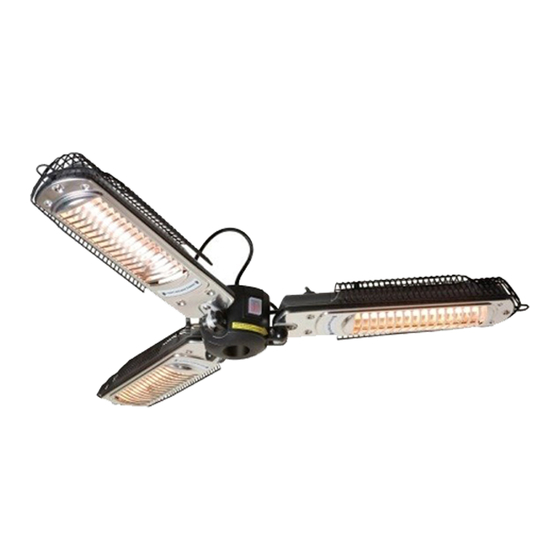

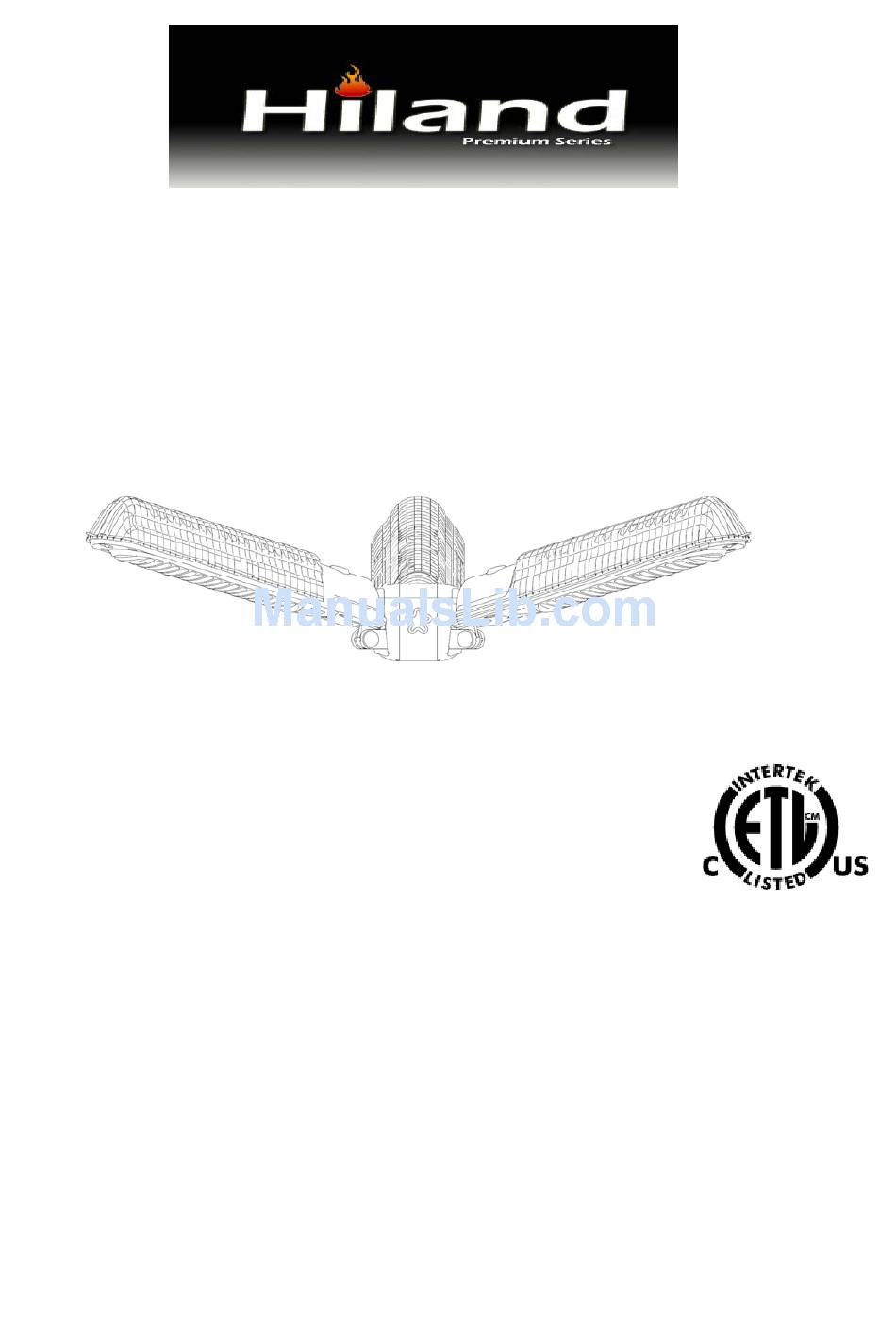

- Page 1 INSTRUCTION MANUAL PARASOL INFRARED PATIO HEATER MODEL: HLI-1P IMPORTANT NOTICE DO NOT RETURN YOUR HEATER TO PLACE OF PURCHASE UNTIL YOU HAVE CONTACTED OUR TOLL FREE CUSTOMER SERVICE DEPARTMENT AT 1-888-775-1330, 7 A.M. - 4 P.M., PST, MONDAY - FRIDAY.
- Page 2 WARNING ONLY USE THE UNIT ON A SECURED VERTICAL POLE THAT IS FIRMLY IN PLACE. READ ALL INSTRUCTIONS BEFORE OPERATING THIS HEATER. This heater is not intended for use in bathrooms, laundry areas or similar indoor locations where there may be moisture.
-
Page 3: Part List
PART LIST LOCKING SCREW HEATER PANEL MOUNTING PART A MOUNTING PART B MINOR SWITCH LOCKING SCREW ON-OFF SWITCH WHEN THE HEATER IS FOLED DOWN, THE POWER IS OFF AUTOMATICALLY. 1. MAKE SURE THAT ALL THE PARTS ARE PRESENT AND THAT THERE ARE NO MISSING PARTS, PLEASE EMPTY THE CARTON THOROUGHLY TO MAKE SURE AFTER UNPACKING THE UNIT FROM THE BOX. - Page 4 ASSEMBLY MAKE SURE THE HEATER PANELS ARE FOLDED DOWN BEFORE FIG 1 MOUNTING THE HEATER ONTO THE UMBRELLA. 1. Remove the heater brace from the heater body by sliding it downward, please see FIG 1. FIG 2 3. Place the heater onto an umbrella pole between 1’’ (25mm) and 2’’(50mm) in diameter by inserting the pole into the slot, please see FIG 2.
- Page 5 OPERATING INSTRUCTION 1. Connect the plug to a 120V/60HZ outlet. 2. Press the switch on the unit with the”●”for 500W of heat. Press the”● ●”switch only and two heater panels will activate producing 1000W of heat. Press the two switches together for 1500W of heat. 3.
- Page 6 CLEANING AND STORAGE 1. Turn the unit OFF and unplug the unit before cleaning. 2. Use only a soft cloth to clean the exterior. 3. Cleaner can be used to clean the interior. 4. Do not immerse the unit in water and never allow water to drip into the motor housing. Caution: Do not allow water to run into the interior or the heater as this could create a fire or electric shock hazard.
- Page 7 WARRANTY Warranty covers all components of this appliance to be free from defects in materials and workmanship for one year from the date of purchase. Within this period, manufacturer will correct any defects by repairing or replacing defective parts of the appliance. Replacement parts for this appliance are available from our customer service department at 888-775-1330.
Need help?
Do you have a question about the HLI-1P and is the answer not in the manual?
Questions and answers
I have the H1L-1P parasol patio heather that I used for several years under my parasol and would like to know if its recommended to use it without the parasol ( i.e. no weather / rain protection ) ?
No, the Hiland HLI-1P patio heater is designed to clamp onto a secured vertical parasol pole and should only be used in dry, ventilated areas. It is not intended for use in wet or moist environments such as bathrooms or areas exposed to rain.
This answer is automatically generated
Why would only 2 out of the 4 heaters be working on the hiland electric parasol patio heater ?
